Description

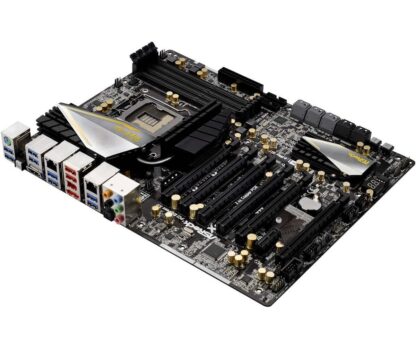

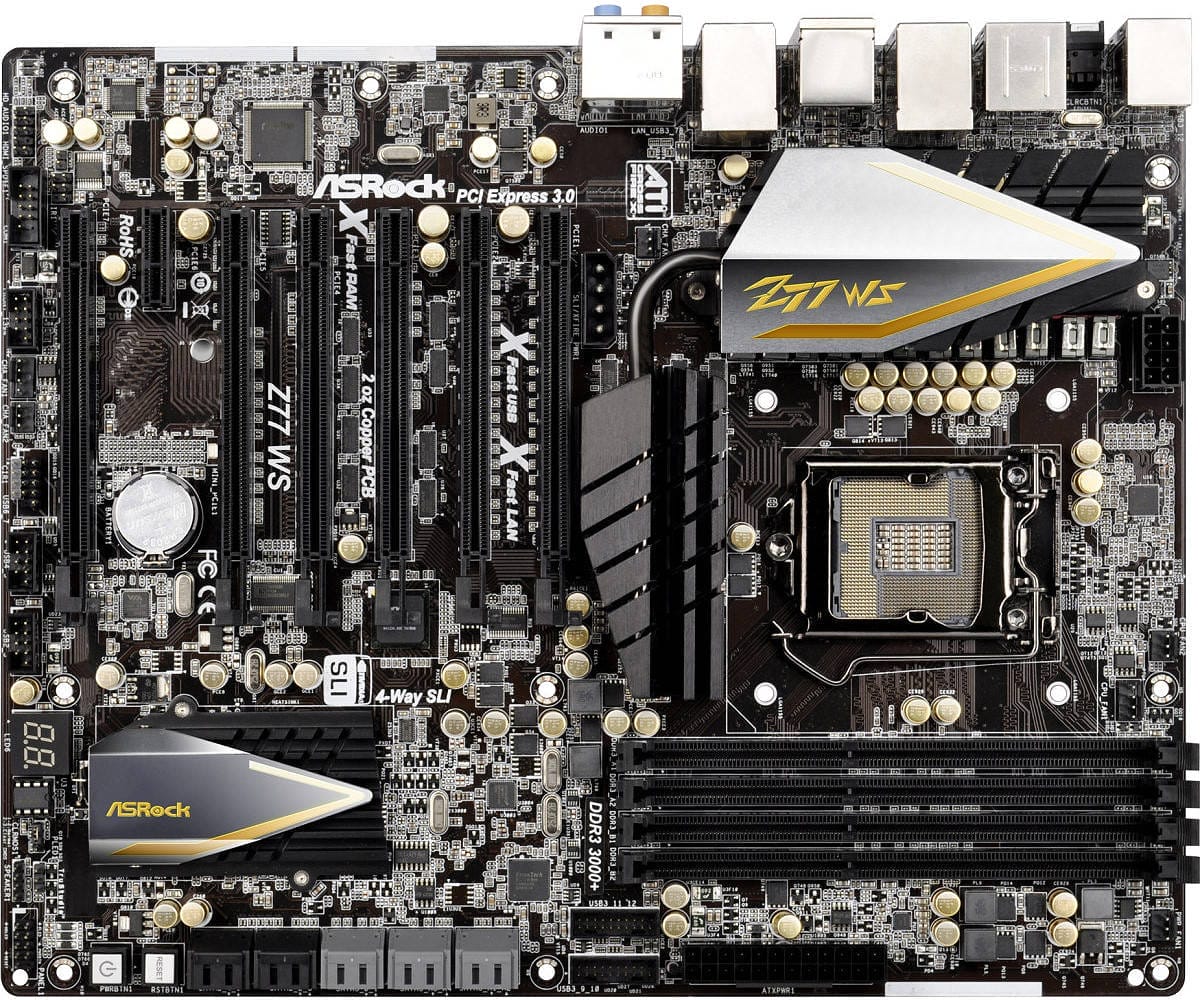

ASRock Z77 WS is a robust Socket 1155 ATX motherboard, designed for Intel® 3rd and 2nd generation Core™ processors. This motherboard offers excellent performance and versatility for both workstations and high-performance systems. It features various connections, including USB 3.0, HDMI, a network port for fast connections, and multiple SATA3 ports for fast storage options. Additionally, it includes various PCIe slots for expansion cards. It’s an ideal choice for those seeking a reliable and flexible base for their PC build.
ASRock Z77 WS
Product: ASRock Z77 WS
Socket: LGA1155 (compatible with 2nd and 3rd Gen processors)
Category: Motherboards
Brand: ASRock
Condition: Refurbished
EAN: 4711140879963
SKU: 90-MXGN70-A0UAYZ, Z77 WS
Warranty: 6 months
Drivers for the ASRock Z77 WS
Processors supported by the ASRock Z77 WS
Package Contents:
- Motherboard (ASRock Z77 WS)
- IO-Shield (metal backplate)
- No manual
- No driver CD
- No cables
CPU
– Supports 3rd and 2nd Generation Intel® CoreTM i7 / i5 / i3 in LGA1155 Package
– Digi Power Design
– 8 + 4 Power Phase Design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series unlocked CPU
Chipset
– Intel® Z77
– Supports Intel® Rapid Start Technology and Smart Connect Technology
Memory
– Dual Channel DDR3 Memory Technology
– 4 x DDR3 DIMM slots
– Supports DDR3 3000+(OC)/2400(OC)/2133(OC)/1866(OC)/
1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB (see CAUTION 1)
– Supports Intel® Extreme Memory Profile (XMP)1.3/1.2
Expansion Slot
– 5 x PCI Express 3.0 x16 slots (PCIE2: x16 mode OR PCIE1/ PCIE3/PCIE5/PCIE7: x16/0/16/0 or x8/8/8/8 mode)
* PCIE 3.0 is only supported with Intel® Ivy Bridge CPU. With Intel® Sandy Bridge CPU, it only supports PCIE 2.0.
– 1 x PCI Express 2.0 x16 slot (PCIE4: x4 mode)
– 1 x PCI Express 2.0 x 1 slot
– Supports AMD Quad CrossFireXTM, 4-Way CrossFireXTM, 3-Way CrossFireXTM and CrossFireXTM
– Supports NVIDIA® Quad SLITM, 4-Way SLITM, 3-Way SLITM and SLITM
Graphics
* Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
– Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video 2.0, Intel® InTruTM 3D, Intel® Clear Video HD Technology, Intel® InsiderTM, Intel® HD Graphics 2500/4000
– Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU.
– Max. shared memory 1760MB
– Supports HDMI 1.4a Technology with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required) (see CAUTION2)
– Supports HDCP function with HDMI port
– Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI port
Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec)
– Premium Blu-ray audio support
LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Broadcom BCM57781
– Supports Wake-On-LAN
– Supports Energy Efficient Ethernet 802.3az
– Supports Dual LAN with Teaming function
– Supports PXE
Storage
– 2 x SATA3 6.0 Gb/s connectors by Intel® Z77, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage and Intel Smart Response Technology), NCQ, AHCI and Hot Plug functions
– 4 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and “Hot Plug” functions (SATA3_A4 connector is shared with eSATA3 port)
– 4 x SATA2 3.0 Gb/s connectors by Intel® Z77, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage and Intel Smart Response Technology), NCQ, AHCI and Hot Plug functions

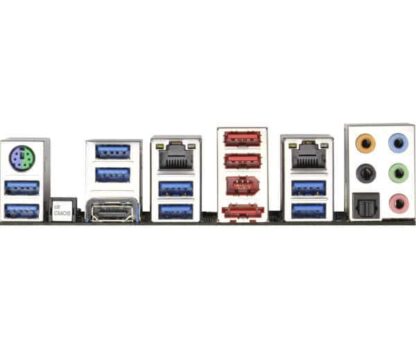

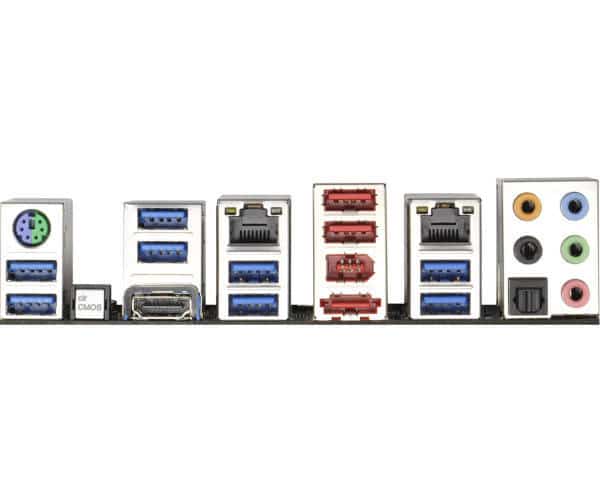

Rear Panel I/O
I/O Panel
– 1 x PS/2 Keyboard/Mouse Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 2 x Ready-to-Use USB 2.0 Ports
– 1 x eSATA3 Connector
– 8 x Ready-to-Use USB 3.0 Ports
– 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– 1 x IEEE 1394 Port
– 1 x Clear CMOS Switch with LED
– HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front Speaker/Microphone
USB3.0
– 4 x Rear USB 3.0 ports by Intel® Z77, support USB 1.0/2.0/3.0 up to 5Gb/s
– 4 x Rear USB 3.0 ports by Etron EJ188, support USB 1.0/2.0/3.0 up to 5Gb/s
– 2 x Front USB 3.0 headers by Etron EJ188 (support 4 USB 3.0 ports), support USB 1.0/2.0/3.0 up to 5Gb/s
Connector
– 1 x IR header
– 1 x CIR header
– 1 x COM port header
– 1 x HDMI_SPDIF header
– 1 x IEEE 1394 header
– 1 x Power LED header
– 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
– 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
– 1 x Power Fan connector (3-pin)
– 24 pin ATX power connector
– 8 pin 12V power connector
– SLI/XFire power connector
– Front panel audio connector
– 3 x USB 2.0 headers (support 6 USB 2.0 ports)
– 2 x USB 3.0 headers (support 4 USB 3.0 ports)
– 1 x Dr. Debug with LED
– 1 x Power Switch with LED
– 1 x Reset Switch with LED
– 1 x Clear CMOS Switch with LED
BIOS Feature
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports jumperfree
– SMBIOS 2.3.1 Support
– CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment
Hardware Monitor
– CPU Temperature Sensing
– Chassis Temperature Sensing
– CPU/Chassis/Power Fan Tachometer
– CPU/Chassis Quiet Fan (Allows Chassis Fan Speed Auto- Adjust by CPU Temperature)
– CPU/Chassis Fan Multi-Speed Control
– Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– Premium Gold Capacitor design (100% Japan-made
high-quality Conductive Polymer Capacitors)
Certifications
– FCC, CE, WHQL
– ErP/EuP Ready (ErP/EuP ready power supply is required)
