Product information

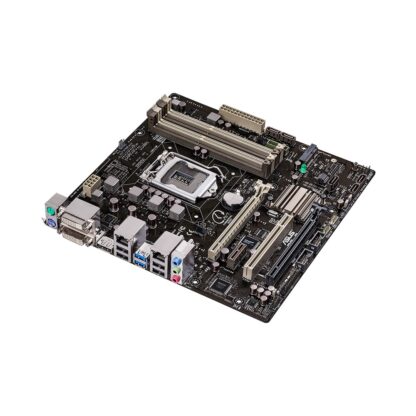

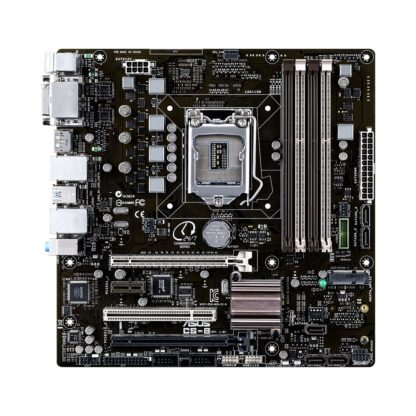

Asus CS-B: Motherboard | Micro ATX | Socket 1150 | Q87 Chipset | 2x Lan | 4x DDR3 | SATA 600 | Mini SATA | PCI | PCI-e 2.0 x16 | PCI-e 3.0 x16 | USB 2.0 | USB 3.1 (Gen1, 5Gb/s) | DVI-D| display port


Product: Asus CS-B
Socket: Socket 1150
Category: motherboards
Brand: ASRock
Condition: Used, latest available bios version installed
EAN:
0886227555185, 4716659555186
SKU: 90MB0G20-M0EAY0
Warranty:
6 months
Note: no backplate included


Package contents:
– Motherboard (Asus CS-B)
– No Backplate (blende)
– No manual
– No drivers CD
– No cables


CPU
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.


Chipset
Intel® Q87


Memory
4xDIMM, Max. 32GB, DDR3 1600/1333/1066MHz Memory
Dual Channel Memory Architecture


Graphic
Integrated Graphics Processor
Multi-VGA output support : DVI-D/DVI-I/DisplayPort ports
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports DVI-I with max. resolution 1920 x 1200 @ 60 Hz
– Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Supports up to 3 displays simultaneously


Expansion Slots
1 x PCIe 3.0/2.0 x16 (beige)
1 x PCIe 2.0 x16 (x4 mode, black)
1 x PCIe 2.0 x1 (brown)
1 x PCI (beige)
1 x mini PCIe 2.0 x1 (full length, black) *


Storage
Intel® Q87 chipset : *
5 x SATA 6Gb/s port(s), brown
1 x mini SATA 6Gb/s port(s), black
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology


LAN
Intel® I217LM, 1 x Gigabit LAN Controller(s)
Realtek® 8111G, 1 x Gigabit LAN Controller(s)


Audio
Realtek® ALC887-VD 8-Channel High Definition Audio CODEC
– Supports : Jack detection, Multi-streaming, Front Panel Jack retasking, Anti-pop Function


USB Ports
Intel® Q87 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)
Intel® Q87 chipset :
8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
Special Features
– TUF Components (Alloy choke, Ti-Cap. & MOSFET; certified by military-standard)
ASUS Exclusive Features :
-AI Suite 3
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
– ASUS FanXpert 2
ASUS EZ DIY :
– ASUS Crash Free BIOS 3
– ASUS EZ Flash 2
– ASUS MyLogo 2
ASUS Q-Design :
– ASUS Q-Slot
– ASUS Q-DIMM
TPM IC Onboard


Operating System Support
Windows® 8
Windows® 7

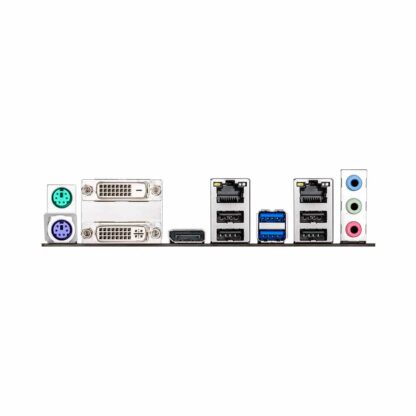

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x DVI-I
1 x DisplayPort
2 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1
4 x USB 2.0
3 x Audio jack(s)


Internal I/O Ports
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x LPT1 header
2 x COM port(s) connector(s)
5 x SATA 6Gb/s connector(s)
1 x mSATA connector
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)


Accessories
I/O Shield


BIOS
128Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3


Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE


Form Factor
mATX Form Factor
9.6 inches x 9.6 inches ( 24.4 cm x 24.4 cm )

Specification

Weight1 kg
Intel

LGA1150

Brand

Asus

Form Factor

Micro-ATX

Chipset

Intel Q87

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

32 GB

Connectors

Displayport, DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-600

Interfaces

Mini PCI Express, mini-PCIe 2.0 x1, PCI, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

Model

CS-B

particularities

Dual LAN

Length

24.4 cm

Width

24.4 cm

package content

Motherboard and Backplate (Blende)

Asus CS-B – NO I/O-Shield LGA1150 Motherboard

Fast delivery

  • 24-7 reliable motherboard, built for business or commercial use, with IntelR vPro and Q87 platform
  • LGA1150 socket for 4th generation Intel®Core™ i7/ i5/i3/ Pentium®/ Celeron® processors
  • Intel® Q87 Express Chipset
  • The highest testing standards ensure reliability and durability over long periods of use
    Custom motherboard design and commercially-focused features – Building on ASUS’ extensive experience in motherboard technologies that keep the system running stably and non-stop, 24-7
  • Enhanced with TUF components certified for military-grade reliability

SKU: Asus CS-b-kaal Categories: , ,
