Beschrijving
Asus CS-B: Moederbord | Micro-ATX | Socket 1150 | Q87 Chipset | 2x Lan | 4x DDR3 | SATA-600 | Mini-Sata | PCI | PCI-e 2.0 x16 | PCI-e 3.0 x16 | USB 2.0 | USB 3.1 (Gen1, 5Gb/s) | DVI-D| Displayport
Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers

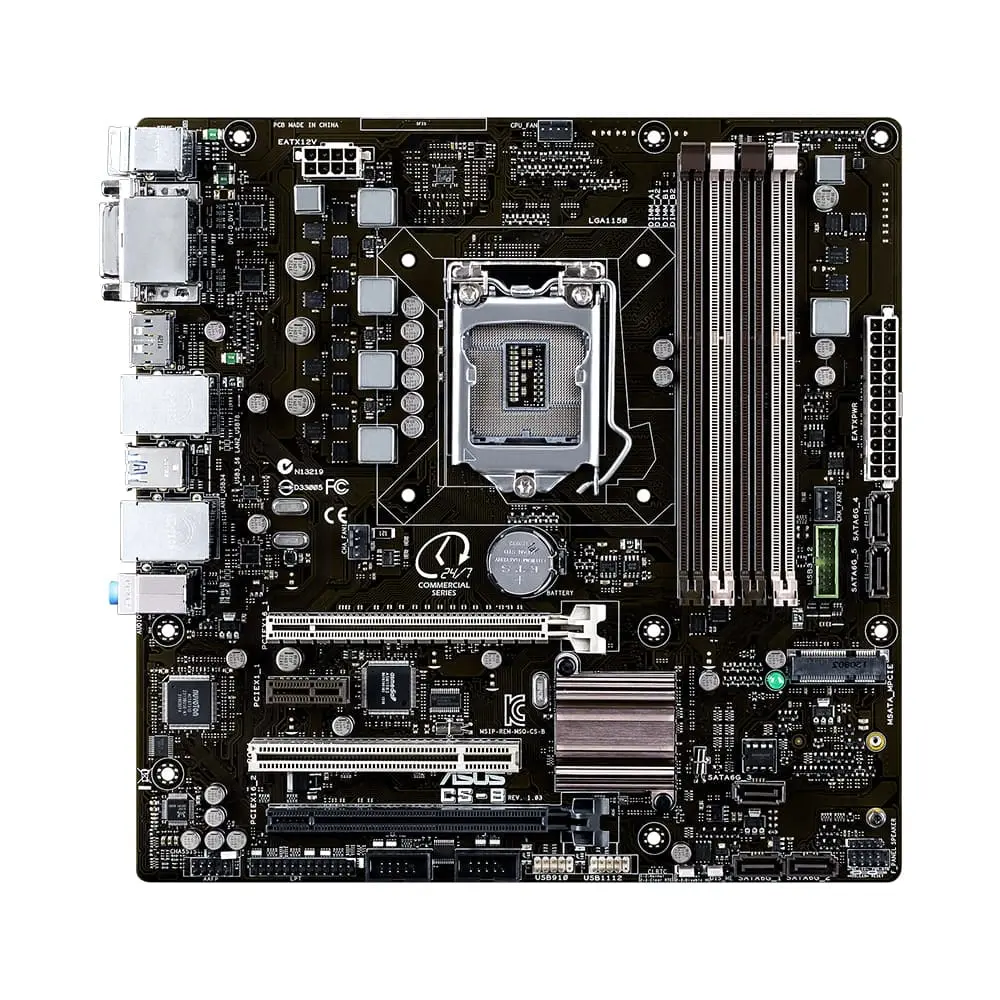

Product:Asus CS-B
Socket: Socket 1150
Categorie: moederborden
Merk: ASRock
Staat: Gebruikt, laatst beschikbare bios versie geïnstalleerd
EAN: 0886227555185, 4716659555186
SKU: 90MB0G20-M0EAY0
Garantie: 6 maanden
Letop: Geen I/O-Shield
Inhoud pakket:
– Moederbord (Asus CS-B)
– Geen I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels
CPU
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Intel® Q87
Memory
4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Memory
Dual Channel Memory Architecture
Graphic
Integrated Graphics Processor
Multi-VGA output support : DVI-D/DVI-I/DisplayPort ports
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports DVI-I with max. resolution 1920 x 1200 @ 60 Hz
– Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Supports up to 3 displays simultaneously
Expansion Slots
1 x PCIe 3.0/2.0 x16 (beige)
1 x PCIe 2.0 x16 (x4 mode, black)
1 x PCIe 2.0 x1 (brown)
1 x PCI (beige)
1 x mini-PCIe 2.0 x1 (full-length, black) *
Storage
Intel® Q87 chipset : *
5 x SATA 6Gb/s port(s), brown
1 x mini-SATA 6Gb/s port(s), black
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology
LAN
Intel® I217LM, 1 x Gigabit LAN Controller(s)
Realtek® 8111G, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC887-VD 8-Channel High Definition Audio CODEC
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function
USB Ports
Intel® Q87 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)
Intel® Q87 chipset :
8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
Special Features
– TUF Components (Alloy choke, Ti-Cap. & MOSFET; certified by military-standard)
ASUS Exclusive Features :
– AI Suite 3
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
– ASUS Fan Xpert 2
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 2
– ASUS MyLogo 2
ASUS Q-Design :
– ASUS Q-Slot
– ASUS Q-DIMM
TPM IC Onboard
Operating System Support
Windows® 8
Windows® 7
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x DVI-I
1 x DisplayPort
2 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1
4 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x LPT1 header
2 x COM port(s) connector(s)
5 x SATA 6Gb/s connector(s)
1 x mSATA connector
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
Accessories
I/O Shield
BIOS
128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Form Factor
mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
