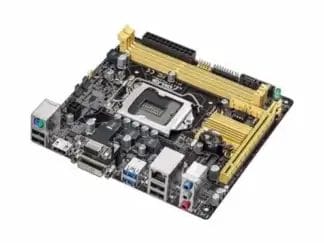

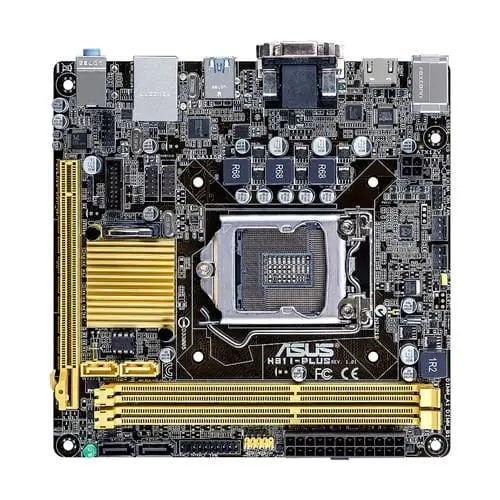

Asus H81I-Plus LGA1150 motherboard

The Asus H81I-Plus is a Mini-ATX LGA1150 motherboard based on the Intel H81 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the Asus H81I-Plus has 4 Serial ATA connections for hard drives and SSDs. The built-in sound card offers 7.1-channel sound and is based on a Realtek ALC887 chip.

Features: Motherboard | Mini ITX | LGA1150 | 2x DDR3 | 2x SATA-300 | 2x SATA 600 | 8x USB 2.0 | 4x USB 3.2 (Gen1, 5Gb/s) | PCI-e 2.0 x16 | DVI-D | HDMI | VGA (D Sub)

---

Product: Asus H81I-Plus
Socket: LGA1150
Category: motherboards
Brand: Asus
Condition: Used – BIOS updated to the latest version
EAN:0886227542758, 4716659542759
SKU: 90MB0GC0-M0EAY0, H81I-PLUS
Warranty: 6 months

---

Package contents:
– Motherboard (Asus H81I-Plus)
– Backplate (Blende)
– No manual
– No drivers CD
– No cables

---

CPU

Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

---

Chipset

Intel® H81

---

Memory

2xDIMM, Max. 16GB, DDR3 1600/1333/1066MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.

---

Graphic

Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
– Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
– Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

---

Expansion Slots

1 x PCIe x16 2.0

---

Storage

Intel® H81 chipset :
2 x SATA 6Gb/s port(s),
2 x SATA 3Gb/s port(s)
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1

---

LAN

1 x Gigabit LAN Controller(s)

---

Audio

Realtek ALC887/897 8-Channel High Definition Audio CODEC *2
– Supports : Front Panel Jack retasking, up to 24-Bit/192kHz playback

---

USB Ports

Intel® H81 chipset :
2 x USB 3.1 Gen 1 port(s)
Intel® H87 chipset :
2 x USB 2.0 port(s)

---

Operating System Support

Windows® 8
Windows® 7

---

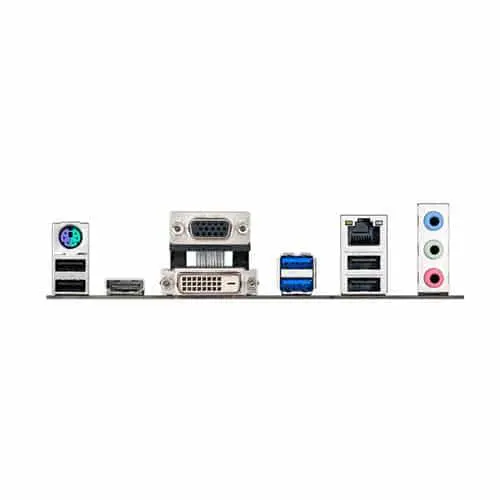

Back I/O Ports

1 x PS/2 keyboard/ mouse (green)
1 x DVI
1 x D Sub
1x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 (blue)
2 x USB 2.0
3 x Audio jack(s)

---

Internal I/O Ports

USB 2.0 connectors *1
USB 3.2 Gen 1 (3.1 Gen 1) connectors *2
Number of SATA III connectors: *6
Number of SATA connectors: 6
S/PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
Number of EATX power connectors: 1
CPU fan connector: Yes
Number of chassis fan connectors: 1
Chassis intrusion connector: Yes
Peripheral (Molex) power connectors (4-pin): 1
TPM connector: Yes

---

Accessories

I/O Shield

---

BIOS

64MB Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
manageability
WfM 2.0, DMI 2.0, WOL by PME, PXE

---

Form Factor

Mini-ITX Form Factor (17cm x 17cm )
