Asus H81M-K LGA1150 motherboard

Brand: Asus
Product: Asus H81M-K
Socket: Socket 1150
Category: motherboards
Memory: 2x DDR3 (16GB Max)
Form-Factor: Micro-ATX
-Condition: Used – BIOS updated to the latest version
EAN:
0886227550241, 4716659595823
SKU: 90MB0HI0-M0EAY0, H81M-K
Warranty:
6 months

Out of stock

Vergelijk
SKU: H81M-K Categories: , , Tags: , ,

Description

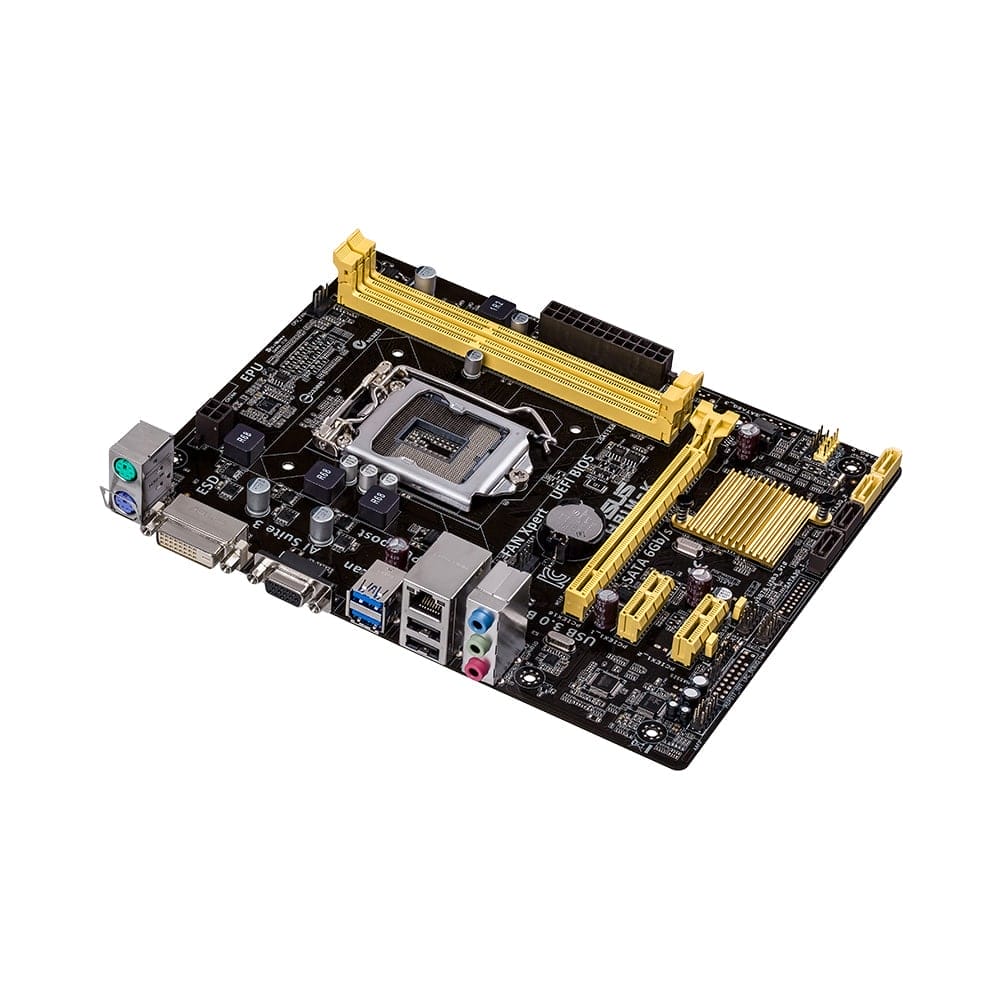

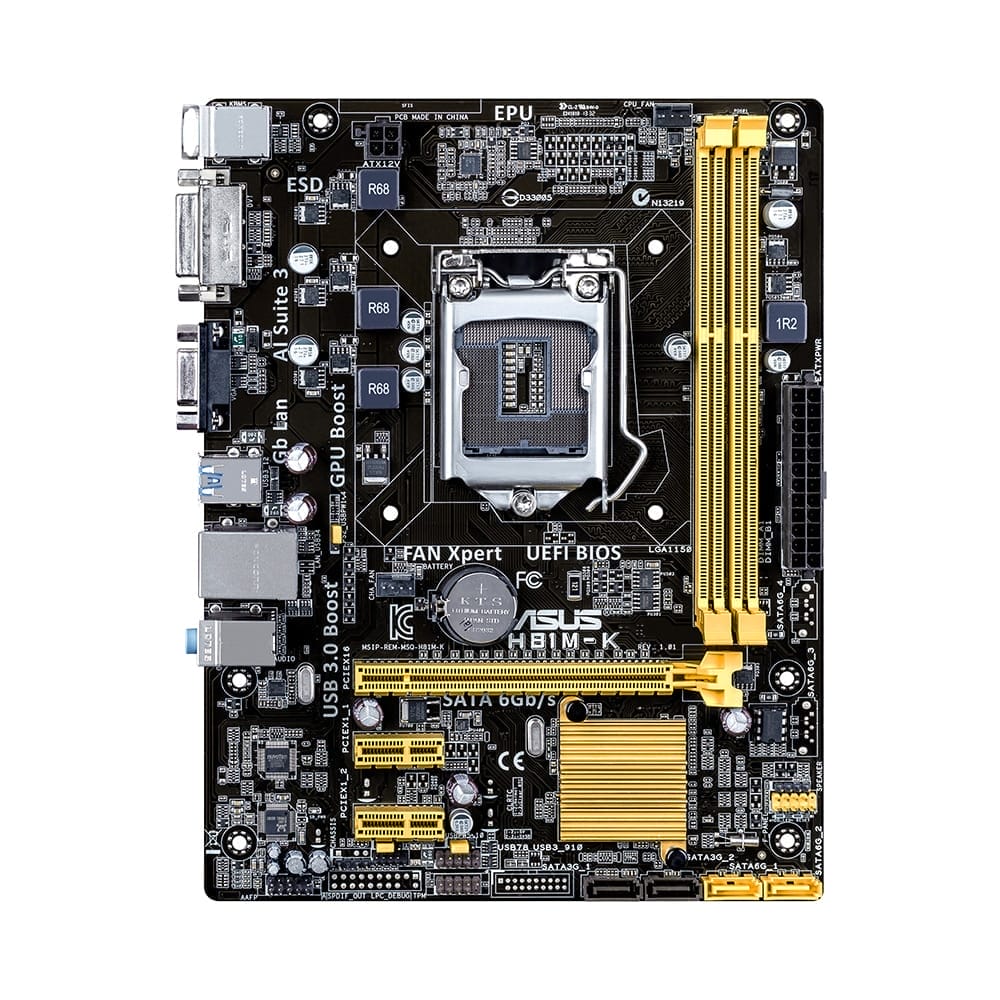

The Asus H81M-K is a Micro-ATX LGA1150 motherboard based on the Intel H81 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the Asus H81M-K has 4 Serial ATA connections for hard drives and SSDs. The built-in sound card offers 7.1 channel sound and is based on a Realtek ALC887 chip.

Features: Motherboard | Micro-ATX | LGA1150 | 2x DDR3 | 2x SATA-600 | 2x SATA-300 | 1x PCI-e 2.0 x16 | 2x PCI-e 2.0 x1 | USB 3.2 (Gen1, 5 Gb / s) | USB 2.0 | DVI-D | D-Sub (VGA)

Click here for the supporting CPUs
Click here for the drivers

Product: Asus H81M-K
Socket: LGA1150
Category: motherboards
Brand: Asus
-Condition: Used – BIOS updated to the latest version
EAN:
4716659595823
SKU: 90MB0HI0-M0EAY0, H81M-K
Warranty:
6 months

Package content:
– Motherboard (Asus H81M-K)
– Backplate (Blende)
– No manual
– No CD with drivers
– No cables


CPU
Intel® Socket 1150 for 4th Generation Core ™ i7 / Core ™ i5 / Core ™ i3 / Pentium® / Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list


Chipset
Intel® H81


Memory
2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.


Graphic
Integrated Graphics Processor
Multi-VGA output support: DVI / RGB ports
Supports DVI with max. Resolution 1920 x 1200 @ 60 Hz
Supports RGB with max. Resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru ™ 3D, Quick Sync Video, Clear Video HD Technology, Insider ™


Expansion Slots
1 x PCIe x16
2 x PCIe 2.0 x1


Storage
Intel® H81 chipset:
2 x SATA 6Gb / s port (s), yellow,
2 x SATA 3Gb / s port (s), dark brown,
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology * 1


LAN
Realtek® 8111G, 1 x Gigabit LAN Controller (s)


Audio
Realtek ALC887 / 897 8-Channel High Definition Audio CODEC * 2
Supports: Front Panel Jack retasking, up to 24-Bit / 192kHz playback


USB Ports
Intel® H81 chipset:
2 x USB 3.1 Gen 1 port (s) (2 at back panel, blue)
Intel® H81 chipset:
6 x USB 2.0 port (s) (2 at back panel, black, 4 at mid-board)


Special Features
ASUS EPU:
– EPU
ASUS Exclusive Features:
– GPU Boost
– AI Suite 3
– Ai Charger
– Anti-Surge
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
– Network iControl
– USB 3.0 Boost
– Disk Unlocker
ASUS Quiet Thermal Solution:
– Stylish Fanless Design Heat-sink solution
– ASUS Fan Xpert
ASUS EZ DIY:
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 2
ASUS Q-Design:
– ASUS Q-Slot


Operating System Support
Windows® 8
Windows® 7

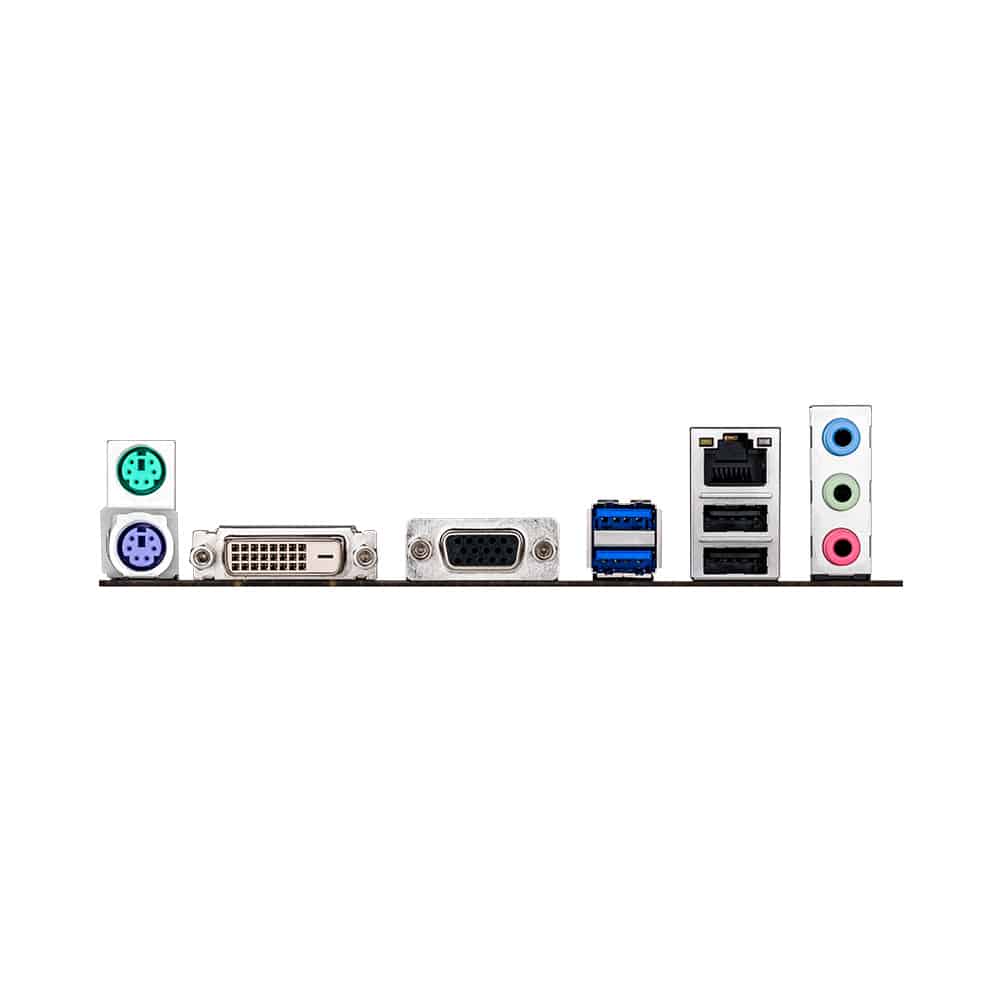

Back I / O Ports
1 x PS / 2 keyboard (purple)
1 x PS / 2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port (s)
2 x USB 3.2 Gen 1 (blue)
2 x USB 2.0
3 x Audio jack (s)


Internal I / O Ports
1 x CPU Fan connector (s) (1 x 4-pin)
1 x Chassis Fan connector (s) (1 x 4-pin)
2 x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s)
2 x SATA 6Gb / s connector (s)
2 x SATA 3Gb / s connector (s)
1 x S / PDIF out header (s)
1 x 24-pin EATX Power connector (s)
1 x 4-pin ATX 12V Power connector (s)
1 x Front panel connector (s)
1 x Front panel audio connector (s) (AAFP)
1 x Internal speaker connector (s)
1 x Clear CMOS jumper (s)


Accessories
I / O Shield


BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 2.0, WOL by PME, PXE


Form Factor
uATX Form Factor
8.9 inch x 6.9 inch (22.6 cm x 17.5 cm)

Additional information

Weight 1 kg
Intel

LGA1150

Brand

Asus

Chipset

Intel H81

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

16 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI-e 2.0 x1, PCI-e 2.0 x16

Socket
