Product informatie

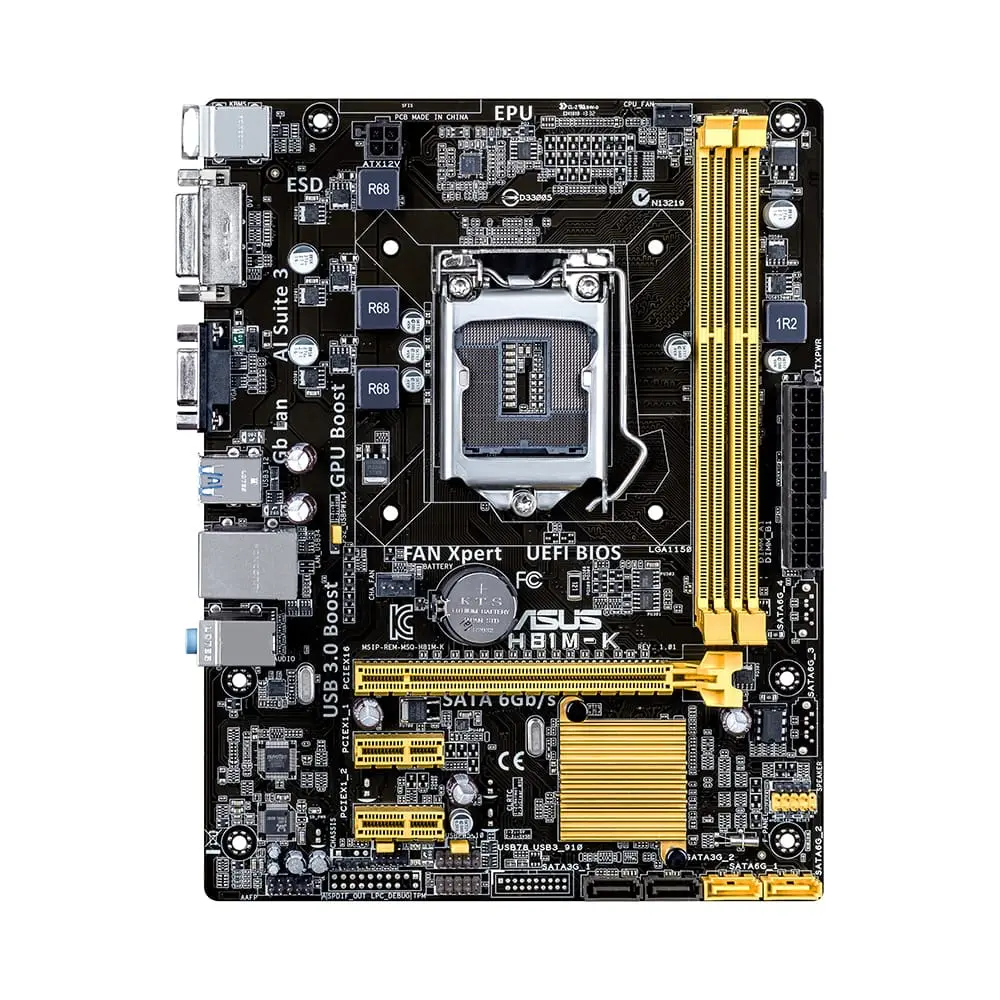

De Asus H81M-K is een Micro-ATX Socket 1150 moederbord gebaseerd op de Intel H81 chipset. Het bord moet worden gecombineerd met DDR3-geheugen, waarvoor 2 slots beschikbaar zijn. In totaal heeft de Asus H81M-K 4 Seriële ATA-aansluitingen voor harde schijven en SSD’s. De ingebouwde geluidskaart biedt 7.1-kanaals geluid en is gebaseerd op een Realtek ALC887-chip.

Kenmerken: Moederbord | Micro-ATX | Socket 1150 | 2x DDR3 | 2x SATA-600 | 2x SATA-300 | 1x PCI-e 2.0 x16| 2x PCI-e 2.0 x1 | USB 3.2 (Gen1, 5 Gb / s) | USB 2.0  | DVI-D | D-Sub (VGA)

Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers

Product: Asus H81M-K
Socket: Socket 1150
Categorie: moederborden
Merk: Asus
Staat: Used – BIOS bijgewerkt naar de nieuwste versie
EAN:4716659595823
SKU: 90MB0HI0-M0EAY0, H81M-K
Garantie: 6 maanden

Inhoud pakket:
– Moederbord (Asus H81M-K )
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels

CPU
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset
Intel® H81

Memory
2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.

Graphic
Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
– Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
– Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Expansion Slots
1 x PCIe x16
2 x PCIe 2.0 x1

Storage
Intel® H81 chipset :
2 x SATA 6Gb/s port(s), yellow,
2 x SATA 3Gb/s port(s), dark brown,
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1

LAN
Realtek® 8111G, 1 x Gigabit LAN Controller(s)

Audio
Realtek ALC887/897 8-Channel High Definition Audio CODEC *2
– Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback

USB Ports
Intel® H81 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
Intel® H81 chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

Special Features
ASUS EPU :
– EPU
ASUS Exclusive Features :
– GPU Boost
– AI Suite 3
– Ai Charger
– Anti-Surge
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
– Network iControl
– USB 3.0 Boost
– Disk Unlocker
ASUS Quiet Thermal Solution :
– Stylish Fanless Design Heat-sink solution
– ASUS Fan Xpert
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 2
ASUS Q-Design :
– ASUS Q-Slot

Operating System Support
Windows® 8
Windows® 7

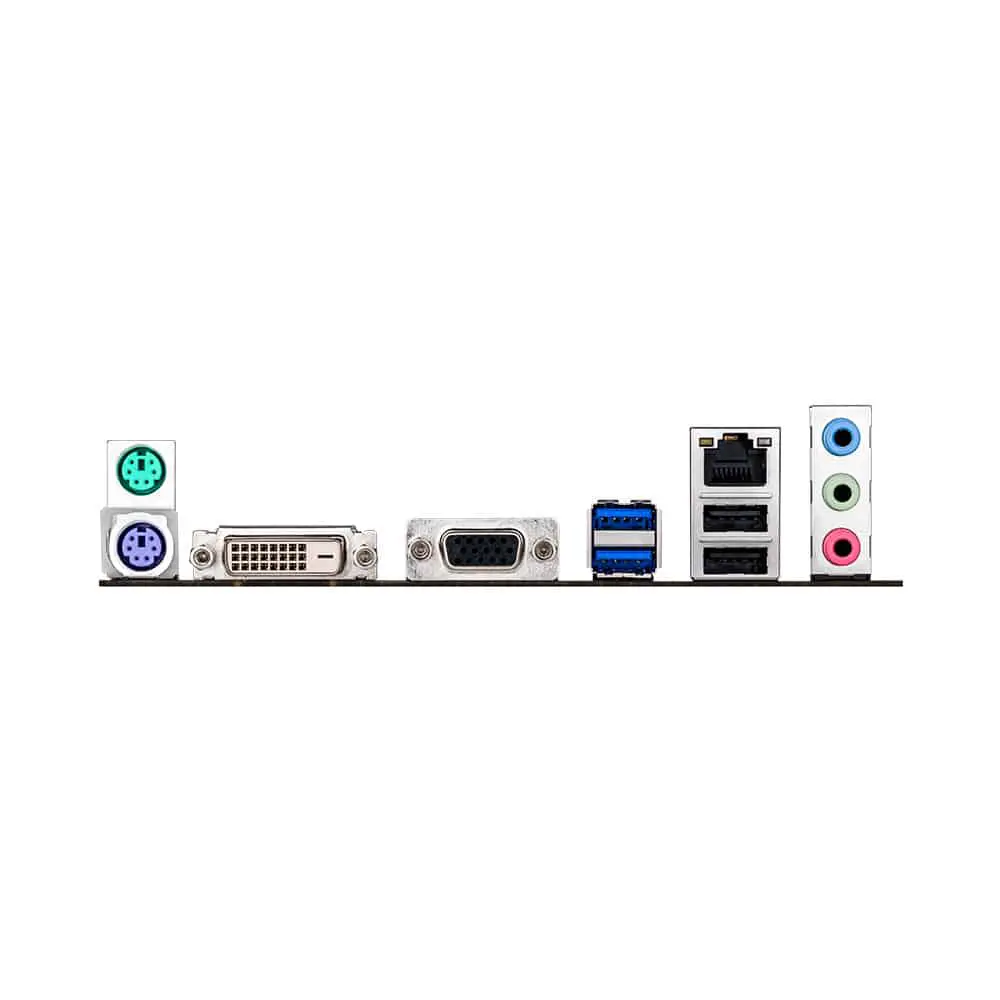

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 (blue)
2 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)

Accessories
I/O Shield

BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 2.0, WOL by PME, PXE

Form Factor
uATX Form Factor
8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )
