Product information

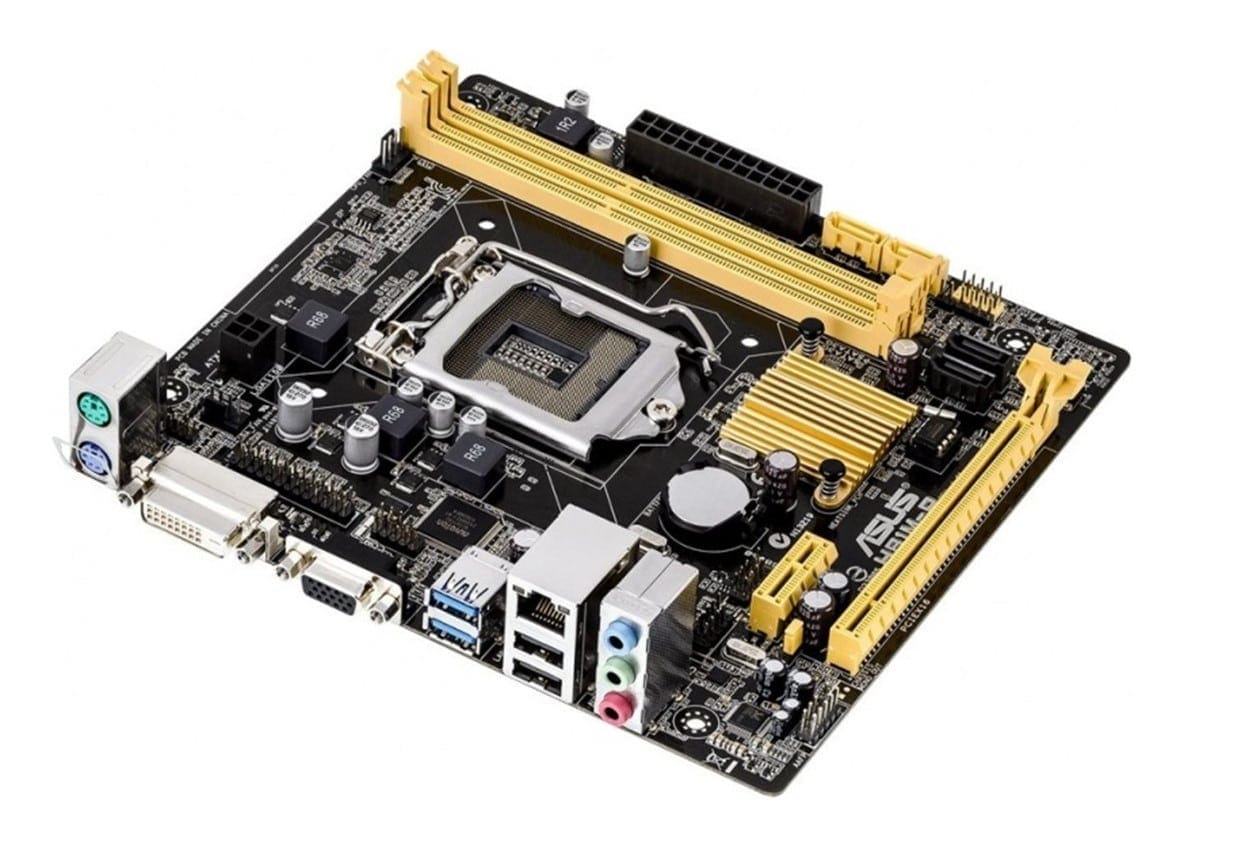

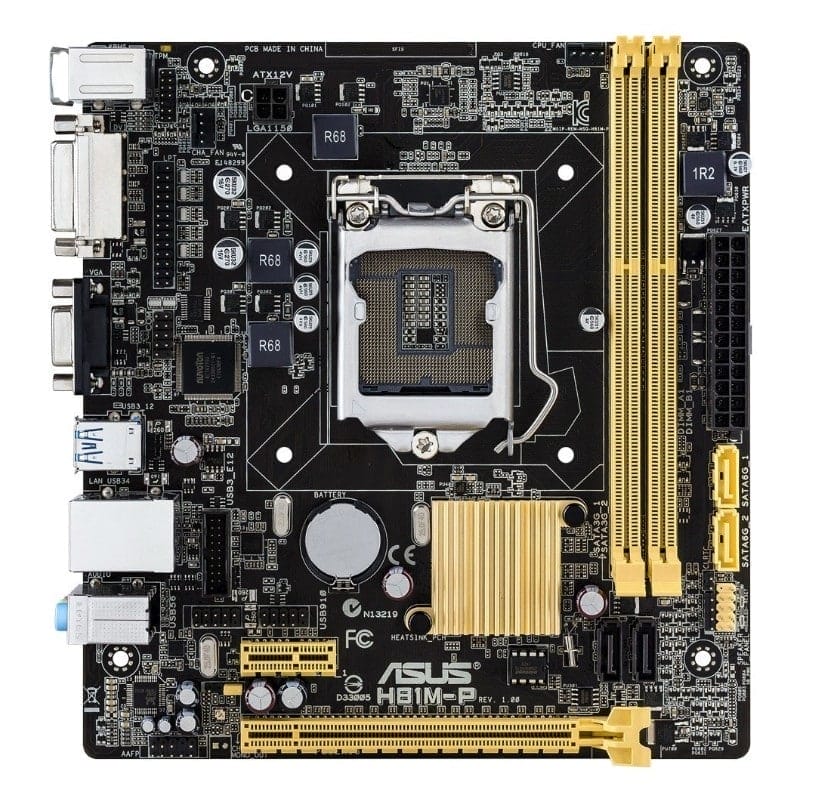

The Asus H81M-P SI is an M-ATX Socket 1150 motherboard based on the Intel H81 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. The Asus H81M-P SI has a total of 4 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC887 chip.

Features: Motherboard | M-ATX | Socket 1150 | 2x DDR3 | 2x SATA-600 | 2x SATA-300 | PCI-e x1 | PCIe 2.0 x16 | USB 2.0 | USB 3.0 | DVI | VGA (D-Sub)

Product: Asus H81M-P SI
Socket: LGA1150
Category: motherboards
Brand: Asus
EAN: 0886227931415, 0886227931422, 4716659931423
Condition: Refurbished – BIOS updated to the latest version
SKU: 90MB0KS0-M0EAY0, 90MB0KS0-M0ECY1, H81M-P
Warranty: 6 months

package contents:
– Motherboard (H81M-P SI)
– I/O-Shield (Blende)
– No manual
– No driver CD
– cables

CPU
– 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket

Chipset
– Intel® H81 Express Chipset

Memory
– Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max
– Supports Dual Channel mode

BIOS
– The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Graphics
– Integrated Graphics Processor – Intel^® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz

Audio
– Chip integrated by Realtek® ALC887
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 spec

LAN
– Supports LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111G

Slots
– 1 x PCIe 2.0 x16 slot
– 1 x PCIe x1 slot

Connector
– 1 x ATX 24-Pin power connector
– 1 x 4-pin ATX 12V power connector
– 2 x SATA III connectors
– 2 x SATAII connectors
– 2 x USB 2.0 connectors
– 1 x Serial port connector
– 1 x Trusted Platform Module (TPM) header
– 1 x Chasis intrusion connector
– 1 x Front Panel Audio connector

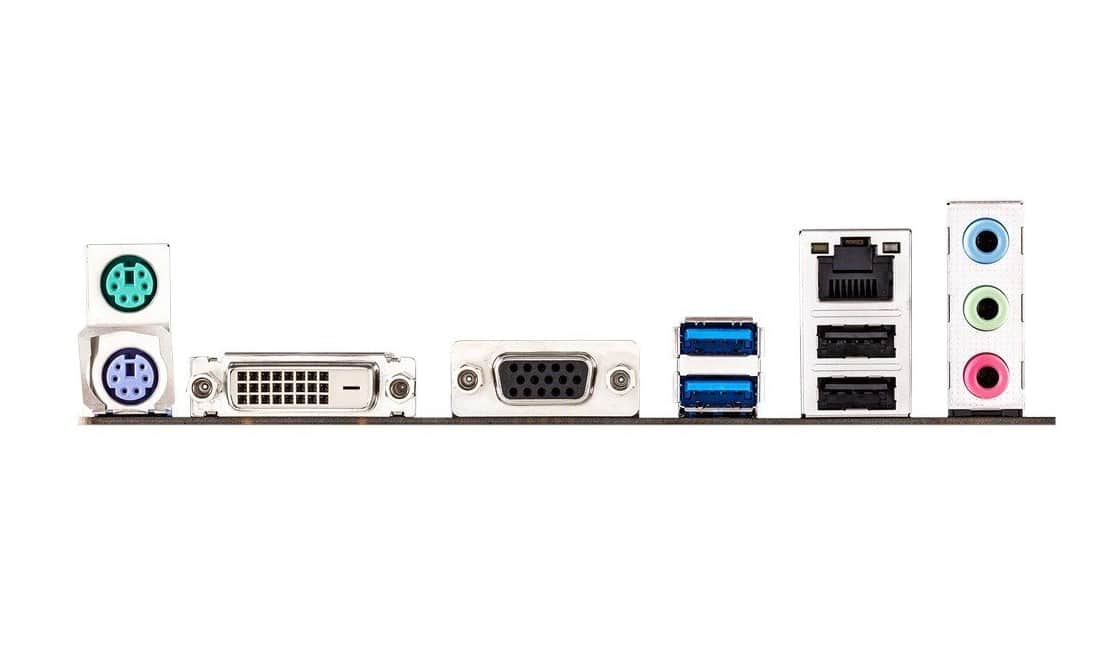

Rear Panel I/O
I/O Panel
– 1 x PS/2 keyboard port
– 1 x PS/2 mouse port
– 4 x USB 2.0 ports
– 2 x USB 3.0 ports
– 1 x RJ45 LAN Jack
– 1 x 3 in 1 audio jack
– 1 x Graphics card port
– 1 x DVI-D port

Accessories
– I/O Shield

Form Factor
– Micro ATX Form Factor; 22.6cm x 17.3cm

OS
– Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
