Product informatie

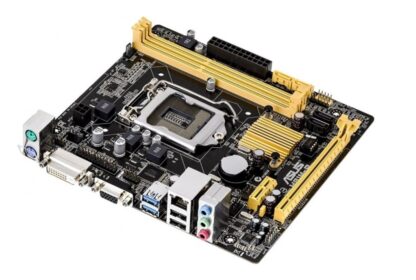

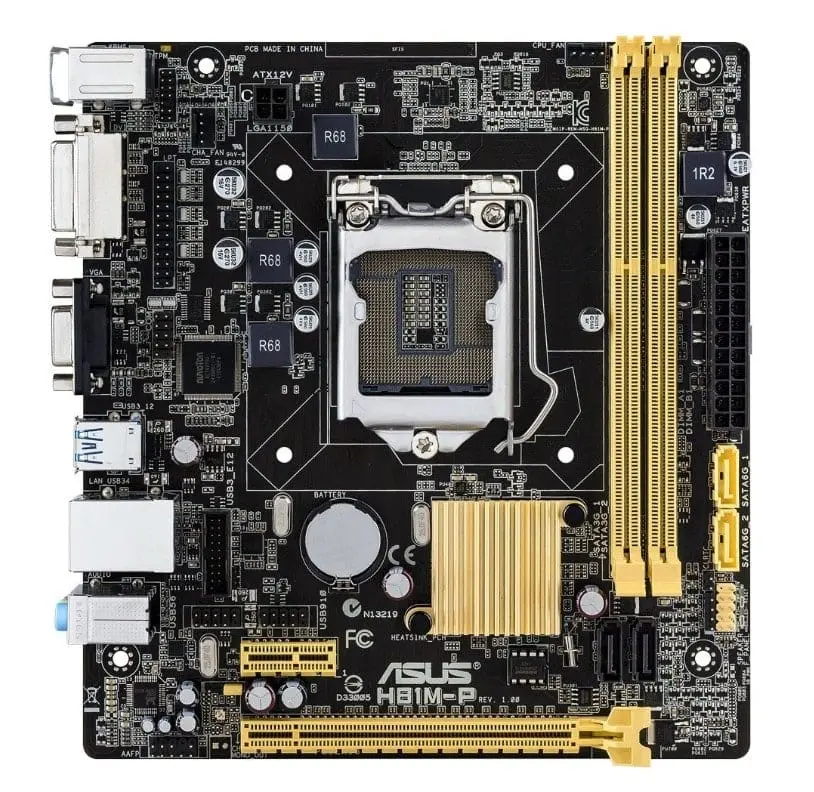

De Asus H81M-P SI is een M-ATX Socket 1150 moederbord gebaseerd op de Intel H81 chipset. Het bord dient gecombineerd te worden met DDR3 geheugen, waarvoor 2 sloten beschikbaar zijn. In totaal heeft de Asus H81M-P SI, 4 Serial ATA aansluitingen voor harddisks en SSD’s. De onboard geluidskaart biedt 7.1 kanaals geluid en is gebaseerd op een Realtek ALC887 chip.

Eigenschappen: Moederbord | M-ATX | Socket 1150 | 2x DDR3 | 2x SATA-600 | 2x SATA-300 |PCI-e x1 | PCI-e 2.0 x16 | USB 2.0 | USB 3.0 | DVI | VGA (D-Sub)

Klik hier voor de ondersteunende CPU’s
Klik hier voor de stuurprogramma’s

Product: Asus H81M-P SI
Socket: Socket 1150
Categorie: moederborden
Merk: Asus
EAN: 0886227931415, 0886227931422, 4716659931423
Staat: Refurbished – BIOS geüpdatet naar de nieuwste versie
SKU: 90MB0KS0-M0EAY0, 90MB0KS0-M0ECY1, H81M-P
Garantie: 6 maanden

pakketinhoud:
– Moederbord (H81M-P SI)
– IO-Shield (Blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– kabels

CPU
LGA1150 socket for the 4th Generation and New 4th Generation Intel® CoreTM i7/ i5 / i3, Pentium® and Celeron® Processors
Supports 22nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset
Intel® H81 Express Chipset

Memory
2 x DIMMs, max. 16GB DDR3 1600/1333/1066MHz, non-ECC, unbuffered memory modules
Dual-channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL for details.
*** Due to Intel® chipset limitations, DDR3 1600MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600MHz.

Graphics
Integrated Graphics Processor – Intel® HD Graphics support Multi-VGA output support: DVI-D, D-Sub port
– Supports DVI-D with max. resolution up to 1920 x1200@60Hz
– Supports D-Sub with max. resolution 1920×1200@60Hz
– Maximum shared memory of 1024MB

Expansion slots
1 x PCI Express x16 slot
1 x PCI Express x1 slot

Storage Intel® H81 Express Chipset:
– 2 x Serial ATA 6.0 Gb/s connectors (yellow)
– 2 x Serial ATA 3.0 Gb/s connectors (dark brown)
– Supports Intel® Rapid Start Technology* and Intel® Smart Connect Technology**
* Due to the limitation of the Intel® H81 chipset, Intel® Rapid Start Technology can be configured only from the BIOS Setup program.
** These functions will work depending on the CPU installed.

LAN
Realtek® RTL8111GR Gigabit LAN Controller

Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
– Supports Jack-Detection and Front Panel Jack-Retasking
* Use a chassis with HD audio module in the front panel to support an 8-channel audio output

USB
4 x USB 3.0 ports at rear panel (2 ports at mid-board, 2 ports at the rear panel)
6 x USB 2.0 ports (4 ports at mid-board, 2 ports at the rear panel)

ASUS unique features
ASUS Exclusive Features:
– ASUS EPU
– ASUS UEFI BIOS EZ Mode featuring a friendly graphical user interface
– ASUS GPU Boost
– ASUS Ai Charger+
– ASUS AI Suite 3
– ASUS Anti-surge Protection
– ASUS ESD
ASUS Quiet Thermal Solution
– ASUS Fan Xpert
ASUS EZ DIY:
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 2

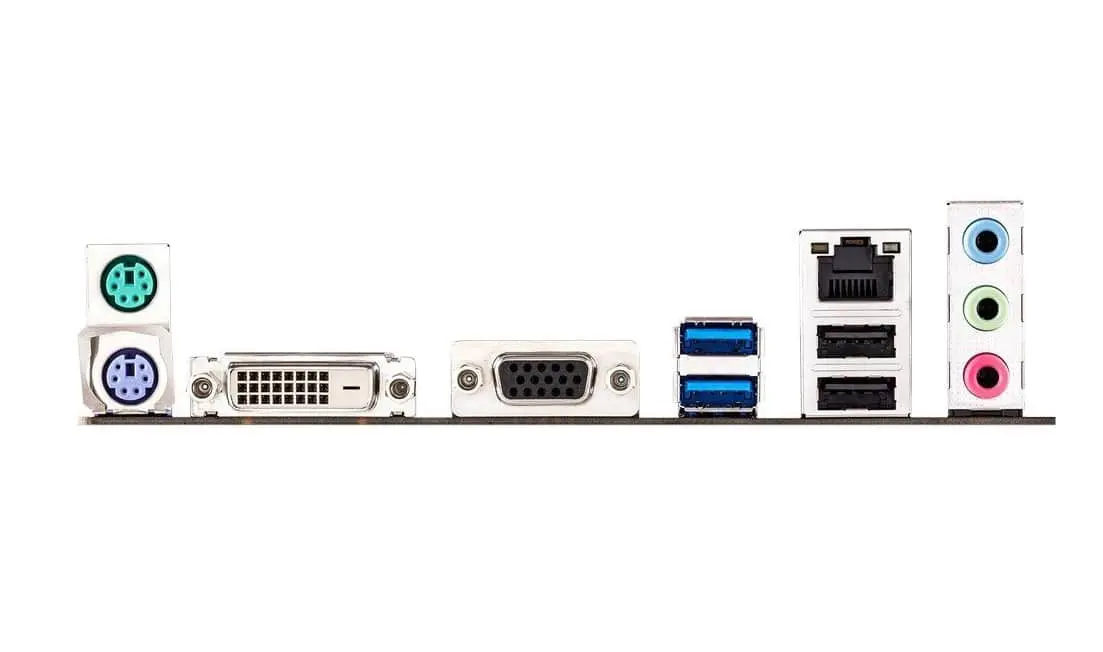

Back Panel I/O ports
1 x PS/2 keyboard port (purple)
1 x PS/2 mouse port (green)
2 x USB 3.0 ports
2 x USB 2.0 ports
1 x DVI port
1 x D-Sub port
1 x LAN (RJ-45) port
3 x Audio jacks support 8-channel audio output

Internal I/O connectors/ buttons/switches
2 x USB 2.0 connectors support additional 4 USB 2.0 ports
1 x USB 3.0 connectors support additional 2 USB 3.0 ports 2 x SATA 6.0Gb/s connectors
2 x SATA 3.0Gb/s connectors
1 x 4-pin CPU fan connector (PWM mode)
1 x 4-pin Chassis fan connector (PWM mode) 1 x Front panel audio connector
1 x 24-pin EATX power connector
1 x 4-pin EATX 12V power connector 1 x COM header
1 x LPT header 1 x TPM header
1 x CLRTC header
1 x Chassis Intrusion header 1 x Speaker connector
1 x System panel connector
1 x MONO OUT header with AMP

BIOS features
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7,
ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 2.0, WOL by PME, PXE

Operating System Support Windows® 8.1
Windows® 8
Windows® 7

Form factor
.uATX form factor: 7.5 in x 7.0 in (19 cm x 17.7 cm)
