Product information

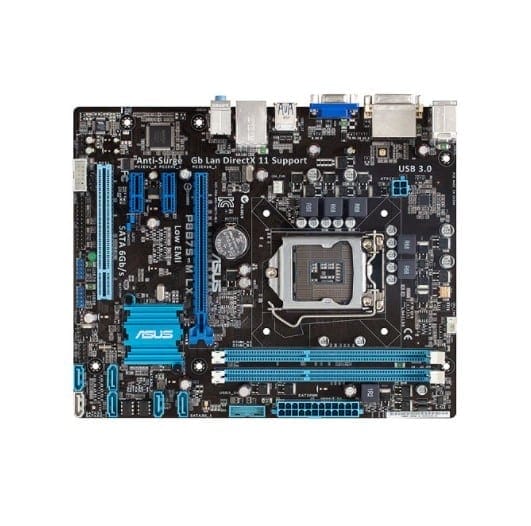

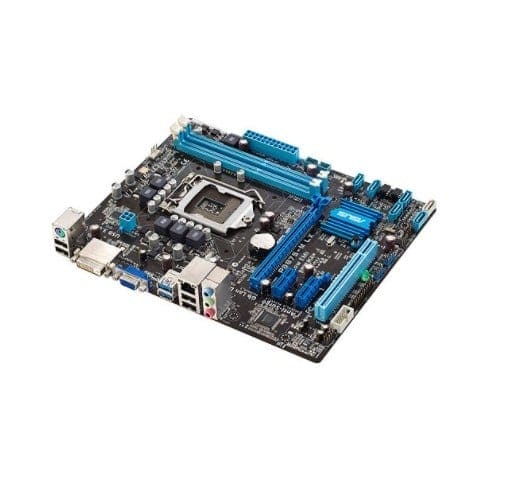

The Asus P8B75-M LX  is a Micro-ATX LGA1155 motherboard based on the Intel B75 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the Asus P8B75-M LX has 6 Serial ATA connections for hard drives and SSDs.

Features: Motherboard | Micro ATX | LGA1155 | 2x DDR3 | 5x SATA-300 | 1x SATA 600 | PCI-e x16| PCI-e x1 | PCI | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | DVI | VGA


Product:Asus P8B75-M LX
Socket: LGA1155
Category: motherboards
Brand: Asus
Condition: Used – BIOS updated to the latest version
EAN:
4719543186572, 4719543187296
SKU: 90-MIBJ20-G0EAY0KZ, P8B75-M LX
Warranty:
6 months


Package contents:
– Motherboard (Asus P8B75-M LX)
– Backplate (Blende)
– No manual
– No drivers CD
– No cables


CPU
Intel® Socket 1155 for 2/3th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors


Chipset
Intel® B85


Memory
2xDIMM, Max. 16GB, DDR3 1600/1333/1066MHz Non-ECC, Un-buffered Memory


Expansion Slots
1 x PCIe x16
2 x PCIe x1
2x PCI


Storage
Intel® B75 chipset :
5 x SATA 3Gb/s port(s)
1 x SATA 6Gb/s port(s)


LAN
Realtek RTL8111F


Audio
– VIA VT1708S


USB Ports
Intel® B75 chipset :
8x USB 2.0,
4x USB 3.2 (Gen1, 5Gb/s)


Operating System Support
Windows® 8
Windows® 7

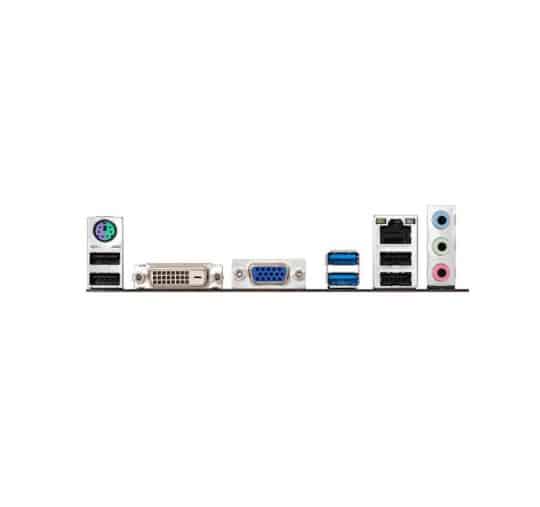

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x LAN (RJ45) port(s)
1x DVI
1x VGA
4 x USB 2.0
2x USB 3.2


Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4-pin)
1 x Chassis Fan connector(s) (1 x 4-pin)
4 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
5 x SATA 3Gb/s connector(s)
1 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)


Accessories
I/O Shield


Form Factor
Micro ATX Form Factor

Specification

Weight 1 kg
Intel

LGA1155

Brand

Asus

Chipset

Intel B75

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

16 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), USB 2.0, USB 3.2 (Gen1, 5Gb/s)

Storage Interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

Model

P8B75-M-LX

Suitable for

Regular use

particularities

Video Chipset

Length

24.4 cm

Width

19.8 cm

package content

Motherboard and Backplate (Blende)

Asus P8B75-M LX socket 1155 motherboard

Fast delivery

Product: Asus P8B75-M LX Socket 1155;
Brand: Asus;
EAN: 4719543187296
SKU: 90-MIBJ20-G0EAY0KZ
Condition: Used
Warranty:
6 Months


SKU: P8B75-M LX Categories: , Tags: , ,

Pros and cons
According to our computer expert

  • 4 DDR3 Geheugensloten
