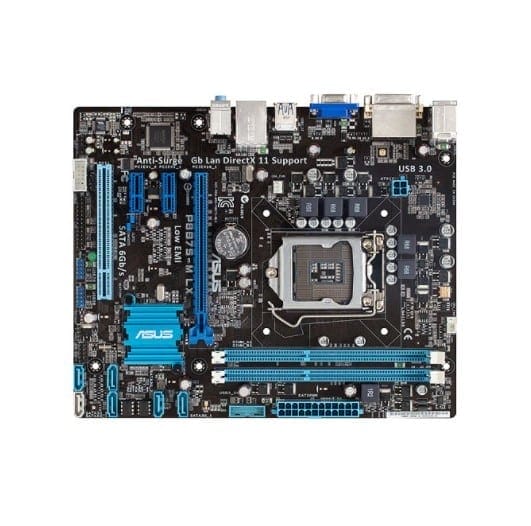

De Asus P8B75-M LX is een Micro-ATX Socket 1155 moederbord gebaseerd op de Intel B75 chipset. Het bord moet worden gecombineerd met DDR3-geheugen, waarvoor 2 slots beschikbaar zijn. In totaal heeft de Asus P8B75-M LX 6 Seriële ATA-aansluitingen voor harde schijven en SSD’s.
Kenmerken: Moederbord | Micro-ATX | Socket 1155 | 2x DDR3 | 5x SATA-300 | 1x SATA-600 | PCI-e x16| PCI-e x1 | PCI | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | DVI | VGA
Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers
Product:Asus P8B75-M LX
Socket: Socket 1155
Categorie: moederborden
Merk: Asus
Staat: Used – BIOS bijgewerkt naar de nieuwste versie
EAN: 4719543186572, 4719543187296
SKU: 90-MIBJ20-G0EAY0KZ, P8B75-M LX
Garantie: 6 maanden
Inhoud pakket:
– Moederbord (Asus P8B75-M LX)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels
CPU
Intel® Socket 1155 for 2/3th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Chipset
Intel® B85
Memory
2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Expansion Slots
1 x PCIe x16
2 x PCIe x1
2x PCI
Storage
Intel® B75chipset :
5 x SATA 3Gb/s port(s)
1 x SATA 6Gb/s port(s)
LAN
Realtek RTL8111F
Audio
– VIA VT1708S
USB Ports
Intel® B75 chipset :
8x USB 2.0,
4x USB 3.2 (Gen1, 5Gb/s)
Operating System Support
Windows® 8
Windows® 7

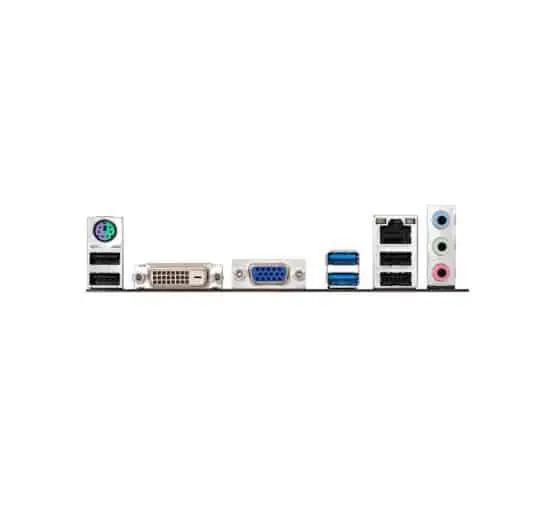

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x LAN (RJ45) port(s)
1x DVI
1x VGA
4 x USB 2.0
2x USB 3.2
Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
4 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
5 x SATA 3Gb/s connector(s)
1 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)
Accessories
I/O Shield
Form Factor
Micro-ATX Form Factor
Gewicht | 1 kg |
---|---|
Intel | Socket 1155 |
Merk | Asus |
Chipset | Intel B75 |
Formaat | Micro-ATX |
Geheugentype | DDR3 |
Aantal geheugenslots | 2 |
Maximale geheugengrootte | 16 GB |
Aansluitingen | D-Sub (VGA), DVI-D, Ethernet (RJ-45), USB 2.0, USB 3.2 (Gen1, 5Gb/s) |
Opslag interfaces | Serial ATA-300, Serial ATA-600 |
Interfaces | PCI, PCI-e 2.0 x1, PCI-e 3.0 x16 |
Socket | |
Model | P8B75-M-LX |
Geschikt voor | Regulier gebruik |
Bijzonderheden | Video Chipset |
Lengte | 24.4 cm |
Breedte | 19.8 cm |
Pakketinhoud | Moederbord en I/O-Shield |
Snelle levering
Product: Asus P8B75-M LX Socket 1155;
Merk: Asus;
EAN: 4719543187296
SKU: 90-MIBJ20-G0EAY0KZ
Staat: Gebruikt
Garantie: 6 Maanden
