Description

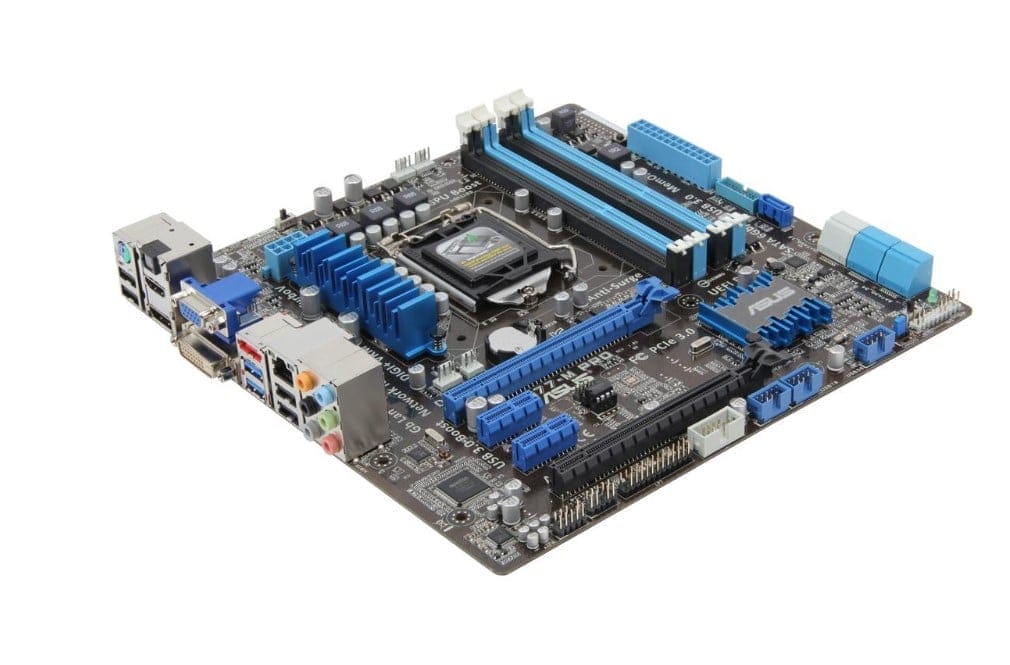

The Asus P8H77-M Pro is a Micro-ATX motherboard based on the H77 chipset. The motherboard is equipped with 2x Dual-channel DDR3 with a maximum of 32GB. The Asus P8H77-M Pro features one PCI Express 3.0 x16, one PCI Express 2.0 x16, two PCI Express 2.0 x1, and three PCI expansion slots. It also offers a wide range of connections including USB 2.0, USB 3.0, DisplayPort, DVI-D, HDMI, VGA (D-Sub), and eSATA.
Product: Asus P8H77-M Pro
Socket: Socket 1155
Category: Motherboards
Brand: ASUS
Condition: Used
Warranty: 6 months
EAN: 0610839185719, 4719543185711, 5053313850966
SKU: 90-MIBHQ0-G0EAY0DZ, P8H77-M Pro, P8H77-MPro
Package contents:
– Motherboard (Asus P8H77-M Pro)
– Backplate
– No manual
– No driver CD
– No cables
CPU
LGA1155 socket for Intel® 3rd / 2nd Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors
Supports 22nm and 32nm CPUs
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
** Refer to www.asus.com for the Intel® CPU support list.
Chipset
Intel® H77 Express Chipset
Memory
4 x DIMMs, max. 32GB*, DDR3 2200(O.C.)** / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1600 / 1333 / 1066 MHz, non-ECC, un-buffered memory
Dual-channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* The max 32GB memory capacity is supported with DIMMs of 8GB (or higher). ASUS will update QVL once the DIMMs are available on the market.
** Due to the CPU behavior, DDR3 2133/1866 MHz memory modules will run at DDR3 2000/1800 MHz frequency.
*** DDR3 1600 MHz and higher memory frequencies are supported by Intel® 3rd generation processors.
Expansion slots
1 x PCI Express 3.0*/2.0 x16 slot [blue] (at x16 mode)
1 x PCI Express 2.0 x16 slot [black] (max at x4 mode, compatible with PCIe x1 and x4 devices)
2 x PCI Express 2.0 x1 slots
* PCIe 3.0 speed is supported by Intel® 3rd generation Core™ processors.
Graphics
Integrated Graphics Processor – Intel® HD Graphics support
Multi-VGA output support: DisplayPort, HDMI, DVI, RGB port
– Supports DisplayPort 1.1a with max resolution 2560×1600@60Hz
– Supports HDMI with max resolution 1920×1200@60Hz
– Supports DVI with max resolution 1920×1200@60Hz
– Supports RGB with max resolution 2048×1536@75Hz
– Supports Intel® InTru™ 3D/Insider™/Quick Sync Video/Clear Video HD Technology/HD Graphics
– Maximum shared memory of 1696MB
Multi-GPU support
Supports ATI® Quad-GPU CrossFireX™ Technology
Storage
Intel® H77 Express Chipset:
– 2 x Serial ATA 6Gb/s connectors (gray) with RAID 0, 1, 5, 10 support
– 4 x Serial ATA 3Gb/s connectors (blue) with RAID 0, 1, 5, 10 support
– Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology*
Marvell® PCIe SATA 6.0 Gb/s controller**
– 1 x eSATA port at the back I/O (6.0 Gb/s ready)
– 1 x Serial ATA 6.0Gb/s connector (navy blue)
* Supports Intel® Core™ processor family with Windows® 7 Operating Systems.
** These SATA ports are for data storage only. ATAPI devices are not supported.
LAN
Realtek® RTL8111F Gigabit LAN controller
Audio
Realtek ALC892 8-Channel High Definition Audio CODEC
– Absolute Pitch 192kHz/24-bit true BD lossless sound
– BD Audio Layer Content Protection
– Supports Jack-Detection, Multi-streaming, and Front Panel Jack-Retasking
– Optical S/PDIF out port at back I/O
USB
Intel® H77 Express Chipset – supports ASUS USB 3.0 Boost UASP Mode*
– 2 x USB 3.0/2.0 ports at mid-board for front panel support
– 2 x USB 3.0/2.0 ports at back panel (blue)
Intel® H77 Express Chipset
– 10 x USB 2.0/1.1 ports (6 ports at mid-board, 4 ports at back panel)
* The USB 3.0 ports only support Windows® 7 or later versions. UASP standard only supports Windows® 8.

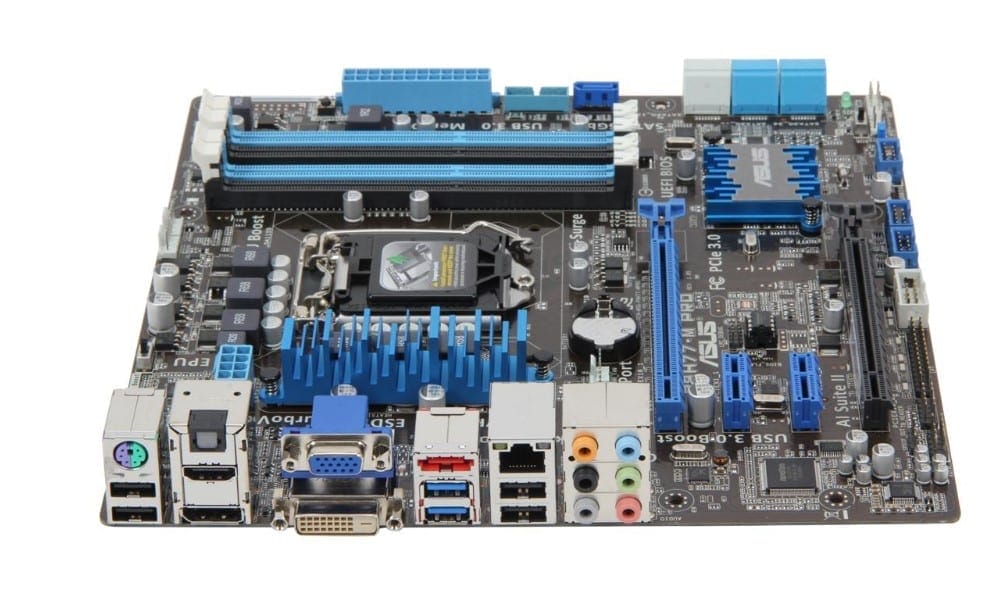

Rear panel I/O ports
1 x PS/2 Keyboard/Mouse Combo port
1 x Optical S/PDIF out port
1 x LAN (RJ-45) port
1 x DisplayPort
1 x HDMI port
1 x DVI port
1 x RGB port
4 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x eSATA 6.0Gb/s port
8-channel audio ports
Internal I/O connectors
1 x USB 3.0/2.0 connector supports additional 2 USB 3.0/2.0 ports
3 x USB 2.0/1.1 connectors support additional 6 USB 2.0/1.1 ports
1 x System panel connector
1 x S/PDIF Out connector
1 x AAFP connector
4 x SATA 3.0 Gb/s connectors (blue)
3 x SATA 6.0 Gb/s connectors (2 x gray, 1 x navy blue)
1 x Front panel audio connector
1 x CPU fan connector (4-pin)
2 x Chassis fan connectors (4-pin)
1 x Power fan connector (3-pin)
1 x COM connector
1 x LPT connector
1 x Clear CMOS Jumper
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x EPU Switch
1 x GPU Switch
1 x MemOK! Button
BIOS features
64 Mb Flash ROM, UEFI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information.
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Form factor
uATX Form Factor, 9.6″x 9.6″ (24.5cm x 24.5cm)
