Product information

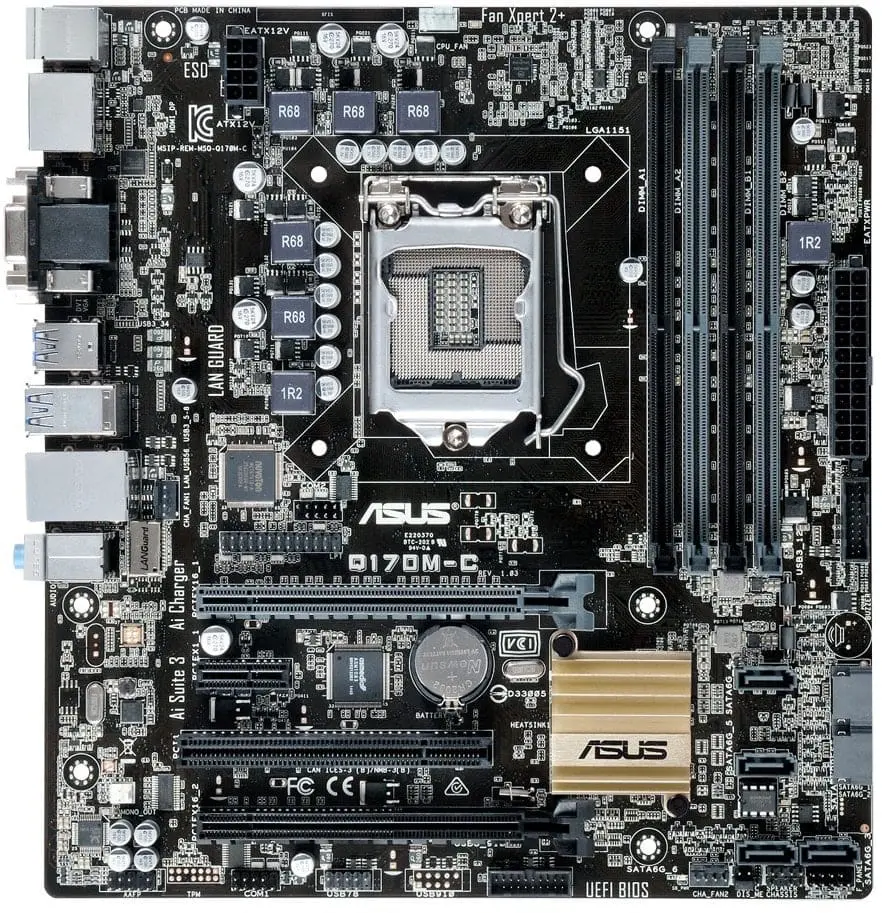

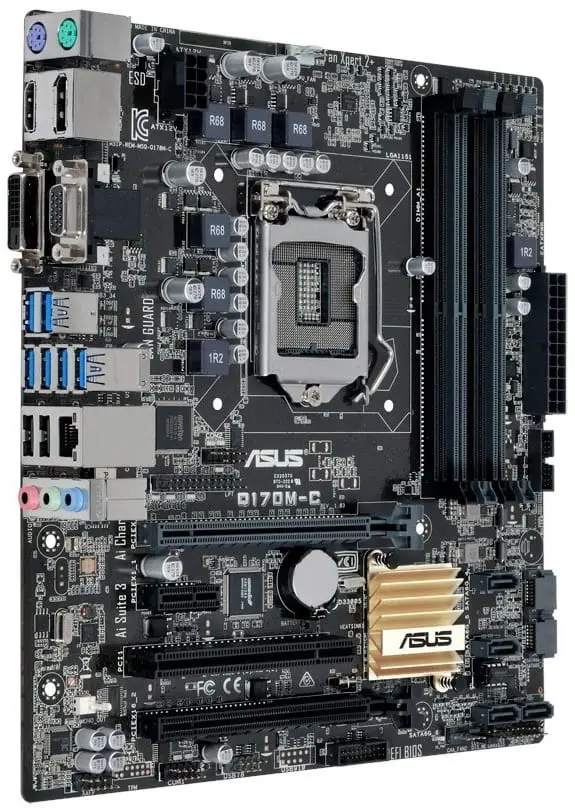

The Asus Q170M-C is a luxurious and complete LGA1151 motherboard suitable for the 6th and 7th generation processors and equipped with the Q170 business chipset, which can be used for business and private. The Asus Q170M-C is a micro-ATX motherboard equipped with 4 DDR4 memory slots with a maximum memory capacity of 64 GB. There are also a lot of connections available such as DVI, HDMI, VGA USB3. To avoid compatibility issues, the motherboard has been updated to the latest available BIOS version. If you are unsure whether the motherboard is suitable for your components, please feel free to contact us, we are happy to help you.

Features: Motherboard | M-ATX | LGA1151 | 4x DDR4 | 6x SATA-600 | PCI | PCI-e 3.0 x1 | PCI-e 3.0 x16 | Lan | 4x USB2.0 | 10x USB 3.2 (Gen1, 5Gb / s) | HDMI | Displayport | VGA

Product: Asus Q170M-C
Socket: LGA1151
Supports: 6th en 7th Generation Processors
Category: motherboards
Brand: Asus
EAN: 4058154115503, 4712900211924
Condition: Used – BIOS updated to the latest version
SKU: 90MB0MK0-M0EAY0, 90MB0MK0-M0EAY1, Q170M-C
Warranty: 6 months

Package content:
– Motherboard (Asus Q170M-C )
– Backplate (blende)
– No manual
– No CD with drivers
– No cables

CPU
Intel® for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset
Intel® Q170

Memory
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.

Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports
– Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
– Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously

Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
1 x PCIe 3.0/2.0 x1
1 x PCI

Storage
Intel® Q170 chipset :
6 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 5, 10

LAN
Intel® I219LM, 1 x Gigabit LAN Controller(s)

Audio
Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *1
– Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback

USB Ports
Intel® Q170 chipset :
10 x USB 3.1 Gen 1 port(s) (6 at back panel, blue, 4 at mid-board)
Intel® Q170 chipset :
4 x USB 2.0/1.1 port(s) (2 at back panel, black, 2 at mid-board)

Special Features
ASUS 5X Protection II :
– ASUS LANGuard – 2.5X higher surge tolerance
– ASUS Overvoltage Protection – World-class circuit-protecting power design
– ASUS DRAM Overcurrent Protection – Prevents damage from short circuits
– ASUS Stainless-Steel Back I/O – 3X corrosion-resistance for greater durability
– ASUS ESD Guards – Electrostatic discharge protection
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
– Anti-Surge
– Mobo Connect
ASUS Quiet Thermal Solution :
– Stylish Fanless Design Heat-sink solution
– ASUS Fan Xpert 2+
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– Push Notice
ASUS Q-Design :
– ASUS Q-Slot
– ASUS Q-DIMM
TPM IC Onboard
Media Streamer

Operating System Support
Windows® 10
Windows® 8.1
Windows® 7 *2

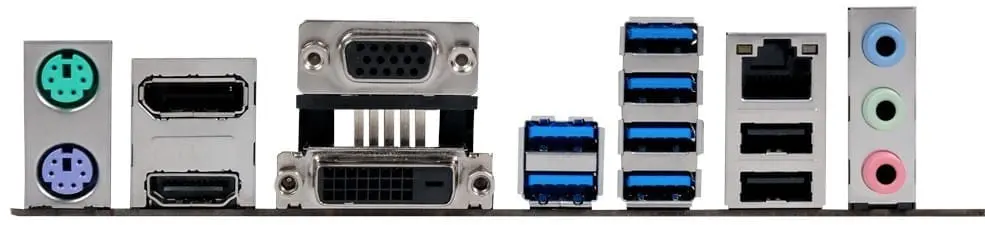

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
6 x USB 3.2 Gen 1 (blue)
2 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x MONO out header *3
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x LPT header
2 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x DIS ME jumper

Accessories
I/O Shield

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE

Form Factor
uATX Form Factor
9.6 inch x 8.9 inch ( 24.4 cm x 22.6 cm )
