Product information

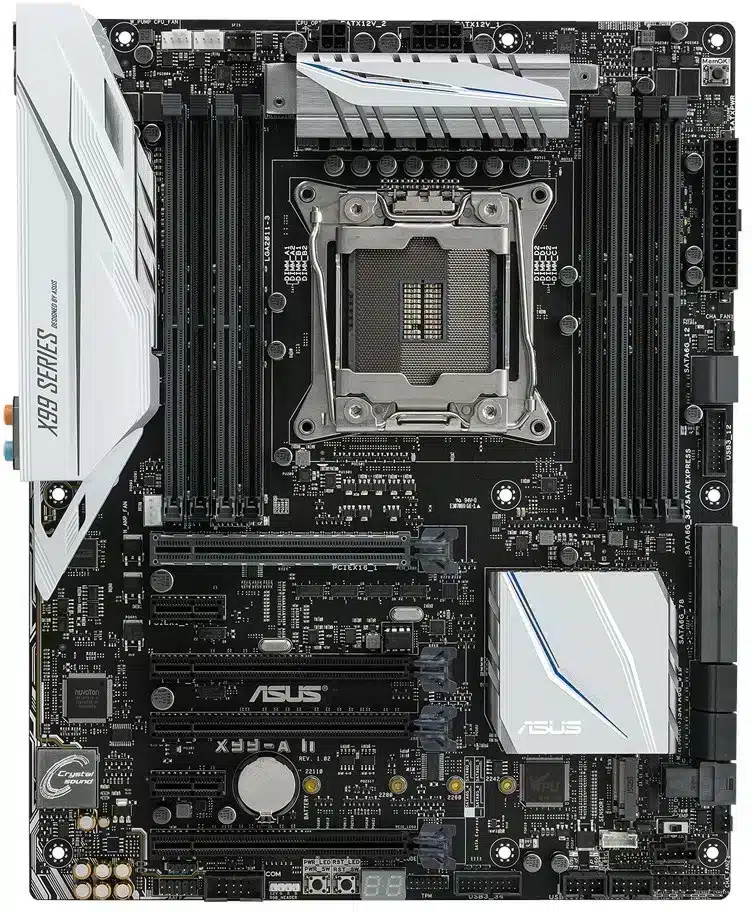

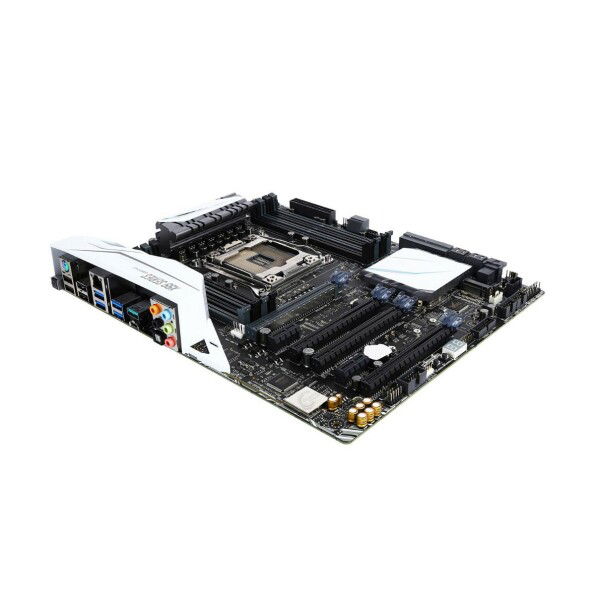

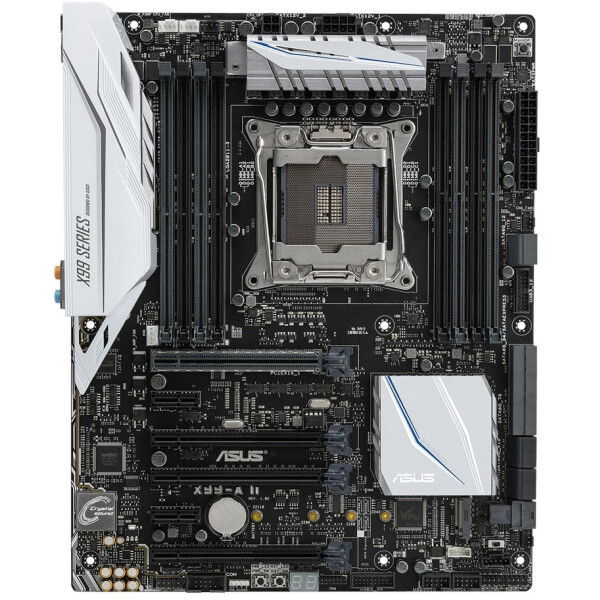

The ASUS X99-A II is a socket 2011-3 ATX motherboard, the motherboard has 8 DDR4 memory slots with a maximum capacity of 128GB.


Features: Motherboard | ATX | Socket 2011-3 | 8x DDR4 (max 128GB) | Sata-600 | M.2 |SATA Express | USB 3.1 (Type-A) | USB 3.1 (Type-C)


Product: ASUS X99-A II
Socket: Socket 2011-3
Category: motherboards
Brand: ASRock
Condition: Refurbished – BIOS updated to the latest version
EAN:
0889349399149, 4712900399141
SKU: 90MB0Q80-M0EAY0, 90MB0Q80-M0EAY1, X99-A II
Warranty:
6 months


Package contents:
– Motherboard (ASUS X99-A II)
– Backplate (blende)
– No antennas
– No manual
– No drivers CD
– No cables


CPU
New Intel® Core™ i7 X-Series Processors on LGA 2011-3 socket
Supports 14nm CPU
Supports Intel® Turbo Boost Technology 3.0*


Chipset
Intel® X99 Chipset


Memory
8 x DIMM, max 128GB, DDR4 3333(O.C.) / 3300(O.C.) /
3200(O.C.) / 3000(O.C.) / 2800(O.C.)* / 2666(O.C.)* / 2400(O.C.)* /
2133MHz, non-ECC, unbuffered memory
Quad channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL (Qualified Vendors List) for details.


Expansion Slots
40-Lane CPU
3 x PCI Express 3.0/2.0 x16 slots* (single at x16, dual at x16/x16, triple at x8/x16/x8)
1 x PCI Express 2.0 x16 slot** (PCIe x16_2, max. at x4 mode, compatible with PCIe x1 and x4 devices)
2 x PCI Express 2.0 x1 slots** (compatible with PCIe x1 devices)
28-Lane CPU
3 x PCI Express 3.0/2.0 x16 slots* (single@x16, dual@x16/x8, triple@x8/x8***/x8)
1 x PCI Express 2.0 x16 slot** (PCIe x16_2, max. at x4 mode, compatible with PCIe x1 and x4 devices)
2 x PCI Express 2.0 x1 slots** (compatible with PCIe x1 devices)
* PCIe x16_1 and PCIe x16_4 slots share the same bandwidth. PCIe x16_4 slot support up to x8 mode.
** The PCIe x16_2 slot shares bandwidth with USB 3.1 and PCIe x1_2 slots. By default, the PCIe x16_2 slot automatically runs at x1 mode.
*** When using a 28-lane CPU, the PCIe x16_3 slot support up to x8 mode.


Multi-GPU Support
Supports NVIDIA® 3-Way/Quad-GPU SLI™ Technology (with 2 PCIe x16 graphics card)
Supports AMD® 3-Way/Quad-GPU CrossFireX™ ​​Technology (with 2 PCIe x16 graphics card)


Storage
New Intel® Core™ i7 X-Series Processors
– 1 x M.2 PCIe 3.0 x4 Socket 3 with M Key, type 2242/2260/2280/22110 (support PCIe storage device only)*
– 1 x U.2 port (support PCIe 3.0 x4 NVM Express storage)*
Intel® X99 Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 14 support
– 1 x SATA Express port (compatible with 2 x SATA 6.0 Gb/s ports)
– 8 x SATA 6.0 Gb/s ports**
– Supports Intel® Smart Response Technology***
* M.2 shares bandwidth with U.2. Only one device can be activated at a time.
** Due to chipset behavior, The SATA6G_78, SATA6G_910 ports (black) do not support IRST including RAID configuration.
*** These functions will work depending on the CPU installed.


LAN
Gigabit Intel® LAN connection – 802.3az Energy Efficient Ethernet (EEE) appliance
Intel® I218-V Gigabit LAN- Dual interconnect between the integrated
Media Access Controller (MAC) and physical layer (PHY)
ASUS LAN Guard
ASUS Turbo LAN Utility


Audio
Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
– Power pre-regulator: Reduces power input noise to ensure consistent performance
– Separate layer for left and right track, ensuring both sound deliver equal quality
– Top notch audio sensation delivers according to the audio configuration
– Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference
– EMI protection cover to prevent electrical noise to affect the amplifier quality
– Audio Amplifier to enhance the highest quality sound for headphone and speakers
– Unique de-pop circuit to reduce start-up popping noise to audio outputs
– Premium Japan-made audio capacitors provide warm, natural, and immersive sound with exceptional clarity and fidelity
– High quality 112 dB SNR stereo playback output (Line-out at back) and 104 dB SNR recording input (Line-in) support
– Absolute Pitch 192 khz/24 bit True BD Lossless Sound
– BD audio layer content protection
– DTS Studio Sound
– DTS Connect
– Supports jack-detection, multi-streaming and front panel jackretasking (MIC)
– Optical S/PDIF out ports at rear I/O


USB
Intel® X99 Chipset- supports ASUS USB 3.1 Boost
– 4 x USB 3.0/2.0 ports at mid-board for front panel support
– 1 x USB 3.0/2.0 port at rear panel (Supports USB BIOS Flashback)
– 8 x USB 2.0/1.1 ports (4 ports at mid-board, 4 ports at rear panel)
ASMedia® USB 3.1 controllers- supports ASUS USB 3.1 Boost
– 2 x USB 3.1/3.0/2.0 ports at back panel (Type-A and Type-C)
ASMedia® USB 3.0 controllers- supports ASUS USB 3.1 Boost
– 3 x USB 3.0/2.0 ports at back panel (blue)

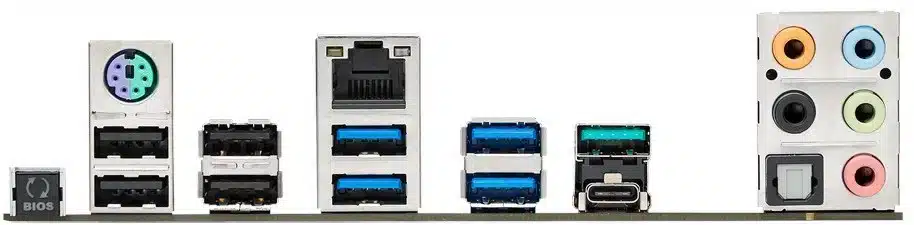

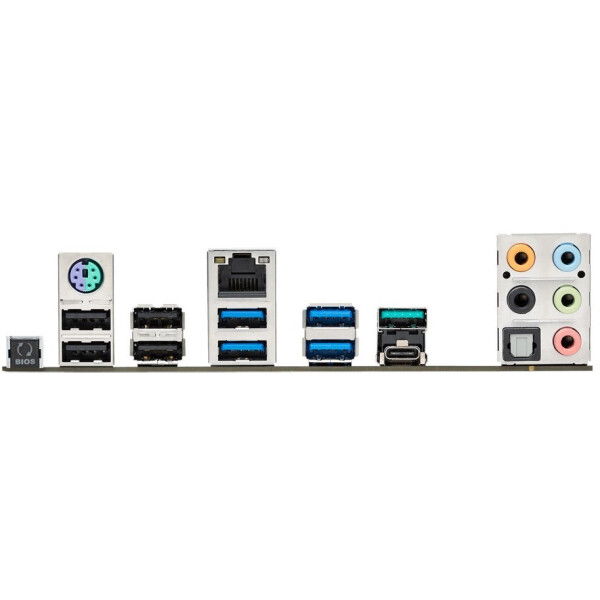

Rear Panel I/O Ports
1 x BIOS Flashback button
1 x Optical S/PDIF out port
1 x Intel® LAN (RJ45) port
1 x USB 3.1/3.0 port (Type-A, Teal blue)
1 x USB 3.1/3.0 port (Type-C)
4 x USB 3.0/2.0 ports (Blue, right bottom port supports USB BIOS Flashback)
4 x USB 2.0/1.1 ports
1 x PS/2 Keyboard/Mouse combo port
8-channel Audio I/O ports


Internal I/O Connectors
2 x USB 3.0/2.0 connectors, support additional 4 USB ports (19-pin)
2 x USB 2.0/1.1 connectors, support additional 4 USB ports
1 x U.2 connector
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (supports PCIE SSD only)
1 x SATA Express connector (gray)
8 x SATA 6.0 Gb/s connectors (2 from SATA Express)
1 x CPU Fan connector (4-pin) for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control with auto detection support
1 x CPU_OPT Fan connector (4-pin)
1 x W_Pump connector (4-pin)
1 x High AMP Fan connector (4-pin)
2 x Chassis Fan connectors (4-pin) for both 3-pin (DC Mode) and
4-pin (PWM Mode) fans control
1 x Front panel audio connector (AAFP)
1 x S/PDIF Out header
1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support
1 x TPM connector
1 x Serial port (COM) header
1 x RGB header
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x 4-pin EATX 12V Power connector
1 x System Panel (Q-Connector)
1 x 5-pin EXT_FAN (Extension Fan) connector
1 x 3-pin CHASSIS (Chassis intrusion) connector
1 x 2-pin Thermal sensor header
1 x 3-pin CPU OverVoltage (OV) header
1 x MemOK! button
1 x Clear CMOS jumper
1 x DRCT (Direct Key) connector
1 x EZ XMP switch
1 x Power-on button
1 x Reset button


BIOS Features
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0,
ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS
3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick
Note, Last Modified log, F12 PrintScreen and ASUS DRAM SPD
(Serial Presence Detect) memory information


Manageability
WfM 2.0, WOL by PME, PXE


Form Factors
ATX Form Factor, 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Specification

Weight 1 kg
Intel

LGA2011-3

Brand

Asus

Form Factor

ATX

Memory Type

DDR4 SDRAM

Number of memory slots

8

Maximum memory size

128 GB

Connectors

Ethernet (RJ-45), USB 2.0, USB 3.1 Gen1 Type-C, USB 3.1 Gen2 Type-A, USB 3.2 (Gen1, 5Gb/s)

Storage Interfaces

M.2 (PCI-e 3.0 x4 + SATA), SATA Express 10 Gb/s, Serial ATA-600, U.2

Interfaces

PCI-e 2.0 x1, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

Model

X99-A II

Length

30.5 cm

Width

24.4 cm

package content

Motherboard and Backplate (Blende)
