Product information

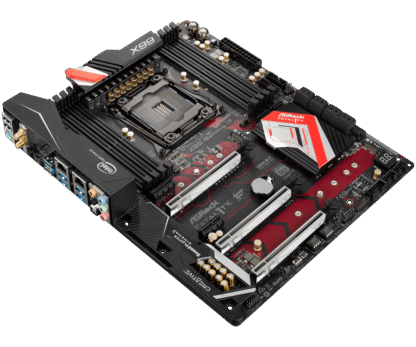

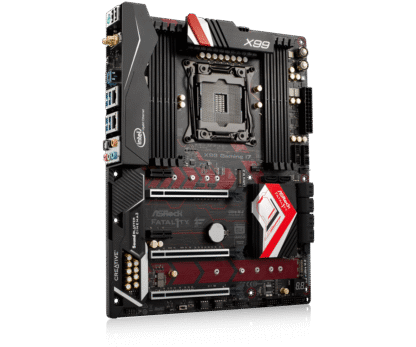

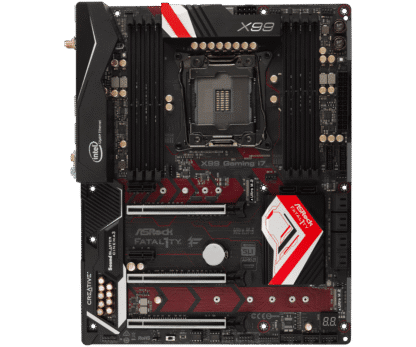

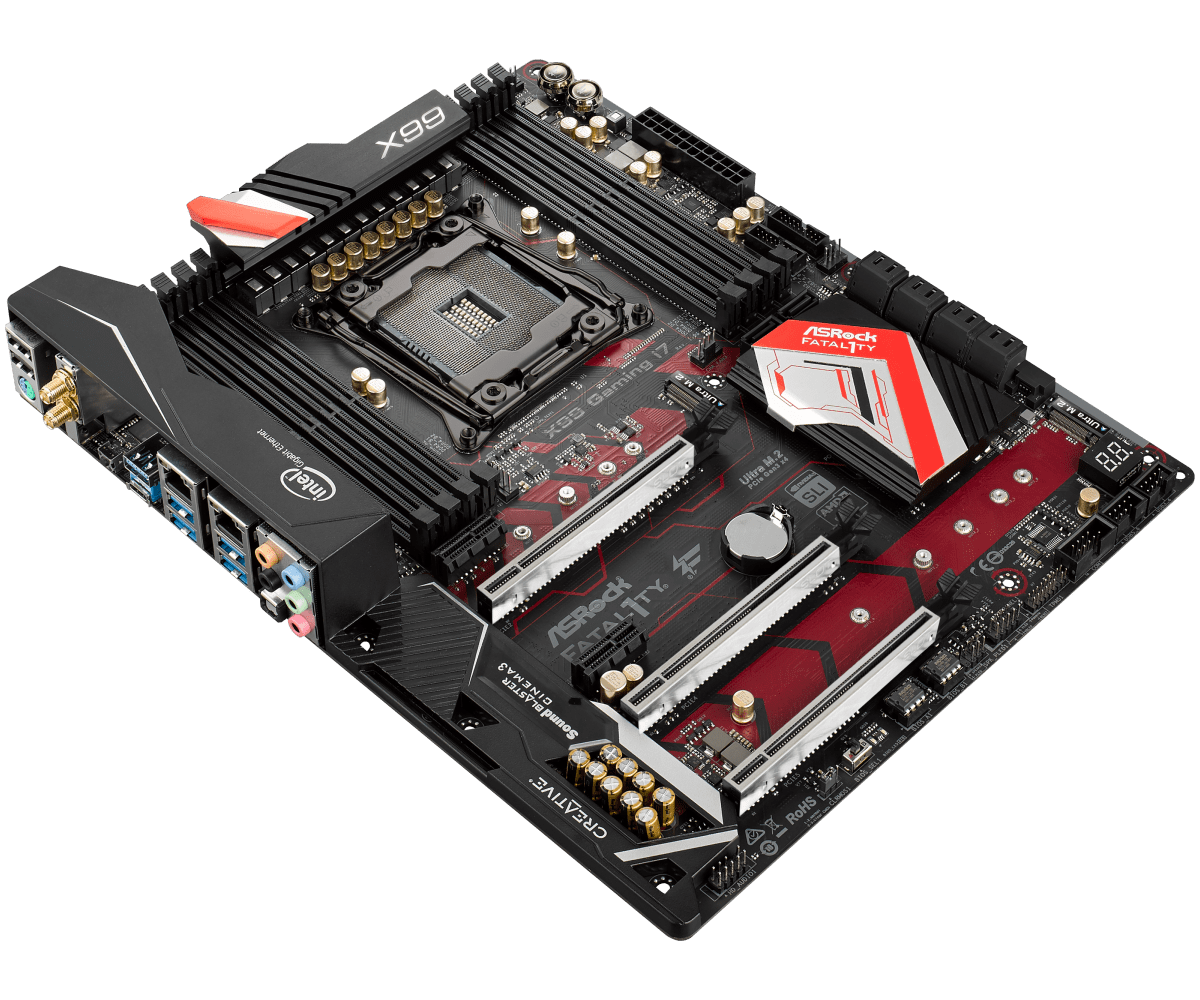

The Fatal1ty X99 Professional Gaming i7 is an ATX LGA2011-3 motherboard based on the Intel X99 chipset, suitable for Intel Core i7 / Xeon processors. The board must be combined with DDR4 memory, for which 8 slots are available. USB 3.2 provides the board 8x and USB 2.0 6x. In total, the Fatal1ty X99 Professional Gaming i7 has 10 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC1150 chip. The board offers 2 network connections, where you can connect with a maximum of 1000 Mbps.

Properties: Motherboard | ATX | LGA2011-3 | 8x DDR4 | Intel X99 Chipset | 6x USB 2.0 | 8x USB 3.2 (Gen1 | 5Gb/s) | USB 3.2 (Gen2 | 10Gb/s) | USB 3.2 (Gen2 | 10Gb/s) type-c | 2x PCI-e 2.0 x1 | 3x PCI-e 3.0 x16 | 2x M.2 (PCI-e 3.0 x4 + SATA) | SATA Express (Gen2 | 10Gb/s) | 10x SATA 600

Click here for the supporting CPUs
Click here for the drivers

Product: Fatal1ty X99 Professional Gaming i7
Socket: LGA2011-3
Category: Motherboards
Brand: ASRock
Condition: Refurbished – Bios updated to the latest version
EAN: 4717677331202
SKU: 90-MXB370-A0UAYZ, X99 PROF. GAMING I7, X99 Professional Gaming i7
Warranty: 6 Months

package content:
– Motherboard (ASRock Fatal1ty X99 Professional)
– IO-Shield (tin back plate)
– no manual
– no driver CD
– no cables
– No antennas

Gaming Armor
CPU Power
– Hi-Density Power Connector
– Ultra Dual-N MOSFET (UDM)

Memory
– 15μ Gold Contact in DIMM Slots

VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE2 and PCIE4)

Internet
– Intel® LAN

Cooling
– XXL Aluminum Alloy Heatsink
– 8 Layer PCB
– 4 x 2oz Copper

Audio
– Creative Sound Blaster™ Cinema 3

Unique Feature
ASRock USB 3.1 Gen2
– ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock X Series OC Socket
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 60A Power Choke
– Ultra Dual-N MOSFET (UDM)
– Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
– I/O Armor
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock 802.11ac WiFi
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection
ASRock Live Update & APP Shop

CPU
– Supports Intel® Core™ i7 and Xeon® 22-Core Processors Family for the LGA 2011-3 Socket
– Digi Power design
– 12 Power Phase design
– Supports Intel® Turbo Boost Max Technology 3.0*
– Supports Untied Overclocking Technology

*Intel® Core™ i7-59xx/58xx processors only support Intel® Turbo Boost Max Technology 2.0.

Chipset
– Intel® X99

Memory
– Quad Channel DDR4 Memory Technology
– 8 x DDR4 DIMM Slots
– Supports DDR4 3300+(OC)* / 2933(OC) / 2800(OC) / 2400(OC) / 2133 non-ECC, unbuffered memory
– Supports non-ECC RDIMM (Registered DIMM)
– Supports DDR4 ECC, un-buffered memory/RDIMM with Intel® Xeon® processors E5 series in the LGA 2011-3 Socket
– Max. capacity of system memory: 128GB (with Core™ i7 CPU Broadwell-E) or 64GB (with Core™ i7 CPU Haswell-E) or 256GB (With Xeon® CPU)*
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
Please refer to Memory Support List on ASRock’s website for more information.

BIOS
– 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 5.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment

Graphics
– n/a

Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
– Nichicon Fine Gold Series Audio Caps
– 115dB SNR DAC with Differential Amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 Ohm headsets)
– Pure Power In
– Direct Drive Technology
– PCB ISOlate Shielding
– Supports Creative Sound Blaster™ Cinema 3

LAN
– Gigabit LAN 10/100/1000 Mb/s
– 1 x Giga PHY Intel® I218V, 1 x GigaLAN Intel® I211AT
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports Dual LAN with Teaming*
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

*Not supported under Windows® 10

Wireless LAN
– Supports IEEE 802.11a/b/g/n/ac
– Supports Dual Band (2.4/5 GHz)
– Supports high speed wireless connections up to 433Mbps
– Supports Bluetooth 4.0 / 3.0 + High speed class II

Slots
– 3 x PCI Express 3.0 x16 Slots (PCIE2 @ x16 mode; PCIE4 @ x16 mode; PCIE5 @ x0 mode) (PCIE2 @ x16 mode; PCIE4 @ x8 mode; PCIE5 @ x8 mode)*
– 2 x PCI Express 2.0 x1 Slots
– Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ ​​and CrossFireX™
– Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™
– 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT module
– 15μ Gold Contact in VGA PCIe Slot (PCIE2 and PCIE4)

*If you install CPU with 28 lanes, PCIE2/PCIE4/PCIE5 will run at x16/x0/x8 or x8/x8/x8.
Supports NVMe SSD as boot disks.

Storage
– 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13), NCQ, AHCI, Hot Plug*
– 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4 and SATA3_5)**
– 1 x Ultra M.2 Socket (M2_2), support M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s )***
– 1 x Ultra M.2 Socket (M2_1), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* **

*RAID is supported on SATA3_0 ~ SATA3_5 ports only.
SSATA3_3 connector is shared with the M2_1; SSATA3_2 connector is shared with the M2_2

**Support to be announced

***Supports ASRock U.2 Kit.
If you install CPU with 28 lanes, the M2_1 only supports SATA type M.2 module.
Supports NVMe SSD as boot disks.

Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED and Speaker Header
– 1 x CPU Fan Connector (4-pin) (Smart Fan Speed ​​Control)*
– 1 x CPU Optional/Water Pump Fan Connector (4-pin)**
– 3 x Chassis Fan Connectors (4-pin)***
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Dr. Debug with LED
– 1 x Power Switch with LED
– 1 x Reset Switch with LED
– 1 x BIOS Selection Switch

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.

***CHA_FAN1 and CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

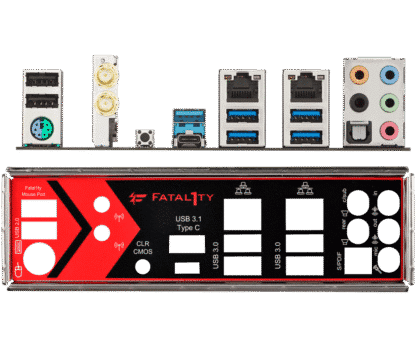

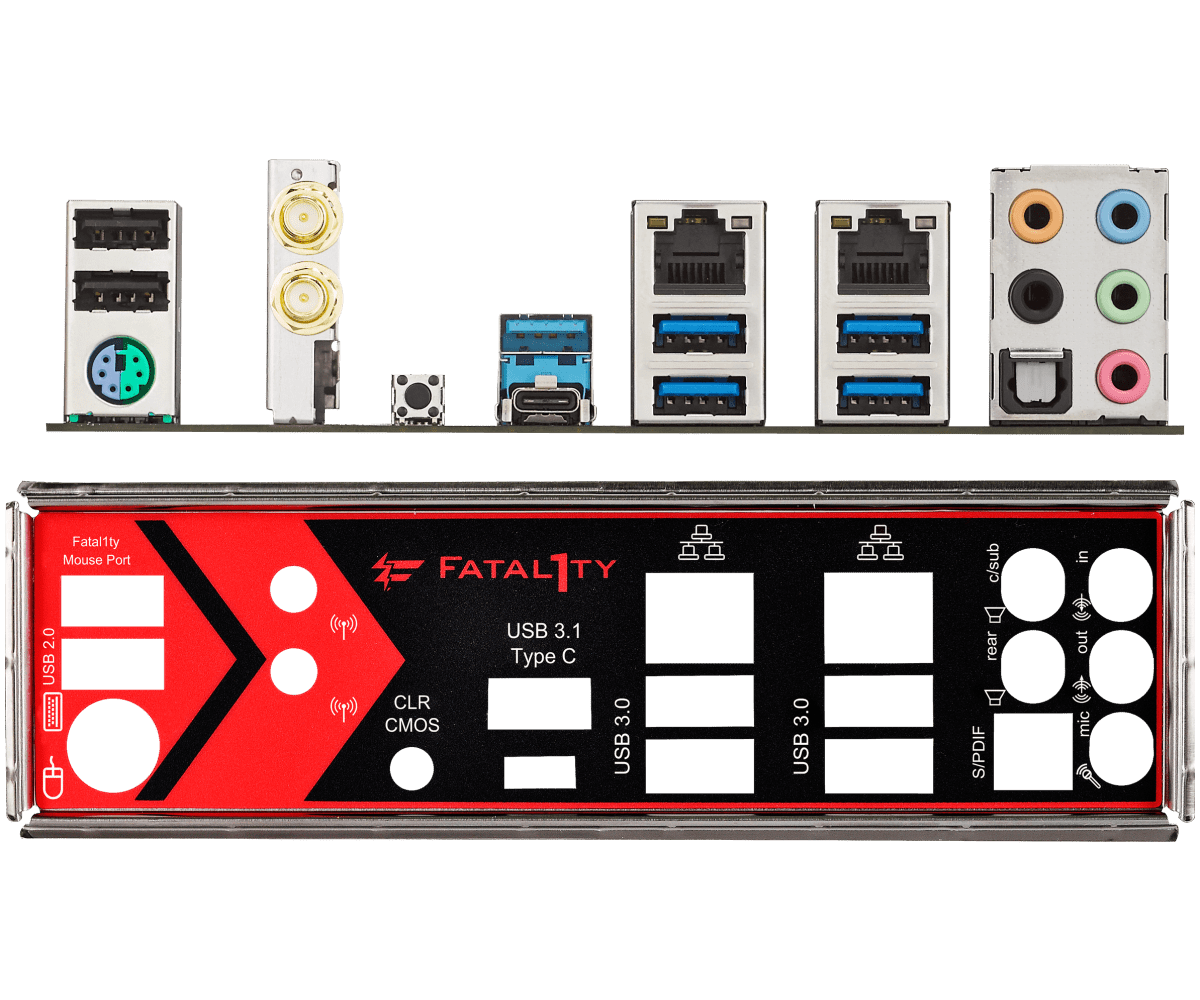

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x Optical SPDIF Out Port
– 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
– 4 x USB 3.1 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– 1 x Clear CMOS Switch
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Software and UEFI
Software
– ASRock F-Stream
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI
– ASRock Fast Boot (Fast Boot, Restart to UEFI)*

UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock UEFI Guide
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories
– I/O Shield

Hardware Monitor
– CPU, Chassis, CPU Optional/Water Pump temperature sensing
– CPU, Chassis, CPU Optional/Water Pump Fan Tachometer
– CPU, Chassis, CPU Optional/Water Pump Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis, CPU Optional/Water Pump Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages

Form Factor
– ATX Form Factor: 12.0-in x 9
