Product information

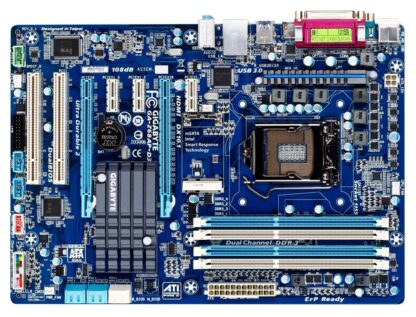

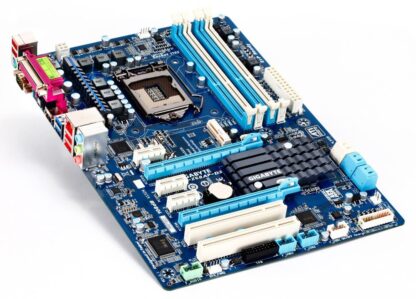

Gigabyte GA-Z68AP-D3: Motherboard – ATX – LGA1155/ Sockel H2 – Intel Z68 – 4 x DDR3 – mSATA – SATA-300 – SATA-600 – PCI- PCI-e 2.0 x1 – PCI-e 3.0 x16 – USB 2.0 – USB 3.0 – HDMI


Product: Gigabyte GA-Z68AP-D3 Socket1155;
Socket: LGA1155/ Sockel H2
Brand: Gigabyte;
EAN:0818313013095, 4719331822194
SKU: GA-Z68AP-D3
Condition used
Warranty:
6 months


CPU
– Intel support ® Core ™ i7 processors / Intel ® Core ™ i5 processors / Intel ® Core ™ i3 processors / Intel ® Pentium < /span>® processors / Intel < span class=”goog-text-highlight”>® Celeron ® processors in the LGA1155 version
– L3 cache varies with CPU
(Some Intel ® Core™ processors require a graphics card, see “CPU Support List” for more information.)


Chipset
–  Intel ® Z68 Express Chipset


Memory
– 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Dual-channel memory architecture
Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules

* Due to operating system limitations, actual memory size may be less than 4 GB for system usage reservation under Windows® 32-bit operating system. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 2 x 32 Mbit flash
– Use of licensed AWARD BIOS
– Support for DualBIOS™
– PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b


Graphics
1 x HDMI port, supports a maximum resolution of 1920×120


Audio
– Realtek ALC889 codec
– High Definition Audio
– 2/4 / 5.1 / 7.1 channel
* To configure 7.1-channel audio, you need to use an HD audio module on the front panel and enable the multi-channel audio function through the audio driver.
– Support for S/PDIF Out


LAN
– Realtek RTL8111E chip (10/100/1000 Mbit)


Expansion Slots:
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. When the PCIEX1_2 slot or the PCIEX1_3 slot is populated, the PCIEX4 slot will operate at up to x1 mode.
3 x PCI Express x1 slots
(All PCI Express slots conform to PCI Express 2.0 standard.)
2 x PCI slots

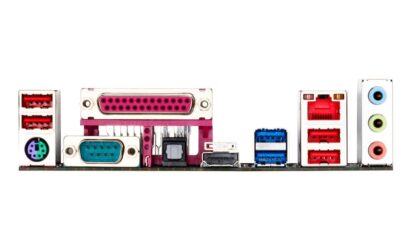

I/O Connections
1 x PS/2 keyboard/mouse port
1 x parallel port
1 x serial port
1 x optical S/PDIF Out connector
1 x HDMI port
4 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)


Internal I/O Jacks
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
1 x mSATA connector
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x Front Panel Audio Header
1 x S/PDIF Out header
3 x USB 2.0/1.1 headers
1 x Clearing CMOS Jumper
1 x Trusted Platform Module (TPM) header


USB
Chip set:
Up to 10 USB 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB headers)
Etron EJ168 chip:
Up to 2 USB 3.0/2.0 ports on the back panel


Storage Interfaces
2 x SATA 6Gb/s connectors (SATA3_0, SATA3_1) supporting up to 2 SATA 6Gb/s devices
4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
* The SATA2_5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.


Form factor
ATX Form Factor; 30.5cm x 21.5cm

Specification

Weight1 kg
Intel

LGA1155

Brand

Gigabyte

Chipset

Intel Z68

Form Factor

ATX

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

32 GB

Connectors

HDMI, USB 2.0, USB 3.0

Storage Interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16

Socket

Gigabyte GA-Z68AP-D3 LGA1155 motherboard

Fast delivery

  • Intel Z68 Chipset
  • Supports for LGA1155 2nd Generation Intel® Core™ processors
  • Touch BIOS™ provides the innovative new way to change BIOS.
  • 4x performance boost with mSATA Intel® Smart Response technology
  • Supports USB 3.0 with super-fast transfer rates of up to 5 Gbps
  • High-speed SATA3 storage interface with super-fast 6Gbps link speed
  • GIGABYTE 3x USB power supply with on/off USB ports for charging
  • CrossFireX multi-graphics support for ultimate graphics performance
  • Hybrid EFI technology with DualBIOS for 3TB HDD support
  • HDMI graphics output for smoother HD video playback
  • XHD technology speeds up hard drive performance with ease
  • GIGABYTE DualBIOS™ technology provides the highest level of interference protection
