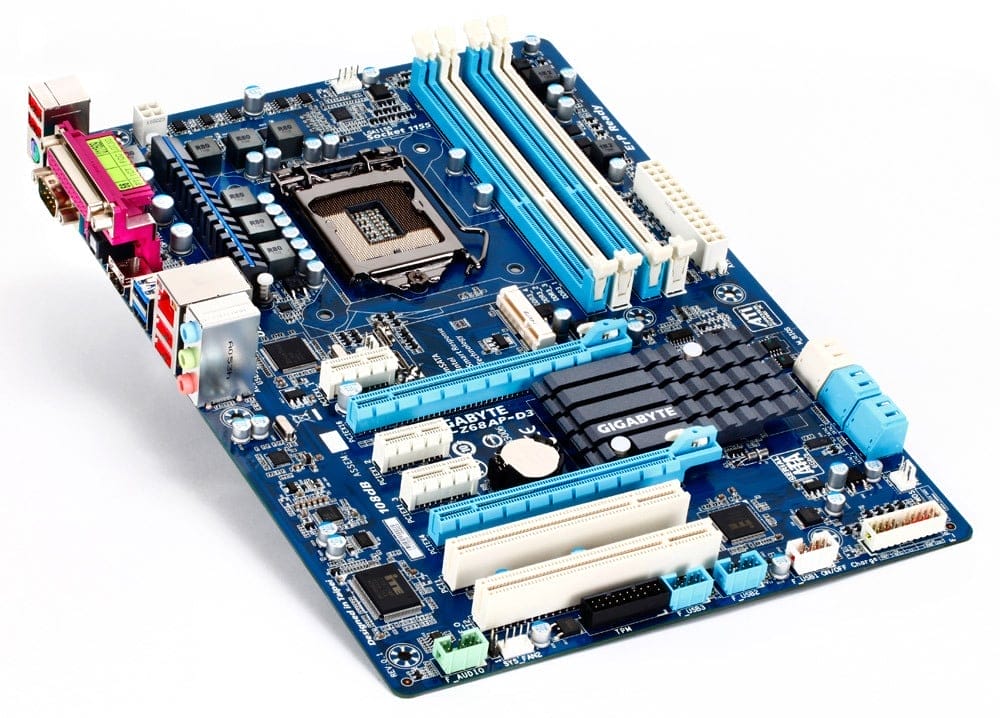

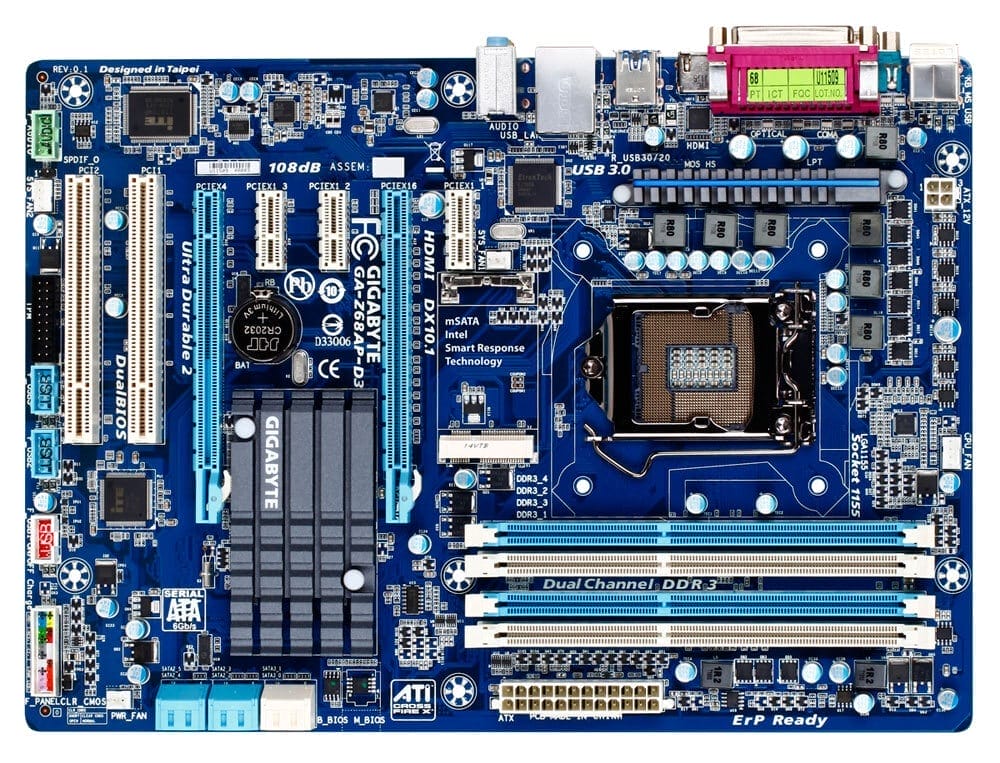

Gigabyte GA-Z68AP-D3 socket 1155 moederbord

Gigabyte GA-Z68AP-D33 : Moederbord – ATX – Socket 1155 – Intel Z68 – 4 x DDR3 – mSATA – SATA-300 – SATA-600 – PCI- PCI-e 2.0 x1 – PCI-e 3.0 x16 – USB 2.0 – USB 3.0 – HDMI

Product: Gigabyte GA-Z68AP-D3 Socket1155;
Categorie: Intel LGA1155 moederborden;
Merk: Gigabyte;
EAN:0818313013095, 4719331822194
SKU:GA-Z68AP-D3
Staat: gebruikt
Garantie: 6 maanden

Processors Ondersteund door de GA-Z68AP-D3
Drivers voor de Gigabyte GA-Z68AP-D3

Uitgebreide productspecificaties:

CPU
– Ondersteuning voor Intel ^® Core ™ i7 processors / Intel ^® Core ™ i5 processors / Intel ^® Core ™ i3 processors / Intel ^® Pentium ^® processors / Intel ^® Celeron ^® processoren in de LGA1155-uitvoering
– L3-cache varieert met CPU
(Sommige Intel ^® Core ™ processoren vereisen een grafische kaart, zie “CPU ondersteuning List” voor meer informatie.)

Chipset
–  Intel ^® Z68 Express Chipset

Geheugen
– 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Dual channel memory architecture
Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules

* Vanwege de beperking van het besturingssysteem kan de werkelijke geheugengrootte minder zijn dan 4 GB voor de reservering voor systeemgebruik onder Windows® 32-bits besturingssysteem. Voor Windows® 64-bit OS met 64-bit CPU is er geen dergelijke beperking.

BIOS
– 2 x 32 Mbit flash
– Use of licensed AWARD BIOS
– Support for DualBIOS™
– PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Graphics
1 x HDMI-poort, ondersteunt een maximale resolutie van 1920×120

Audio
– Realtek ALC889 codec
– High Definition-audio
– 2/4 / 5.1 / 7.1-kanaals
* Om 7.1-kanaals audio te configureren, moet u een HD-audiomodule op het voorpaneel gebruiken en de meerkanaals audiofunctie inschakelen via het audiostuurprogramma.
– Ondersteuning voor S / PDIF Out

LAN
– Realtek RTL8111E chip (10/100/1000 Mbit)

Uitbreidingslots:
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. When the PCIEX1_2 slot or the PCIEX1_3 slot is populated, the PCIEX4 slot will operate at up to x1 mode.
3 x PCI Express x1 slots
(All PCI Express slots conform to PCI Express 2.0 standard.)
2 x PCI slots

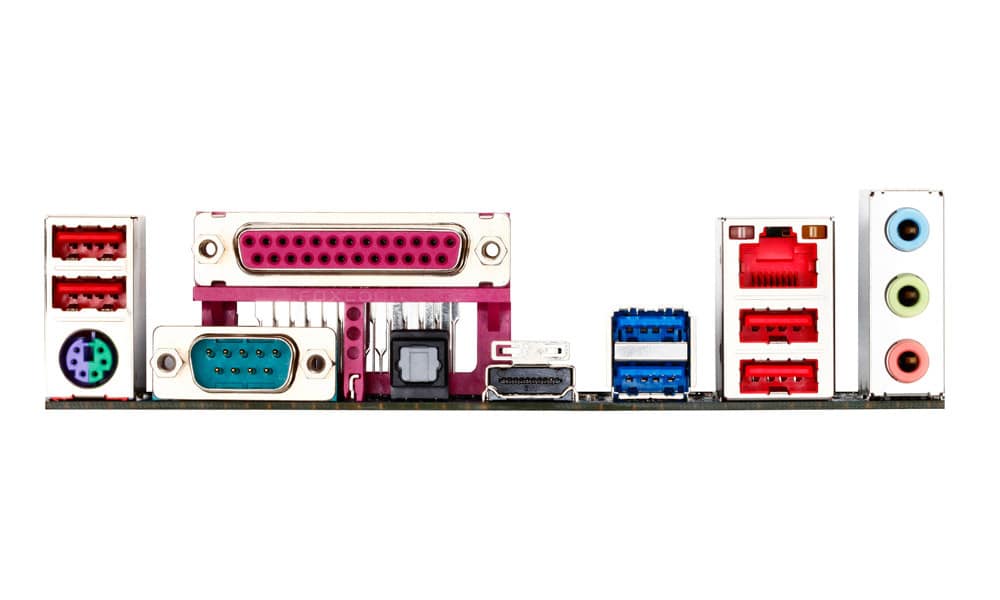

I/O-Aansluitingen
1 x PS/2 keyboard/mouse port
1 x parallel port
1 x serial port
1 x optical S/PDIF Out connector
1 x HDMI port
4 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)

Interne I/O-Aansluitingen
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
1 x mSATA connector
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
3 x USB 2.0/1.1 headers
1 x clearing CMOS jumper
1 x Trusted Platform Module (TPM) header

USB
Chipset:
Up to 10 USB 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB headers)
Etron EJ168 chip:
Up to 2 USB 3.0/2.0 ports on the back panel

Opslaginterfaces
2 x SATA 6Gb/s connectors (SATA3_0, SATA3_1) supporting up to 2 SATA 6Gb/s devices
4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
* The SATA2_5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.

Form factor
ATX Form Factor; 30.5cm x 21.5cm
