Product informatie

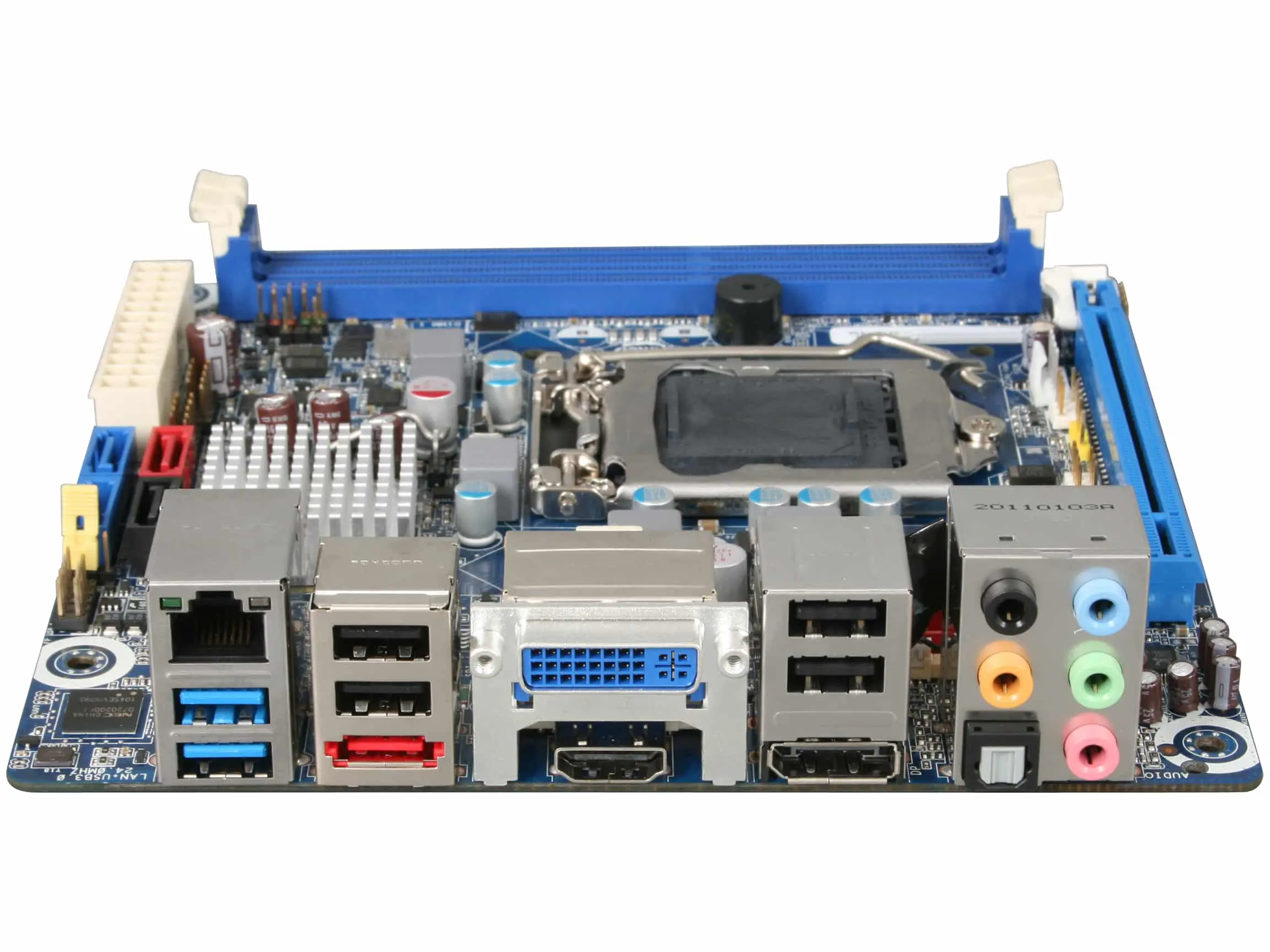

Het Intel DH67CF  moederbord is een Mini-ITX Socket 1155 moederbord welke is voorzien van 2 DDR3 geheugensloten. De Intel  DH67CF Socket 1155 moederbord is een moederbord voorzien van de Intel H67 Chipset.

Moederbord – Socket 1155 | Mini-ITX | Intel H67 Chipset | DDR3 up to 16GB | Gigabit Ethernet | PCI-e 2.0 x16 | SATA-300 | Sata-600 | eSATA | USB 2.0 | USB 3.2 Gen 1 |  Displaypoort | DVI-I | HDMI

Product: Intel DH67CF Socket 1155;
Merk: Intel;
EAN: 0735858216999
SKU: BOXDH67CF
Staat: Gebruikt
Garantie: 6 Maanden

Processoren die ondersteund worden door de Intel DH67CF
Drivers voor de Intel DH67CF

Uitgebreide product specificaties:

CPU
– Supports Socket 1155

Chipset
– Intel® H67

Memory
– Dual Channel DDR3 memory technology
– 2 x DDR3 DIMM slots
– Supports DDR3 1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to Intel® official website.
***In order to maximize the system memory, please install 8GB memory module with 16 cells

LAN
– Intel 82579V 10/100/1000 Fast Ethernet

Slots
– 1x PCI Express 2.0 x16

SATA
– 2 SATA 3.0 Gb/s ports
– 2 SATA 6.0 Gb/s ports

Connector
– ATX 24-Pin power connector
– 4-pin ATX 12V power connector
– Front panel audio connector
– Front panel connector
– 10 x USB 2.0 connectors
– 2 x Serial ATAII connectors
– 2 x Serial ATAIII connectors

Rear Panel I/O
I/O Panel
– 4 x USB 2.0
– 2 x USB 3.2 Gen1
– 1x Displayport
– 1x DVI-I
– 1x HDMI
– 1 x eSata
– 1 x RJ45 LAN Jack

Accessories
– I/O Shield

Form Factor
– Mini-ITX Form Factor

OS

– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit
*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.
