Product information

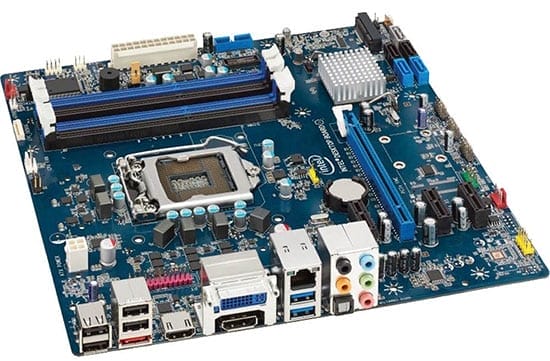

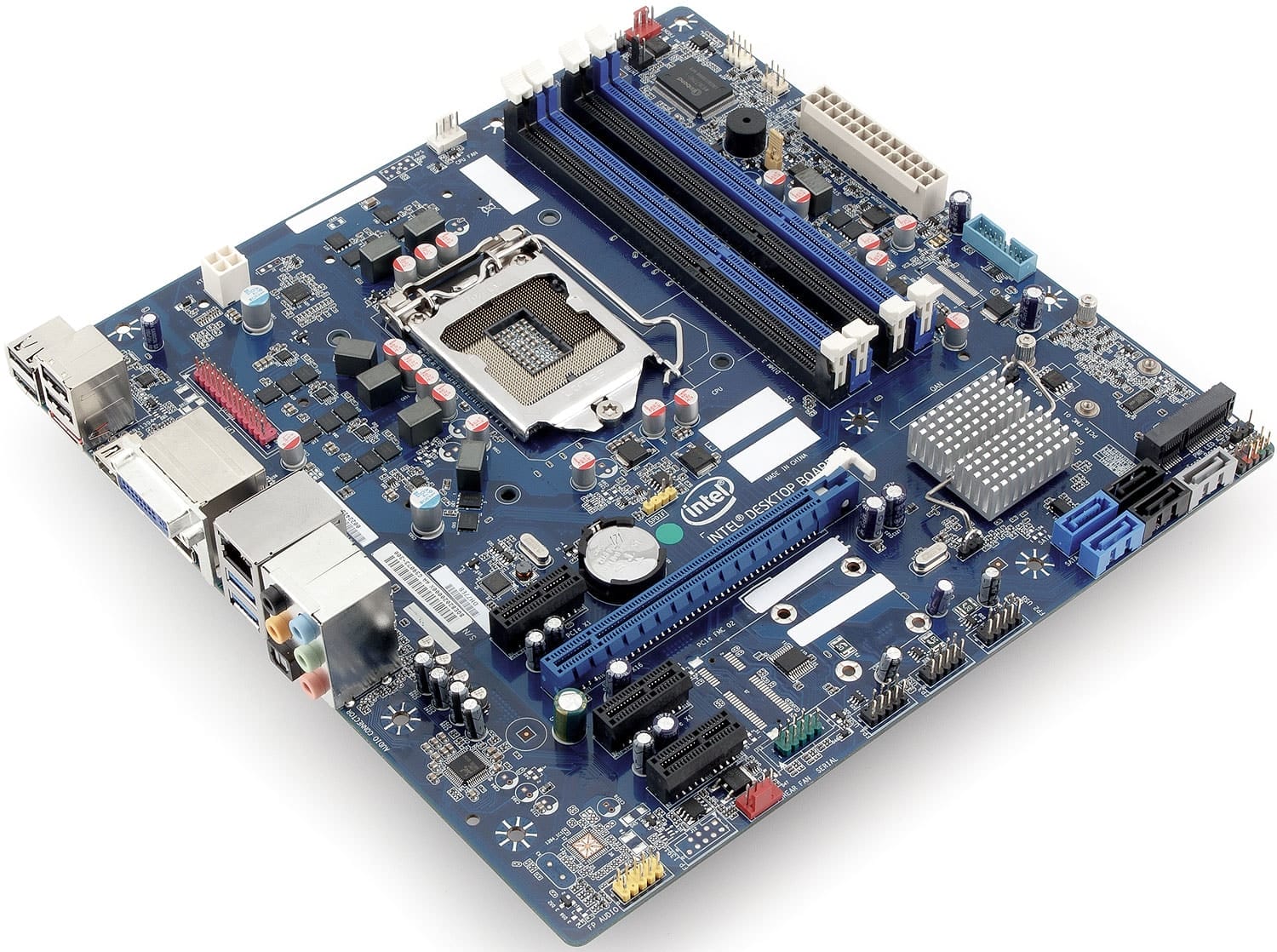

The Intel DH77EB motherboard is a Micro-ATX motherboard which is equipped with 4 DDR3 memory slots. The Intel DH77EB LGA1155 motherboard is a motherboard with the Intel H77 Chipset.

Brief Specifications:

Motherboard – LGA1155 | Micro-ATX | Intel H77 Chipset | 4 x DDR3 up to 32GB | Gigabit Ethernet | mSATA | 3x SATA-300 | 2x SATA-600 | eSATA | 10x USB 2.0 | 4x USB 3.2 (Gen1, 5Gb/s) | DisplayPort | DVI-I | HDMI

Product: Intel DH77EB Socket 1155;
Category: Intel socket 1155 Motherboards;
Brand: Intel;
EAN: 0675901131926, 0735858241793, 5032037036504, 5032037036511, 7358582417932
SKU: BOXDH77EB, DH77EB, G39073-XXX
Condition: Used – Bios updated to the latest version
Warranty: 6 Months

Processors supported by the Intel DH77EB
Driver for the Intel DH77EB

Extensive product specifications:

CPU
– Supports 3rd and 2nd Generation Intel® Core ™ i7 / i5 / i3 / Xeon in LGA1155 Package
– 4 + 2 Power Phase Design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series CPU
– Supports Hyper-Threading Technology

Chipset
– Intel® H77
– Supports Intel® Small Business Advantage
– Supports Intel® Rapid Start Technology and Smart Connect Technology with Intel® Ivy Bridge CPU
* Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.

Memory
– Dual Channel DDR3 memory technology
– 4 x DDR3 DIMM slots
Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB *
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
** The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to Intel® official website.
*** In order to maximize the system memory, please install 8GB memory module with 16 cells

BIOS
– The motherboard BIOS provides “Plug & amp; Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
– The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications.

Audio
Chipset integrated by Realtek® ALC892
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec
– Meet Microsoft Vista Premium spec

LAN
– Supports one PCI Express LAN 10/100/1000 Fast Ethernet

Slots

– 1 PCI Express 3.0 x16
3x PCI Express 2.0 x1
– 1 PCI Express Mini Card connector with support
for mSATA Solid-State Drive

SATA
– 2 SATA 6.0 Gb/s ports
– 3 SATA 3.0 Gb/s ports

Connector
– ATX 24-Pin power connector
– 4-pin ATX 12V power connector
– Front panel audio connector
– Front panel connector
– 6 x USB 2.0 connectors
– 2x USB3.2 Gen 1
– 4 x Serial ATAII connectors
– 2 x Serial ATAIII connectors

Rear Panel I / O
I / O Panel
– 1 x PS / 2 Mouse / Keyboard port
– 4 x USB 2.0 ports
– 1x Displayport
– 1x HDMI
– 1x DVI-I
– 1 x eSata
– 1 x Optical SPDIF port
– 1 x RJ45 LAN Jack
– 1 x 6 in 1 audio jack
– 1 x Serial port
– 1 x Parallel port

Accessories
– I/O Shield

Form Factor
– ATX Form Factor

OS

Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista ™ 32-bit / Vista ™ 64-bit / XP 32- bit / XP 64-bit
* Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.
