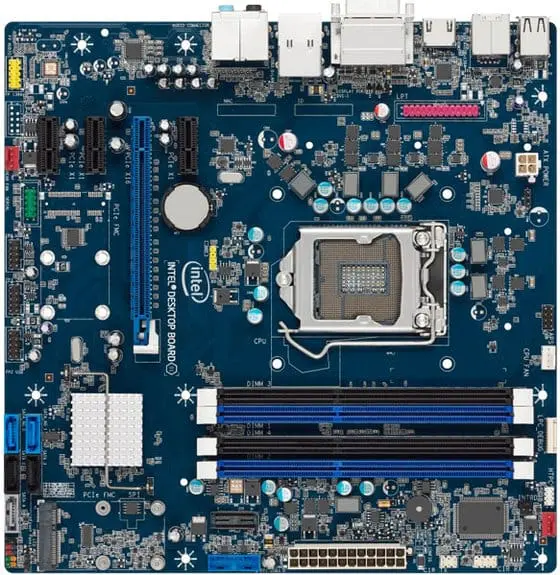

Het Intel DH77EB moederbord is een Micro-ATX moederbord welke is voorzien van 4 DDR3 geheugensloten. De Intel DH77EB Socket 1155 moederbord is een moederbord voorzien van de Intel H77 Chipset.
Moederbord – Socket 1155 | Micro-ATX | Intel H77 Chipset | 4 x DDR3 up to 32GB | Gigabit Ethernet | mSATA | 3x SATA-300 | 2x SATA-600 | eSATA | 10x USB 2.0 | 4x USB 3.2 (Gen1, 5Gb/s) | DisplayPort | DVI-I | HDMI
Product: Intel DH77EB Socket 1155;
Categorie: Intel socket 1155 Moederborden;
Merk: Intel;
EAN: 0675901131926, 0735858241793, 5032037036504, 5032037036511, 7358582417932
SKU: BOXDH77EB, DH77EB, G39073-XXX
Staat: Gebruikt – Bios bijgewerkt naar de laatste versie
Garantie: 6 Maanden
Processoren die ondersteund worden door de Intel DH77EB
Drivers voor de Intel DH77EB
CPU
– Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon in LGA1155 Package
– 4 + 2 Power Phase Design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series CPU
– Supports Hyper-Threading Technology
Chipset
– Intel® H77
– Supports Intel® Small Business Advantage
– Supports Intel® Rapid Start Technology and Smart Connect Technology with Intel® Ivy Bridge CPU
*Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.
Memory
– Dual Channel DDR3 memory technology
– 4 x DDR3 DIMM slots
– Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to Intel® official website.
***In order to maximize the system memory, please install 8GB memory module with 16 cells
BIOS
– The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
– The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Audio
Chipset integrated by Realtek® ALC892
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec
– Meet Microsoft Vista Premium spec
LAN
– Supports one PCI Express LAN 10/100/1000 Fast Ethernet
Slots
– 1 PCI Express 3.0 x16
– 3x PCI Express 2.0 x1
– 1 PCI Express Mini Card connector with support
for mSATA Solid-State Drive
SATA
– 2 SATA 6.0 Gb/s ports
– 3 SATA 3.0 Gb/s ports
Connector
– ATX 24-Pin power connector
– 4-pin ATX 12V power connector
– Front panel audio connector
– Front panel connector
– 6 x USB 2.0 connectors
– 2x USB3.2 Gen 1
– 4 x Serial ATAII connectors
– 2 x Serial ATAIII connectors
Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse/Keyboard port
– 4 x USB 2.0 ports
– 1x Displayport
– 1x HDMI
– 1x DVI-I
– 1 x eSata
– 1 x Optical SPDIF port
– 1 x RJ45 LAN Jack
– 1 x 6 in 1 audio jack
– 1 x Seriele poort
– 1 x Parallelle poort
Accessories
– I/O Shield
Form Factor
– ATX Form Factor
OS
– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit
*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.
Gewicht | 1 kg |
---|---|
Intel | Socket 1155 |
Merk | Intel |
Chipset | Intel H77 |
Formaat | Micro-ATX |
Geheugentype | DDR3 |
Aantal geheugenslots | 4 |
Maximale geheugengrootte | 32 GB |
Aansluitingen | Displayport, DVI-I, HDMI, USB 2.0, USB 3.2 (Gen1, 5Gb/s) |
Opslag interfaces | Serial ATA-300, Serial ATA-600 |
Interfaces | mini-PCI Express Slot, PCI-e 2.0 x1, PCI-e 3.0 x16 |
Socket |
Snelle levering
Merk: Intel
Model: DH77EB
Socket: Socket 1155
Chipset: Intel H77
Geheugen: 4x DDR3 (32GB Max)
Form-Factor: Micro-ATX
EAN: 0032037036528, 0675901131933, 0735858241816, 5032037036528
SKU: 7BLKDH77EB
