Product information

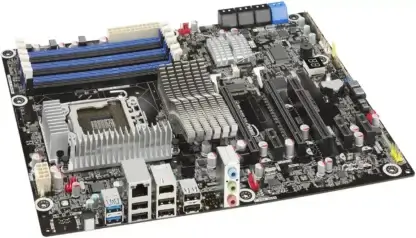

Intel Desktop Board DX79TO: Motherboard | ATX | Socket 2011 | 8x DDR3 (max 64GB) | Firewire | USB2.0 | USB3.2 | SATA-300 | SATA 600 |

Product:Intel DX79TO
Socket: Socket 2011
Category: motherboards
Brand: Intel
Condition: Used
EAN: 0675901110631, 0735858225175, 0735858225182, 5032037020374
SKU: BOXDX79TO
Warranty: 6 months

Package content:
– Motherboard (Intel DX79TO)
– I/O-Shield (blende)
– No manual
– No driver CD
– No cables

CPU
2nd Generation Intel® Core™ i7 Processor family for the LGA
2011 Socket
Supports Intel® Turbo Boost Technology 2.0

Chipset
Intel® X79 Express Chipset

Memory
8 x DIMM, max. 64GB, DDR3 2400(O.C.) / 2133(O.C.) /
1866/ 1600 / 1333 / 1066 MHz, non-ECC, unbuffered
memory
Quad-channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
** Hyper DIMM support is subject to the physical characteristics
or individual CPUs.

Expansion slots
2 x PCI Express 3.0 x16 slots
3 x PCI Express 2.0 x1 slots
1 x PCI slot

Multi GPU support
Supports NVIDIA® 3-Way SLI™ Technology
Supports AMD® Quad-GPU CrossFireX™ Technology

Storage
Intel® X79 Express Chipset
– 2 x SATA 6 Gb/s ports with RAID 0, 1, 5 and 10 support
– 4 x SATA 3 Gb/s ports with RAID 0, 1, 5 and 10 support

LAN
1xEthernet 1Gbps

USB
6x USB 2.0,
2x USB 3.0

Audio
6-channel High Definition Audio CODEC

Back panel I/O ports
2 x USB 3.0/2.0 ports (blue)
6 x USB 2.0/1.1 ports (white port can be switched to USB BIOS
flashback)
1 x IEEE1394a port
1 x USB BIOS Flashback button
1 x LAN (RJ-45) port
6-channel Audio I/O

Internal I/O connectors
8 x USB 2.0/1.1 connectors
2 x USB 3.0 connectors
2 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
1 x IEEE1394 connectors
1 x CPU Fan connector (4-pin)
1 x CPU Optional Fan connector (4-pin)
4 x Chassis Fan connectors (4-pin)
1 x Front panel audio connector (AAFP)
1 x S/PDIF Out Header
1 x Clear CMOS jumper
1 x 24 Pin EATX Power Connector
1 x 8-pin EATX 12V Power connector

BIOS features
64Mb EFI, ACPI: 3.0b

Form factor
ATX form factor: 12 in. x 9.6 in. (30.5cm x 24.4cm)
