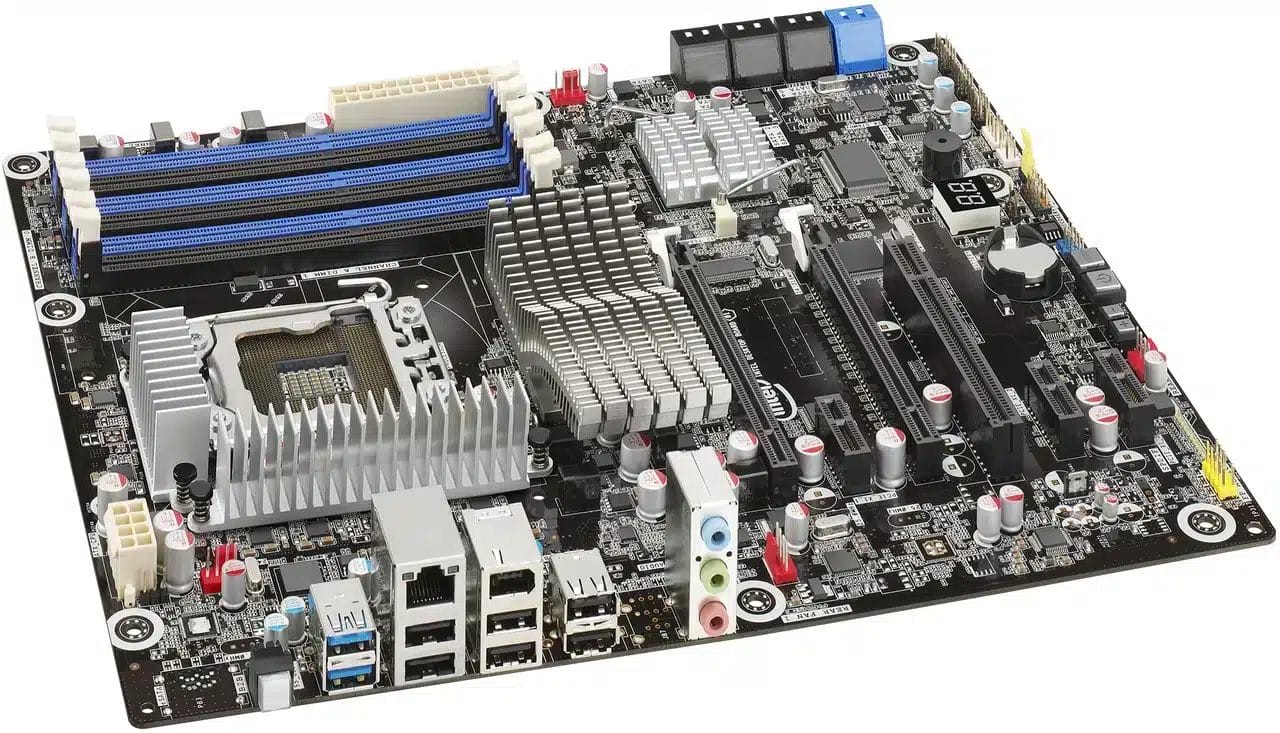

Intel Desktop Board DX79TO: Moederbord | ATX | Socket 2011 | 8x DDR3 (max 64GB) | Firewire | USB2.0 | USB3.2 | Sata-300 | Sata-600 |
Product:Intel DX79TO
Socket: Socket 2011
Categorie: moederborden
Merk: Intel
Staat: Used
EAN: 0675901110631, 0735858225175, 0735858225182, 5032037020374
SKU: BOXDX79TO
Garantie: 6 maanden
Inhoud pakket:
– Moederbord (Intel DX79TO)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels
CPU
2nd Generation Intel® Core™ i7 Processor family for the LGA
2011 Socket
Supports Intel® Turbo Boost Technology 2.0
Chipset
Intel® X79 Express Chipset
Memory
8 x DIMM, max. 64GB, DDR3 2400(O.C.) / 2133(O.C.) /
1866/ 1600 / 1333 / 1066 MHz, non-ECC, un-buffered
memory
Quad channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
** Hyper DIMM support is subject to the physical characteristics
of individual CPUs.
Expansion slots
2 x PCI Express 3.0 x16 slots
3 x PCI Express 2.0 x1 slots
1 x PCI slot
Multi-GPU support
Supports NVIDIA® 3-Way SLI™ Technology
Supports AMD® Quad-GPU CrossFireX™ Technology
Storage
Intel® X79 Express Chipset
– 2 x SATA 6 Gb/s ports with RAID 0, 1, 5 and 10 support
– 4 x SATA 3 Gb/s ports with RAID 0, 1, 5 and 10 support
LAN
1x Ethernet 1Gbps
USB
6x USB 2.0,
2x USB 3.0
Audio
8-channel High Definition Audio CODEC
Back panel I/O ports
2 x USB 3.0/2.0 ports (blue)
6 x USB 2.0/1.1 ports (white port can be switched to USB BIOS
Flashback)
1 x IEEE1394a port
1 x USB BIOS Flashback button
1 x LAN (RJ-45) port
6-channel Audio I/O
Internal I/O connectors
8 x USB 2.0/1.1 connectors
2 x USB 3.0 connectors
2 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
1 x IEEE1394 connectors
1 x CPU Fan connector (4-pin)
1 x CPU Optional Fan connector (4-pin)
4 x Chassis Fan connectors (4-pin)
1 x Front panel audio connector (AAFP)
1 x S/PDIF Out header
1 x Clear CMOS jumper
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
BIOS features
64 Mb EFI, ACPI: 3.0b
Form factor
ATX form factor: 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Gewicht | 1 kg |
---|---|
Intel | Socket 2011 |
Merk | Intel |
Formaat | ATX |
Chipset | Intel X79 |
Geheugentype | DDR3 |
Aantal geheugenslots | 8 |
Maximale geheugengrootte | 64 GB |
Aansluitingen | Ethernet (RJ-45), IEEE 1394 Port, PS/2, USB 2.0, USB 3.0 |
Opslag interfaces | Serial ATA-300, Serial ATA-600 |
Interfaces | PCI, PCI-e 3.0 x1, PCI-e 3.0 x16 |
Socket | |
Model | DX79TO |
Lengte | 30.5 cm |
Breedte | 24.4 cm |
Pakketinhoud | Moederbord en I/O-Shield |
