Product information

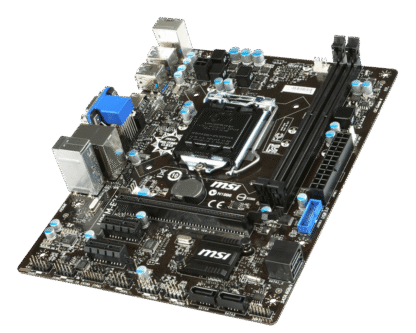

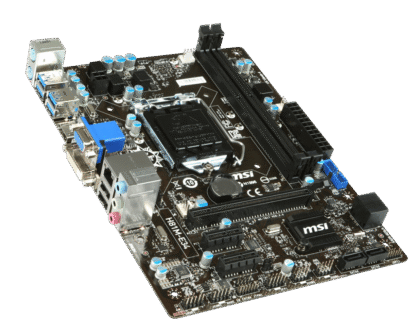

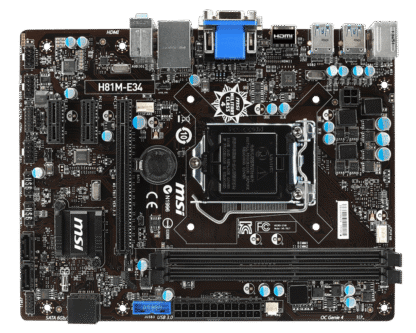

The MSI H81M-E34 is a socket 1150 Micro-ATX motherboard. The MSI H81M-E34 is equipped with 2 DDR3 slots with a maximum capacity of 16GB memory. Furthermore, the Gigabyte H81M-E34 motherboard has USB 3, Sata 3, PCI-e 3 connections.

Intel H81 Express, 2 x DDR3 DIMM, DVI-D, HDMI, VGA (D-Sub), 2 x SATA 6Gb / s, 2 x SATA 3Gb / s, PCIe, Gigabit Ethernet, 7.1-ch, Micro ATX

Click here for the supporting CPUs
Click here for the drivers

Product: MSI H81M-E34
Category : Motherboards
Brand: MSI
SKU: 7817-058R

Note: This is a second-hand motherboard, the product warranty period is 90 days.

Package Contents:
– Motherboard
– Backplate (Blende)
– No manual
– No driver CD
– No cables

& nbsp;

Supported processors
4th Generation Intel® Core ™ i7 / Core ™ i5 / Core ™ i3 / Pentium® / Celeron® processors for LGA 1150 socket

Memory
Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory

Graphics
HDMI, DVI-D, D-Sub

Audio
Chip integrated by Realtek® ALC887
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 spec

LAN
Supports LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111G

Locks
1 x PCI Express 2.0 x16 (x16 mode available)
2 x PCI Express 2.0 x1

storage space
2 x SATA 6 Gbps (SATA3_0 ~ SATA3_1 ports)
2 x SATA 3 Gbps (SATA2_2 ~ SATA2_3 ports)

USB interfaces
Intel H81 Express:
2 x USB 2.0
4 x USB 3.0

Internal I / O ports
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb / s connectors
2 x SATA 3Gb / s connectors
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x 3-pin system fan connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Serial port connector
1 x Clear CMOS jumper
2 x USB power jumpers

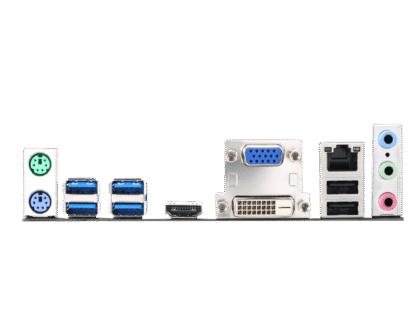

External I / O ports
1 x PS / 2 keyboard / mouse port
2 x USB 2.0 ports
4 x USB 3.0 ports
1 x HDMI port
1 x DVI-D port
1 x VGA port
1 x LAN (RJ45) port
3 x audio jacks

BIOS
UEFI AMI BIOS
ACPI 5.0, PnP 1.0a, SM BIOS 2.7, DMI 2.0
Multi-language

Form factor:
Micro-ATX

Dimensions:
22.6cm (L) x 17.3cm (W)
