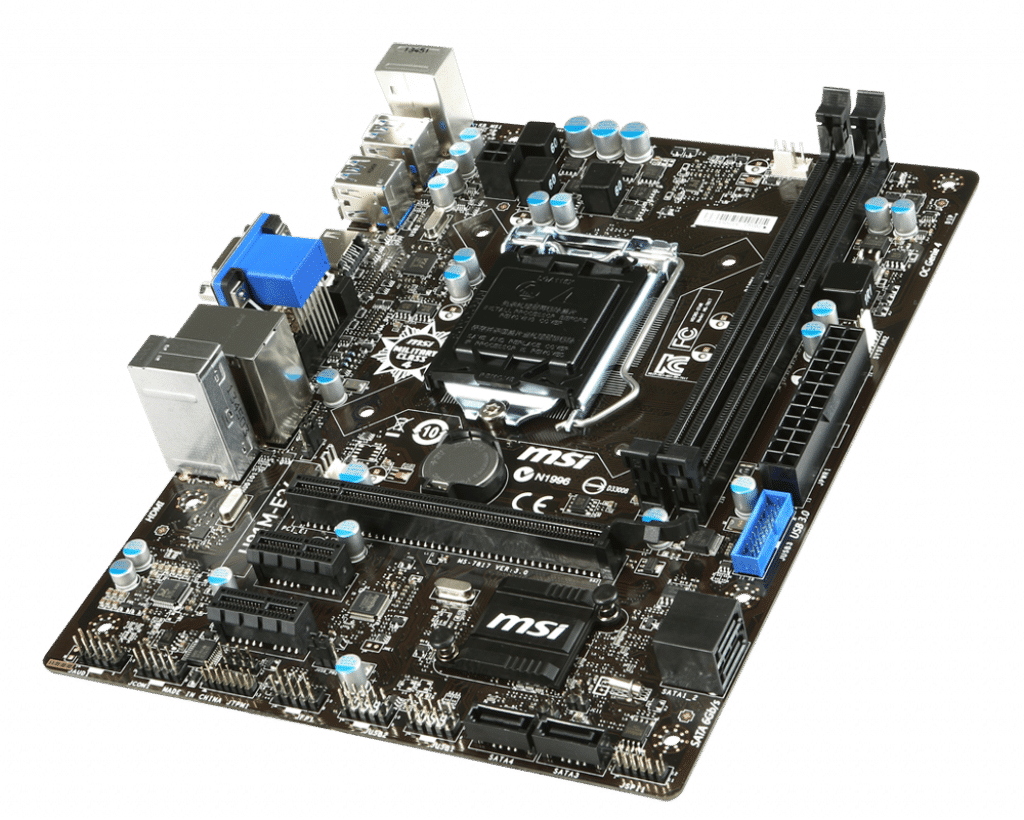

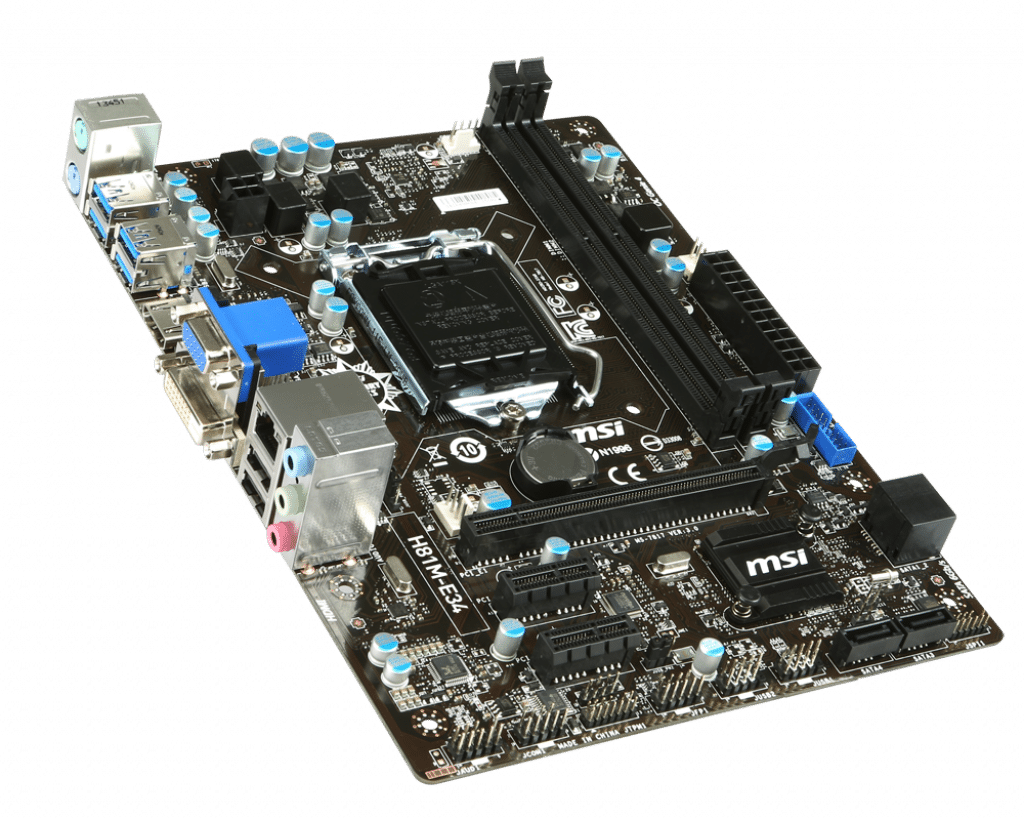

De MSI H81M-E34 is een socket 1150 Micro-ATX moederbord. De MSI H81M-E34 is voorzien van 2 DDR3 sloten met een maximale capaciteit van 16GB geheugen. Verder beschikt het Gigabyte H81M-E34 moederbord onder andere over USB 3, Sata 3, PCI-e 3 aansluitingen
Eigenschappen: Moederbord | Micro-ATX | Intel H81 Express | 2 x DDR3 DIMM | DVI-D | HDMI | VGA (D-Sub) | 2 x SATA 6Gb/s | 2 x SATA 3Gb/s | PCIe, Gigabit Ethernet | 7.1-ch
Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers
Product: MSI H81M-E34
Categorie: Moederborden
Merk: MSI
SKU: 7817-058R
Opmerking: dit is een tweedehands moederbord, de garantieperiode van het product is 90 dagen.
pakketinhoud:
– Moederbord
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels
Ondersteunde processors
4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket
Geheugen
Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Grafisch
HDMI, DVI-D, D-Sub
Audio
– Chip integrated by Realtek® ALC887
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 spec
LAN
Supports LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111G
Sloten
1 x PCI Express 2.0 x16 (x16-modus beschikbaar)
2 x PCI Express 2.0 x1
opslagruimte
2 x SATA 6 Gbps (SATA3_0 ~ SATA3_1-poorten)
2 x SATA 3 Gbps (SATA2_2 ~ SATA2_3-poorten)
USB-interfaces
Intel H81 Express:
2 x USB 2.0
4 x USB 3.0
Interne I / O-poorten
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x 3-pin system fan connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Serial port connector
1 x Clear CMOS jumper
2 x USB power jumpers
Externe I / O-poorten
1 x PS/2 keyboard/mouse port
2 x USB 2.0 ports
4 x USB 3.0 ports
1 x HDMI port
1 x DVI-D port
1 x VGA port
1 x LAN (RJ45) port
3 x audio jacks
BIOS
UEFI AMI BIOS
ACPI 5.0, PnP 1.0a, SM BIOS 2.7, DMI 2.0
Multi-language
Form factor:
Micro-ATX
Afmetingen:
22.6cm(L) x 17.3cm(W)
Gewicht | 1 kg |
---|---|
Intel | Socket 1150 |
Merk | MSI |
Chipset | Intel H81 |
Formaat | Micro-ATX |
Geheugentype | DDR3 |
Aantal geheugenslots | 2 |
Maximale geheugengrootte | 16 GB |
Aansluitingen | D-Sub (VGA), DVI-D, HDMI, USB 2.0, USB 3.0 |
Opslag interfaces | Serial ATA-300, Serial ATA-600 |
Interfaces | PCI-e 2.0 x1, PCI-e 2.0 x16 |
Socket |
Snelle levering
Merk: MSI
Model: H81M-E34
Socket: Intel Socket 1150
Geheugen: 2x DDR3 (16GB Max)
Form-Factor: Micro-ATX
EAN: 0824142019832, 4719072326005
SKU: 7817-058R, H81M-E34
