Product information

MSI Z97 PC MATE : motherboard |ATX | Intel Socket 1150 | Z97 Chipset | 4x DDR3 (max. 32GB) | PCI-e 2.0 x1 | PCI-e 2.0 x16 | PCI-e 3.0 x16  | PCI | SATA 600 | USB 2.0 | USB 3.0 | LAN | HDMI | DVI-D | VGA (D Sub)


Product: MSI Z97 PC MATE
Socket:
Socket 1150
Brand: MSI
Condition: Used
EAN: 4719072343118
SKU:
7850-004R, Z97 PC Mate
Warranty: 6 months


package content:
– Motherboard (MSI Z97 PC MATE)
– Backplate (Blende)
– No manual
– No driver CD
– No cables


CPU
4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket


Chipset
Intel® Z97 Express Chipset


Memory

• Support four DDR3 DIMMs 1066/1333/1600/1866*/2000*/2133*/ 2200*/2400*/2600*/2666*/2800*/3000*(* OC)MHz, 32GB Max
– Dual channel memory architecture
– Supports non-ECC, unbuffered memory
– Supports Intel® Extreme Memory Profile (XMP)


Audio
• Chipset integrated by Realtek® ALC887
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec


LAN
• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111G


Multi-GPU
• Supports AMD CrossFire™ Technology


Expansion Slots

• 2 x PCIe x16 slots
– PCI_E2 supports PCIe 3.0
– PCI_E4 supports PCIe 2.0
– Support x16, x4/x4 modes

• 2 x PCIe 2.0 x1 slots
• 2 x PCI slots


Storage Interface

• SATAIII controller integrated in Intel® Z97 chipset
– Up to 6Gb/s transfer speed.
– Supports six SATAIII ports (SATA1~6) by Z97

• RAID
– SATA1~6 support Intel® Rapid Storage Technology enterprise (AHCI/ RAID 0/ 1/ 5/10) by Intel® Z97
• Supports Intel Smart Response Technology, Intel Rapid Start Technology and Intel Smart Connect Technology*
* Supports Intel Core processors on Windows 7 and Windows 8.


USB
• Intel® Z97 Express Chipset
– 4x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB connectors)
– 8x USB 2.0 ports (4 ports on the back panel, 4 ports available through the internal USB connectors)


Internal I/O Connectors

– 1 x 24-pin ATX main power
– 1 x 8 pin ATX 12V power
– 6 x SATA
– 2 x USB 2.0 (supports additional 4 USB 2.0 ports)
– 1 x USB 3.0 (supports additional 2 USB 3.0 ports)
– 2 x 4-pin CPU fan
– 1 x 4-pin system fan
– 2 x 3-pin system fan
– 1 x Clear CMOS jumper
– 1 x Front panel audio
– 2 x System panel
– 1 x Chassis Intrusion
– 1 x TPM module
– 1 x Serial port
– 1 x Parallel Port

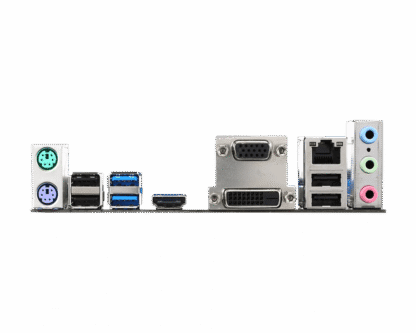

Back Panel Connectors
– 1 x PS/2 keyboard port
– 1 x PS/2 mouse port
– 4 x USB 2.0 ports
– 2 x USB 3.0 ports
– 1 x RJ45 LAN port
– 1 x 3 in 1 audio jacks
– 1 x VGA port
– 1 x DVI-D port
– 1 x HDMI port


Operating System
Support for Windows 10 64-bit


Form Factor
ATX Form Factor
12 in. x 9.6 in. (30.5cm x 22cm)

Specification

Intel

LGA1150

Brand

MSI

Form Factor

ATX

Chipset

Intel Z97

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

32 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, PS/2, USB 2.0, USB 3.0

Storage Interfaces

Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

Model

Z97 PC MATE

Suitable for

Regular use

particularities

Onboard Audio

Length

30.5 cm

Width

22 cm

package content

Motherboard and Backplate (Blende)

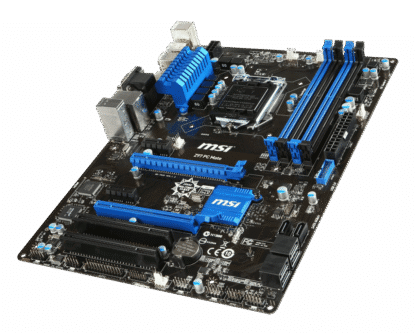

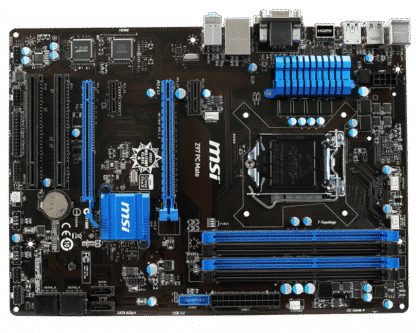

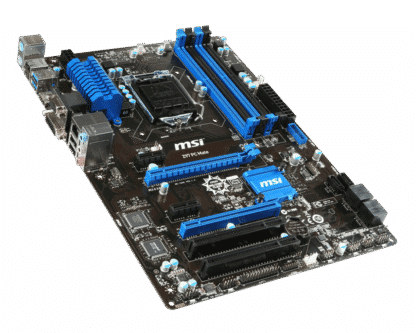

MSI Z97 PC MATE LGA1150 Motherboard

1 in stock

Fast delivery
79,95

Product: MSI Z97 PC MATE
Socket:
Socket 1150
Brand: MSI
Condition: Used
EAN: 4719072343118
SKU:
7850-004R, Z97 PC Mate
Warranty: 6 months
