Product informatie

MSI Z97 PC MATE : moederbord |ATX | Intel Socket 1150 | Z97 Chipset | 4x DDR3 (max. 32GB) | PCI-e 2.0 x1 | PCI-e 2.0 x16 | PCI-e 3.0 x16  | PCI |  SATA-600 |  USB 2.0 | USB 3.0 | LAN | HDMI | DVI-D | VGA (D-Sub)

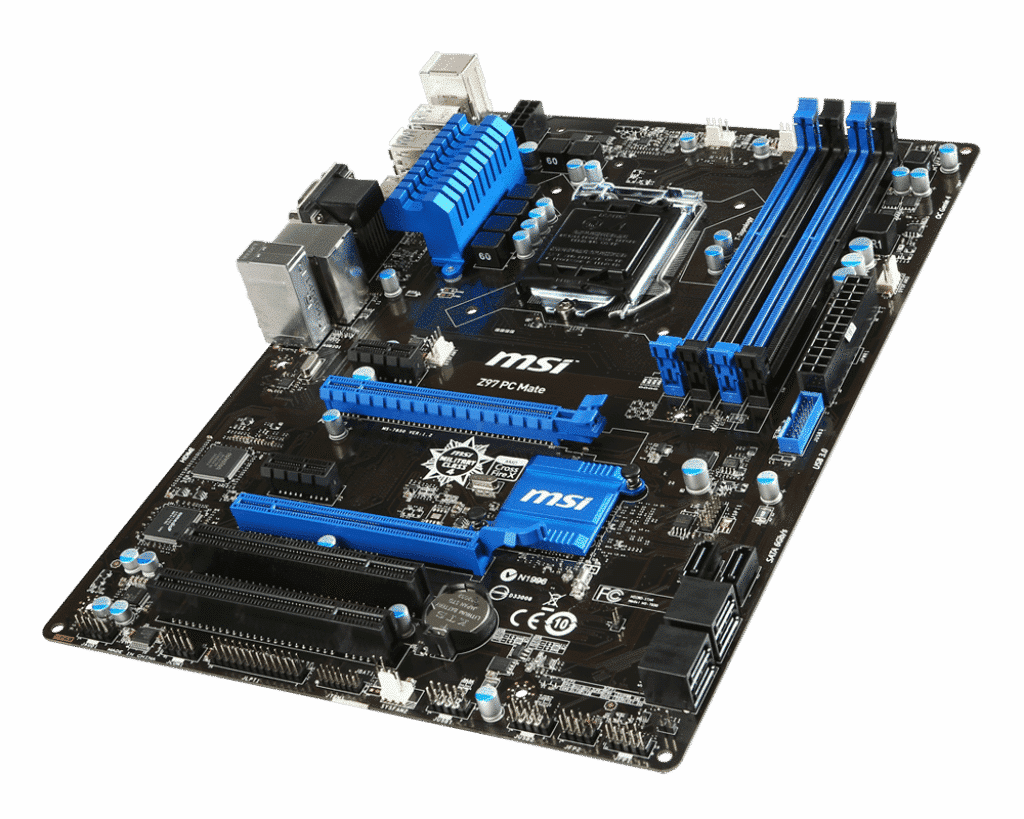

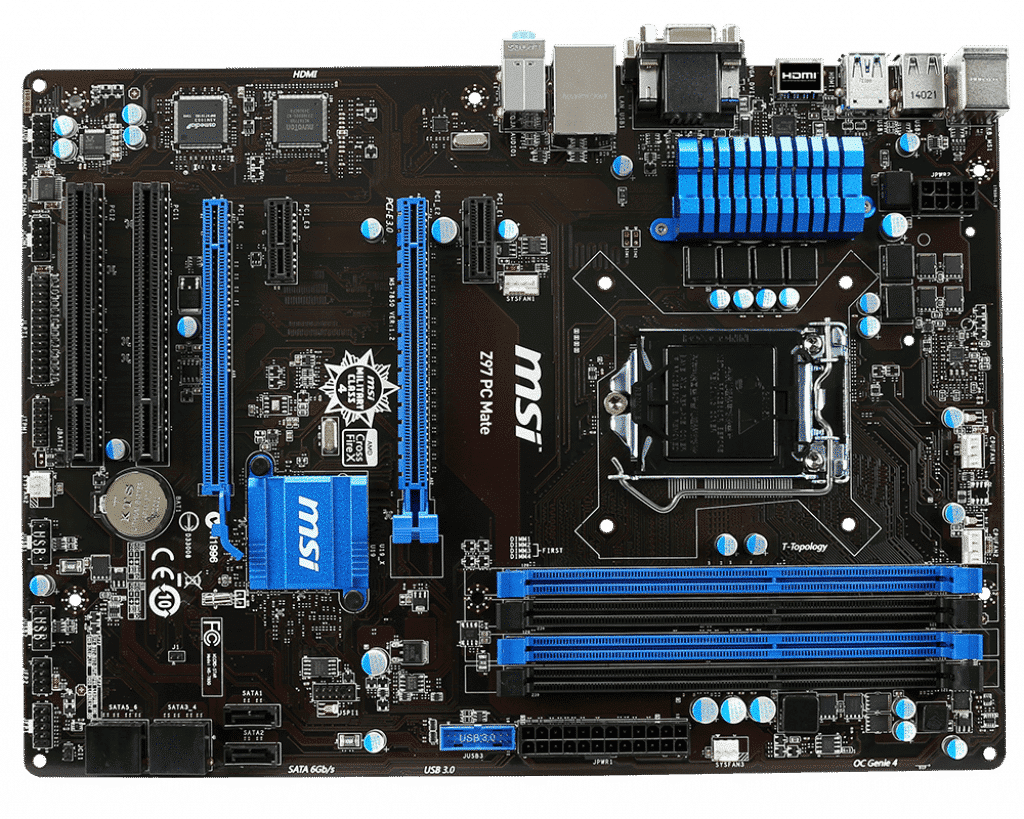

Product: MSI Z97 PC MATE
Socket:
Socket 1150
Merk: MSI
Staat: Used
EAN: 4719072343118
SKU:
7850-004R, Z97 PC Mate
Garantie: 6 maanden


Drivers voor de MSI Z97 PC MATE
Processoren ondersteund door de MSI Z97 PC MATE


pakketinhoud:
– Moederbord (MSI Z97 PC MATE)
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels


CPU
4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket


Chipset
Intel® Z97 Express Chipset


Memory

• Support four DDR3 DIMMs 1066/1333/1600/1866*/2000*/2133*/ 2200*/2400*/2600*/2666*/2800*/3000*(*OC) MHz, 32GB Max
– Dual channel memory architecture
– Supports non-ECC, un-buffered memory
– Supports Intel® Extreme Memory Profile (XMP)


Audio
• Chipset integrated by Realtek® ALC887
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec


LAN
• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111G


Multi-GPU
• Supports AMD CrossFire™ Technology


Expansion Slots

• 2 x PCIe x16 slots
– PCI_E2 supports PCIe 3.0
– PCI_E4 supports PCIe 2.0
– Support x16, x4/x4 modes

• 2 x PCIe 2.0 x1 slots
• 2 x PCI slots


Storage Interface

• SATAIII controller integrated in Intel® Z97 chipset
– Up to 6Gb/s transfer speed.
– Supports six SATAIII ports (SATA1~6) by Z97

• RAID
– SATA1~6 support Intel® Rapid Storage Technology enterprise (AHCI/ RAID 0/ 1/ 5/ 10) by Intel® Z97
• Supports Intel Smart Response Technology, Intel Rapid Start Technology and Intel Smart Connect Technology*
* Supports Intel Core processors on Windows 7 and Windows 8.


USB
• Intel® Z97 Express Chipset
– 4x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB connectors)
– 8x USB 2.0 ports (4 ports on the back panel, 4 ports available through the internal USB connectors)


Internal I/O Connectors

– 1 x 24-pin ATX main power
– 1 x 8-pin ATX 12V power
– 6 x SATA
– 2 x USB 2.0 (supports additional 4 USB 2.0 ports)
– 1 x USB 3.0 (supports additional 2 USB 3.0 ports)
– 2 x 4-pin CPU fan
– 1 x 4-pin system fan
– 2 x 3-pin system fan
– 1 x Clear CMOS jumper
– 1 x Front panel audio
– 2 x System panel
– 1 x Chassis Intrusion
– 1 x TPM module
– 1 x Serial port
– 1 x Parallel Port

Back Panel Connectors
– 1 x PS/2 keyboard port
– 1 x PS/2 mouse port
– 4 x USB 2.0 ports
– 2 x USB 3.0 ports
– 1 x RJ45 LAN port
– 1 x 3 in 1 audio jacks
– 1 x VGA port
– 1 x DVI-D port
– 1 x HDMI port


Operating System
Support for Windows 10 64-bit


Form Factor
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 22 cm)

Specificaties

Intel

Socket 1150

Merk

MSI

Formaat

ATX

Chipset

Intel Z97

Geheugentype

DDR3

Aantal geheugenslots

4

Maximale geheugengrootte

32 GB

Aansluitingen

D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, PS/2, USB 2.0, USB 3.0

Opslag interfaces

Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

Model

Z97 PC MATE

Geschikt voor

Regulier gebruik

Bijzonderheden

Onboard Audio

Lengte

30.5 cm

Breedte

22 cm

Pakketinhoud

Moederbord en I/O-Shield

MSI Z97 PC MATE Socket 1150 Moederbord

1 op voorraad

Snelle levering
79,95

Product: MSI Z97 PC MATE
Socket:
Socket 1150
Merk: MSI
Staat: Used
EAN: 4719072343118
SKU:
7850-004R, Z97 PC Mate
Garantie: 6 maanden

  • Gratis verzending vanaf €100,-
  • Betrouwbaar al meer dan 10 jaar!
  • Snelle levering
  • Betalen in termijnen is mogelijk!
Artikelnummer: Z97-PC-MATE Categorieën: , , Tags: , ,
