Product information

Motherboard – LGA1156 | ATX | Intel® Q57 PCH | DDR3 up to 16GB | 2x Gigabit Ethernet | PCI-e 2.0 x16 | PCI-e 2.0 x4 | PCI-e 2.0 x1 | PCI  | 2 x RS232 (DB-9) | USB 2.0 | DVI-I | VGA

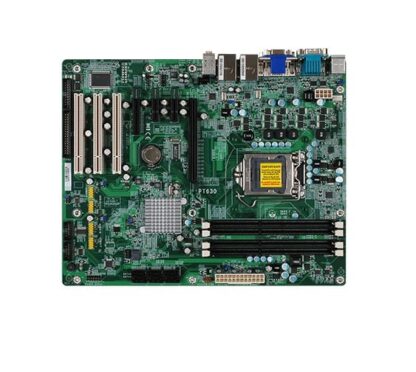

Product: DFI PT630 Socket 1156;
Brand: DFI
Condition: Used
Warranty: 6 Months

Drivers for the DFI PT630

Extended product specifications:

CPU
– Supports Socket 1156

Chipset
– Intel® Q57 PCH

Memory
– Dual Channel DDR3 memory technology
– 4 x DDR3 DIMM slots
– Supports DDR3 1333/1066 non-ECC, unbuffered memory
– Max. capacity of system memory: 16GB*

LAN
– Realtek RTL8111DL PCIe (10/100/1000Mbps)
– Intel® W82578DM PCIe with iAMT6.0 (10/100/1000Mbps)

Slots
– 1x PCIe x16 slot (Gen 2)
– 1x PCIe x4 slot (Gen 1)
– 2x PCIe x1 (Gen 1)
– 3x PCI

SATA
– 6x SATA 2.0 (up to 3Gb/s)
– RAID 0/1/5/10

Connector
– ATX 24-Pin power connector
– 4-pin ATX 12V power connector
– 2x RS232/485
– 8x USB 2.0
– 1x Line out
– 1x Mic in
– 6x SATA 2.0 (up to 3Gb/s)
– 1x 8-bit DIO

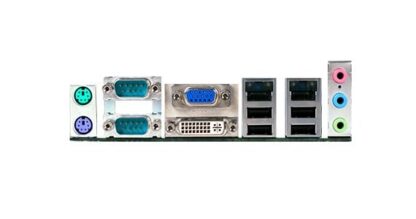

Rear Panel I/O
I/O Panel
– 2x GB Lan
– 2x RS232 (DB-9)
– 4x USB 2.0
– 2x PS/2
– 1x DVI-I
– 1x VGA
– 1x Line in
– 1x Line out
– 1x Mic in

Accessories
– I/O Shield

Form Factor
– ATX

OS

– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32- bit / XP 64 bit
*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.
