Product informatie

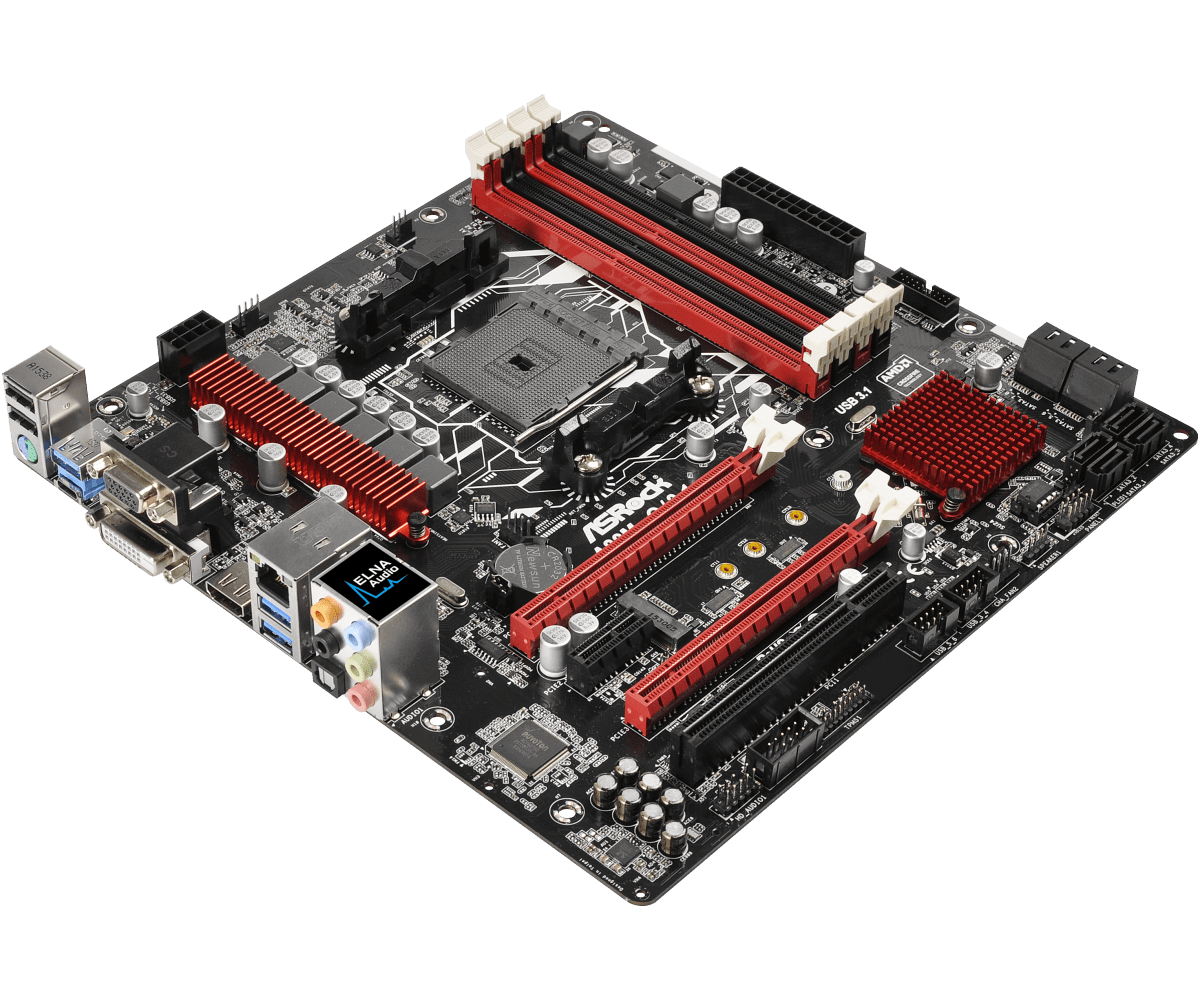

De ASRock A88M-G/3.1 is een Micro-ATX Socket FM2+ moederbord gebaseerd op de AMD A88X chipset. Het bord dient gecombineerd te worden met DDR3 geheugen, waarvoor 4 sloten beschikbaar zijn. In totaal heeft de ASRock A88M-G/3.1, 8 Serial ATA aansluitingen voor harddisks en SSD’s. De onboard geluidskaart biedt 7.1 kanaals geluid en is gebaseerd op een Realtek ALC1150 chip.

Eigenschappen: Moederbord | M-ATX | AMD FM2+ | 4x DDR3 | 8x SATA-600 | 6x USB 2.0, 4x USB 3.2 (Gen1, 5Gb/s) | USB 3.2 (Gen2, 10Gb/s) | USB 3.2 (Gen2, 10Gb/s) type-c | PCI, PCI-e 2.0 x1 | PCI-e 2.0 x16 | PCI-e 3.0 x16 | DVI-D | HDMI | VGA (D-Sub)

Klik hier voor de ondersteunende CPU’s
Klik hier voor de stuurprogramma’s

Product: ASRock A88M-G/3.1
Socket: AMD FM2 +
Categorie: moederborden
Merk: ASRock
EAN: 4717677329377
Staat: Refurbished – BIOS geüpdatet naar de nieuwste versie
SKU: 90-MXB100-A0UAYZ, A88M-G/3.1
Garantie:
6 maanden

pakketinhoud:
– Moederbord (ASRock A88M-G/3.1)
– IO-Shield (Blikken achterplaatje)
– handleiding
– cd met stuurprogramma’s
– kabels


Unique Feature
ASRock USB 3.1 Gen2
– ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop


CPU
– Supports Socket FM2+ 95W / FM2 100W processors
– 4 + 2 Power Phase design


Chipset
– AMD A88X (Bolton-D4)


Memory
– Dual Channel DDR3 Memory Technology
– 4 x DDR3 DIMM Slots
– Supports DDR3 2400+(OC)/2133/1866/1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 64GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
– Supports AMD Memory Profile Technology (AMP) up to AMP 2400

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliant wake up events
– Supports jumperfree
– SMBIOS 2.3.1 support
– DRAM, CPU Voltage multi-adjustment


Graphics
– Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU
– DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
– Max. shared memory 2GB
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz
– Supports Dual-link DVI-D with max. resolution up to 2560×1600 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports Blu-ray Stereoscopic 3D with HDMI Port
– Supports AMD Steady Video™ 2.0: New video post processing capability for automatic jitter reduction on home/online video
– Supports HDCP with DVI-D and HDMI Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

*Only FM2+ APU can support up to 4096×2160 resolution display VIA® HDMI port.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111GR
– Supports Wake-On-WAN
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1 @ x16 mode) *
– 1 x PCI Express 2.0 x16 Slot (PCIE3 @ x4 mode)
– 1 x PCI Express 2.0 x1 Slot
– 1 x PCI Slot

– Supports AMD Quad CrossFireX™, CrossFireX™ and Dual Graphics

*PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0.


Storage
– 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug
– 1 x M.2_SSD (NGFF) Socket 3, supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen2 x4 (20 Gb/s)*

*If PCIE3 is occupied, M2_1 will be disabled.
The M.2 socket does not support SATA M.2 SSDs.


Connector
– 1 x COM Port Header
– 1 x TPM Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
– 2 x Chassis Fan Connectors (2 x 4-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

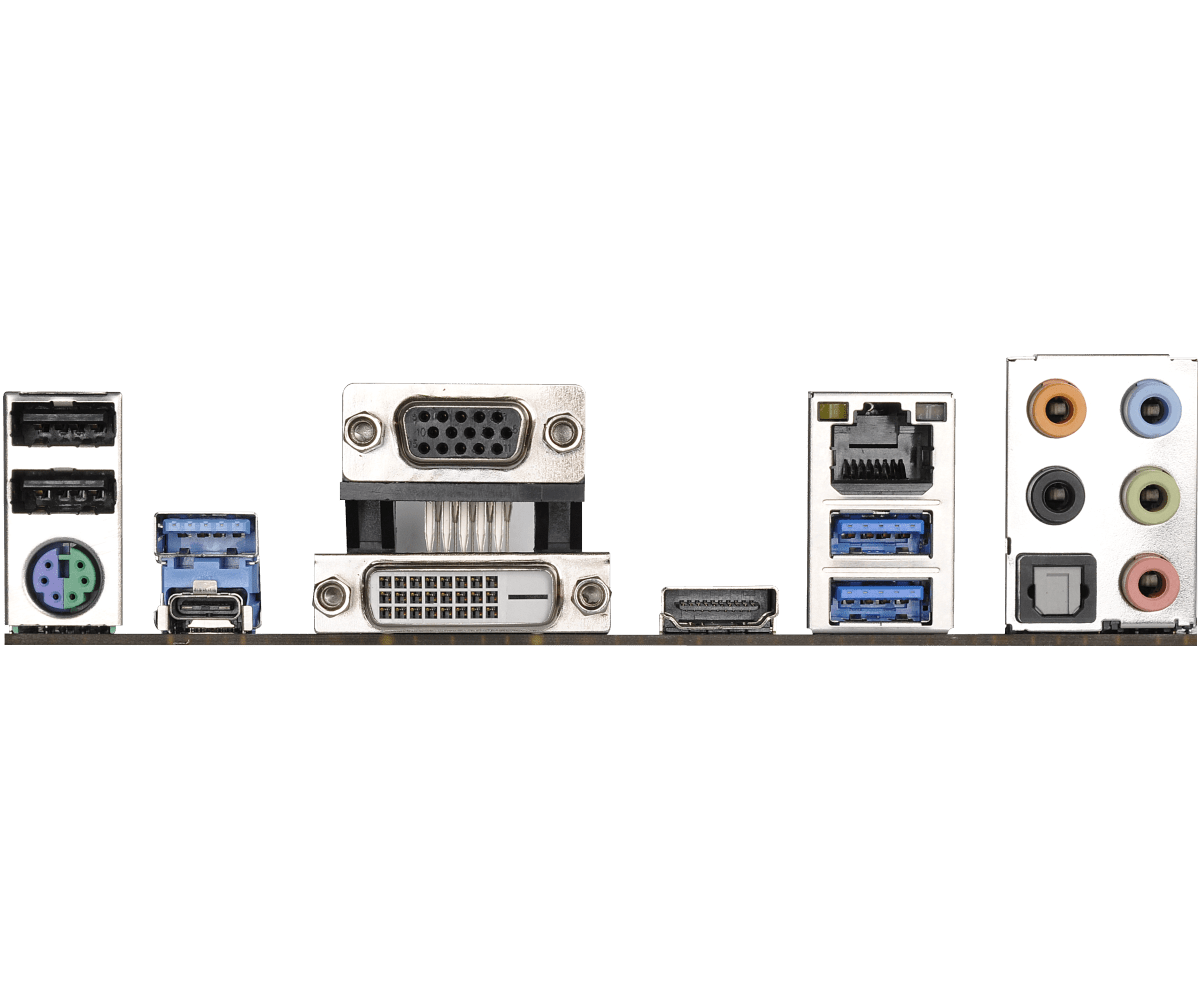

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM1143) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM1143) (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (AMD A88X (Bolton-D4)) (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock A-Tuning
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Fast Boot (Fast Boot, Restart to UEFI)
– ASRock X-Boost*

UEFI
– ASRock Interactive UEFI
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar


Accessories
– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, Vcore


Form Factor
– Micro ATX Form Factor
– Solid Capacitor design


OS
– Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

*Carrizo FM2r2 processor supports Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit only.

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specificaties

Gewicht 1 kg
AMD

FM2(+)

Merk

Asrock

Chipset

AMD A88X (Bolton-D4)

Formaat

Micro-ATX

Geheugentype

DDR3

Aantal geheugenslots

2

Maximale geheugengrootte

32 GB

Aansluitingen

D-Sub (VGA), DVI-D, HDMI, USB 2.0, USB 3.1 Gen1, USB 3.1 Gen1 Type-C

Opslag interfaces

Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

ASRock A88M-G/3.1 socket FM2+ moederbord
