Product informatie

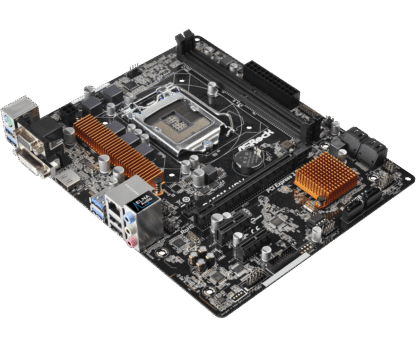

De ASRock B150M-HDV is een Micro ATX Socket 1151 moederbord gebaseerd op de Intel B150 chipset. Het bord dient gecombineerd te worden met DDR4 geheugen, waarvoor 2 sloten beschikbaar zijn. De onboard geluidskaart biedt 7.1 kanaals geluid en is gebaseerd op een Realtek ALC887 chip.



Eigenschappen:
Moederbord – M-ATX | Socket 1151 6e, 7e generation | 2x DDR4 | Intel ® B150 Chipset | DVI-D | VGA | HDMI | 2x PCI-e 3.0 x1 | PCI-e 3.0 x16 | 6x USB 2.0 | 6x USB 3.2 (Gen1, 5Gb/s)


Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers


Product: ASRock B150M-HDV
Socket: Socket 1151
Geschikt voor: 6e en 7e generatie processoren
Categorie: Moederborden
Merk: ASRock
EAN: 4717677327151
Staat: Refurbished – Bios bijgewerkt naar de laatste versie
SKU: 90-MXGYD0-A0UAYZ, B150M-HDV
Garantie:
6 Maanden


pakketinhoud:
– Moederbord (ASRock B150M-HDV)
– IO-Shield (blikken achterplaatje)
– geen handleiding
– geen driver-cd
– geen kabels


Unique Feature
ASRock Super Alloy
– High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop


CPU
– Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
– Supports Intel® Turbo Boost 2.0 Technology


Chipset
– Intel® B150
– Supports Intel® Small Business Advantage 4.0


Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 2133 non-ECC, un-buffered memory
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 32GB*
– Supports Intel® Extreme Memory Profile (XMP) 2.0

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 5.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL, VCCSA Voltage Multi-adjustment


Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530
– Pixel Shader 5.0, DirectX 12
– Max. shared memory 1024MB*
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports Accelerated Media Codecs: HEVC, VP8, VP9
– Supports HDCP with DVI-D and HDMI Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

*The size of maximum shared memory may vary from different operating systems.

**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.


Audio
– 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
– Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111E
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
– 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)

*Supports NVMe SSD as boot disks


Storage
– 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug


Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis Fan Connector (4-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.


Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Fast Boot (Fast Boot, Restart to UEFI)

UEFI
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI Tech Service
– ASRock Easy Driver Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar


Accessories
– I/O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA


Form Factor
– Micro ATX Form Factor: 9.1-in x 7.4-in, 23.1 cm x 18.8 cm
– Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*

*To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please see our online tutorial or check our User Manual for more detailed instructions.

*For the updated Windows® 10 driver, please visit ASRock’s website for details.


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specificaties

Gewicht1 kg
Intel

Socket 1151

Merk

Asrock

Chipset

Intel B150

Formaat

Micro-ATX

Geheugentype

DDR4

Aantal geheugenslots

2

Maximale geheugengrootte

32 GB

Aansluitingen

D-Sub (VGA), DVI-D, HDMI, USB 2.0, USB 3.1 Gen1

Opslag interfaces

Serial ATA-600

Interfaces

PCI-e 3.0 x1, PCI-e 3.0 x16

Socket

ASRock B150M-HDV socket 1151 moederbord

Snelle levering

Merk: ASRock
Model:  B150M-HDV
Socket: LGA1151
Chipset: Intel B150
Geheugen: 2x DDR4 (32GB Max)
Form-Factor: Micro-ATX
EAN: 4717677327151
SKU: 90-MXGYD0-A0UAYZ, B150M-HDV


Artikelnummer: B150M-HDV Categorieën: , , Tags: , ,
