Aanbieding!

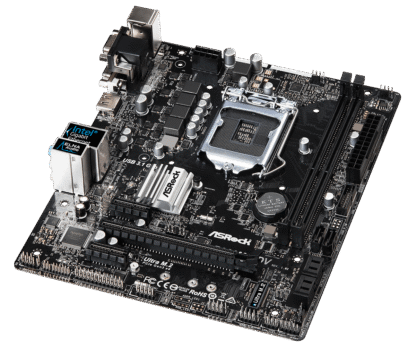

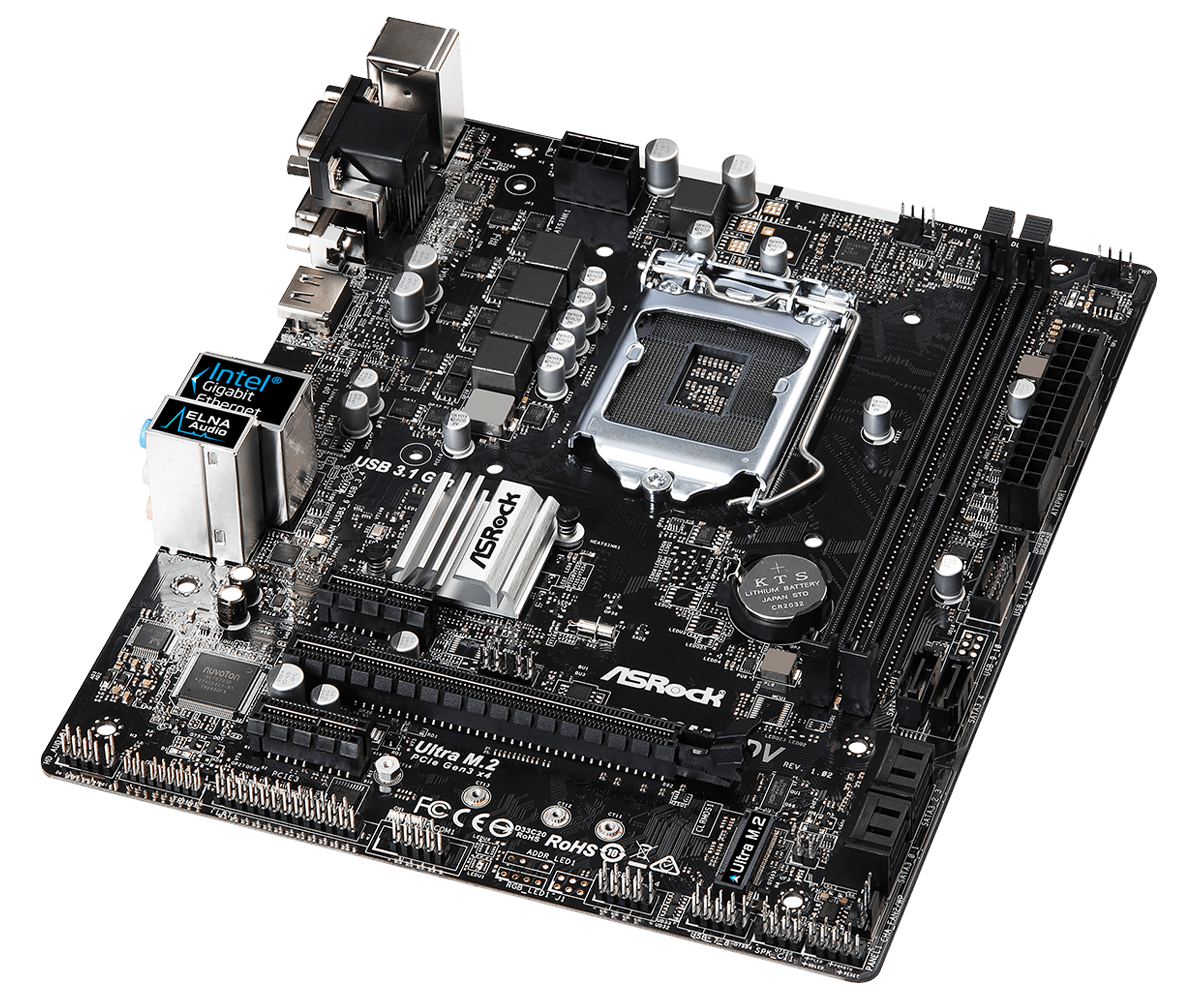

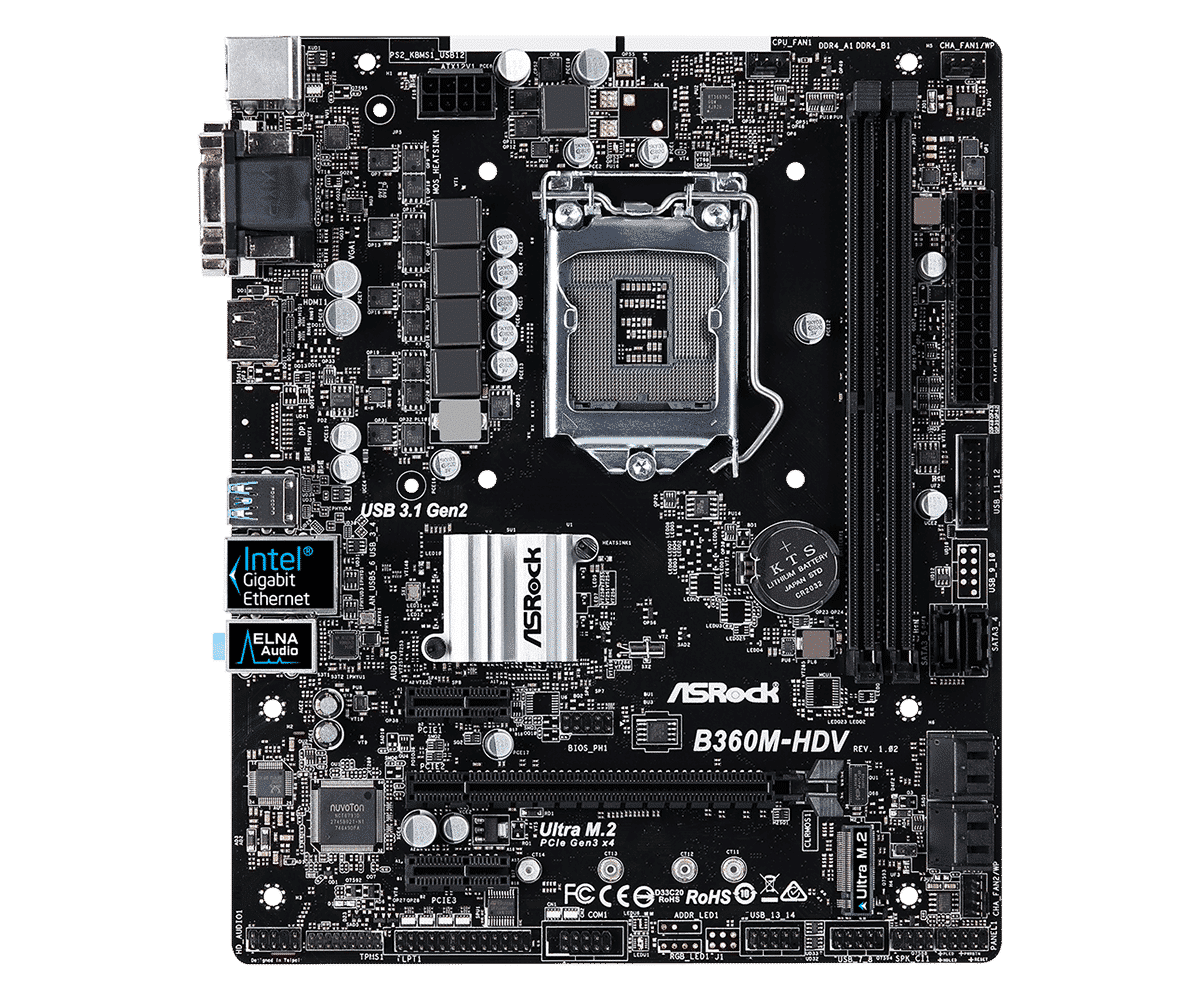

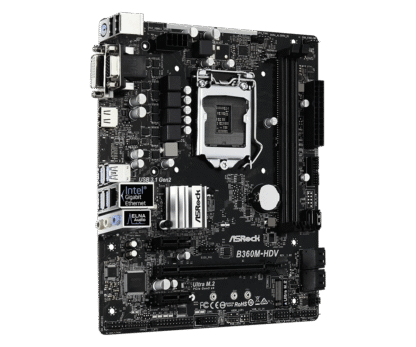

ASRock B360M-HDV Socket 1151 moederbord

  • Intel B360-chipset
  • Ondersteunt 8e en 9e Gen Intel® Core™-processors (socket 1151)
  • Ondersteunt DDR4 2666
  • 1 PCIe 3.0 x16, 2 PCIe 3.0 x1
  • Grafische uitvoeropties: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 4 USB 3.1 Gen2 10Gb/s (achter)
  • 2 USB 3.1 Gen1 (voorkant)
  • Intel® Gigabit-LAN

Uitverkocht

Vergelijk
Artikelnummer: B360M-HDV Categorieën: , , , Tags: , ,

Beschrijving

ASRock B360M-HDV:  moederbord | Micro-ATX | Intel Socket 1151 | B360 Chipset | 2x DDR4 (max. 32GB) | PCI-e 3.0 x1 | PCI-e 3.0 x16 | M.2 (PCI-e 3.0 x4 + SATA) | SATA-600 | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) |USB 3.2 (Gen2, 10Gb/s) | DVI-D | HDMI | VGA (D-Sub)


Product: ASRock B360M-HDV
Socket:
Socket 1151
Geschikt voor: 8e en 9e generatie processoren.
Categorie: Moederborden
Merk: ASRock
Staat: Refurbished, voorzien van de laatste BIOS versie
EAN: 4717677335156
SKU:
90-MXB730-A0UAYZ, B360M-HDV
Garantie: 6 maanden


Drivers voor de ASRock B360M-HDV
Processoren die door worden ondersteund


pakketinhoud:
– Moederbord (B360M-HDV)
– IO-Shield (blikken achterplaatje)
– geen handleiding
– geen driver-cd
– geen kabels


Unique Feature
ASRock USB 3.1 Gen2
– ASRock USB 3.1 Gen2 Type-A Ports (10 Gb/s)
ASRock Super Alloy
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for USB, Audio, LAN Ports)
ASRock Live Update & APP Shop


CPU
– Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
– Supports CPU up to 95W
– Supports Intel® Turbo Boost 2.0 Technology


Chipset
– Intel® B360


Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment
Graphics
– Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
– DirectX 12
– HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
– Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.


Audio
– 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
– Supports Surge Protection
– ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.


LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
– 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)

*Supports NVMe SSD as boot disks


Storage
– 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

*If M2_1 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.

**Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit


Connector
– 1 x Print Port Header
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.

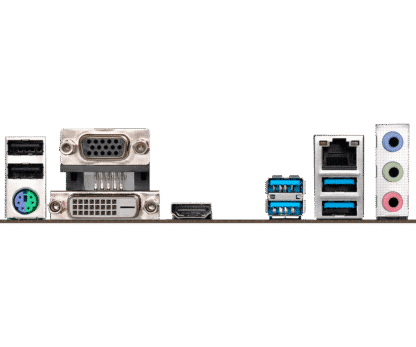

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 4 x USB 3.1 Gen2 Type-A Ports (10 Gb/s)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock A-Tuning
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
– I/O Shield


Hardware Monitor
– Temperature Sensing: CPU, Chassis/Water Pump Fans
– Fan Tachometer: CPU, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.05V


Form Factor
– Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
– Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit / 11 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Extra informatie

Gewicht 1 kg
Intel

Socket 1151

Merk

Asrock

Formaat

Micro-ATX

Chipset

Intel B360

Geheugentype

DDR4

Aantal geheugenslots

2

Maximale geheugengrootte

32 GB

Aansluitingen

D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.1 Gen2 Type-A

Opslag interfaces

Serial ATA-600, Ultra M.2 Socket

Interfaces

M.2, PCI-e 3.0 x1, PCI-e 3.0 x16

Socket

Model

B360M-HDV

Lengte

22.6 cm

Breedte

18.8 cm

Pakketinhoud

Moederbord en I/O-Shield
