Product informatie

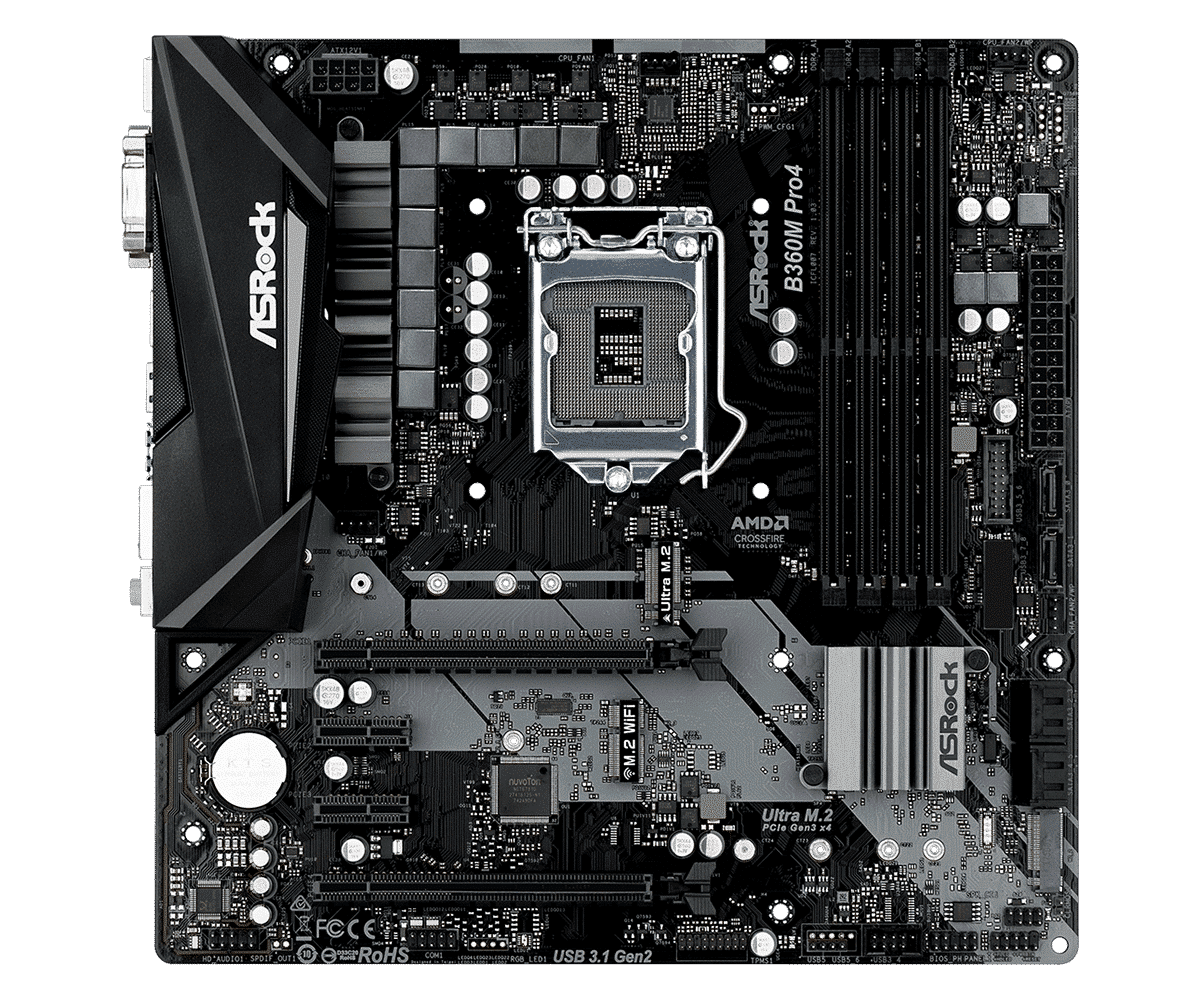

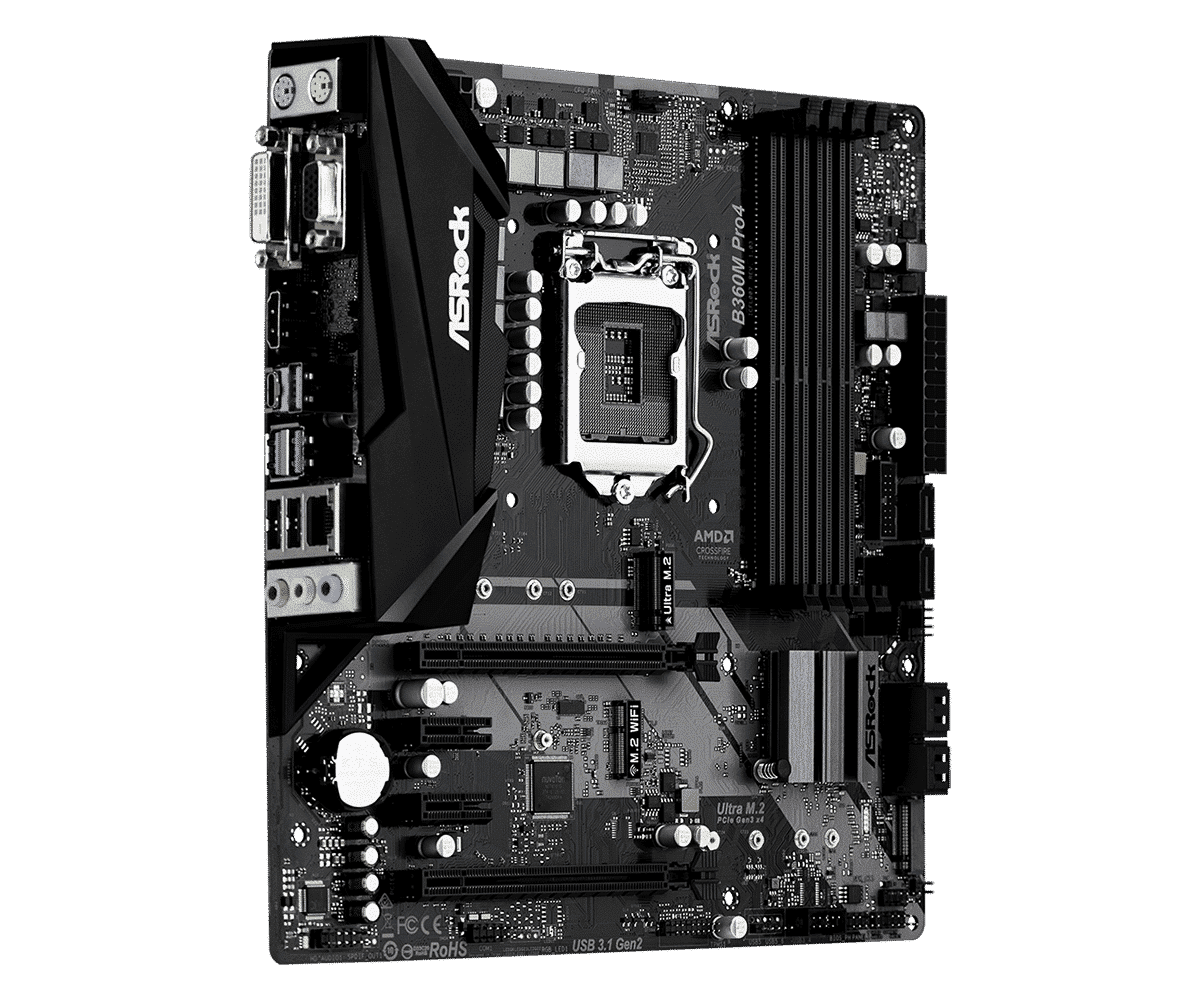

Het ASRock B360M Pro4 is een Micro-ATX Socket 1151 moederbord welke geschikt is voor de 8e en 9e generatie processoren, het moederbord beschikt over 4x DDR4 geheugen modules, met een maximum van 64GB.

Specificaties:
 moederbord | Micro-ATX | Intel Socket 1151 | B360 Chipset | 4x DDR4 (max. 64GB) | 2x PCI-e 3.0 x1 | 2x PCI-e 3.0 x16 | M.2 (PCI-e 3.0 x2 + SATA) | M.2 (PCI-e 3.0 x4) | 6x SATA-600 | 5x USB 2.0 | 4x USB 3.2 (Gen1, 5Gb/s) | USB 3.2 (Gen2, 10Gb/s) | USB 3.2 (Gen2, 10Gb/s) type-c | DVI-D | HDMI | VGA (D-Sub)

Product: ASRock B360M Pro4
Socket:
Socket 1151
Geschikt voor: 8e en 9e generatie processoren
Categorie: Moederborden
Merk: ASRock
Staat: Refurbished, voorzien van de laatste BIOS versie
EAN:4717677335149
SKU:
90-MXB760-A0UAYZ, B360M PRO4
Garantie: 6 maanden

Drivers voor de ASRock B360M Pro4
Processoren die door worden ondersteund

pakketinhoud:
– Moederbord (B360M Pro4)
– IO-Shield (blikken achterplaatje)
– geen handleiding
– geen driver-cd
– geen kabels


Unique Feature
ASRock USB 3.1 Gen2
– ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
– Premium 45A Power Choke
– I/O Armor
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
ASRock Ultra M.2 (PCIe Gen3 x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop


CPU
– Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
– Supports CPU up to 95W
– Digi Power design
– Supports Intel® Turbo Boost 2.0 Technology


Chipset
– Intel® B360


Memory
– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 128GB*
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment


Graphics
– Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
– DirectX 12
– HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
– Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
– Premium Blu-ray Audio support
– Supports Surge Protection
– ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.


LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))*
– 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
– Supports AMD Quad CrossFireX™ and CrossFireX™
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)**

*If PCIE2 is occupied, PCIE4 will downgrade to x2 mode.
Supports NVMe SSD as boot disks

**Supports CNVio1 WiFi module(Intel® Wireless-AC 9560/9462/9461) only.


Storage
– 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
– 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x1 (8 Gb/s)**

*If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.

**Supports Intel® Optane™ Technology (M2_1 only)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit


Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
– 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.


Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
– 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock A-Tuning
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
– I/O Shield

Hardware Monitor
– Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans


– Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V


Form Factor
– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
– Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit / 11 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specificaties

Gewicht 1 kg
Intel

Socket 1151

Merk

Asrock

Chipset

Intel B360

Formaat

Micro-ATX

Geheugentype

DDR4

Aantal geheugenslots

4

Maximale geheugengrootte

64 GB

Aansluitingen

DVI-D, Ethernet (RJ-45), HDMI, PS/2, USB 2.0, USB 3.1 Gen1, USB 3.1 Gen1 Type-C, USB 3.1 Gen2 Type-A, VGA

Opslag interfaces

M.2 (PCI-e 3.0 x4), Serial ATA-600, Ultra M.2 Socket

Interfaces

PCI-e 3.0 x1, PCI-e 3.0 x16

Socket

ASRock B360M Pro4 Socket 1151 moederbord

Snelle levering

Product: ASRock B360M Pro4
Socket:
Socket 1151 (geschikt voor 8e en 9e generatie processoren)
Categorie: Moederborden
Merk: ASRock
Staat: Refurbished, voorzien van de laatste BIOS versie
EAN:4717677335149
SKU:
90-MXB760-A0UAYZ, B360M PRO4
Garantie: 6 maanden
