Product informatie

ASRock B365 Phantom Gaming 4: Moederbord | ATX | Socket 1151 (voor 8e en 9e gen, CPU) | B365 Chipset | 4x DDR4 (max 64GB) | M.2 Ultra Socket | SATA-600 | PCI-e 3.0 x1 | PCI-e 3.0 x16 | Gigabit LAN | USB 3.1 Gen2 Type-A | USB 3.1 Gen2 Type-C | USB 3.1 Gen1 | HDMI | Displayport

Klik hier voor de processoren die worden ondersteund.
Klik hier voor de drivers

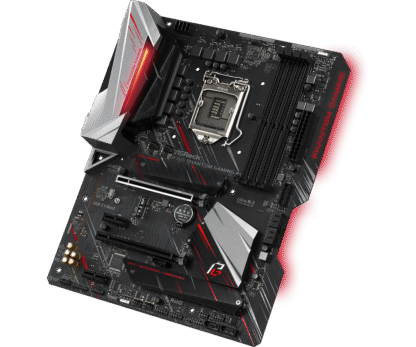

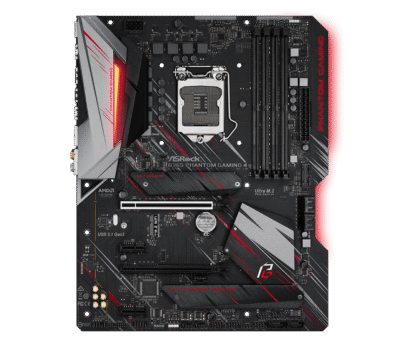

Product: ASRock B365 Phantom Gaming 4
Socket: 1151
Geschikt voor: 8e en 9e generatie processoren
Categorie: moederborden
Merk: ASRock
Staat: Refurbished
EAN: 4717677338034
SKU: 90-MXB9U0-A0UAYZ, B365 PHANTOM GAMING 4
Garantie: 6 maanden

Inhoud pakket:
– Moederbord (ASRock B365 Phantom Gaming 4)
– I/O-Shield (blikken achterplaatje)
– geen handleiding
– geen cd met stuurprogramma’s
– geen kabels

Gaming Armor
Memory
– 15μ Gold Contact in DIMM Slots
VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Internet
– Intel® LAN
Cooling
– XXL Aluminum Alloy Heatsink
Unique Feature
ASRock USB 3.1 Gen2
– ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
– Premium 50A Power Choke
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
– I/O Armor
– Shaped PCB Design
– Matte Black PCB
– High Density Glass Fabric PCB
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU
– Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
– Supports CPU up to 95W
– Digi Power design
– 8 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology

Chipset
– Intel® B365

Memory
– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB*
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, GT, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment

Graphics
– Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
– DirectX 12
– HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
– Dual graphics outputs: HDMI 1.4 and DisplayPort 1.2
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
– Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2 Ports
– Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection
– PCB Isolate Shielding
– Gold Audio Jacks
– Supports DTS Connect

LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
– 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
– 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
– Supports AMD Quad CrossFireX™ and CrossFireX™
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– 15μ Gold Contact in VGA PCIe Slot (PCIE2)

*If PCIE2 or PCIE4 is occupied, PCIE3 will downgrade to x2 mode.
Supports NVMe SSD as boot disks

Storage
– 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
– 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

*If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

**Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 2 x RGB LED Headers*
– 1 x Addressable LED Header**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
– 1 x Post Status Checker (PSC)

*Support in total up to 12V/3A, 36W LED Strip

**Supports in total up to 5V/3A, 15W LED Strip

***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

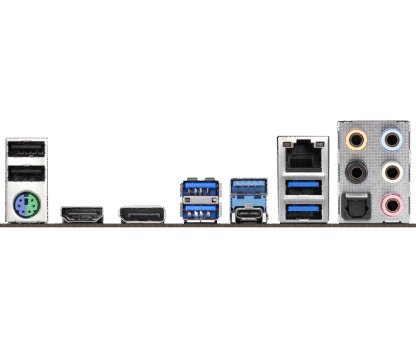

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x DisplayPort 1.2
– 1 x Optical SPDIF Out Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
– 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Software and UEFI
Software
– ASRock Phantom Gaming Tuning
– ASRock Polychrome SYNC
– ASRock Key Master
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories
– I/O Shield

Hardware Monitor
– Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST

Form Factor
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

OS
– Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
