Product informatie

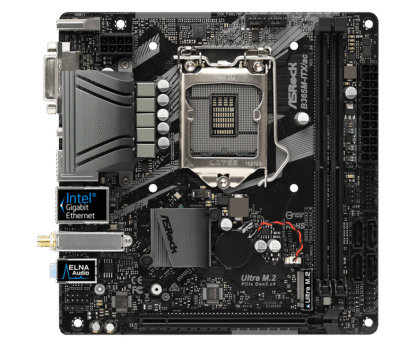

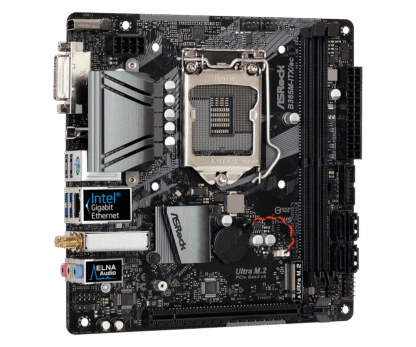

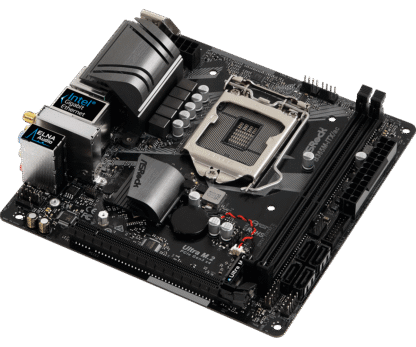

Asrock B365M-ITX/AC Mini ITX Socket 1151 Moederbord:  moederbord | ITX | Socket 1151 | B365 Chipset | 2x DDR4 (max. 64GB) | PCI Express 3.0 x16 | Ultra M.2 | Sata-600 | USB 3.1 Gen1 Type-C  | DVI-I | Displayport | HDMI | Wifi

Product:Asrock B365M-ITX/AC
Socket: Socket 1151
Geschikt voor: 8e en 9e generatie processoren
Categorie: Moederborden
Merk: ASRock
Staat: Refurbished
EAN: 4717677338010
SKU: 90-MXB9S0-A0UAYZ, B365M-ITX/ac
Garantie: 6 maanden

Drivers voor de Asrock B365M-ITX/ac
Processoren die door worden ondersteund door de Asrock B365M-ITX/ac

pakketinhoud:
– Moederbord (Asrock B365M-ITX/ac)
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels

Unique Feature
ASRock Super Alloy
– Premium 60A Power Choke
– Dual-Stack MOSFET (DSM)
– Sapphire Black PCB
– High Density Glass Fabric PCB
Intel® 802.11ac WiFi
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU
– Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
– Supports CPU up to 95W
– Digi Power design
– 5 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology

Chipset
– Intel® B365

Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 32GB*
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment

Graphics
– Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
– DirectX 12
– HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
– Three graphics output options: DVI-I, HDMI and DisplayPort 1.2
– Supports Triple Monitor
– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
– Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz
– Supports DVI-I with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.2 with DVI-I, HDMI 1.4 and DisplayPort 1.2 Ports
– Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio
– 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
– Supports Surge Protection
– ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Wireless LAN
– Intel® 802.11ac WiFi Module
– Supports IEEE 802.11a/b/g/n/ac
– Supports Dual-Band (2.4/5 GHz)
– Supports high speed wireless connections up to 433Mbps
– Supports Bluetooth 4.2 / 3.0 + High speed class II

Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
– 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)

*Supports NVMe SSD as boot disks

Storage
– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket, supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

*Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

Connector
– 1 x Chassis Intrusion Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x Chassis Fan Connector (4-pin)**
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

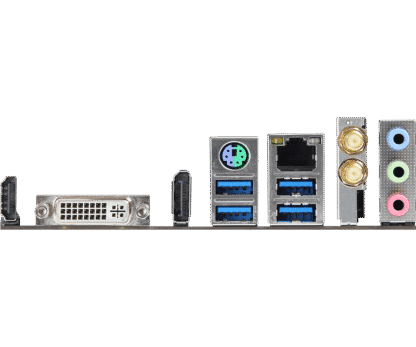

Rear Panel I/O
– 2 x Antenna Ports
– 1 x PS/2 Mouse/Keyboard Port
– 1 x DVI-I Port
– 1 x HDMI Port
– 1 x DisplayPort 1.2
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
– ASRock A-Tuning
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories
– I/O Shield
– 2 x ASRock WiFi 2.4/5 GHz Antennas

Hardware Monitor
– Temperature Sensing: CPU, Chassis, Chassis/Water Pump Fans
– Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
– Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– Solid Capacitor design

OS
– Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
