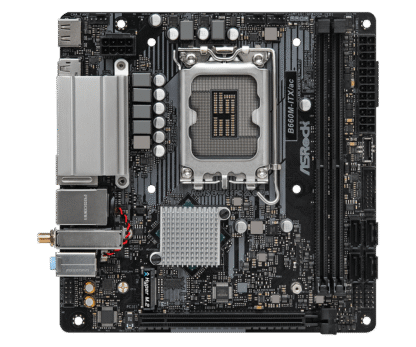

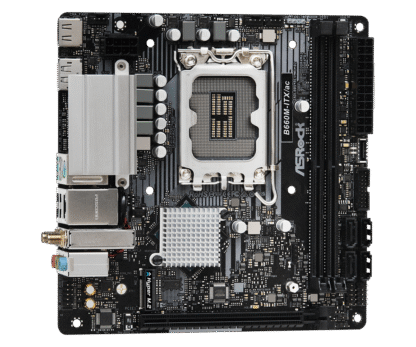

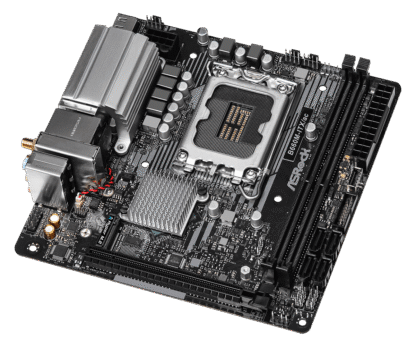

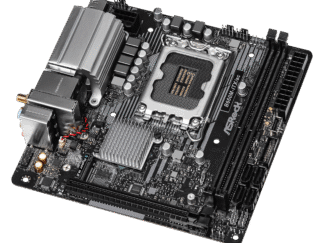

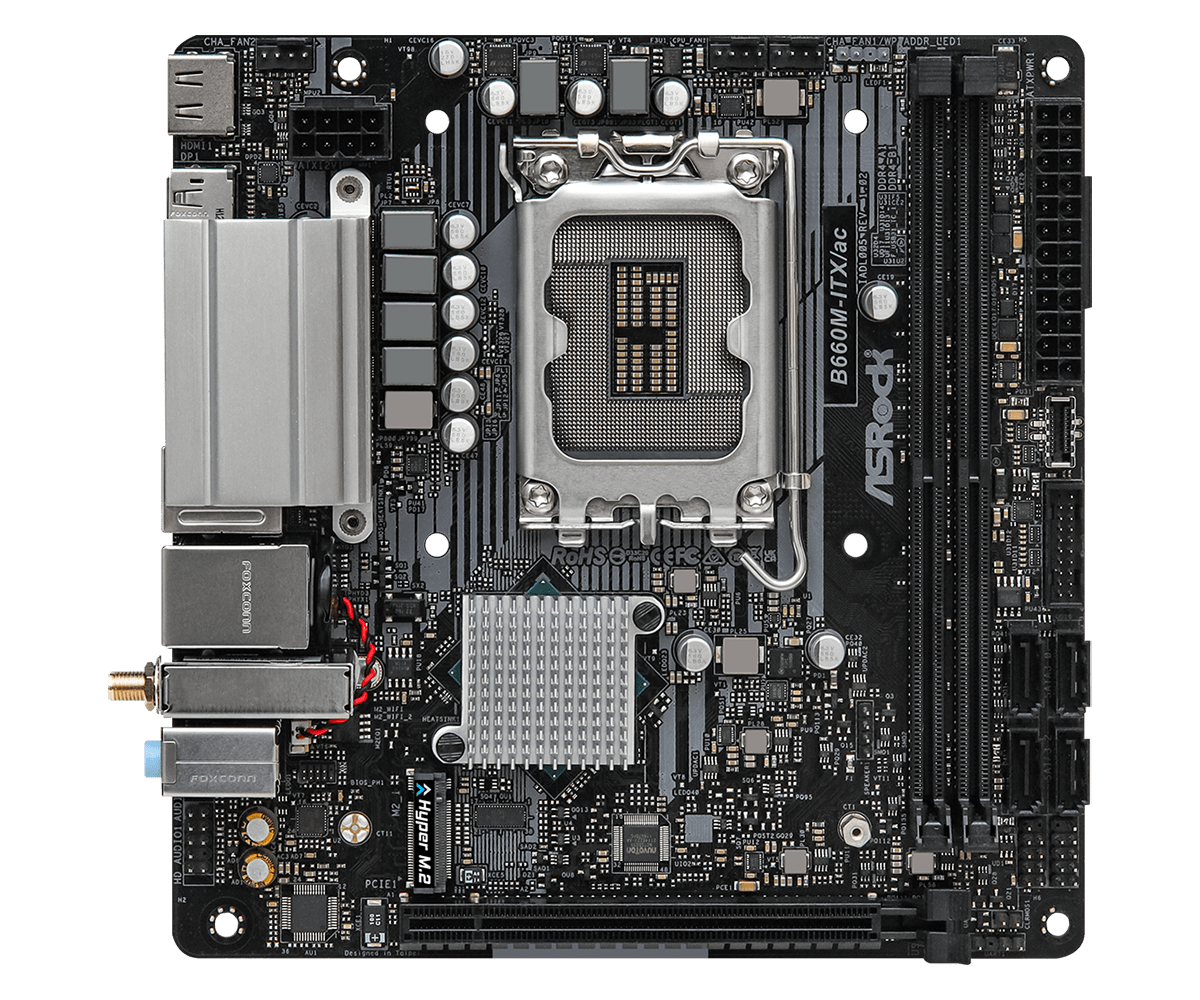

ASRock B660M-ITX/AC Socket 1700

Snelle levering
99,95

  • Formaat: Mini-ATX
  • Socket: LGA1700 (support voor 12e, 13e en 14e generatie Intel® Core™ processoren)
  • Geheugen: 2 DDR4 DIMM slots, maximaal 64GB, ondersteuning voor DDR4 5000+MHz (OC)
  • USB Poorten: 2 USB 3.2 Gen1 Type-A, 2 USB 2.0
  • Uitbereidingssleuven: 1 x PCIe 4.0 x16
  • Grafische Output: HDMI, Displayport
  • Extra: Wifi, Bluetooth

9 op voorraad

Optioneel:
x
Vergelijk
Artikelnummer: ASRock B660M_ITX/AC Categorieën: , , Tags: , , , ,

Beschrijving

Het ASRock B660M-ITX socket 1700 Mini-ITX moederbord is voorzien van de Intel B660 chipset en ondersteunt de 12e, 13e en 14e generatie Intel processoren (Alder Lake”, “Raptor Lake” en “Meteor Lake”). Het moederbord beschikt over twee DDR4 geheugen slots met een maximale capaciteit van 64GB. Het moederbord is voorzien van een PCI Express 4.0 x16 slot en één M.2 Socket (Key E).


Product: ASRock B660M-ITX/AC
Socket:
LGA1700
Categorie: Moederborden
Merk: ASRock
Staat: Refurbished
Ean: 4710483936920
SKU:90-MXBHG0-A0UAYZ
Garantie: 6 maanden


Drivers voor de ASRock B660M-ITX/AC
Processoren die ondersteund worden door de ASRock B660M-ITX/AC


pakketinhoud:
– Moederbord (ASRock B660M-ITX/AC)
– IO-Shield (metalen achterplaat)
– 2 Antennes
– Handleiding
– Driver CD
– Kabels


Unieke Eigenschappen

ASRock Super Alloy
– Premium Power Choke
– 50A Dr.MOS
– Sapphire Black PCB
– High Density Glass Fabric PCB
802.11ac WiFi
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (voor alle USB, Audio, LAN poorten)
ASRock Live Update & APP Shop


CPU

– Ondersteunt 14e, 13e & 12e Gen Intel® Core™ Processors (LGA1700)
– Digi Power design
– 6 Power Phase design
– Ondersteunt Intel® Hybrid Technology
– Ondersteunt Intel® Turbo Boost Max 3.0 Technology


Chipset

– Intel® B660


Geheugen

– Dual Channel DDR4 Geheugen Technologie
– 2 x DDR4 DIMM Slots
– Ondersteunt DDR4 non-ECC, un-buffered geheugen tot 5000+(OC)*
– Ondersteunt ECC UDIMM geheugenmodules (werkt in non-ECC modus)
– Max. capaciteit van systeemgeheugen: 64GB
– Ondersteunt Intel® Extreme Memory Profile (XMP) 2.0

*Ondersteunt DDR4 3200 standaard.


BIOS

– 128Mb AMI UEFI Legal BIOS met meertalige GUI ondersteuning
– ACPI 6.0 Compliant wake-up events
– SMBIOS 2.7 Ondersteuning
– CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment


Grafisch

– Intel® Xe Graphics Architecture (Gen 12)
– Dual graphics output: ondersteunt HDMI en DisplayPort 1.4 poorten via onafhankelijke displaycontrollers
– Ondersteunt HDMI 2.1 TMDS Compatibel met max. resolutie tot 4K x 2K (4096×2160) @ 60Hz
– Ondersteunt DisplayPort 1.4 met DSC (gecomprimeerd) max. resolutie tot 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz
– Ondersteunt HDCP 2.3 met HDMI 2.1 TMDS Compatibel en DisplayPort 1.4 poorten

*Intel® UHD Graphics ingebouwde visuals en VGA-uitgangen kunnen alleen worden ondersteund met processors die GPU-geïntegreerd zijn.


Audio

– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Ondersteunt Surge Protection


LAN

– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Ondersteunt Wake-On-LAN
– Ondersteunt Lightning/ESD Protection
– Ondersteunt Energy Efficient Ethernet 802.3az
– Ondersteunt UEFI PXE


Wireless LAN

– 802.11ac WiFi Module
– Ondersteunt IEEE 802.11a/b/g/n/ac
– Ondersteunt Dual-Band (2.4/5 GHz)
– Ondersteunt hoge snelheid draadloze verbindingen tot 433Mbps
– Ondersteunt Bluetooth + High-speed class II


Uitbereidingssloten

CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), ondersteunt x16 modus*
Chipset:
– 1 x Vertical M.2 Socket (Key E), ondersteunt type 2230 WiFi/BT PCIe WiFi module en Intel® CNVi (Geïntegreerde WiFi/BT)

*Ondersteunt NVMe SSD als opstartschijven


Opslag

CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), ondersteunt type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modi*
Chipset:
– 4 x SATA3 6.0 Gb/s Connectors**

*Ondersteunt Intel® Optane™ Memory H Series
Ondersteunt Intel® Volume Management Device (VMD)
Ondersteunt NVMe SSD als opstartschijven
Ondersteunt ASRock U.2 Kit

** Als M2_1 bezet is door een SATA-type M.2 apparaat, wordt SATA3_0 uitgeschakeld.
RAID
– Ondersteunt RAID 0, RAID 1, RAID 5 en RAID 10 voor SATA-opslagapparaten


Aansluitingen

– 1 x Adresbare LED Header*
– 1 x CPU Fan Connector (4-pin)**
– 1 x Chassis Fan Connector (4-pin)***
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Slimme Fan Speed Control)****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Ondersteunt 2 USB 2.0 poorten) (Ondersteunt ESD Bescherming)
– 1 x USB 3.2 Gen1 Header (Ondersteunt 2 USB 3.2 Gen1 poorten) (Ondersteunt ESD Bescherming)
– 1 x Front Panel Type C USB 3.2 Gen1 Header (Ondersteunt ESD Bescherming)

*Ondersteunt in totaal tot 5V/3A, 15W LED Strip

**De CPU Fan Connector ondersteunt de CPU fan van maximaal 1A (12W) fan vermogen.

***De Chassis Fan Connector ondersteunt de chassis fan van maximaal 1A (12W) fan vermogen.

****De Chassis/Water Pump Fan ondersteunt de waterkoeler fan van maximaal 2A (24W) fan vermogen.
CHA_FAN1/WP kan automatisch detecteren of een 3-pin of 4-pin fan wordt gebruikt.

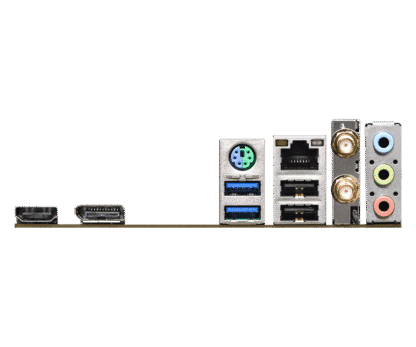

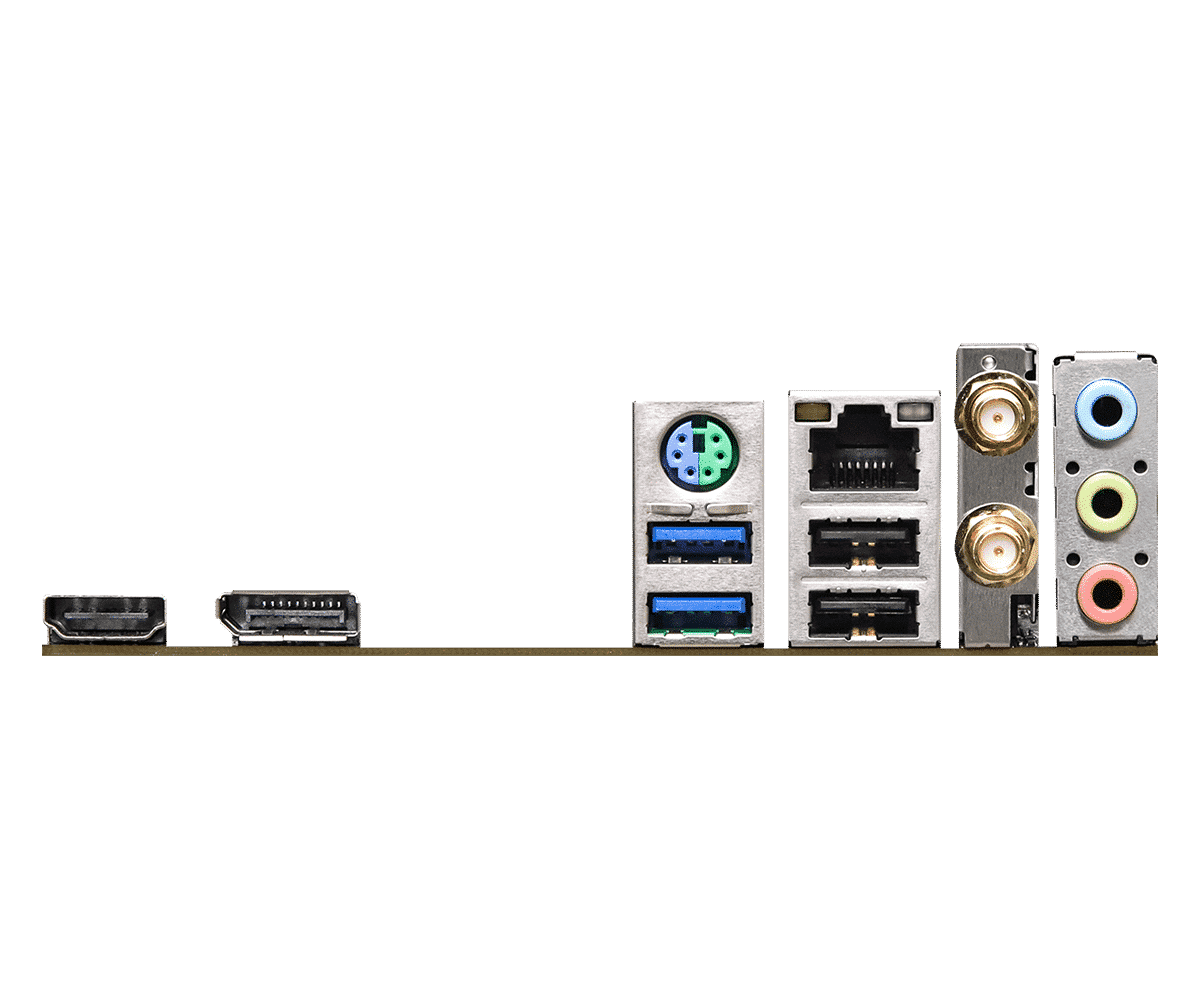

Achterpaneel I/O

– 2 x Antenne Poorten
– 1 x PS/2 Muis/Toetsenbord Poort
– 1 x HDMI Poort
– 1 x DisplayPort 1.4
– 2 x USB 3.2 Gen1 Poorten (Ondersteunt ESD Bescherming)
– 2 x USB 2.0 Poorten (Ondersteunt ESD Bescherming)
– 1 x RJ-45 LAN Poort met LED (ACT/LINK LED en SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microfoon


Software en UEFI

Software
– ASRock Moederbord Utility (A-Tuning)
– ASRock Polychrome SYNC
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer

*Deze software kan worden gedownload via ASRock Live Update & APP Shop.


Accessoires

– I/O Shield
– 2 x WiFi Antennes


Hardware Monitor

– Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
– Quiet Fan (Automatisch aanpassen van de chassis fan snelheid op basis van CPU temperatuur): CPU, Chassis, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
– Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V, +1.05V PCH


Formaat

– Mini-ITX Formaat: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– Solid Capacitor ontwerp


OS

– Microsoft Windows® 10 64-bit / 11 64-bit


Certificeringen

– FCC, CE
– ErP/EuP ready (ErP/EuP ready voeding is vereist)

Extra informatie

Gewicht 1 kg
Merk

Asrock

Model

ASRock B660M-ITX/AC

Formaat

Mini-ITX

Socket

CPU Support

12e Generatie, 13e Generatie, 14e Generatie

Chipset

Intel B660

Geheugentype

DDR4

Aantal geheugenslots

2

Maximale geheugengrootte

64 GB

Aansluitingen

Displayport, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.2 (Gen1, 5Gb/s), Wifi

Uitbereidingssleuven

1 x PCI Express 4.0 x16, 1x M.2 Socket (Key E)

Opslag

1 x Hyper M.2 Socket, 4 x SATA3 6.0 Gb/s

USB

2 x USB 2.0, 2 x USB 3.2 Gen1

Lengte

17 cm

Breedte

17 cm

Pakketinhoud

Moederbord, Antennes en I/O-Shield

Intel

Socket 1700
