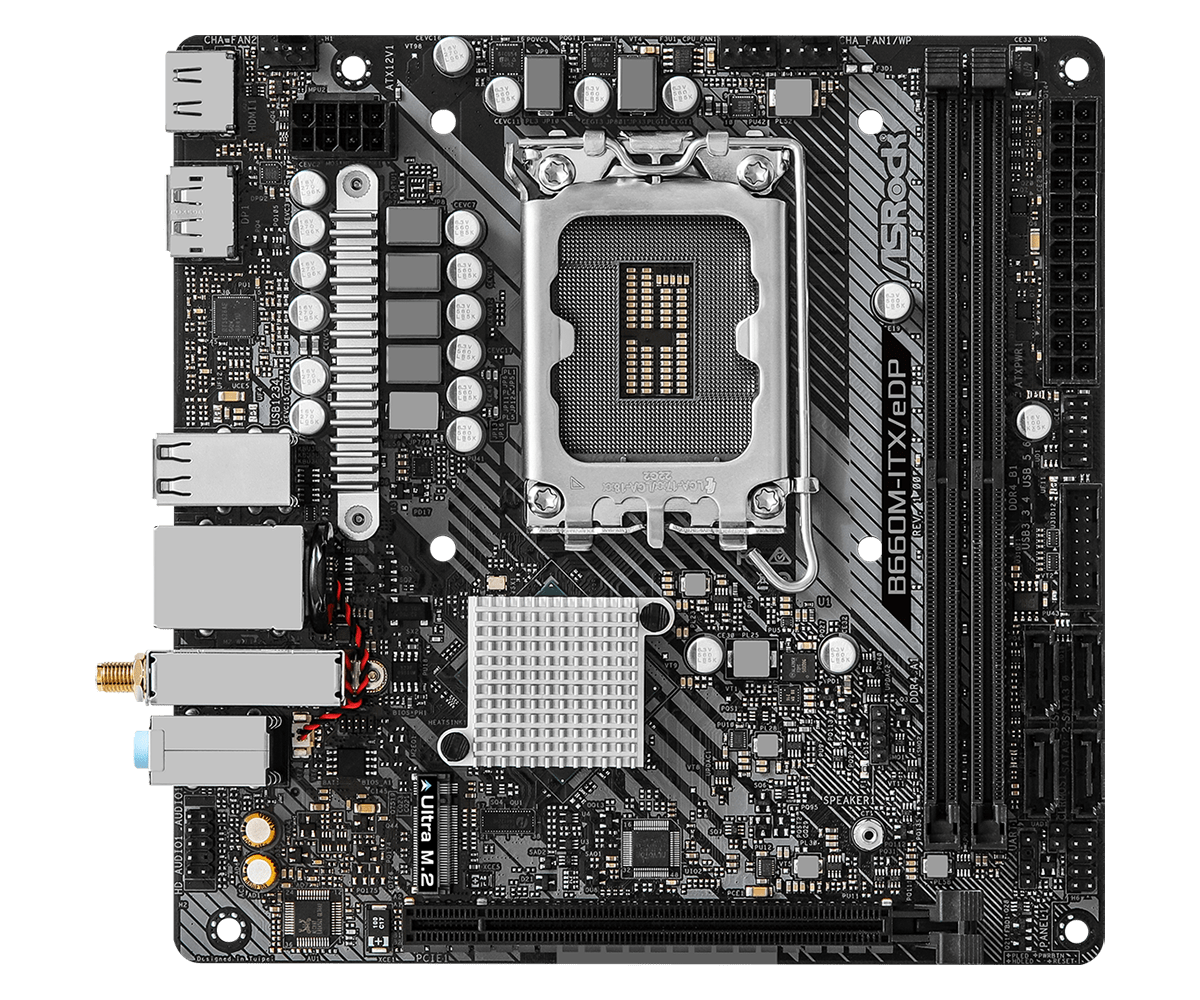

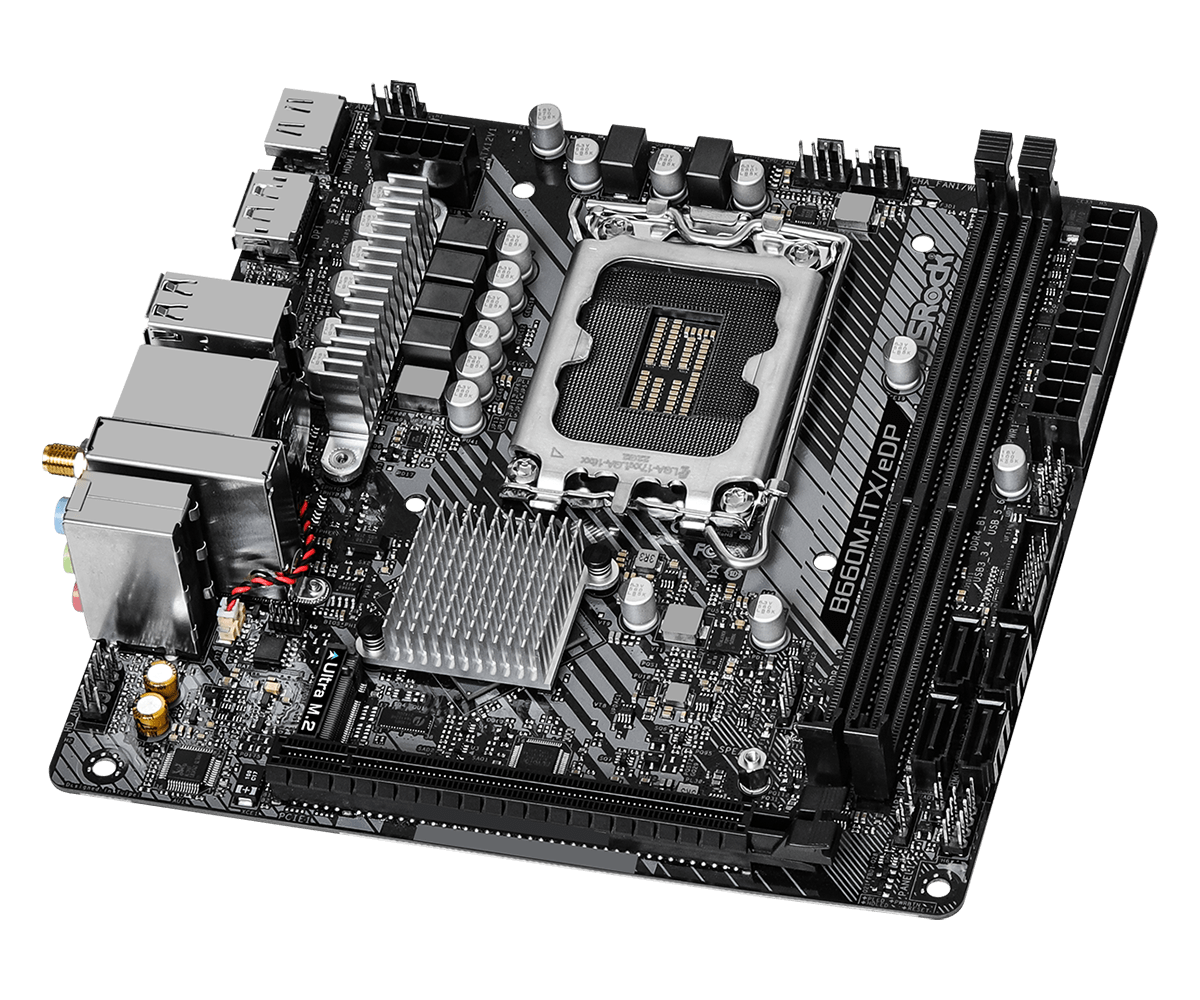

ASRock B660M-ITX/eDP:  moederbord | Mini-ITX | Socket 1700 | B660 ChipSet | 2x DDR4 (64GB max) | PCIe 4.0 x16 | PCIe 3.0 x1 |M.2 (Key E) | Ultra M.2 | HDMI | Display port | Wifi  |USB 3.2 Gen1 | USB 2.0

Product:ASRock B660M-ITX/eDP
Socket: LGA1700
Categorie: Moederborden
Merk: ASRock
Staat: Refurbished
EAN: 4710483936920
SKU:90-MXBHG0-A0UAYZ
Garantie: 6 maanden

Drivers voor de ASRock B660M-ITX/eDP
Processoren die door worden ondersteund door de ASRock B660M-ITX/eDP

pakketinhoud:
– Moederbord (ASRock B660M-ITX/eDP)
– IO-Shield (blikken achterplaatje)
– Antenne
– Geen handleiding
– driver-cd
– Geen kabels

Unique Feature
ASRock Super Alloy
– Premium Power Choke
– 50A Dr.MOS
– Sapphire Black PCB
– High Density Glass Fabric PCB
802.11ac WiFi
ASRock Ultra M.2 (PCIe Gen3x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU
– Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
– Digi Power design
– 6 Power Phase design
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology

Chipset
– Intel® B660

Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB
– Supports Intel® Extreme Memory Profile (XMP) 2.0

*Supports DDR4 3200 natively.

BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment

Graphics
– Intel® Xe Graphics Architecture (Gen 12)
– Three graphics output options: eDP 1.4, HDMI and DisplayPort 1.4
– Supports Triple Monitor
– Supports eDP 1.4 with max. resolution up to Full HD (1920×1080) @ 60Hz
– Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz
– Supports HDCP 2.3 with eDP 1.4, HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection

LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports UEFI PXE

Wireless LAN
– 802.11ac WiFi Module
– Supports IEEE 802.11a/b/g/n/ac
– Supports Dual-Band (2.4/5 GHz)
– Supports high speed wireless connections up to 433Mbps
– Supports Bluetooth 5.1 + High speed class II

Slots
CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x Vertical M.2 Socket (Key E), supports type 2230 Intel® CNVi (Integrated WiFi/BT)**

*Supports NVMe SSD as boot disks

**CNVi BT shares bandwidth with the top USB 2.0 port (USB_1) on the rear I/O. When CNVi BT is used, USB_1 becomes unavailable.

Storage
Chipset:
– 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
– 4 x SATA3 6.0 Gb/s Connectors**

*Supports Intel® Optane™ Memory H Series
Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

**If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

RAID
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Connector
– 1 x eDP Signal Connector
– 1 x CPU Fan Connector (4-pin)*
– 1 x Chassis Fan Connector (4-pin)**
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

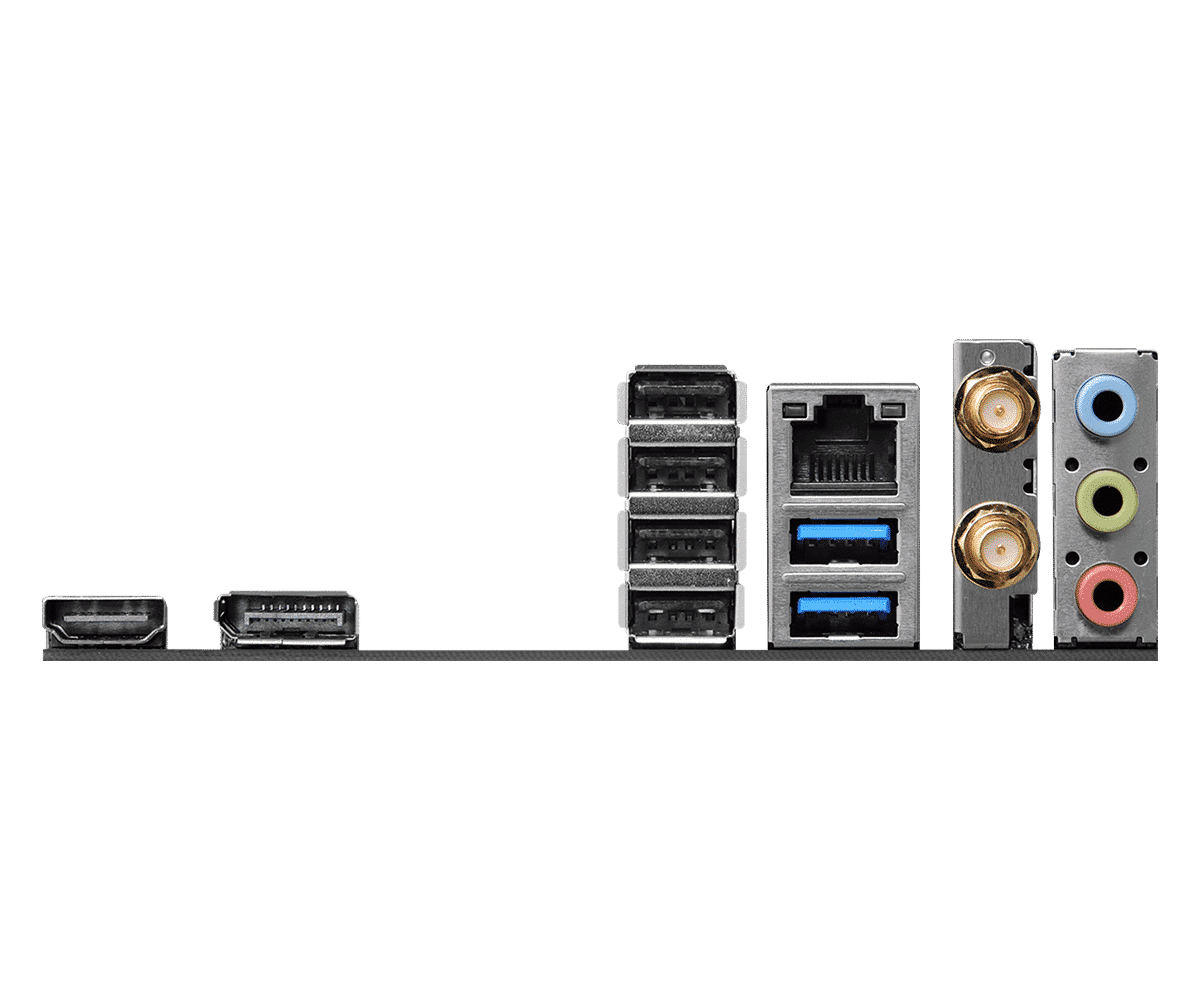

Rear Panel I/O
– 2 x Antenna Ports
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 4 x USB 2.0 Ports (Supports ESD Protection)*
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

*CNVi BT shares bandwidth with the top USB 2.0 port (USB_1). When CNVi BT is used, USB_1 becomes unavailable.

Software and UEFI
Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version)

Accessories
– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 2 x ASRock WiFi 2.4/5 GHz Antennas
– 1 x Screw for M.2 Socket

Hardware Monitor
– Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
– Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V, +1.05V PCH

Form Factor
– Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– Solid Capacitor design

OS
– Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
