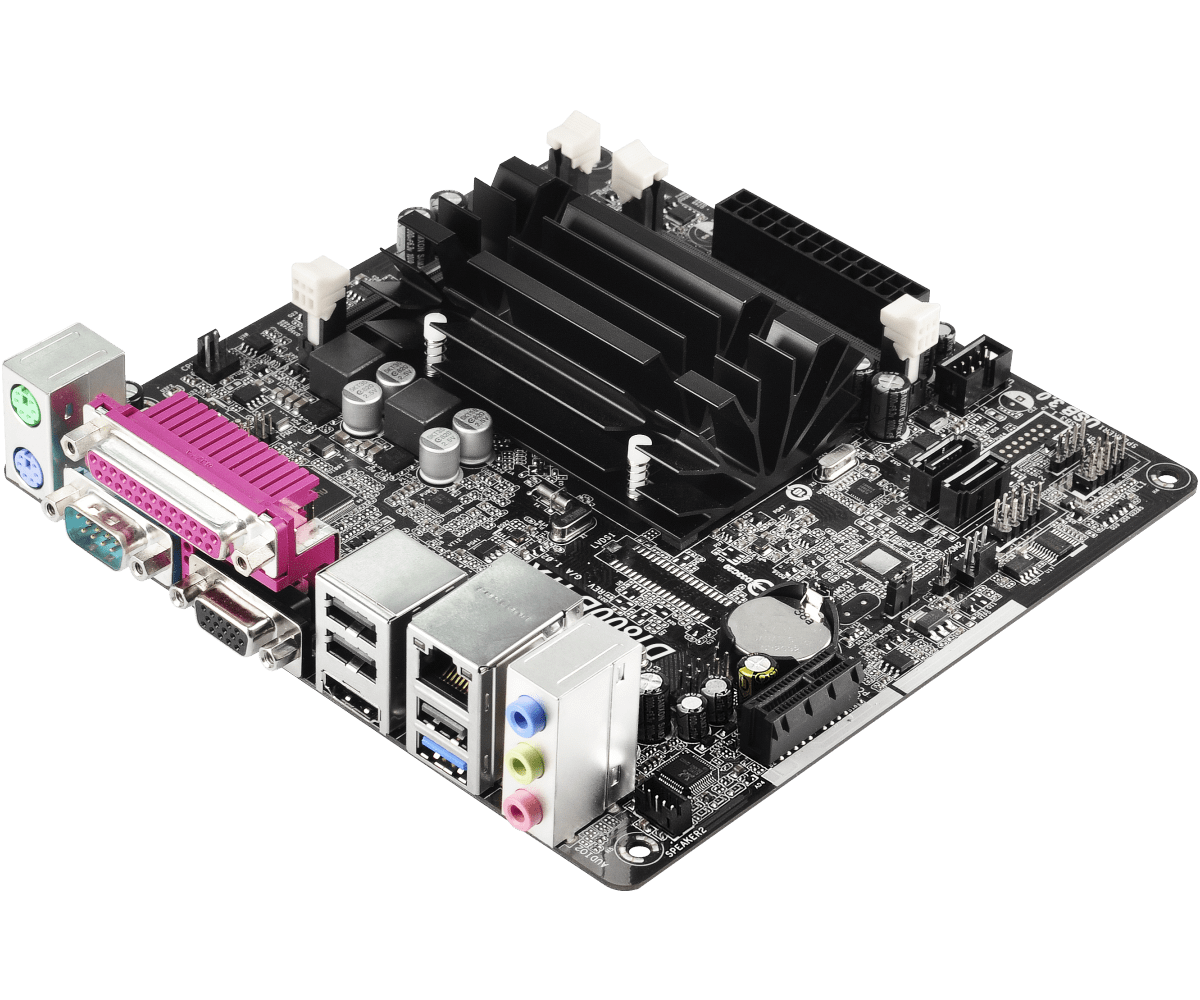

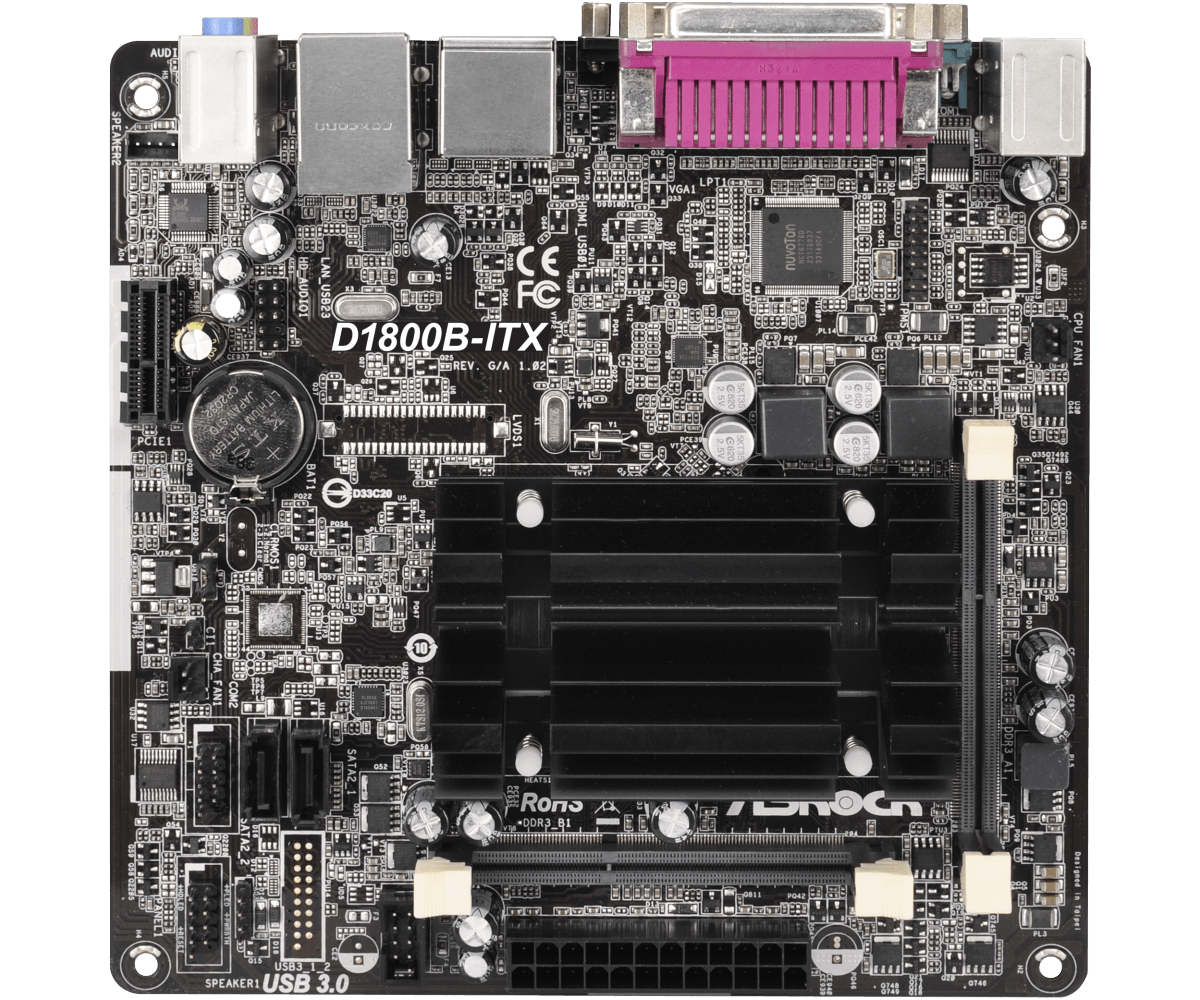

ASRock D1800B-ITX

Snelle levering
39,95

Merk: Asrock
Model: D1800B-ITX
Socket: Intel® Dual-Core Processor J1800 (2.41 GHz)
Geheugen: 2x DDR3 – SO-Dimm (16GB Max)
Form-Factor: Mini-ITX
EAN: 4717677322835
SKU: 90-MXGRF0-A0UAYZ, D1800B-ITX

Uitverkocht

Artikelnummer: ASRock D1800B-ITX Categorieën: , Tags: , ,

Product informatie

De ASRock D1800B-ITX is een ITX moederbord met een geintergreerde Intel® Dual-Core Processor J1800 (2.41 GHz). Het bord dient gecombineerd te worden met DDR3/DDR3L SO-DIMM geheugen, waarvoor 2 sloten beschikbaar zijn. In totaal heeft de ASRock D1800B-ITX 10 Serial ATA aansluitingen voor harddisks en SSD’s. De onboard geluidskaart biedt 7.1 kanaals geluid en is gebaseerd op een Realtek ALC662 chip.

Eigenschappen: Moederbord | ITX | geintergreerde Intel® Dual-Core Processor J1800 (2.41 GHz) | 2 x DDR3/DDR3L SO-DIMM | 2x SATA-300 | PCI-e 2.0 x1 | USB2.0 | USB3.1 | D-Sub (VGA) | Serial Port (Com1) | Parallel Port

Klik hier voor de stuurprogramma’s

Product: ASRock D1800B-ITX
Aansluiting: Onboard CPU
Categorie: moederborden
Merk: ASRock
EAN: 4717677322835
Staat: Refurbished – BIOS geüpdatet naar de nieuwste versie
SKU: 90-MXGRF0-A0UAYZ, D1800B-ITX
Garantie:
6 maanden

pakketinhoud:
– Moederbord (ASRock D1800B-ITX)
– IO-Shield (Blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels


Unique Feature
– ASRock Full Spike Protection
– ASRock Cloud
– ASRock APP Shop


CPU
– Intel® Dual-Core Processor J1800 (2.41 GHz)


Memory
– Dual Channel DDR3/DDR3L Memory Technology
– 2 x DDR3/DDR3L SO-DIMM Slots
– Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

**If only one SO-DIMM module is installed, please install it into DDR3_A1.


BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports Plug and Play
– ACPI 5.0 Compliant wake up events
– Supports jumperfree
– SMBIOS 2.7 Support


Graphics
– Intel® 7th generation (Gen 7) graphics
– DirectX 11.0, Pixel Shader 5.0
– Dual graphics output: Support HDMI and D-Sub ports by independent display controllers
– Supports HDMI Technology with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP with HDMI Port
– Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port


Audio
– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
– Supports Surge Protection (ASRock Full Spike Protection)


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111GR
– Supports Wake-On-WAN
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 2.0 x1 Slot


Storage
– 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug


Connector
– 1 x 3W Audio AMP Output Wafer Header
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion Header
– 1 x CPU Fan Connector (3-pin)
– 1 x Chassis Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

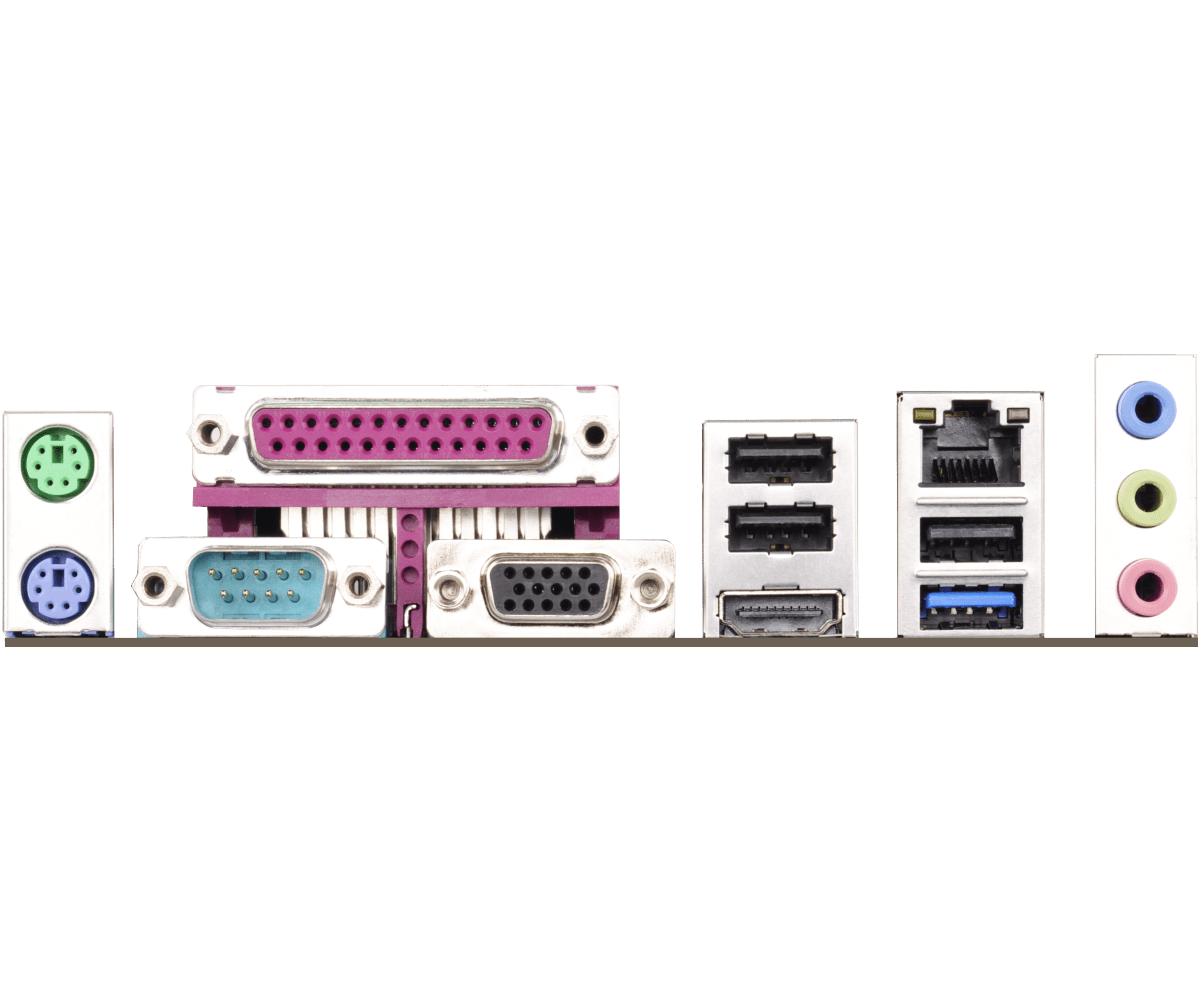

Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x Parallel Port (ECP/EPP Support)
– 1 x Serial Port: COM1
– 1 x D-Sub Port
– 1 x HDMI Port
– 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Port (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock A-Tuning
– ASRock USB Key
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI

UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS


Accessories
– I/O Shield

Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore


Form Factor
– Mini-ITX Form Factor
– Solid Capacitor for CPU power
– High Density Glass Fabric PCB


OS
– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specificaties

Gewicht1 kg
Intel

Onboard CPU

Merk

Asrock

Formaat

Mini-ITX

Geheugentype

DDR3 – SO-Dimm

Aantal geheugenslots

2

Maximale geheugengrootte

16 GB

Aansluitingen

D-Sub (VGA), HDMI, Parallel Port, Serial Port: COM1, USB 2.0, USB 3.1 Gen1

Opslag interfaces

Serial ATA-300

Interfaces

PCI-e 2.0 x16

Socket

Onboard CPU
