Product informatie

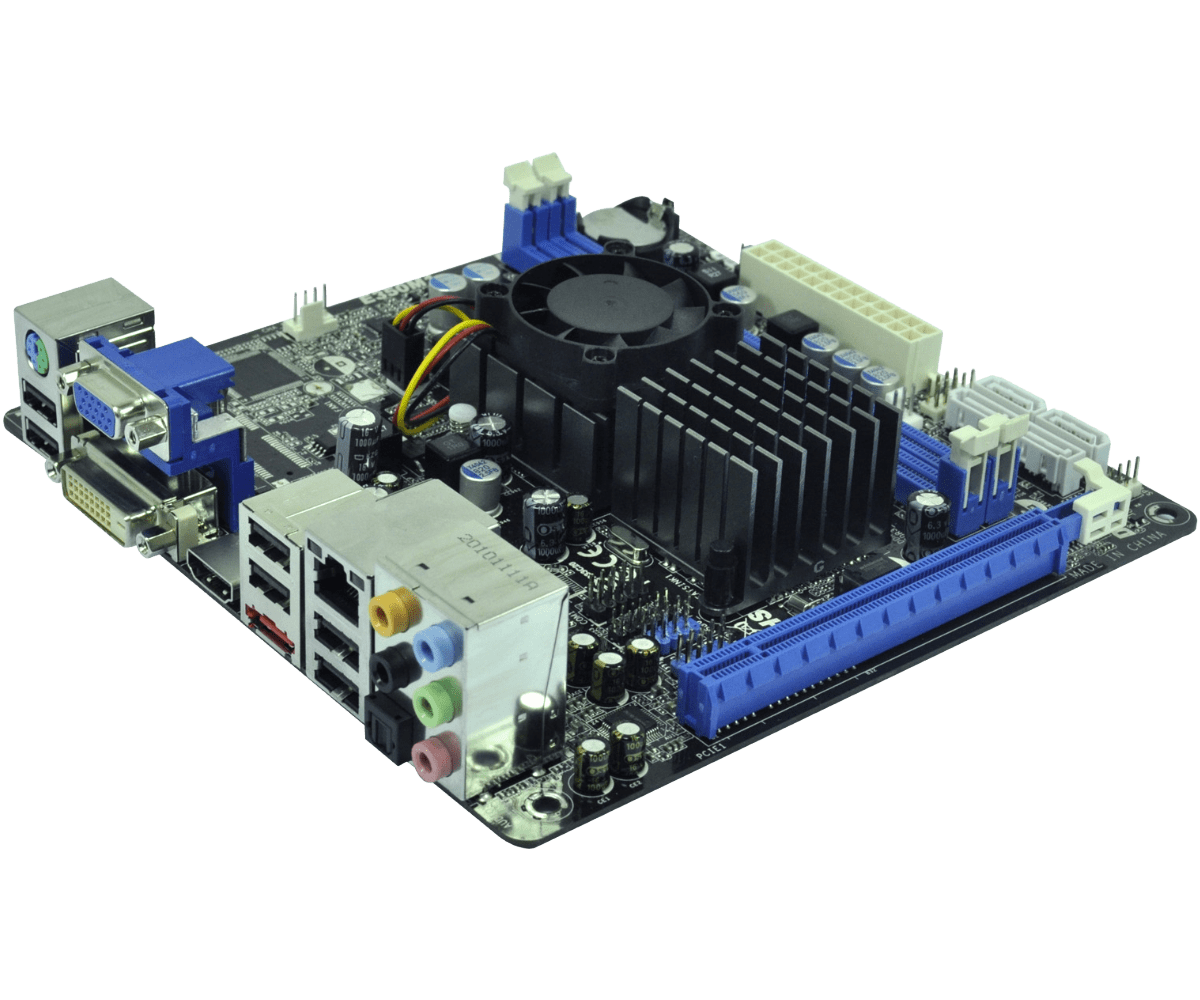

De ASRock E350M1 is een Mini-ITX moederbord met een geintergreerde AMD Fusion E-350. Het bord dient gecombineerd te worden met DDR3 geheugen, waarvoor 2 sloten beschikbaar zijn. In totaal heeft de ASRock E350M1 4 Serial ATA aansluitingen voor harddisks en SSD’s. De onboard geluidskaart biedt 7.1 kanaals geluid en is gebaseerd op een Realtek ALC892 chip.

Eigenschappen: Moederbord | Micro-ATX| AMD Fusion E-350 | 2 x DDR3 | 4x SATA-600 | PCI-e 2.0 x4 | USB2.0 | eSata | D-Sub (VGA) | DVI-D | HDMI

Klik hier voor de stuurprogramma’s

Product: ASRock E350M1
Aansluiting: Onboard CPU
Categorie: moederborden
Merk: ASRock
EAN: 4711140876801
Staat: Refurbished – BIOS geüpdatet naar de nieuwste versie
SKU: 90-MXGHU0-A0UAYZ, E350M1
Garantie: 6 maanden

pakketinhoud:
– Moederbord (ASRock E350M1)
– IO-Shield (Blikken achterplaatje)
– handleiding
– cd met stuurprogramma’s
– kabels

CPU
– AMD Dual-Core Zacate E350/E350D APU
– Supports AMD’s Cool ‘n’ Quiet Technology
– UMI 2.5 GT/s

Chipset
– AMD A50M Chipset

Memory
– 2 x DDR3 DIMM slots
– Supports DDR3 1066/800 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 32Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports jumperfree
– SMBIOS 2.3.1 Support
– DRAM, FCH, +1V, +1.8V Voltage Multi-adjustment

Graphics
– Integrated AMD Radeon HD 6310 graphics
– DX11 class iGPU, Pixel Shader 5.0
– Max. shared memory 512MB
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports HDMI Technology with max. resolution up to 1920×1200 (1080P)
– Supports DVI with max. resolution up to 1920×1200 @ 75Hz
– Supports D-Sub with max. resolution up to 2048×1536 @ 85Hz
– Supports HDCP function with DVI and HDMI ports
– Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports
– Supports Dolby® TrueHD and DTS-HD Master Audio through HDMI port

Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray audio support

LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111E
– Supports Wake-On-LAN
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az

Slots
– 1 x PCI Express 2.0 x16 slot (blue @ x4 mode)

SATA3
– 4 x SATA3 6.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions

Connector
– 4 x SATA3 6.0 Gb/s connectors
– 1 x CIR header
– 1 x COM port header
– CPU/Chassis FAN connector
– 24 pin ATX power connector
– Front panel audio connector
– 2 x USB 2.0 headers (support 4 USB 2.0 ports)

Rear Panel I/O
I/O Panel
– 1 x PS/2 Keyboard/Mouse Port
– 1 x VGA/D-Sub Port
– 1 x VGA/DVI-D Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 6 x Ready-to-Use USB 2.0 Ports
– 1 x eSATA3 Connector
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Unique Feature
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock APP Charger
– Hybrid Booster:
– ASRock U-COP
– Boot Failure Guard (B.F.G.)

Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar

Accessories
– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables

Hardware Monitor
– CPU Temperature Sensing
– Chassis Temperature Sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU or MB Temperature)
– CPU, Chassis Fan multi-speed control
– Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
– Mini-ITX Form Factor
– Solid Capacitor for CPU power

OS
– Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP Media Center / XP 64-bit compliant

Certifications
– FCC, CE
– ErP/EuP Ready (ErP/EuP ready power supply is required)
