Product informatie

ASRock Fatal1ty H370 Performance:  moederbord | ATX | Socket 1151 | 8e en 9e Gen CPU Support | Intel H370 | 4 x DDR4 | PCI-e 3.0 x16 | PCI-e 3.0 x1 | M.2 Socket (Key E) | Sata-600 | Ultra M.2 Socket (M2_1) | M.2 Socket (M2_2) | USB 3.1 Gen2 Type-A | USB 3.1 Gen2 Type-C | USB 3.1 Gen1 |  D-Sub | HDMI | Displayport

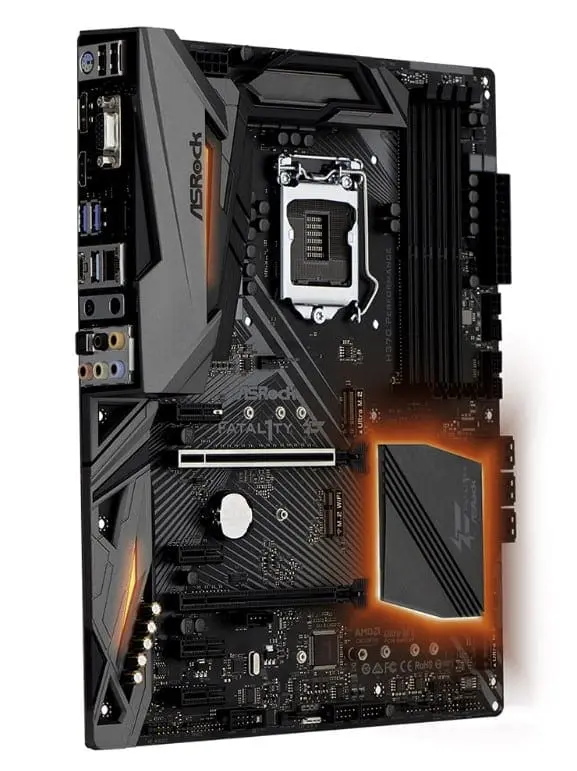

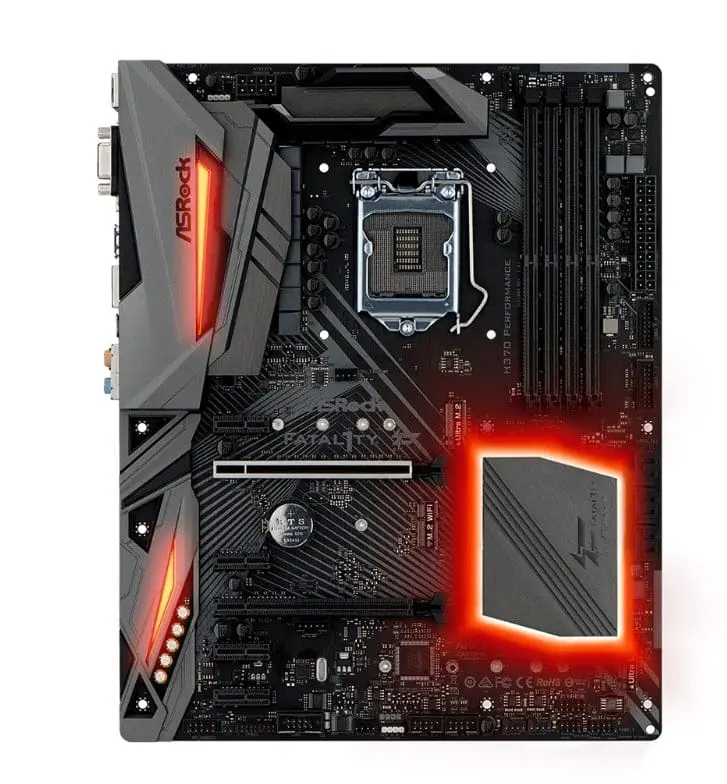

Product: ASRock Fatal1ty H370 Performance
Socket: Socket 1151
Geschikt voor: 8e en 9e generatie processoren
Categorie: Moederborden
Merk: ASRock
Staat: Refurbished – voorzien van de laatst beschikbare bios versie
EAN: 4717677335095
SKU: 90-MXB6U0-A0UAYZ, H370 Pro4
Garantie: 6 maanden

Drivers voor de ASRock Fatal1ty H370 Performance
Processoren die door worden ondersteund door de ASRock Fatal1ty H370 Performance

pakketinhoud:
– Moederbord (ASRock Fatal1ty H370 Performance)
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels

Gaming Armor
Power
– Hi-Density Power Connectors (24 pin and 8 pin)
Memory
– 15μ Gold Contact in DIMM Slots
VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE2)
Internet
– Intel® LAN
Cooling
– XXL Aluminum Alloy Heatsink
Audio
– Creative Sound Blaster™ Cinema 5

Unique Feature
ASRock USB 3.1 Gen2
– ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 50A Power Choke
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
– I/O Armor
– Matte Black PCB
– High Density Glass Fabric PCB
ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU
– Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
– Supports CPU up to 95W
– Digi Power design
– 10 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology

Chipset
– Intel® H370

Memory
– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 128GB*
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU Core/Cache, GT Core/Cache, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment

Graphics
– Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
– DirectX 12
– HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
– Three graphics output options: D-Sub, HDMI and DisplayPort 1.2
– Supports Triple Monitor
– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
– Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2 Ports
– Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection
– Nichicon Fine Gold Series Audio Caps
– 120dB SNR DAC with Differential Amplifier
– NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
– Pure Power-In
– Direct Drive Technology
– PCB Isolate Shielding
– Impedance Sensing on Rear Out port
– Individual PCB Layers for R/L Audio Channel
– RGB LED
– Gold Audio Jacks
– 15μ Gold Audio Connector
– Supports Creative Sound Blaster™ Cinema 5

LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
– 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4))*
– 4 x PCI Express 3.0 x1 Slots (Flexible PCIe)
– Supports AMD Quad CrossFireX™ and CrossFireX™
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)**
– 15μ Gold Contact in VGA PCIe Slot (PCIE2)

*If PCIE5 or PCIE6 is occupied, PCIE4 will downgrade to x2 mode.
Supports NVMe SSD as boot disks

**If M2_3 is occupied by a PCIE-type WiFi module, PCIE3 will be disabled.
Supports CNVio1 WiFi module(Intel® Wireless-AC 9560/9462/9461) only.

Storage
– 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15), NCQ, AHCI and Hot Plug*
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
– 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

*If M2_1 is occupied by a SATA-type M.2 device, SATA_2 will be disabled.
If M2_2 is occupied by a SATA-type M.2 device, SATA_1 will be disabled.
If M2_2 is occupied by a PCIE-type M.2 device, SATA_0 will be disabled.

**Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion header
– 1 x Power LED and Speaker Header
– 2 x RGB LED Headers*
– 1 x Addressable LED Header**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
– 1 x Thunderbolt™ AIC Connector (5-pin)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)

*Support in total up to 12V/3A, 36W LED Strip

**Supports in total up to 5V/3A, 15W LED Strip

***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

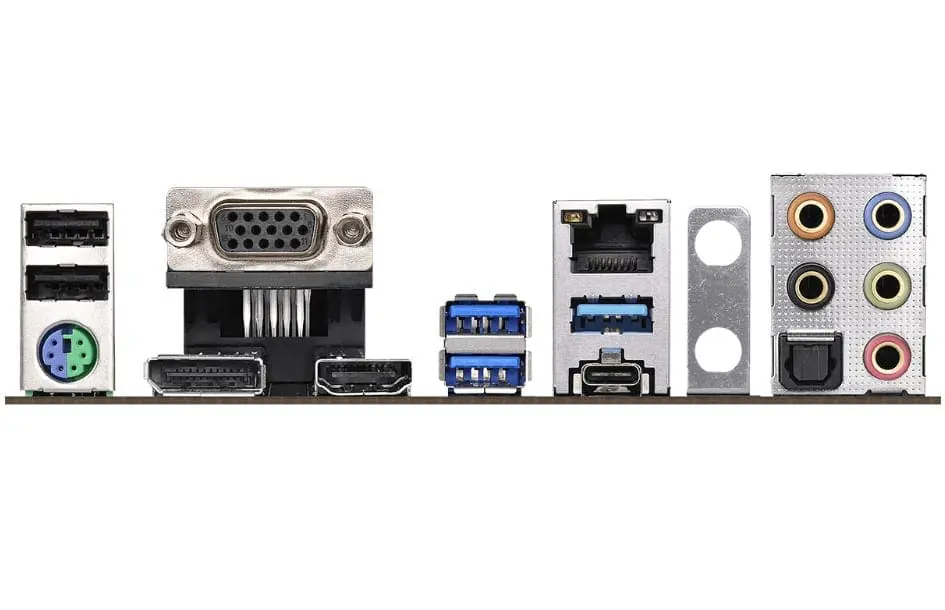

Rear Panel I/O
– 2 x Antenna Ports
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x HDMI Port
– 1 x DisplayPort 1.2
– 1 x Optical SPDIF Out Port
– 2 x USB 2.0 Ports (Supports ESD Protection)*
– 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
– 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

*1 x Fatal1ty Mouse Port (USB 2.0) is included

Software and UEFI
Software
– ASRock F-Stream
– ASRock Polychrome SYNC
– ASRock Key Master
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories
– I/O Shield

Hardware Monitor
– Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST

Form Factor
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

OS
– Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
