Product informatie

ASRock Fatal1ty X370 Gaming-ITX/ac : Moederbord | Mini-ITX | AM4 | X370 Chipset | 2x DDR4 (max. 32GB) | M.2 (PCI-e 3.0 x4 + SATA) | SATA-600 | PCI-e 3.0 x16 | Wlan | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | USB 3.2 (Gen1, 5Gb/s) type-c | 2x HDMI | Bluetooth 4.2

Klik hier voor de processoren die worden ondersteund.
Klik hier voor de drivers

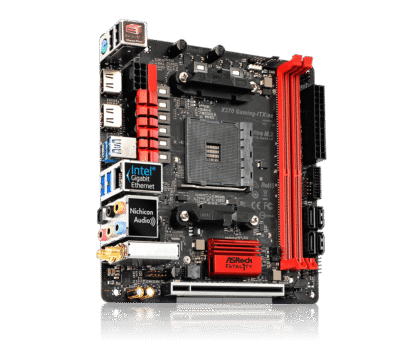

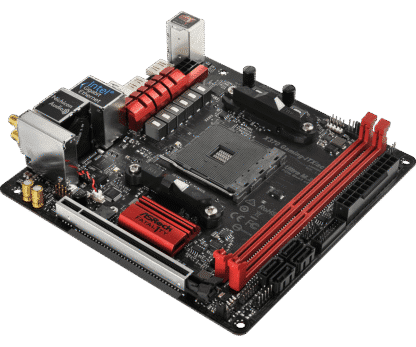

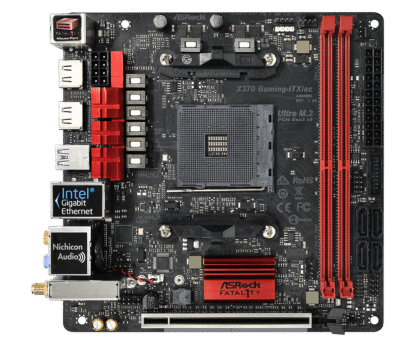

Product: ASRock Fatal1ty X370 Gaming-ITX/ac
Socket: AMD AM4
Categorie: moederborden
Merk: ASRock
Staat: Refurbished – BIOS bijgewerkt naar de nieuwste versie
EAN:
4717677333725
SKU: 90-MXB5N0-A0UAYZ, Fatal1ty X370 Gaming-ITX/ac, X370 Gaming-ITX/ac
Garantie:
6 maanden

Inhoud pakket:
– Moederbord (ASRock Fatal1ty X370 Gaming-ITX/ac)
– I/O-Shield (blikken achterplaatje)
Geen antennes
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels


Gaming Armor
Power
– Hi-Density Power Connector (8 pin)

Memory
– 15μ Gold Contact in DIMM Slots

VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Internet
– Intel® LAN

Cooling
– 2oz Copper PCB


Audio
– Creative Sound Blaster™ Cinema 3


Unique Feature
ASRock Super Alloy
– Premium Power Choke
– Dual-N MOSFET
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
– Matte Black PCB
– High Density Glass Fabric PCB
– 2oz Copper PCB

Intel® 802.11ac WiFi
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop


CPU
– Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)
– Digi Power design
– 8 Power Phase design

Chipset
– AMD Promontory X370


Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– AMD 7th Gen A-Series APUs support DDR4 2400 / 2133 ECC & non-ECC, un-buffered memory**
– Max. capacity of system memory: 32GB**
– 15μ Gold Contact in DIMM Slots

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 128Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– CPU, DRAM, PCH 1.05V, PROM 2.5V, Voltage Multi-adjustment


Graphics
– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– Integrated AMD Radeon™ R-Series Graphics in A-series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Supports 2 x HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Ports (Compliant HDMI monitor is required)
– Supports HDCP 1.4 with HDMI Ports
– Supports Full HD 1080p Blu-ray (BD) playback with HDMI Ports

*Actual support may vary by CPU

**The Max shared memory 16GB requires 32GB system memory installed.


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection
– Nichicon Fine Gold Series Audio Caps
– 120dB SNR DAC with Differential Amplifier
– Pure Power-In
– Direct Drive Technology
– PCB Isolate Shielding
– Impedance Sensing on Rear Out port
– Individual PCB Layers for R/L Audio Channel
– Gold Audio Jacks
– Supports Creative Sound Blaster™ Cinema 3


LAN
– Gigabit LAN 10/100/1000 Mb/s
– GigaLAN Intel® I211AT
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Wireless LAN
– Intel® 802.11ac WiFi Module (Free Bundle)
– Supports IEEE 802.11a/b/g/n/ac
– Supports Dual-Band (2.4/5 GHz)
– Supports high speed wireless connections up to 867Mbps
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 4.2 / 3.0 + High speed class II


Slots
AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
AMD 7th A-Series APUs / Raven Ridge CPUs
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*
AMD Athlon series CPUs
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x4 mode)*

– 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)

*Supports PCIe riser cards to extend one x16 slot to two x8 slots if you install AMD Ryzen series CPUs
Supports NVMe SSD as boot disks


Storage
– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon series APU)*

*Supports NVMe SSD as boot disks


Connector
– 1 x LPC Header
– 1 x AMD Fan LED Header*
– 1 x CPU Fan Connector (4-pin)**
– 1 x Chassis Fan Connector (4-pin)
– 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x AMD LED Fan USB Header
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

*The AMD Fan LED Connector supports LED strip of maximum 3A (36W) and LED strip length up to 2.5M.

**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

***The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
CHA_FAN1/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

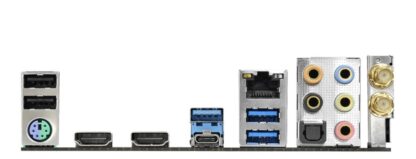

Rear Panel I/O
– 2 x Antenna Ports
– 1 x PS/2 Mouse/Keyboard Port
– 2 x HDMI Ports
– 1 x Optical SPDIF Out Port
– 2 x USB 2.0 Ports (Supports ESD Protection)*
– 1 x USB 3.1 Gen1 Type-A Port (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

*1 x Fatal1ty Mouse Port (USB 2.0) is included


Software and UEFI
Software
– ASRock F-Stream
– ASRock RGB LED
– ASRock Key Master
– ASRock APP Charger
– ASRock XFast LAN
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
– I/O Shield


Hardware Monitor
– Temperature Sensing: CPU, Chassis, Chassis Optional/Water Pump Fans
– Fan Tachometer: CPU, Chassis, Chassis Optional/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis Optional/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis, Chassis Optional/Water Pump Fans
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore


Form Factor
– Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– 2oz Copper PCB


OS
– Microsoft® Windows® 10 64-bit / 11 64-bit*

*Bristol Ridge and Summit Ridge do not officially support Windows® 11.


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specificaties

Gewicht 1 kg
AMD

AM4

Merk

Asrock

Chipset

AMD Promontory X370

Formaat

Mini-ITX

Geheugentype

DDR4

Aantal geheugenslots

2

Maximale geheugengrootte

32 GB

Aansluitingen

Ethernet (RJ-45), HDMI, USB 2.0, USB 3.1 Gen1 Type-A, USB 3.1 Gen1 Type-C

Opslag interfaces

Serial ATA-600, Ultra M.2 Socket

Interfaces

M.2, PCI-e 3.0 x16

Socket

Model

X370 Gaming-ITX-ac

Lengte

17 cm

Breedte

17 cm

Pakketinhoud

Moederbord en I/O-Shield

ASRock Fatal1ty X370 Gaming-ITX/ac AM4 moederbord

1 op voorraad

Gratis verzending
119,95

  • AMD Promontory X370 Chipset
  • Ondersteunt AMD Socket AM4 A-serie APU’s (Bristol Ridge) en Ryzen-serie CPU’s (Summit Ridge & Raven Ridge)
  • Ondersteunt DDR4 3466+ (OC) (Ryzen CPU) / 2400 (A-serie APU)
  • 1 PCIe 3.0 x16
  • Grafische uitvoer: 2 HDMI
  • 7.1 CH HD-audio (Realtek ALC1220 Audio Codec), ondersteunt Creative Sound Blaster™ Cinema 3
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
  • 6 USB 3.1 Gen1 (1 Type-C, 2 voor, 3 achter)
  • Intel® Gigabit-LAN
  • Intel® 802.11ac wifi + BT 4.2
