Beschrijving

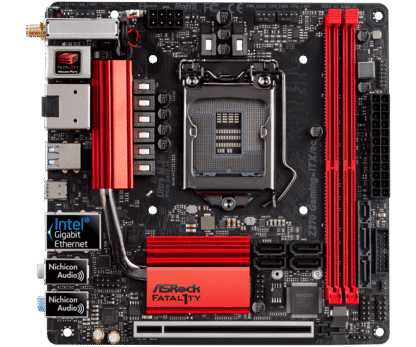

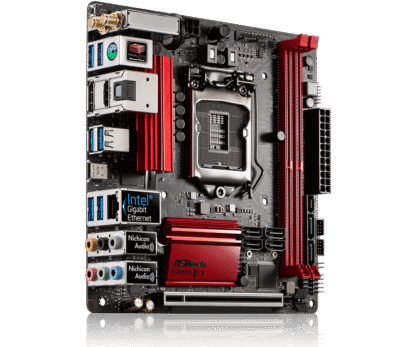

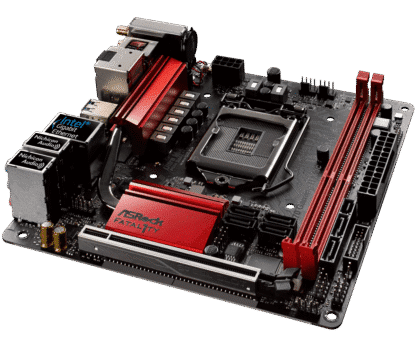

ASRock Fatal1ty Z270 Gaming-ITX/ac: Moederbord | Mini-ITX | Socket 1151 | Intel Z270 | Wlan | 2x DDR4 | SATA-600 | PCI-e 3.0 x16 | Vertical M.2 Socket (Key E) | SATA Express 10 Gb/s | Ultra M.2 | Intel Thunderbolt 3 | USB 3.1 (Gen1, 5 Gb / s) | HDMI | Displayport
Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers
Product: ASRock Fatal1ty Z270 Gaming-ITX/ac
Socket: Socket 1151
Geschikt voor: 6e en 6e generatie processoren
Categorie: moederborden
Merk: ASRock
Staat: refurbished – BIOS bijgewerkt naar de nieuwste versie
EAN: 4717677332773
SKU: 90-MXB3U0-A0UAYZ, Fatal1ty Z270 Gaming-ITX/ac
Garantie: 6 maanden
Inhoud pakket:
– Moederbord (ASRock Fatal1ty Z270 Gaming-ITX/ac)
– I/O-Shield (blikken achterplaatje)
– Geen antennes
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels
Gaming Armor
CPU Power
– Hi-Density Power Connector
– Dual-Stack MOSFET (DSM)
Memory
– 15μ Gold Contact in DIMM Slots
VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Internet
– Intel® LAN
Cooling
– 8 Layer PCB
– 4 x 2oz copper
– Heat Pipe Design
Audio
– Creative Sound Blaster™ Cinema 3
Unique Feature
ASRock Super Alloy
– Premium 60A Power Choke
– Dual-Stack MOSFET (DSM)
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
– Matte Black PCB
– High Density Glass Fabric PCB
Intel® 802.11ac WiFi
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection
ASRock Live Update & APP Shop
CPU
– Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
– Digi Power design
– 8 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series unlocked CPUs
– Supports ASRock BCLK Full-range Overclocking
Chipset
– Intel® Z270
Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 4000+(OC)*/3866(OC)/3600(OC)/3200(OC)/2933(OC)/2800(OC)/2400**/2133 non-ECC, un-buffered memory
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 32GB***
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots
*Please refer to Memory Support List on ASRock’s website for more information.
**7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133.
***Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL Voltage Multi-adjustment
Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics
– Gen9 LP, DX11.3, DX12
– HWA Encode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel® CPU)
– HWA Encode/Decode: VP8, HEVC 8b; GPU/SW Encode/Decode: VP9, HEVC 10b (For 6th Gen Intel® CPU)
– Max. shared memory 1024MB*
– Three graphics output options: HDMI, DisplayPort 1.2 and Intel® Thunderbolt™ 3
– Supports Triple Monitor
– Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz
– Supports Intel® Thunderbolt™ 3 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI 2.0 monitor is required)
– Supports HDCP with HDMI 2.0, DisplayPort 1.2 and Intel® Thunderbolt™ 3
– Supports Full HD 1080p Blu-ray (BD) playback with HDMI 2.0, DisplayPort 1.2 and Intel® Thunderbolt™ 3
*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**The size of maximum shared memory may vary from different operating systems.
***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
– Nichicon Fine Gold Series Audio Caps
– 120dB SNR DAC with Differential Amplifier
– TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
– Pure Power-In
– Direct Drive Technology
– PCB Isolate Shielding
– Impedance Sensing on Rear Out port
– Individual PCB Layers for R/L Audio Channel
– 15μ Gold Audio Connector
– Supports Creative Sound Blaster™ Cinema 3
LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Wireless LAN
– Intel® 802.11ac WiFi Module (Free Bundle)
– Supports IEEE 802.11a/b/g/n/ac
– Supports Dual-Band (2.4/5 GHz)
– Supports high speed wireless connections up to 867Mbps
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 4.0 / 3.0 + High speed class II
Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
– 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
*Supports NVMe SSD as boot disks
Storage
– 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug*
– 1 x SATA Express 10 Gb/s Connector**
– 1 x Ultra M.2 Socket, supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***
*If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
**Support to be announced
***Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks
Connector
– 1 x Chassis Intrusion Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
– 1 x Chassis Fan Connector (4-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
CPU_OPT/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

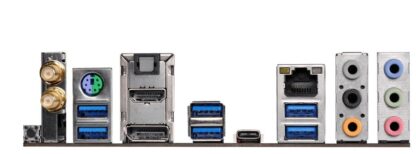

Rear Panel I/O
– 2 x Antenna Ports
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x DisplayPort 1.2
– 1 x Intel® Thunderbolt™ 3 (Compatible with USB 3.1 Gen2 and USB-C Display)*
– 1 x Optical SPDIF Out Port
– 5 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Fatal1ty Mouse Port (USB 3.1 Gen1) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– 1 x Clear CMOS Switch
– HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
*Supports USB PD 2.0 up to 12V@3A (36W) charging
Hot Plug is supported on Windows® 10 only
Software and UEFI
Software
– ASRock F-Stream
– ASRock Key Master
– ASRock APP Charger
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
– I/O Shield
Hardware Monitor
– Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis Fans
– Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis Fans
– Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis Fans
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST
Form Factor
– Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– 8 Layer PCB
– 4 x 2oz copper
OS
– Microsoft® Windows® 10 64-bit (For 7th Gen Intel® CPU)
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel® CPU)*
*To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
For the updated Windows® 10 driver, please visit ASRock’s website for details.
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
