Product informatie

ASRock G41M-S: Moederbord | Micro-ATX | Socket 775 | 2x DDR3 (max 8GB) | 4x SATA-300 | PATA-100 | PCI | PCI-e x16 | PCI-e x16  | USB 2.0 | VGA (D-Sub)

Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers

Product: ASRock G41M-S
Socket: Socket 775
Categorie: moederborden
Merk: ASRock
Staat: Refurbished – BIOS bijgewerkt naar de nieuwste versie
EAN:
4711140874906
SKU: G41M-S
Garantie:
6 maanden

Inhoud pakket:
– Moederbord (ASRock G41M-S)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels


CPU
– LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
– Supports FSB 1333/1066/800/533 MHz
– Supports Hyper-Threading Technology
– Supports Untied Overclocking Technology
– Supports EM64T CPU


Chipset
– Northbridge: Intel® G41
– Southbridge: Intel® ICH7


Memory
– Dual Channel DDR2 memory technology
– 2 x DDR2 DIMM slots
– Supports DDR2 1066/800/667/533* non-ECC, un-buffered memory
– Max. capacity of system memory: 8GB**

*DDR2 533 is supported with FSB 533 CPU.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.

***In order to maximize the system memory, please install 4GB memory module with 16 cells or 2GB memory modules with at least 8 cells.


BIOS
– 8Mb AMI BIOS
– AMI Legal BIOS
– Supports “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– SMBIOS 2.3.1 Support
– CPU, VCCM, NB, SB, VTT Voltage Multi-adjustment
– Supports Smart BIOS


Graphics
– Intel® Graphics Media Accelerator X4500
– Pixel Shader 4.0, DirectX 10
– Max. shared memory 1759MB*
– Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz

*The shared memory size is dynamically controlled by VGA driver, and the Max. shared memory size will be available only when more than 4GB memory is installed under 64-bit OS.


Audio
– 5.1 CH Windows® Vista™ Premium Level HD Audio (Realtek ALC662 Audio Codec)


LAN
– Realtek PCIEx1 LAN 8103EL / 8102EL
– Speed: 10/100 Ethernet
– Supports Wake-On-LAN
– Supports PXE


Slots
– 1 x PCI Express x16 slot
– 1 x PCI Express x1 slot
– 2 x PCI slots


Connector
– 4 x SATA2 3.0 Gb/s connectors (No support for RAID and Hot Plug functions)
– 1 x ATA100 IDE connector (supports 2 x IDE devices)
– 1 x Floppy connector
– 1 x Print port header
– CPU/Chassis FAN connector
– 24 pin ATX power connector
– 4 pin 12V power connector
– Front panel audio connector
– 2 x USB 2.0 headers (support 4 USB 2.0 ports)

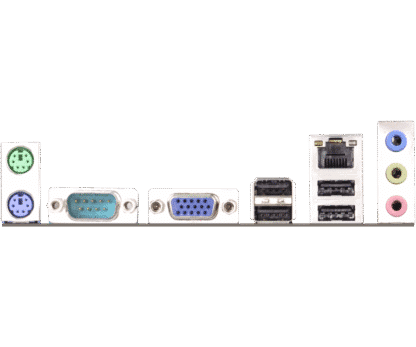

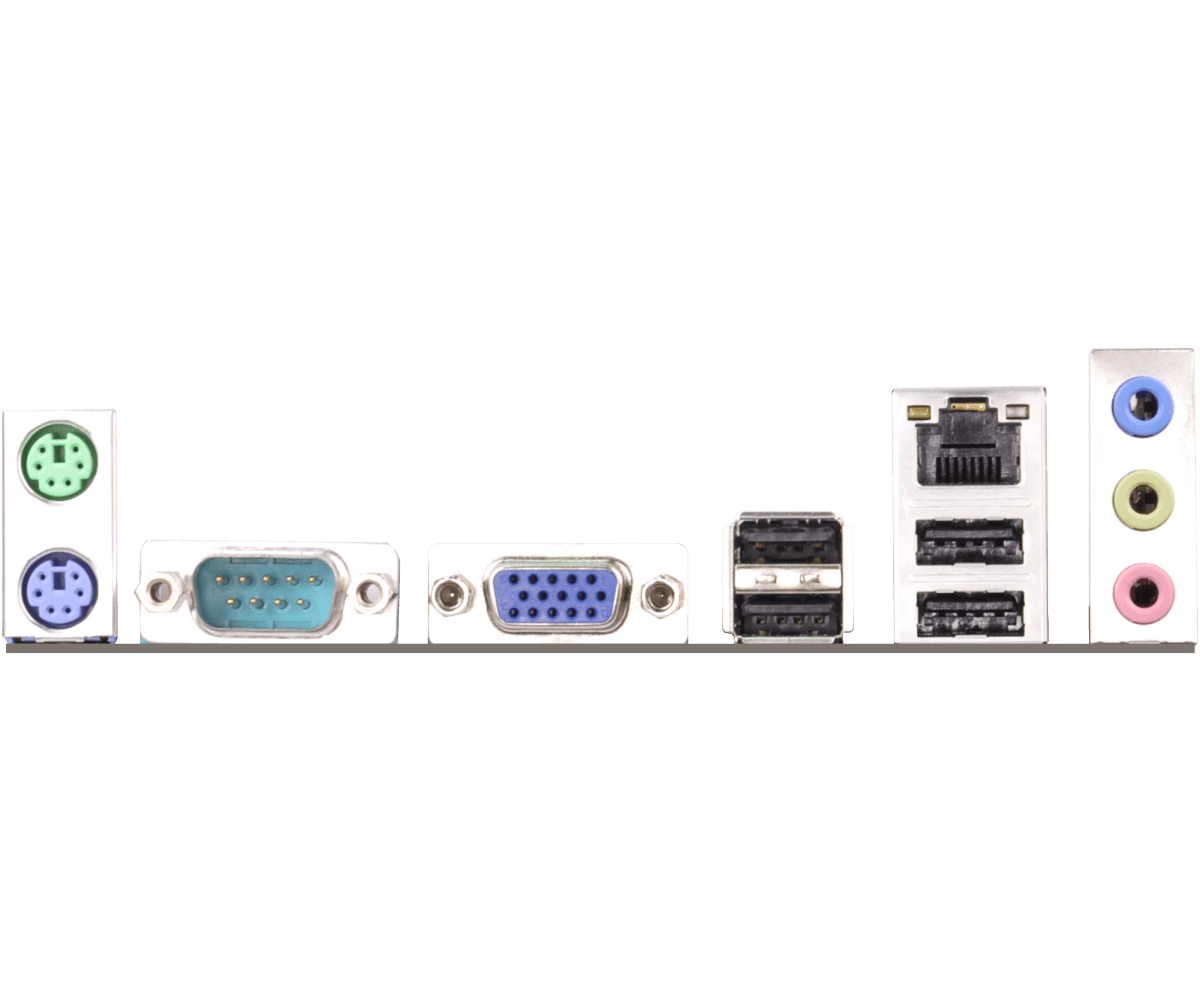

Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x Serial Port: COM1
– 1 x VGA Port
– 4 x Ready-to-Use USB 2.0 Ports
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Line in / Front Speaker / Microphone


Unique Feature
– ASRock OC Tuner
– Intelligent Energy Saver
– Instant Boot
– ASRock Instant Flash
– Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)


Accessories
– I/O Shield


Hardware Monitor
– CPU Temperature Sensing
– Chassis Temperature Sensing
– CPU Fan Tachometer
– Chassis Fan Tachometer
– CPU Quiet Fan
– Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore


Form Factor
– Micro ATX Form Factor: 9.6-in x 7.6-in, 24.4 cm x 19.3 cm


OS
– Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit / 2000 compliant


Certifications
– FCC, CE
– EuP Ready (EuP ready power supply is required)

Specificaties

Gewicht1 kg
Intel

Socket 775

Merk

Asrock

Formaat

Micro-ATX

Chipset

Intel G41

Geheugentype

DDR2

Aantal geheugenslots

2

Maximale geheugengrootte

8 GB

Aansluitingen

D-Sub (VGA), Ethernet (RJ-45), USB 2.0

Opslag interfaces

Pata-100, Serial ATA-300

Interfaces

PCI, PCI-e 2.0 x1, PCI-e x16

Socket

Model

G41M-S

Geschikt voor

Regulier gebruik

Bijzonderheden

Video Chipset

Lengte

24.4 cm

Breedte

19.3 cm

Pakketinhoud

Moederbord en I/O-Shield

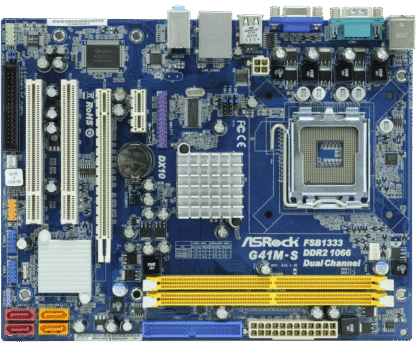

ASRock G41M-S socket 775 moederbord

Snelle levering

  • Ondersteunt FSB1333/1066/800/533 MHz CPU’s
  • Ondersteunt dual-channel DDR2 1066
  • Intel® Graphics Media Accelerator X4500, Pixel Shader 4.0, DirectX 10, Max. gedeeld geheugen 352 MB
  • EuP-gereed
  • Ondersteunt ASRock XFast RAM, XFast LAN, XFast USB-technologieën
  • Ondersteunt Instant Boot, Instant Flash, ASRock OC Tuner (tot 145% CPU-frequentieverhoging)
  • Ondersteunt Smart BIOS, Intelligent Energy Saver (tot 20% CPU-energiebesparing)

Artikelnummer: G41M-S Categorieën: ,
