Product informatie

ASRock G41M-VS3 R2.0: Moederbord | Micro-ATX | Socket 775 | 2x DDR3 (max 8GB) | 4x SATA-300 | PATA-100 | PCI | PCI-e x16 | USB 2.0 | VGA (D-Sub)

Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers

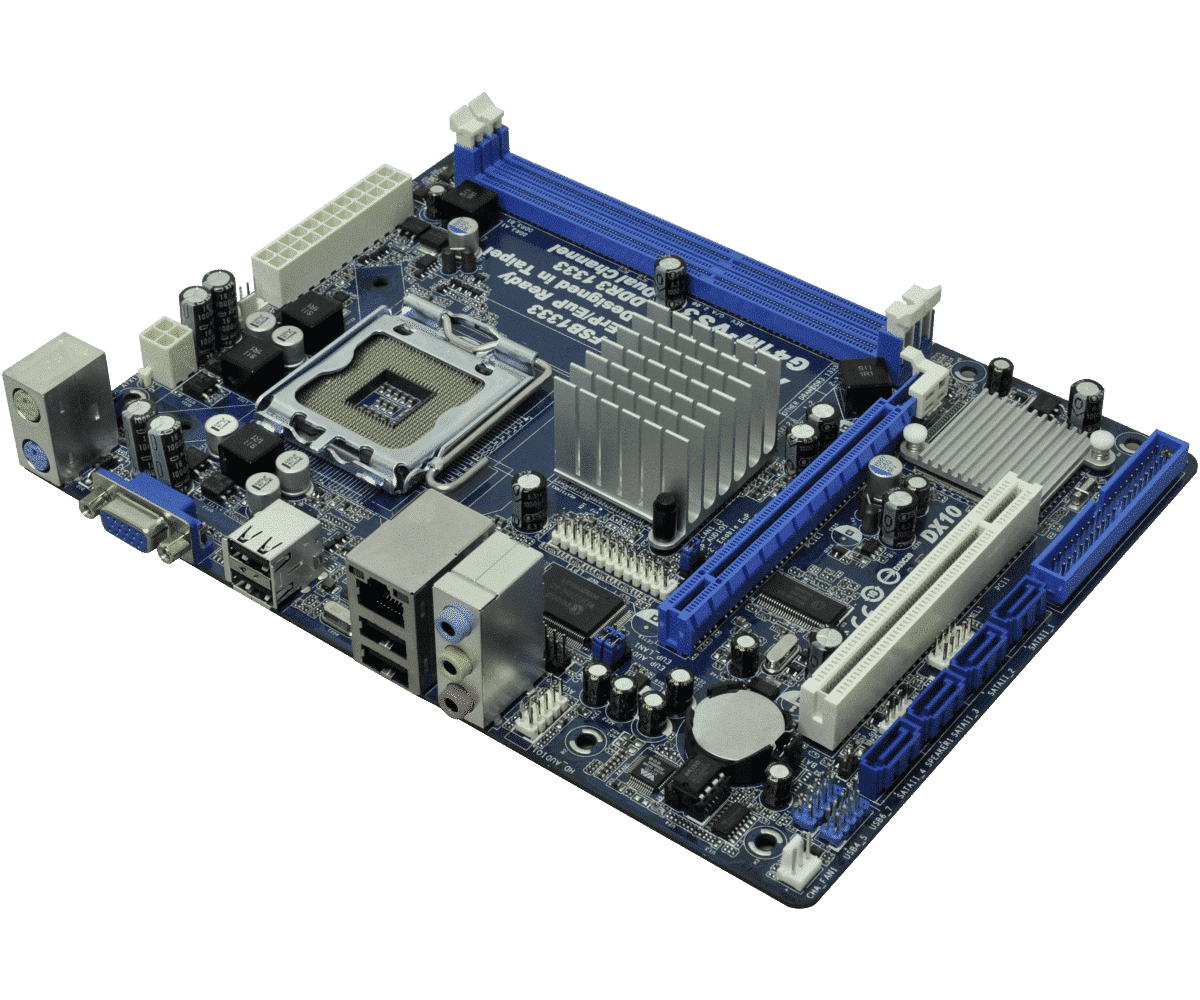

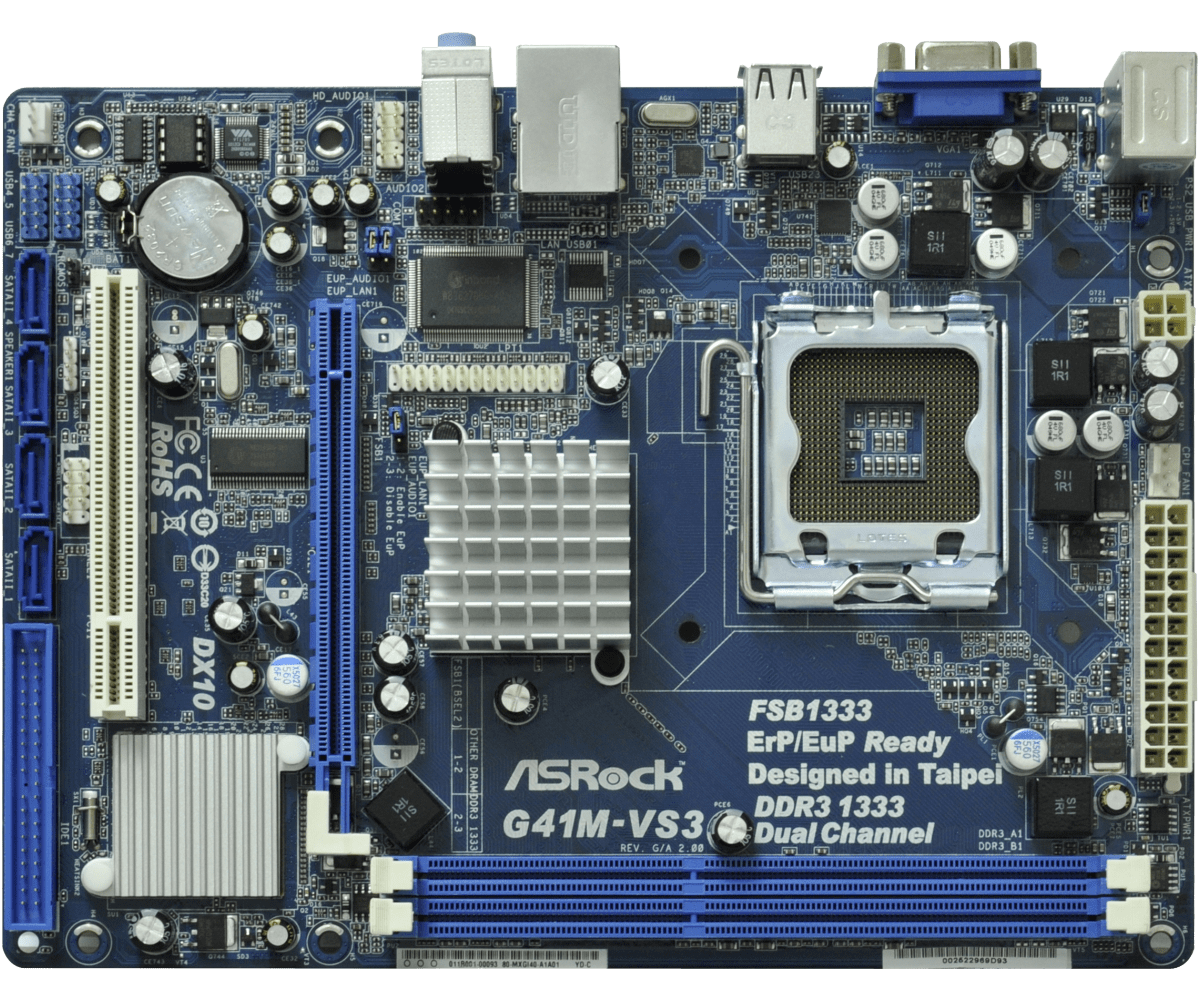

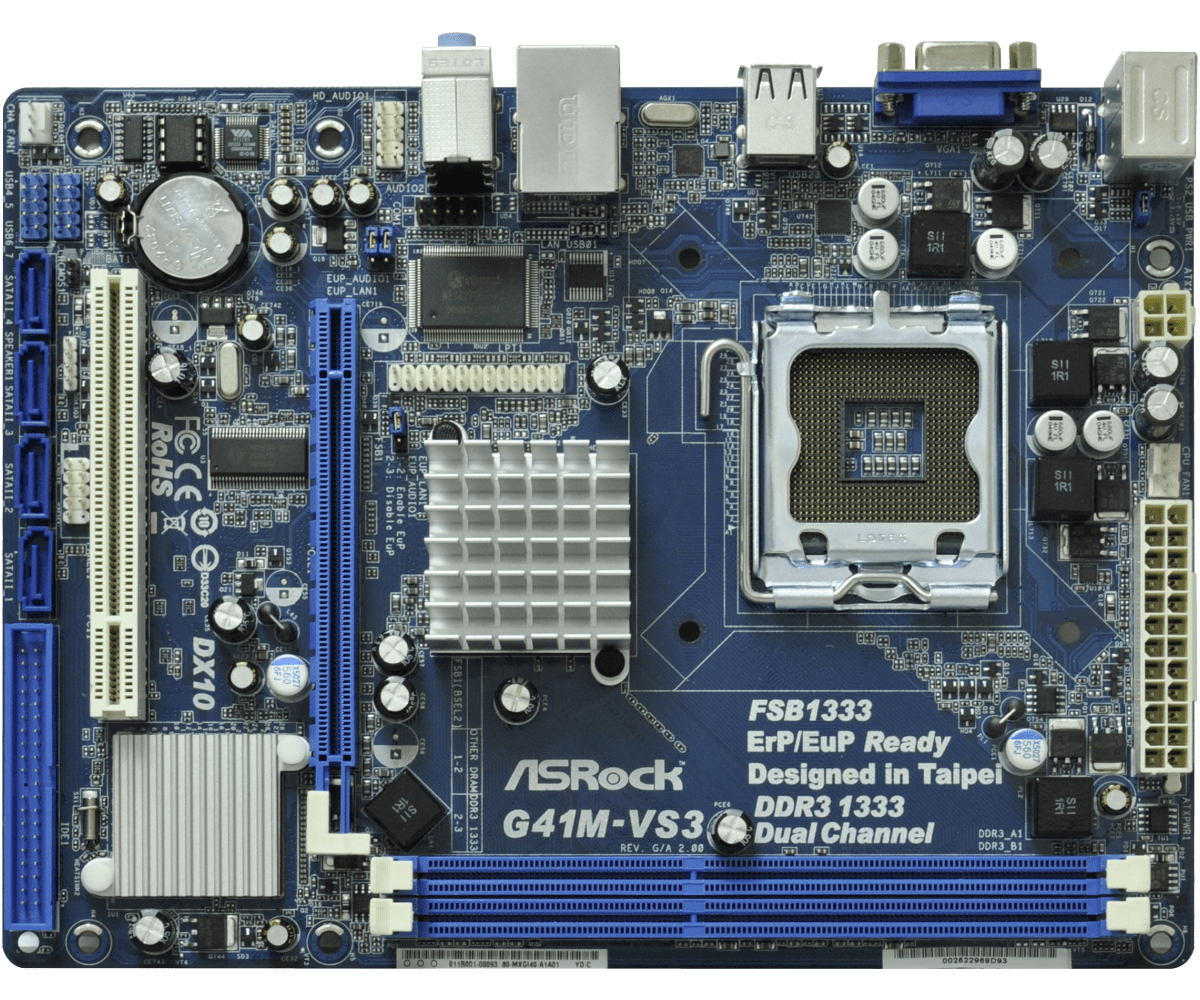

Product: ASRock G41M-VS3 R2.0
Socket: Socket 775
Categorie: moederborden
Merk: ASRock
Staat: Refurbished – BIOS bijgewerkt naar de nieuwste versie
EAN: 4711140876979
SKU: 90-MXGI40-A0PAYZ, 90-MXGI40-A0UAYZ, G41M-VS3 R2.0
Garantie: 6 maanden

Inhoud pakket:
– Moederbord (G41M-VS3 R2.0)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels

CPU
– LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
– Supports FSB 1333/1066/800/533 MHz
– Supports Hyper-Threading Technology
– Supports Untied Overclocking Technology
– Supports EM64T CPU

Chipset
– Northbridge: Intel® G41
– Southbridge: Intel® ICH7

Memory
– Dual Channel DDR3 memory technology
– 2 x DDR3 DIMM slots
– Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory
– Max. capacity of system memory: 8GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

**In order to maximize the system memory, please install 4GB memory module with 16 cells or 2GB memory modules with at least 8 cells.

BIOS
– 8Mb AMI Legal BIOS
– Supports “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– SMBIOS 2.3.1 Support
– VCCM, NB, VTT, GTLRef Voltage Multi-adjustment

Graphics
– Intel® Graphics Media Accelerator X4500
– Pixel Shader 4.0, DirectX 10
– Max. shared memory 1759MB
– Supports D-Sub with max. resolution up to 2048×1536 @ 75Hz

Audio
– 5.1 CH HD Audio (Realtek ALC662 / VIA® VT1705 Audio Codec)

LAN
– Atheros® PCIEx1 LAN AR8152
– Speed: 10/100 Ethernet
– Supports Wake-On-LAN

Slots
– 1 x PCI Express x16 slot
– 1 x PCI slot

Connector
– 4 x SATA2 3.0 Gb/s connectors (No support for RAID and Hot Plug functions)
– 1 x ATA100 IDE connector (supports 2 x IDE devices)
– 1 x Print port header
– 1 x COM port header
– CPU/Chassis FAN connector
– 24 pin ATX power connector
– 4 pin 12V power connector
– Front panel audio connector
– 2 x USB 2.0 headers (support 4 USB 2.0 ports)

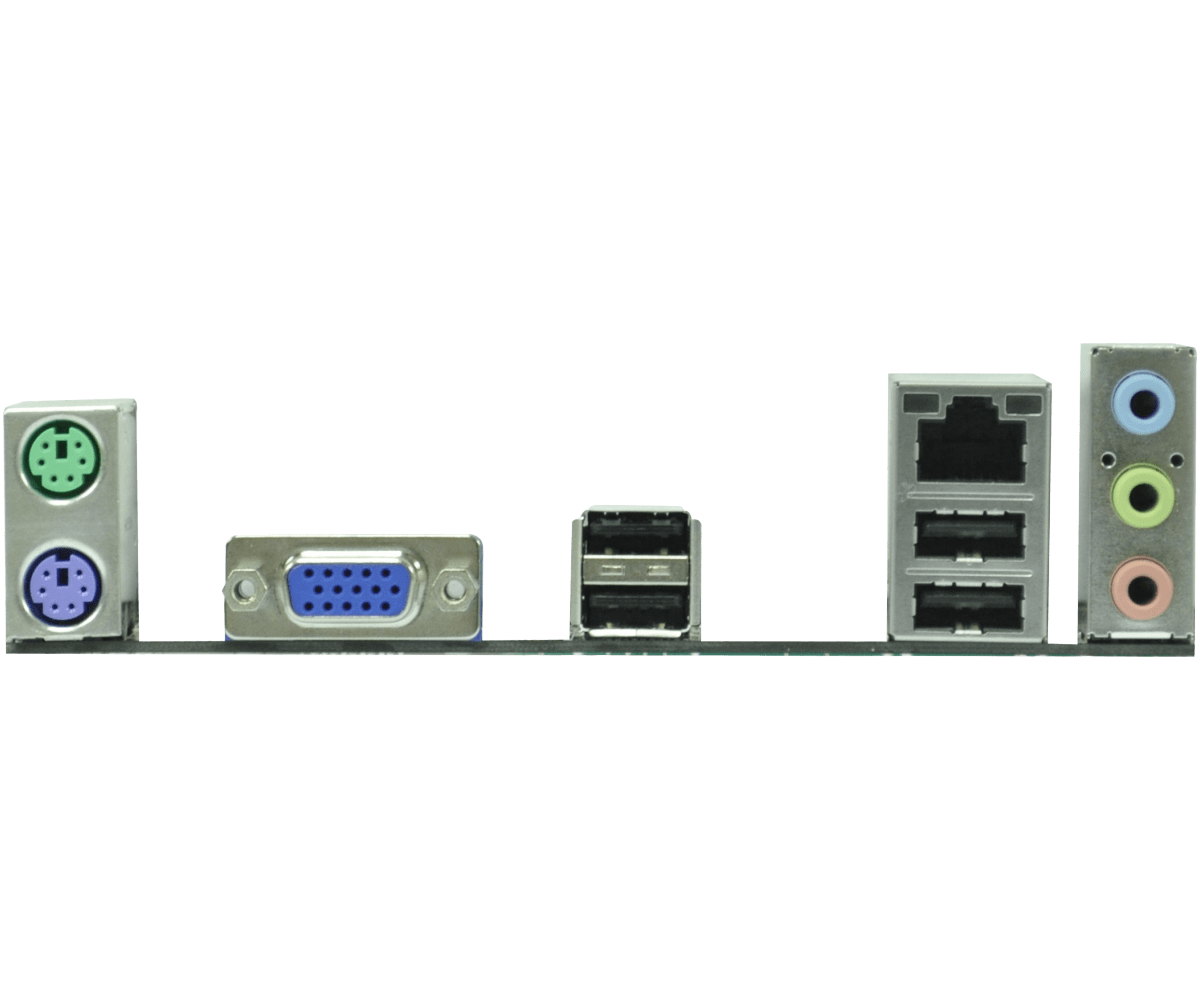

Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x VGA Port
– 4 x Ready-to-Use USB 2.0 Ports
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Line in / Front Speaker / Microphone

Unique Feature
– ASRock OC Tuner
– Intelligent Energy Saver
– Instant Boot
– ASRock Instant Flash
– ASRock OC DNA
– ASRock APP Charger
– SmartView
– ASRock XFast USB
– Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)

Accessories
– I/O Shield

Hardware Monitor
– CPU Temperature Sensing
– Chassis Temperature Sensing
– CPU Fan Tachometer
– Chassis Fan Tachometer
– CPU Quiet Fan
– Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
– Micro ATX Form Factor: 8.9-in x 6.7-in, 22.6 cm x 17.0 cm

OS
– Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

Certifications
– FCC, CE
– ErP/EuP Ready (ErP/EuP ready power supply is required)
