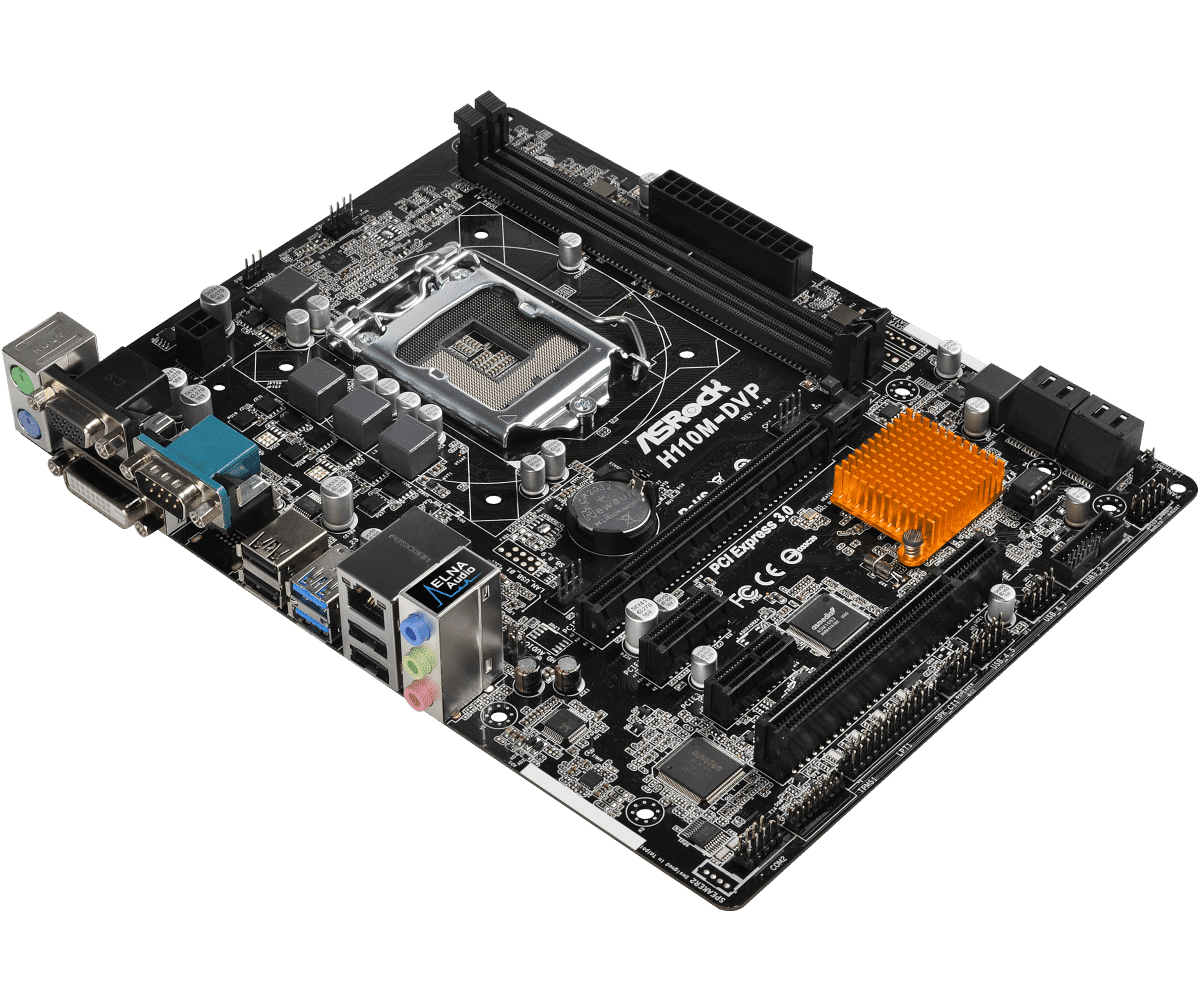

ASRock H110M-DVP (geen I/O-Shield)

Snelle levering
49,95

Merk: ASRock
Model: H110M-DVP
Socket: LGA1151
Chipset: Intel H110
Geheugen: 2x DDR4 (16GB Max)
Form-Factor: Micro-ATX
EAN: 4717677329933
SKU: 90-MGXUD0-A0UAYZ, 90-MXGUD0-A0UAYZ, Z97M Pro4, Z97MPRO4

14 op voorraad

  • Gratis verzending vanaf €100,-
  • Betrouwbaar al meer dan 10 jaar!
  • Snelle levering
  • Betalen in termijnen is mogelijk!
Artikelnummer: H110M-DVP Categorieën: , Tags: , ,

Product informatie

De ASRock H110M-DVP is een Micro ATX Socket 1151 moederbord gebaseerd op de Intel H110 chipset. Het bord dient gecombineerd te worden met DDR4 geheugen, waarvoor 2 sloten beschikbaar zijn met een maximale capaciteit van 16GB. In totaal heeft de ASRock H110M-DVP 4 Serial ATA aansluitingen voor harddisks en SSD’s. De onboard geluidskaart biedt 7.1 kanaals geluid en is gebaseerd op een Realtek ALC887 chip.

Eigenschappen: Moederbord – ASRock H110M-DVP, LGA1151, Micro-ATX, Intel H110 Express, 2x DDR4 DIMM, Realtek ALC887, VGA, DVI, Compoort, LAN, PCI Express x16, PCI, PCI-e x1, 4x SATA III, USB 2.0/3.1, 2x PS/2

Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers

Product: ASRock H110M-DVP
Categorie: Moederborden
Merk: ASRock
Staat: Refurbished – BIOS geüpdatet naar de laatste versie
EAN: 4717677329933
SKU: 90-MXB1S0-A0UAYZ, H110M-DVP
Garantie: 6 Maanden

pakketinhoud:
– Moederbord (ASRock H110M-DVP)
Geen IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels


Unique Feature
ASRock Super Alloy
– Matte Black PCB
– High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop


CPU
– Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
– Supports CPU up to 95W
– Digi Power design
– 4 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology


Chipset
– Intel® H110


Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 2133 non-ECC, un-buffered memory
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 32GB*
– Supports Intel® Extreme Memory Profile (XMP) 2.0

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 64Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 5.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, GT_CPU, DRAM, PCH 1.0V Voltage Multi-adjustment


Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530/630
– Pixel Shader 5.0, DirectX 12
– Max. shared memory 1024MB*
– Dual graphics output: Support DVI-D and D-Sub ports by independent display controllers
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Accelerated Media Codecs: HEVC, VP8, VP9
– Supports HDCP with DVI-D Port
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port

*The size of maximum shared memory may vary from different operating systems.

**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.


Audio
– 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
– Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111E
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
– 2 x PCI Express 2.0 x1 Slots
– 1 x PCI Slot

*Supports NVMe SSD as boot disks.


Storage
– 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug


Connector
– 1 x Print Port Header
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)
– 2 x Chassis Fan Connectors (4-pin)*
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))**

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**USB3_2_3 is shared with USB_6_7.


Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x Serial Port: COM1
– 1 x D-Sub Port
– 1 x DVI-D Port
– 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Fast Boot (Fast Boot, Restart to UEFI)

UEFI
– ASRock EZ Mode
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI Tech Service
– ASRock Easy Driver Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
– I/O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore


Form Factor
– Micro ATX Form Factor: 9.6-in x 7.4-in, 24.4 cm x 18.8 cm
– Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*

*To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
For the updated Windows® 10 driver, please visit ASRock’s website for details.


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specificaties

Gewicht1 kg
Intel

Socket 1151

Merk

Asrock

Chipset

Intel H110

Formaat

Micro-ATX

Geheugentype

DDR4

Aantal geheugenslots

2

Maximale geheugengrootte

16 GB

Aansluitingen

D-Sub (VGA), DVI-D, Serial Port: COM1, USB 2.0, USB 3.1 Gen1

Opslag interfaces

SATA3 6.0 Gb/s

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

Intel Socket 1151
