Product informatie

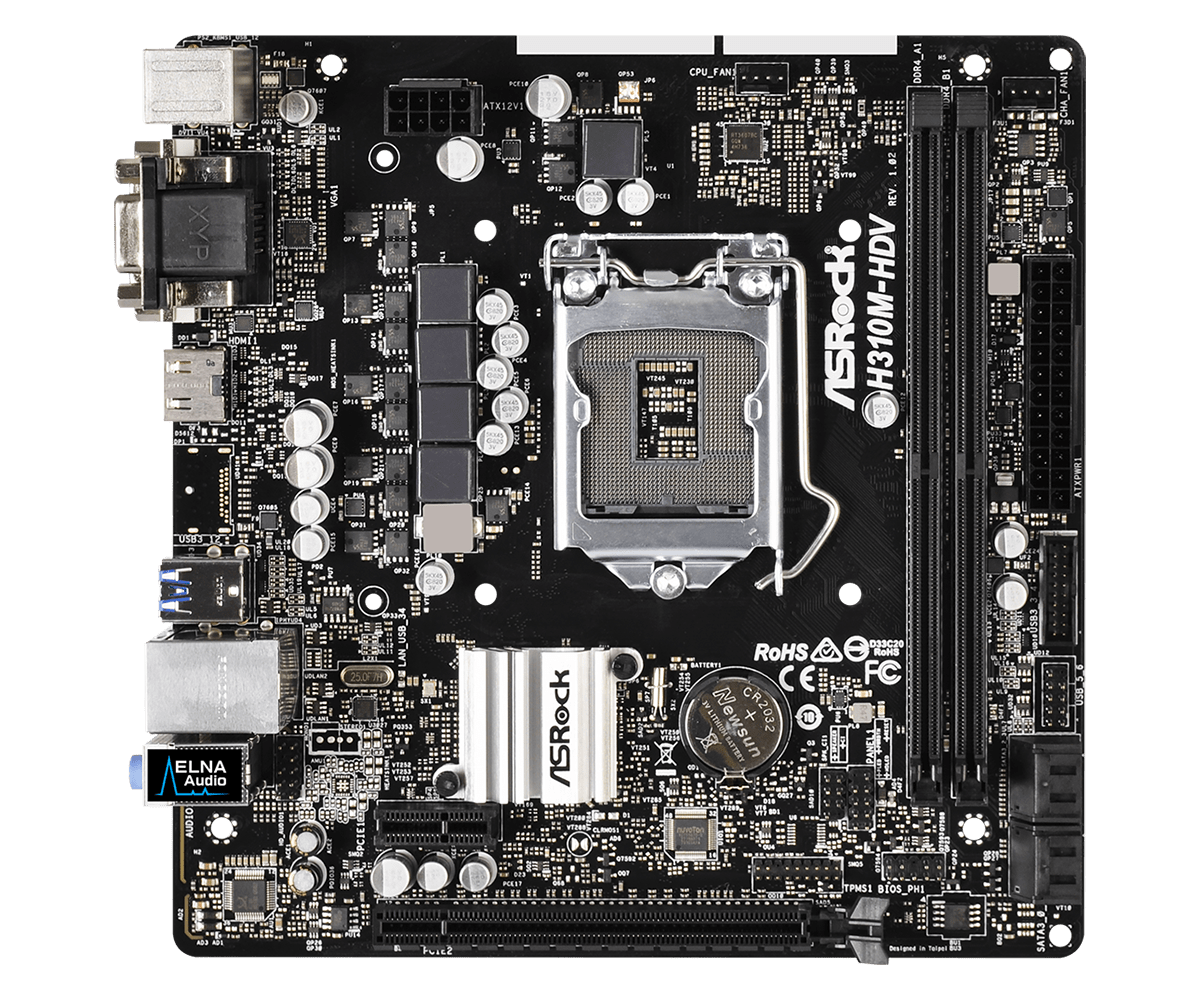

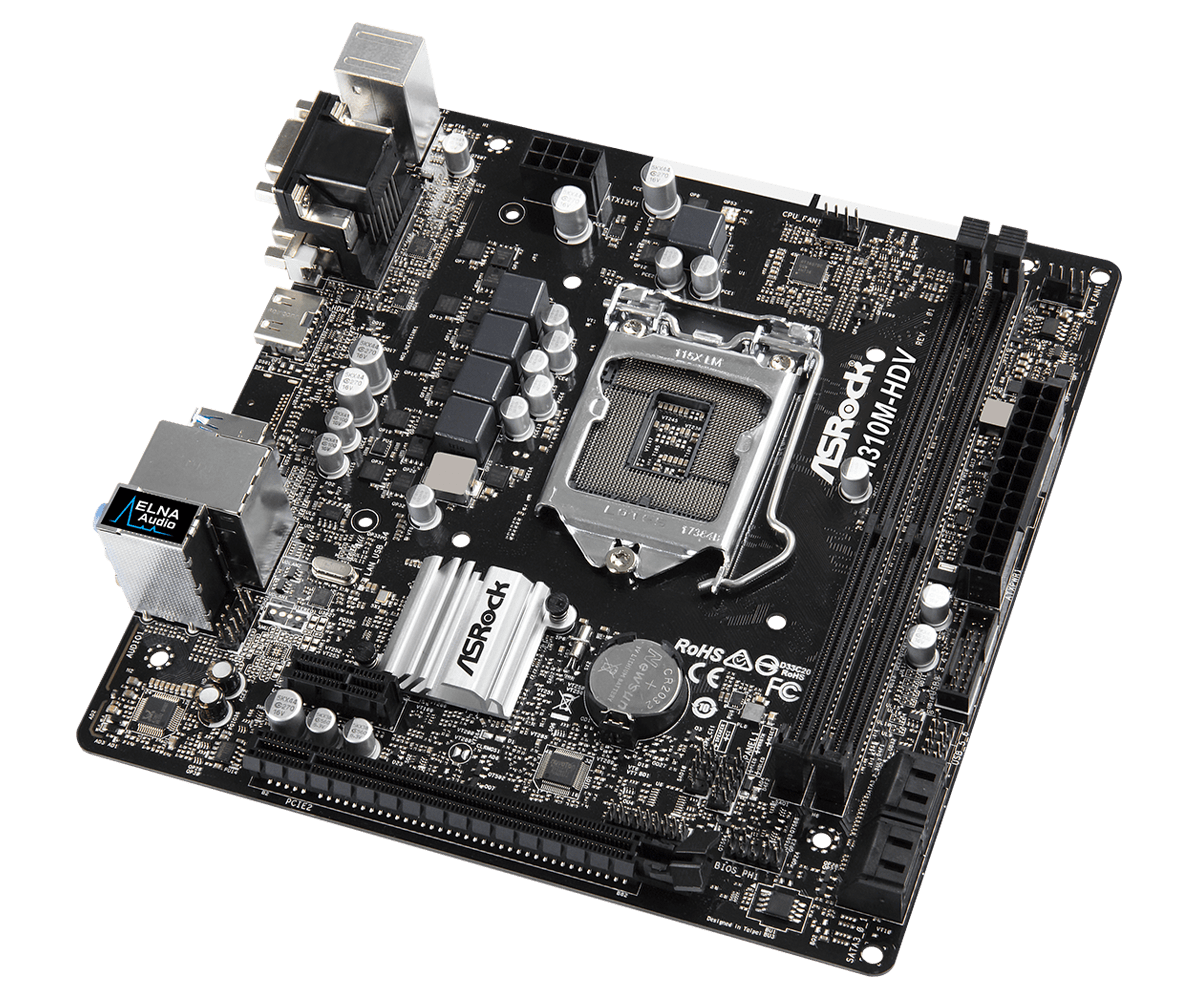

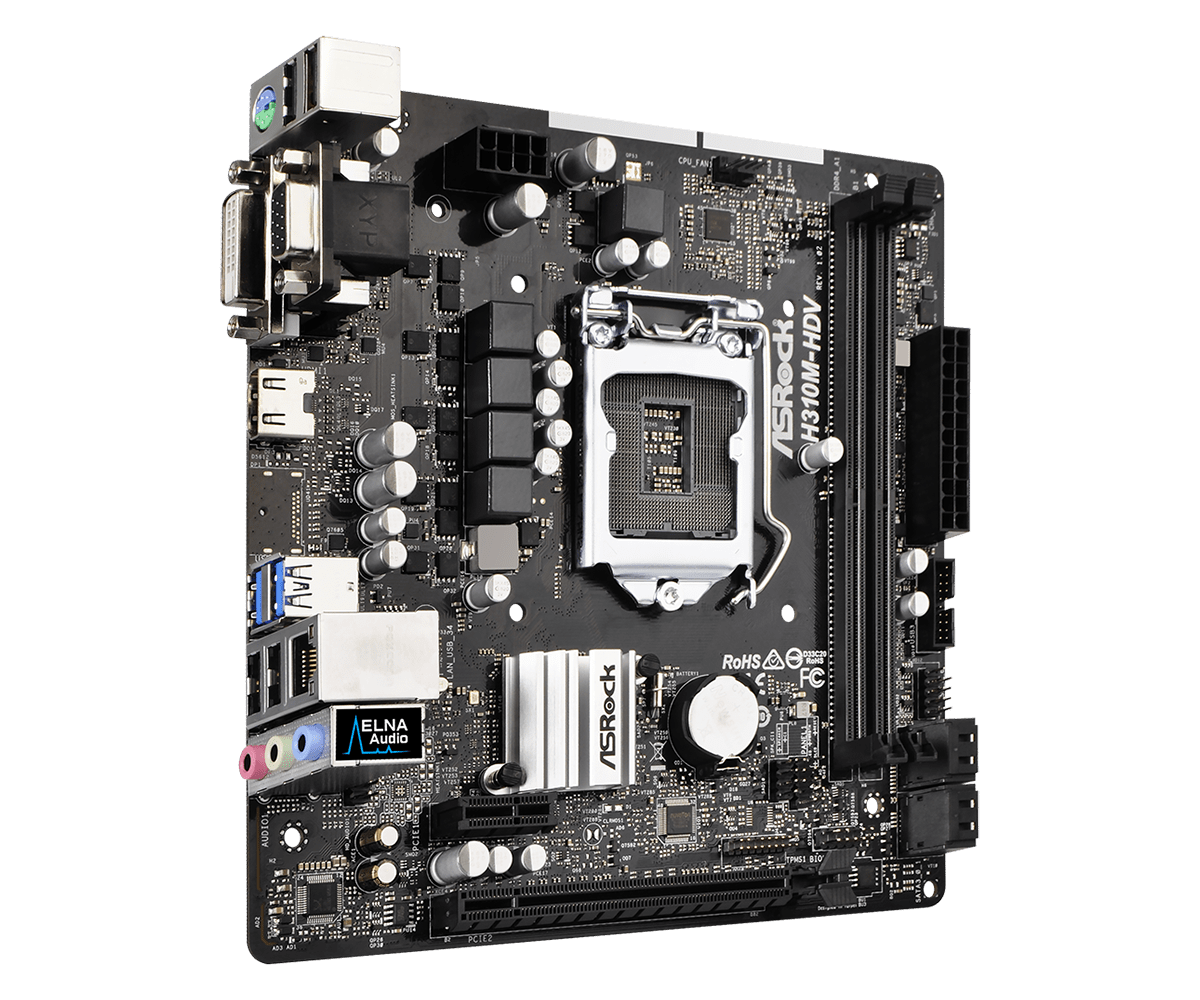

ASRock H310M-HDV: Moederbord | Micro-ATX | Socket 1151 (voor 8e en 9e Generatie processoren | 2x DDR4 (max 32GB) | SATA-600 | PCI-e 2.0 x1 | PCI-e 3.0 x16| USB 2.0 | USB 3.1 (Gen1, 5Gb/s) | DVI-D | HDMI | VGA (D-Sub)

Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers

Product:ASRock H310M-HDV
Socket: Socket 1151
Geschikt voor: 8e en 9e generatie processoren
Categorie: moederborden
Merk: ASRock
Staat: Refurbished – BIOS bijgewerkt naar de nieuwste versie
EAN: 4717677335187
SKU: 90-MXB6Z0-A0UAYZ, H310M-HDV
Garantie: 6 maanden

Inhoud pakket:
– Moederbord (H310M-HDV)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels

Unique Feature
ASRock Super Alloy
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU
– Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
– Supports CPU up to 95W
– 5 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology

Chipset
– Intel® H310

Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
– Max. capacity of system memory: 64GB*
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– DRAM, PCH 1.05V Voltage Multi-adjustment

Graphics
– Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
– DirectX 12
– HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
– Three graphics output options: D-Sub, DVI-D and HDMI**
– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
– Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**Supports up to 2 displays simultaneously

Audio
– 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
– Supports Surge Protection
– ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– 1 x Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
– 1 x PCI Express 2.0 x1 Slot

*Supports NVMe SSD as boot disks

Storage
– 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Connector
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

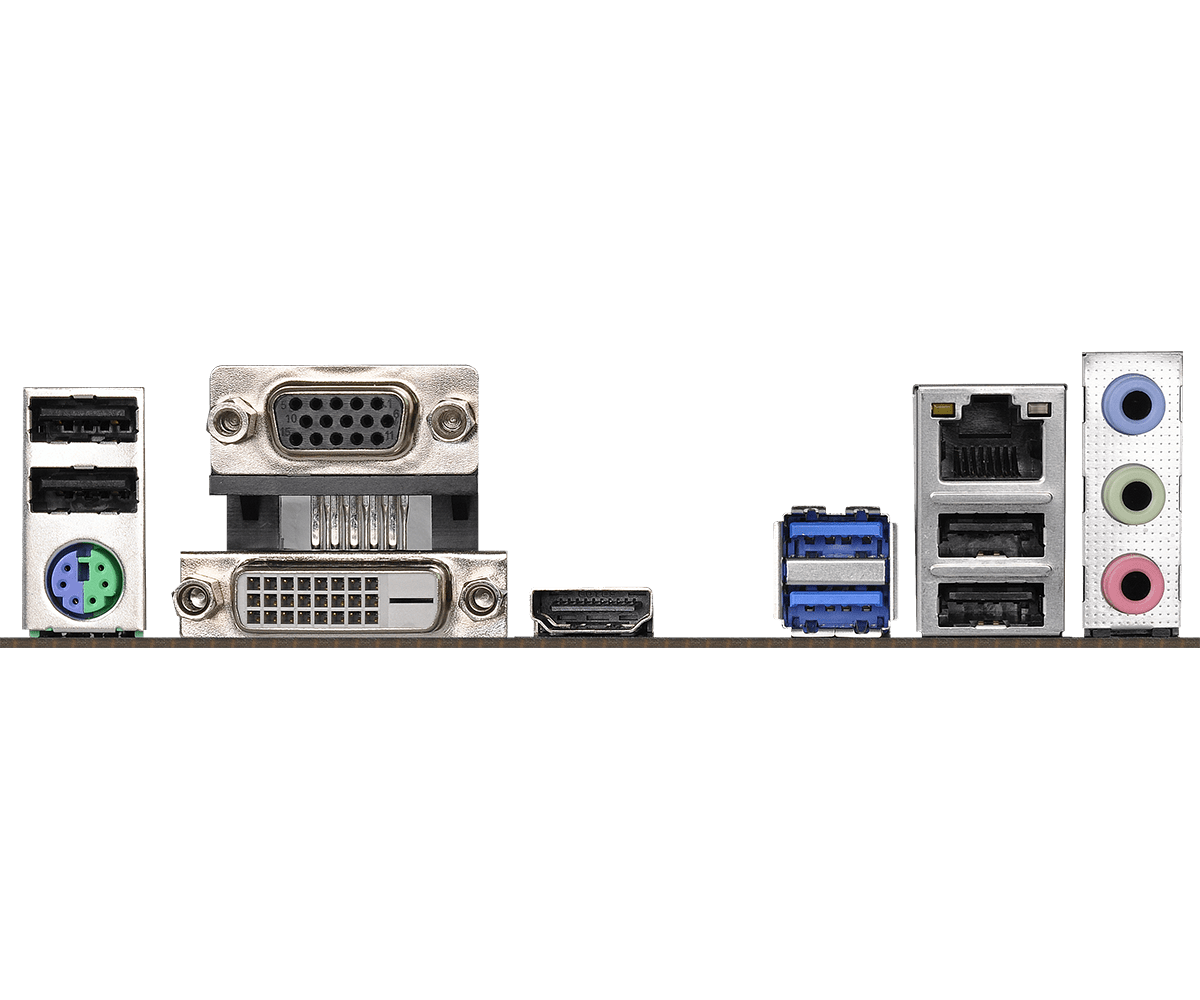

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 4 x USB 2.0 Ports (Supports ESD Protection)
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
– ASRock A-Tuning
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories
– Quick Installation Guide, Support CD, I/O Shield

Hardware Monitor
– Temperature Sensing: CPU, Chassis/Water Pump Fans
– Fan Tachometer: CPU, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
– Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm
– Solid Capacitor design

OS
– Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
