Product informatie

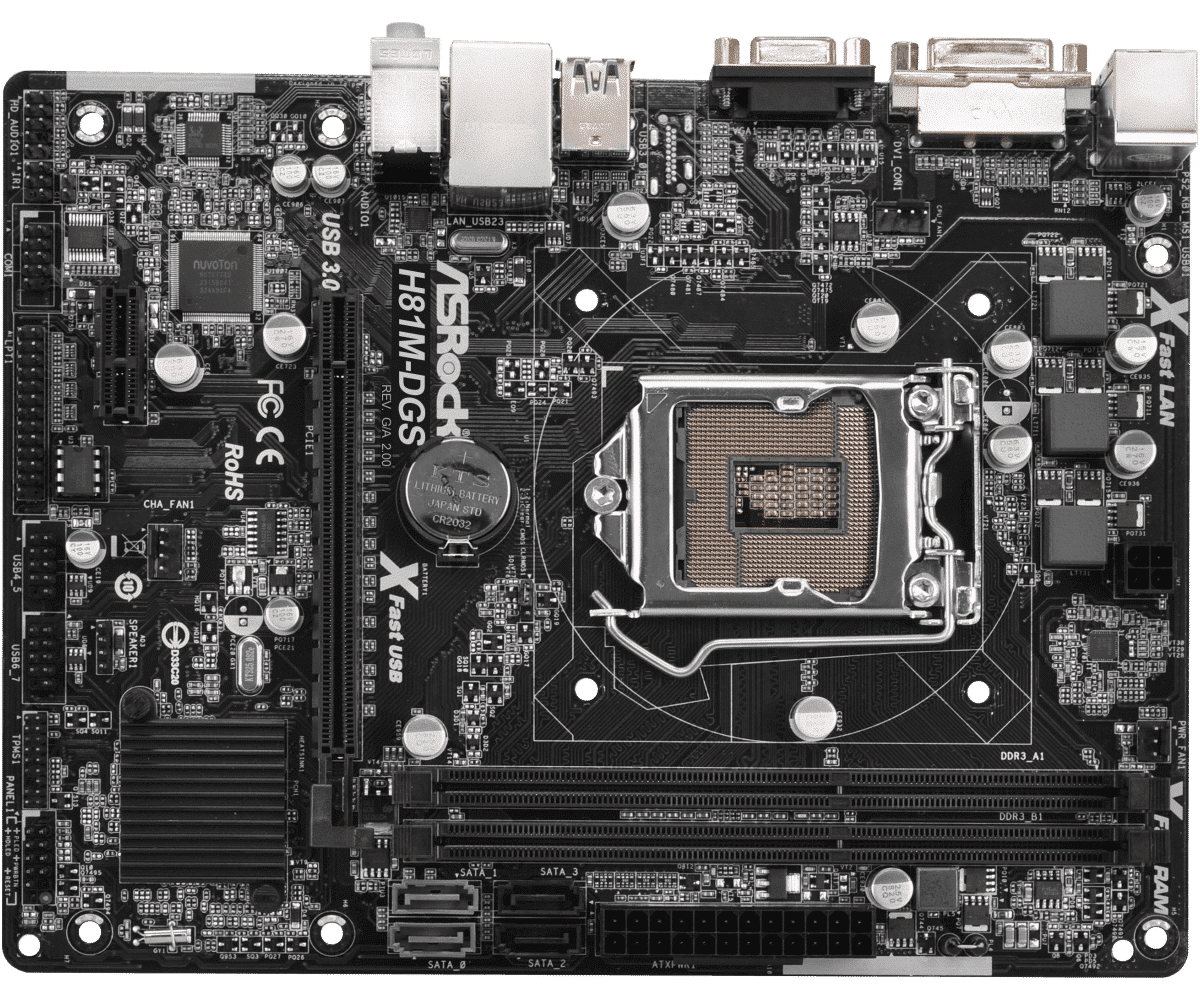

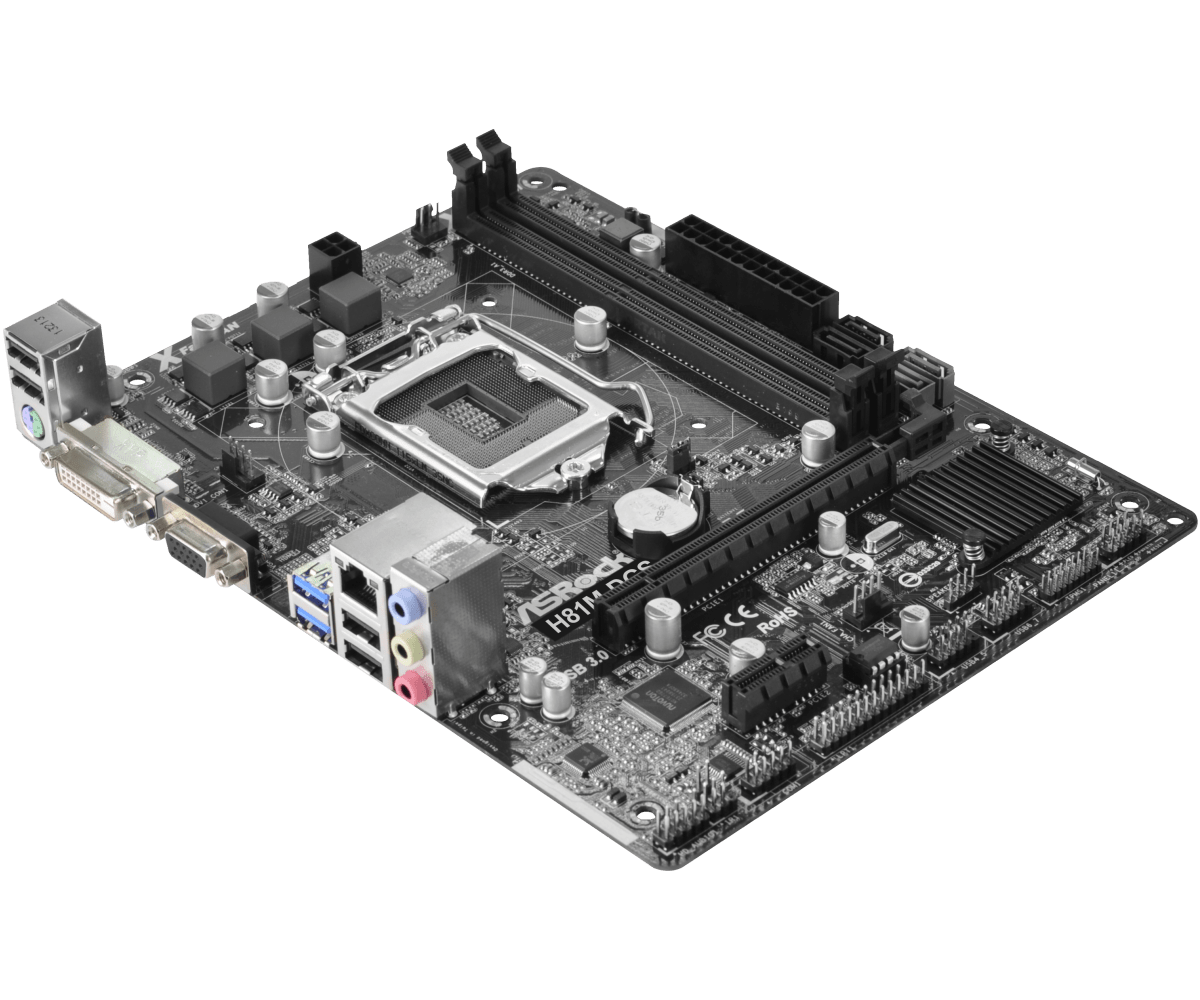

De ASRock H81M-DGS R2.0 is een Micro-ATX Socket 1150 moederbord gebaseerd op de Intel H81 chipset. Het bord moet worden gecombineerd met DDR3-geheugen, waarvoor 2 slots beschikbaar zijn. In totaal heeft de ASRock H81M-DGS R2.0 4 Seriële ATA-aansluitingen voor harde schijven en SSD’s. De ingebouwde geluidskaart biedt 7.1-kanaals geluid en is gebaseerd op een Realtek ALC662-chip.


Kenmerken: Moederbord | Micro-ATX | Socket 1150 | 2x DDR3 | 2x SATA-600 | 2x SATA-300 | 1x PCI-e 2.0 x16| 1x PCI-e 2.0 x1 | USB 3.1 (Gen1, 5 Gb / s) | USB 2.0  | DVI-D | D-Sub (VGA)


Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers


Product: ASRock H81M-DGS R2.0
Socket: Socket 1150
Categorie: moederborden
Merk: ASRock
EAN: 4717677322248
Staat: refurbished – BIOS bijgewerkt naar de nieuwste versie
SKU: 90-MXGSR0-A0UAYZ, H81M-DGS R2.0
Garantie:
6 maanden


Inhoud pakket:
– Moederbord (ASRock H81M-DGS R2.0)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels


CPU
– Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Supports Intel® Turbo Boost 2.0 Technology


Chipset
– Intel® H81


Memory
– Dual Channel DDR3/DDR3L Memory Technology
– 2 x DDR3/DDR3L DIMM Slots
– Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 32Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 1.1 Compliant wake up events
– SMBIOS 2.3.1 support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjustment


Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
– Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB*
– Two graphics output options: support DVI-D and D-Sub ports by independent display controllers
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports HDCP with DVI-D Port
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port

*The size of maximum shared memory may vary from different operating systems.

**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.


Audio
– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111G
– Supports Wake-On-LAN
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 2.0 x16 Slot (PCIE1: x16 mode)
– 1 x PCI Express 2.0 x1 Slot


Storage
– 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
– 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug


Connector
– 1 x IR Header
– 1 x Print Port Header
– 1 x COM Port Header
– 1 x Chassis Intrusion Header
– 1 x TPM Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis Fan Connector (4-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

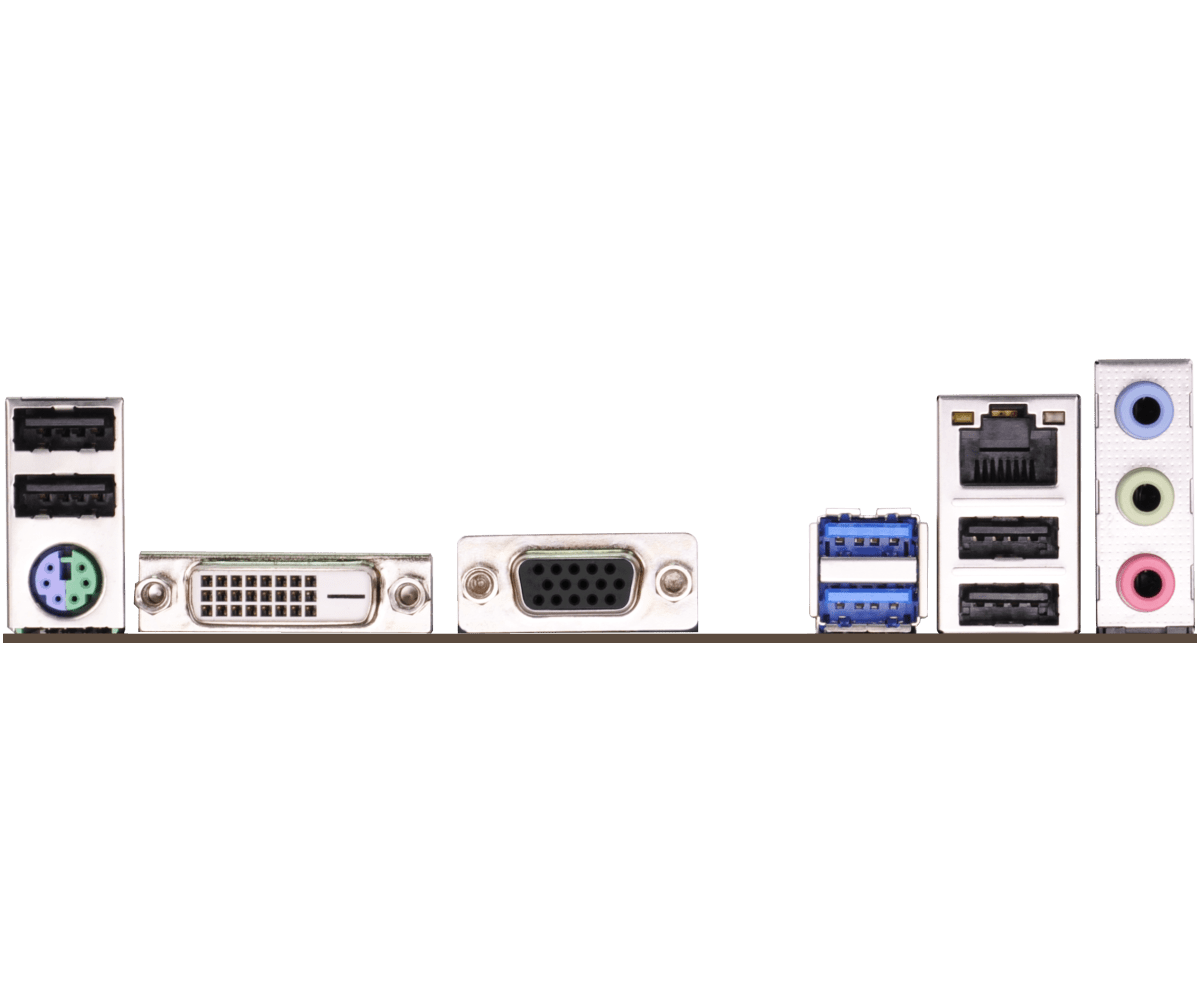

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 4 x USB 2.0 Ports
– 2 x USB 3.1 Gen1 Ports
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Line in / Front Speaker / Microphone


Unique Feature
– ASRock APP Shop
– ASRock A-Tuning
– ASRock Instant Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy Driver Installer
– ASRock Interactive UEFI
– ASRock Fast Boot
– ASRock Restart to UEFI
– ASRock USB Key
– ASRock FAN-Tastic Tuning
– Hybrid Booster:
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Good Night LED


Accessories
– I/O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore


Form Factor
– Micro ATX Form Factor
– All Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specificaties

Gewicht1 kg
Intel

Socket 1150

Merk

Asrock

Chipset

Intel H81

Formaat

Micro-ATX

Geheugentype

DDR3

Aantal geheugenslots

2

Maximale geheugengrootte

16 GB

Aansluitingen

D-Sub (VGA), DVI-D, USB 2.0, USB 3.1 Gen1

Opslag interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI-e 2.0 x1, PCI-e 2.0 x16

Socket

ASRock H81M-DGS R2.0 socket 1150 moederbord

Snelle levering

Merk: Asrock
Model: H81M-DGS R2.0
Socket: Socket 1150
Geheugen: 2x DDR3 (16GB Max)
Form-Factor: Micro-ATX
EAN: 4717677322248
SKU: 90-MXGSR0-A0UAYZ, H81M-DGS R2.0


Artikelnummer: H81M-DGS R2.0 Categorieën: , , Tags: , ,
