ASRock J3160TM-ITX onboard CPU moederbord

0 op voorraad

Snelle levering

Product:ASRock J3160TM-ITX
Aansluiting: Onboard CPU
Categorie: moederborden
Merk: ASRock
EAN:4717677329896
Staat: Refurbished – BIOS geüpdatet naar de nieuwste versie
SKU: 90-MXB1Z0-A0UAYZ, J3160TM-ITX
Garantie:
6 maanden


Artikelnummer: ASRock j3160TM-ITX Categorieën: , Tags: , ,

Product informatie

De ASRock J3160TM-ITX is een Thin Mini-ITX moederbord met een geintergreerde Intel Celeron J3160 APU. Het bord dient gecombineerd te worden met DDR3 geheugen, waarvoor 2 sloten beschikbaar zijn. In totaal heeft de ASRock J3160TM-ITX 2 Serial ATA aansluitingen voor harddisks en SSD’s. De onboard geluidskaart biedt 7.1 kanaals geluid en is gebaseerd op een Realtek ALC892 chip.

Eigenschappen: Moederbord | Micro-ATX| geintergreerde Intel Celeron J3160 APU | 2 x DDR3 | 2x SATA-600 | PCI-e 2.0 x1 | mini-PCI Express | USB2.0 | USB3.2 | D-Sub (VGA) | Serial Port (Com1) | HDMI

Klik hier voor de stuurprogramma’s

Product:ASRock J3160TM-ITX
Aansluiting: Onboard CPU
Categorie: moederborden
Merk: ASRock
EAN:4717677329896
Staat: Refurbished – BIOS geüpdatet naar de nieuwste versie
SKU: 90-MXB1Z0-A0UAYZ, J3160TM-ITX
Garantie:
6 maanden

pakketinhoud:
– Moederbord (ASRock J3160TM-ITX)
– IO-Shield (Blikken achterplaatje)
– handleiding
– cd met stuurprogramma’s
– kabels


Unique Feature
ASRock Super Alloy
– High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop


CPU
– Intel® Quad-Core Processor J3160 (up to 2.24 GHz)


Memory
– Dual Channel DDR3/DDR3L Memory Technology
– 2 x DDR3/DDR3L SO-DIMM Slots
– Supports DDR3/DDR3L 1600/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB**

*If only one SO-DIMM module is installed, please install it into DDR3_A1.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports Plug and Play
– ACPI 5.0 compliant wake up events
– Supports jumperfree
– SMBIOS 2.7 support


Graphics
– Integrated Intel® HD Graphics 400: 12 EUs inside (Up to 700MHz)
– DirectX 11.1, Pixel Shader 5.0
– Three graphics output options: D-Sub, HDMI and LVDS
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 2560×1600 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports LVDS with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/HEVC @ level 5 (GPU accelerated), JPEG, VP8
– Supports HDCP with HDMI Port
– Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.


LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111GR
– Supports Wake-On-WAN
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 2.0 x1 Slot*
– 1 x Half-size Mini-PCI Express Slot

*Due to the power limitation and PCIe bandwidth (x1), the VGA card is not supported.


Storage
– 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug


Connector
– 1 x Backlight Power Selection Jumper
– 1 x Panel Power Selection Jumper
– 1 x Backlight Control Header
– 1 x Digital Input / Output Pin Header
– 1 x Digital Input / Output Power Selection Jumper
– 1 x Home Theater PC Header
– 1 x Monitor Switch Header
– 1 x Digital MIC Header
– 1 x 3W Audio AMP Output Wafer Header
– 1 x LVDS Connector
– 1 x CIR Header
– 1 x COM Port Header
– 1 x Power LED Header
– 1 x TPM Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis Fan Connector (4-pin)
– 1 x SATA Power Connector
– 1 x Internal Power Header
– 1 x Front Panel Audio Connector
– 1 x Analog Surround Audio Connector
– 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header by Etron EJ188 (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

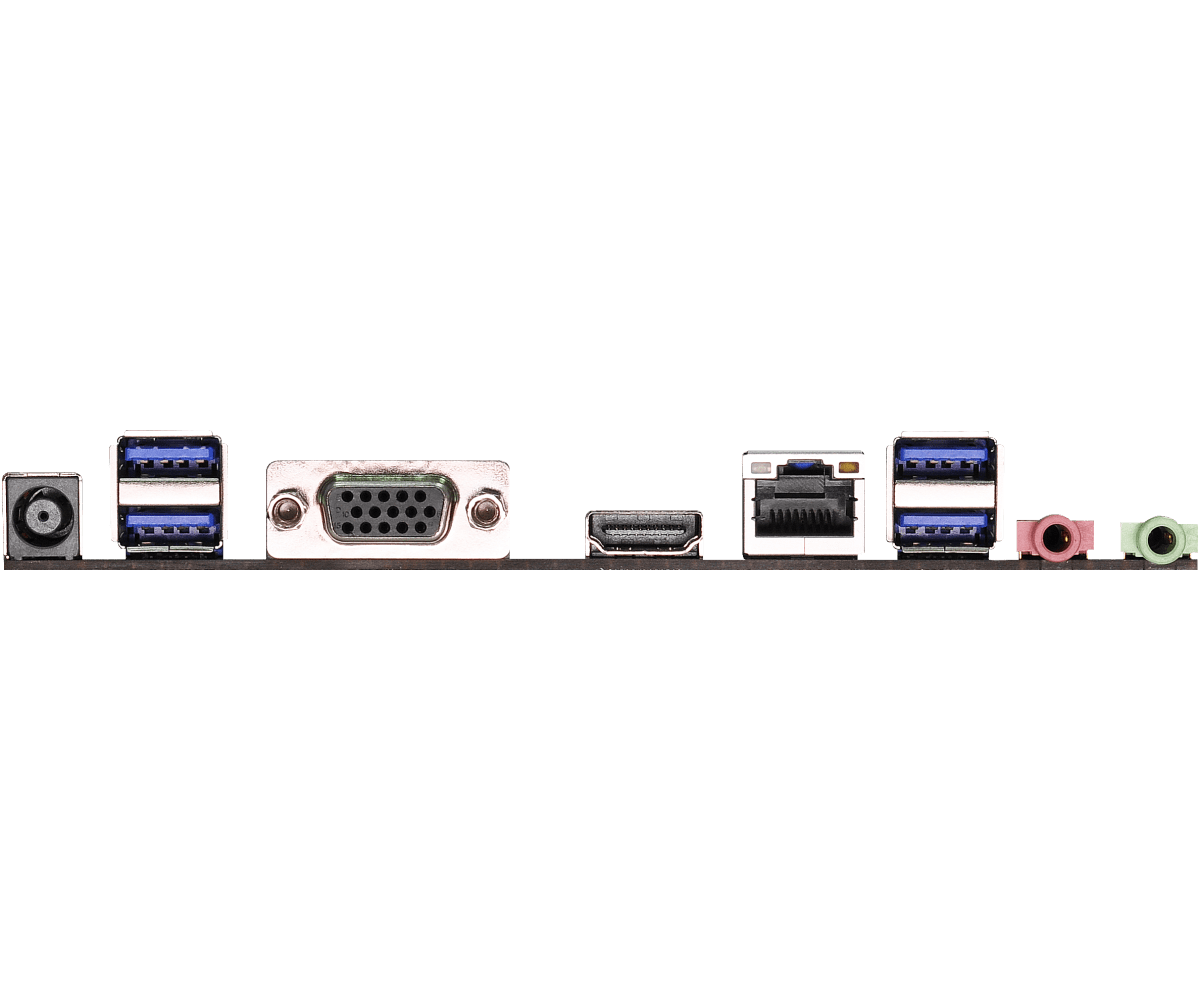

Rear Panel I/O
– 1 x DC Jack (Compatible with the 19V power adapter)
– 1 x D-Sub Port
– 1 x HDMI Port
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Microphone / Front Speaker (Supports SPDIF Optical)


Software and UEFI
Software
– ASRock Power Gear
– ASRock Disk Health Report
– ASRock USB Key
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Fast Boot (Fast Boot, Restart to UEFI)*

UEFI
– ASRock Power Gear
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar


Accessories
– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 1 x SATA 1 to 2 Power Cable
– 1 x WiFi Module Screw


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore


Form Factor
– Thin Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm (Compatible with Mini-ITX)
– Solid Capacitor design


OS
– Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*
– Linux: Ubuntu 14.04.3 LTS / Ubuntu 15.04 / Ubuntu 15.10 / Fedora 23 / Zorin OS 10 / Arch Linux 2015.10.01 / clonezilla-live-20150915-wily-amd64 / Android-x86-4.4-r3**

*To install Windows® 7 64-bit OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
For the updated Windows® 10 driver, please visit ASRock’s website for details.

**Linux O/S basic function support only, due to the compatibility of the Liunx system itself, there is no guarantee that all functions are supported.


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specificaties

Gewicht1 kg
Intel

Onboard CPU

Merk

Asrock

Formaat

Thin Mini ITX

Geheugentype

DDR3 – SO-Dimm

Aantal geheugenslots

2

Maximale geheugengrootte

16 GB

Aansluitingen

D-Sub (VGA), HDMI, USB 2.0, USB 3.1 Gen1

Opslag interfaces

Serial ATA-600

Interfaces

mini-PCI Express, PCI-e 2.0 x1

Socket
