Product informatie

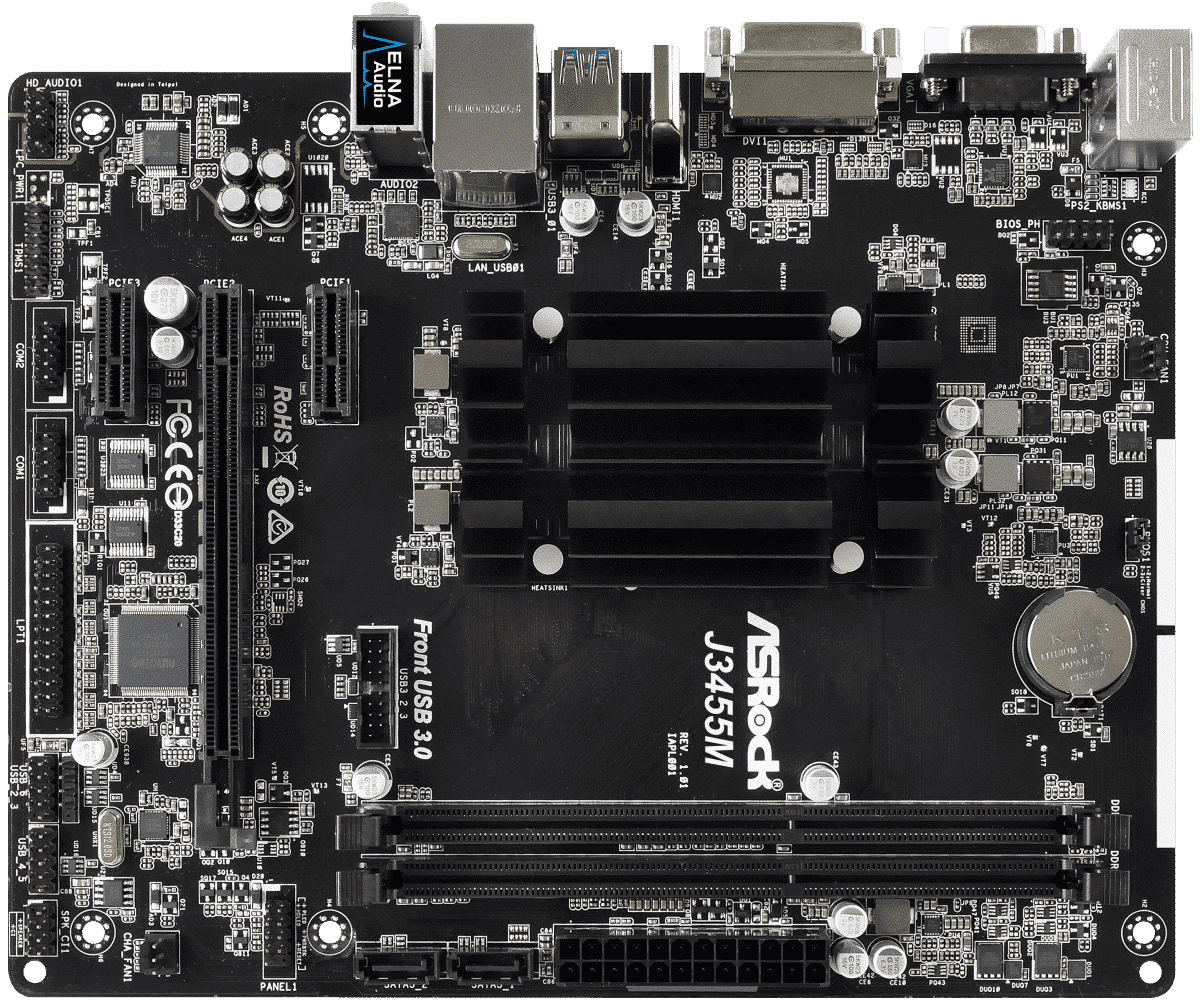

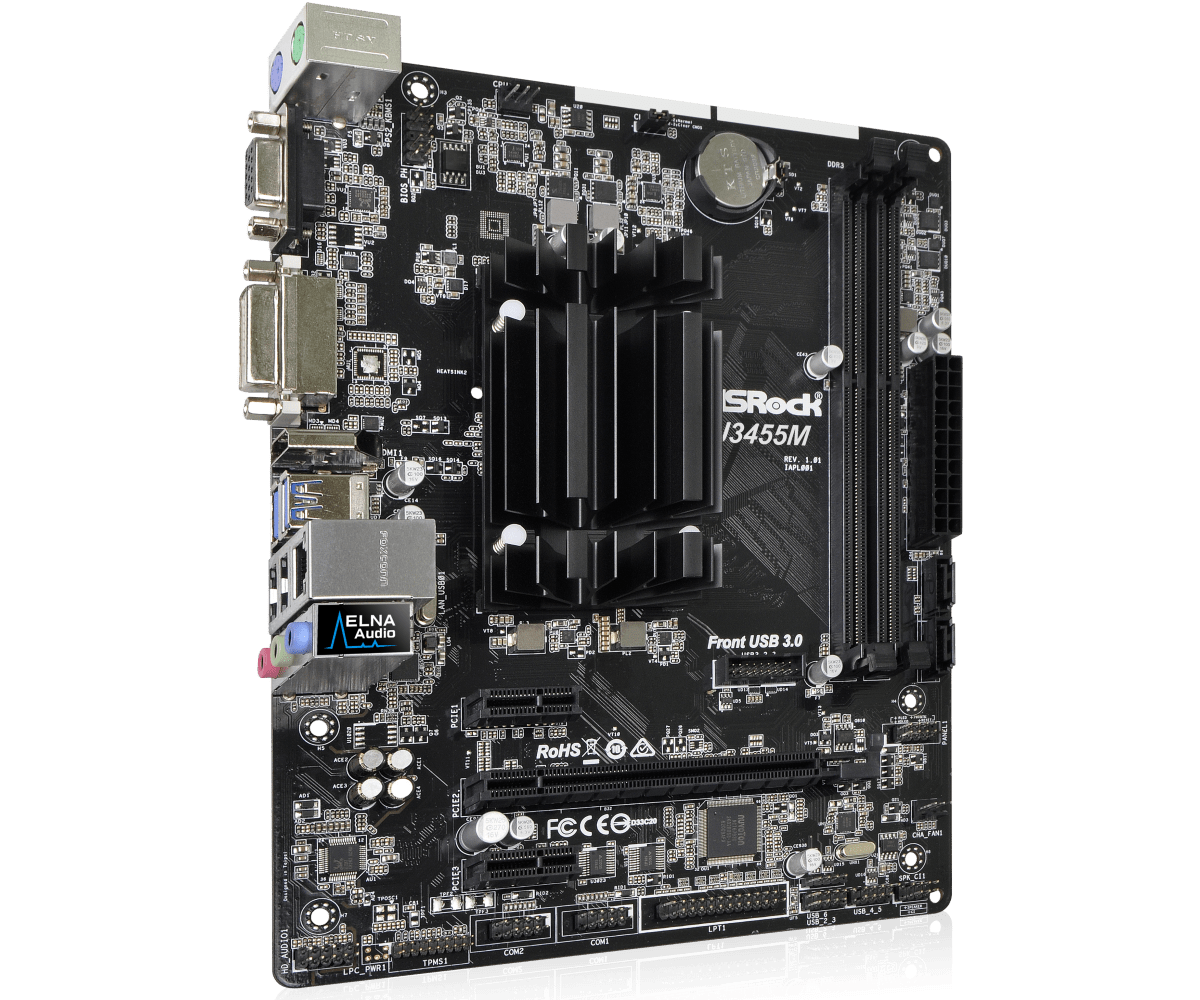

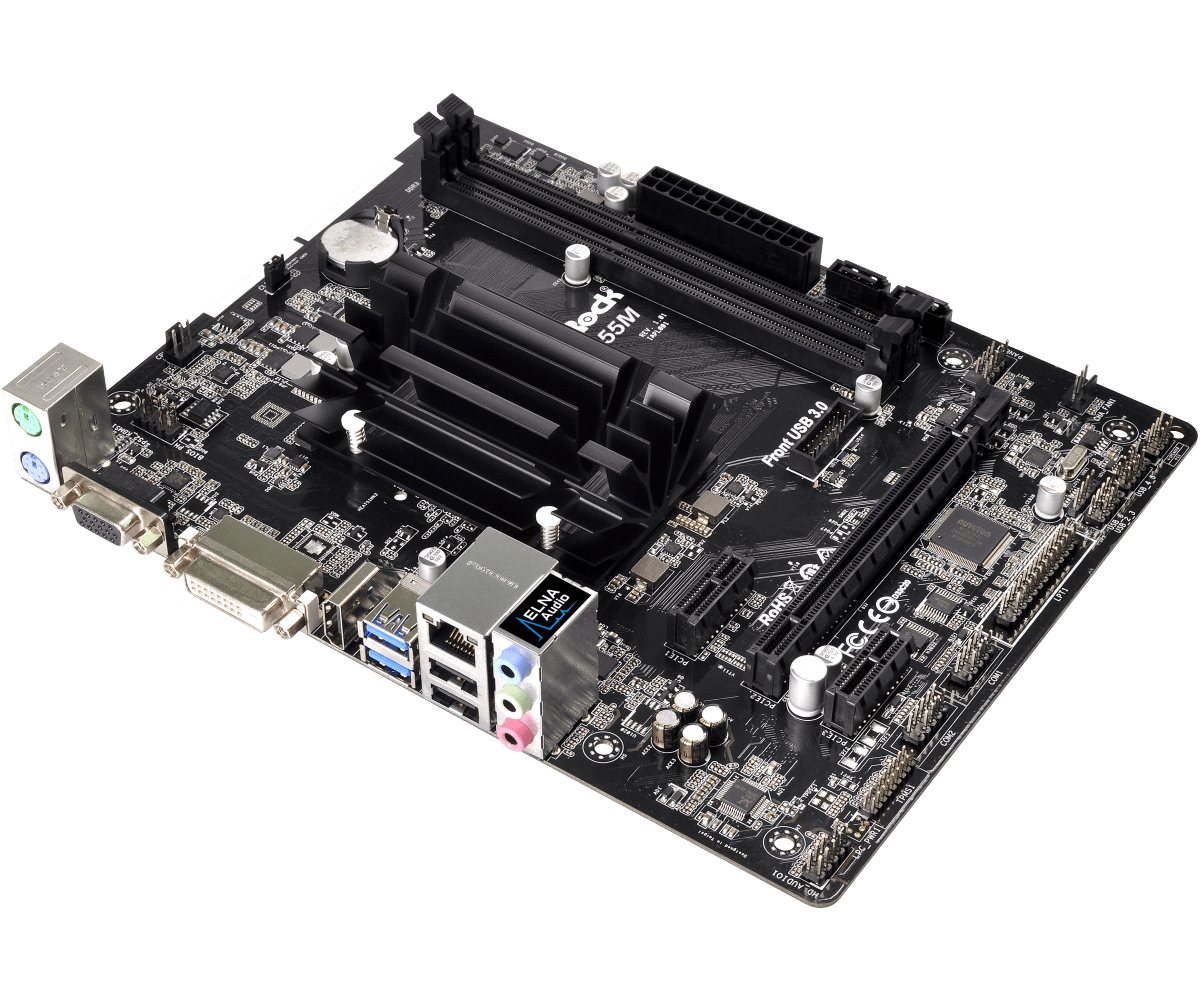

De ASRock J3455M is een Micro-ATX moederbord met een geintergreerde Intel Quad-Core Processor J3455. Het bord dient gecombineerd te worden met DDR3 geheugen, waarvoor 2 sloten beschikbaar zijn. In totaal heeft de ASRock J3455M 2 Serial ATA aansluitingen voor harddisks en SSD’s. De onboard geluidskaart biedt 7.1 kanaals geluid en is gebaseerd op een Realtek ALC887 chip.

Eigenschappen: Moederbord | Micro-ATX| geintergreerde Intel Quad-Core Processor J3455 APU | 2 x  DDR3 | SATA-600 | PCI-e 2.0 x1 | PCI-e 2.0 x16 | USB2.0 | USB3.1 | D-Sub (VGA) | DVI-D HDMI

Klik hier voor de stuurprogramma’s

Product: ASRock J3455M
Aansluiting: Onboard CPU
Categorie: moederborden
Merk: ASRock
EAN: 4717677332070
Staat: Refurbished – BIOS geüpdatet naar de nieuwste versie
SKU: 90-MXB450-A0UAYZ, J3455M
Garantie: 6 maanden

pakketinhoud:
– Moederbord (ASRock J3455M)
– IO-Shield (Blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels

Unique Feature
ASRock Super Alloy
– High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop

CPU
– Intel® Quad-Core Processor J3455 (up to 2.3 GHz)

Memory
– Dual Channel DDR3/DDR3L Memory Technology
– 2 x DDR3/DDR3L DIMM Slots*
– Supports DDR3/DDR3L 1866/1600/1333 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB**

*2GB DRAM per module is not supported.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
Intel® Extreme Memory Profile (XMP) is not supported

BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports Plug and Play
– ACPI 5.0 compliant wake up events
– Supports jumperfree
– SMBIOS 3.0 support

Graphics
– Integrated Intel® HD Graphics 500: 12 EUs inside (Up to 750MHz)
– DirectX 12, Pixel Shader 5.0
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 4K x 2K (3840×2160) @ 30Hz or 2560×1600 @ 60Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz
– Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9
– Supports HDCP with DVI-D and HDMI Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

Audio
– 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
– Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111E
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
– 1 x PCI Express 2.0 x16 Slot (PCIE2: x1 mode)
– 2 x PCI Express 2.0 x1 Slots

Storage
– 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Connector
– 1 x Print Port Header
– 2 x COM Port Headers
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (3-pin)
– 1 x Chassis Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x Front Panel Audio Connector
– 1 x BIOS_PH Connector
– 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

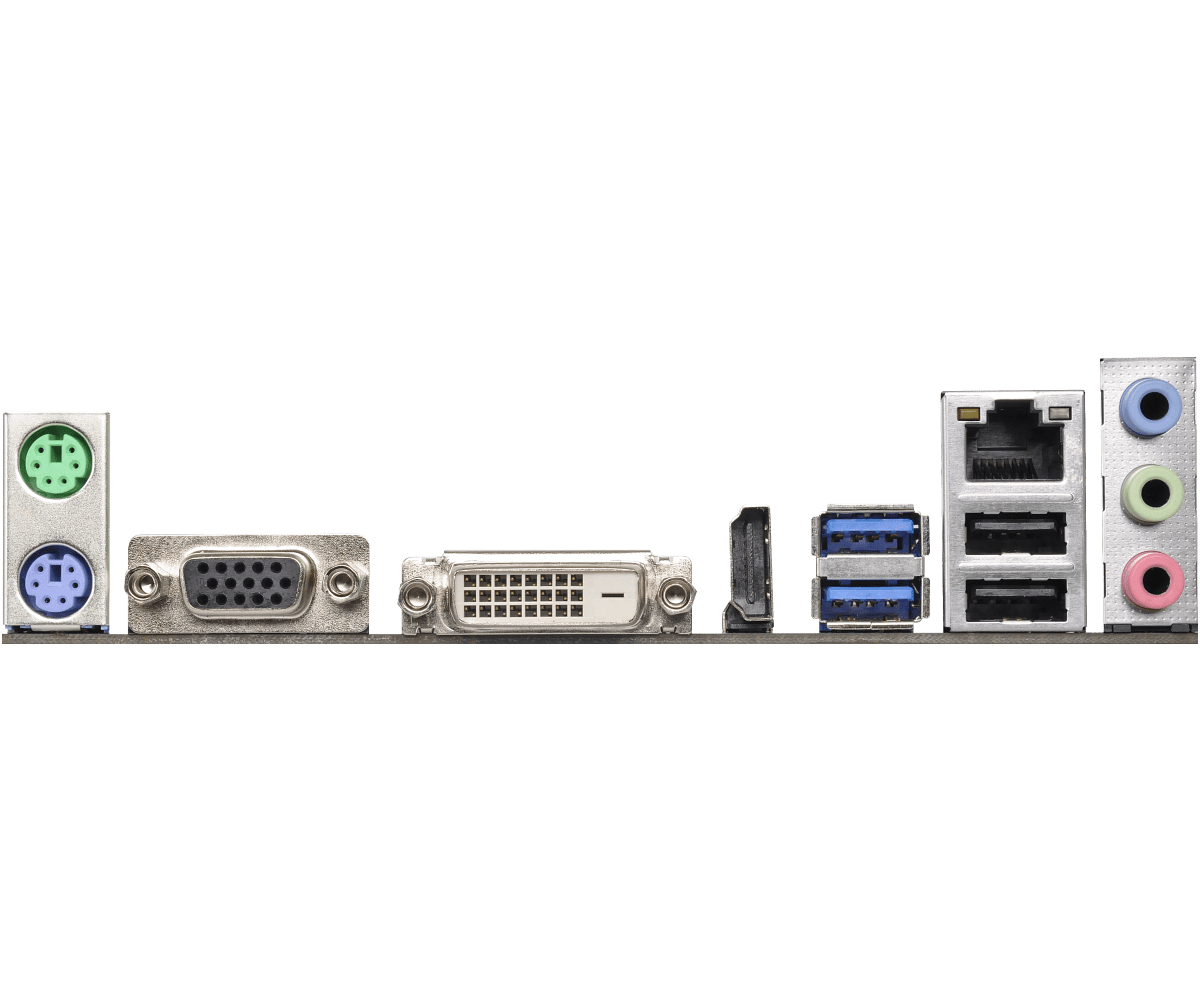

Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
– ASRock Power Gear
– ASRock XFast LAN*
UEFI
– ASRock Power Gear
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories
– I/O Shield

Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
– Micro ATX Form Factor: 8.9-in x 7.0-in, 22.6 cm x 17.8 cm
– Solid Capacitor design

OS
– Microsoft® Windows® 10 64-bit*
– Linux: Ubuntu 16.10 / Fedora 25**

*For the updated Windows® 10 driver, please visit ASRock’s website for details.

**Linux O/S basic function support only, due to the compatibility of the Liunx system itself, there is no guarantee that all functions are supported.

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
