Product informatie

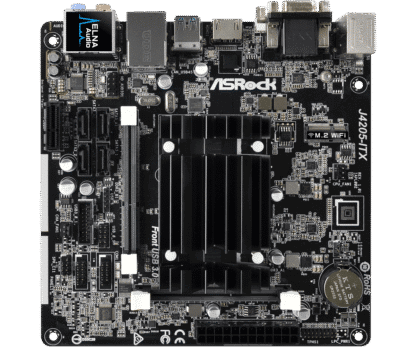

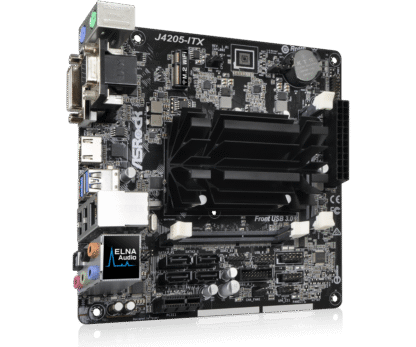

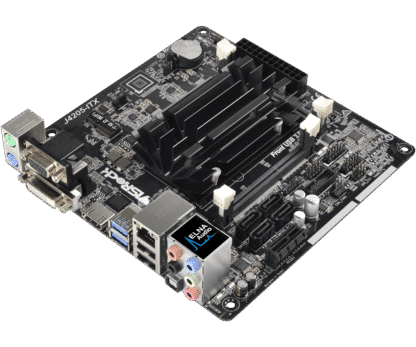

ASRock J4205-ITX: Moederbord | Mini-ITX | Onboard J4205 CPU | 2x DDR3 (SODimm) max 16GB | Sata-600 – M.2 | PCI-e 2.0 x1 | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | DVI-D | HDMI | VGA (D-Sub)

Klik hier voor de drivers

Product: ASRock J4205-ITX
Socket: Onboard J4205 CPU
Categorie: moederborden
Merk: ASRock
Staat: Refurbished – BIOS bijgewerkt naar de nieuwste versie
EAN:
4717677332049
SKU: 90-MXB270-A0UAYZ, J4205-ITX
Garantie:
6 maanden

Inhoud pakket:
– Moederbord (ASRock J4205-ITX)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels


Unique Feature
ASRock Super Alloy
– High-Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop


CPU
– Intel® Quad-Core Pentium® Processor J4205 (up to 2.6 GHz)


Memory
– Dual-Channel DDR3/DDR3L Memory Technology
– 2 x DDR3/DDR3L SO-DIMM Slots*
– Supports DDR3/DDR3L 1866/1600/1333 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB**

*2GB DRAM per module is not supported.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports Plug and Play
– ACPI 5.0 compliant wake up events
– Supports jumper free
– SMBIOS 3.0 support


Graphics
– Integrated Intel® HD Graphics 505: 18 EUs inside (Up to 800MHz)
– DirectX 12, Pixel Shader 5.0
– Three graphics output options: D-Sub, DVI-D, and HDMI
– Supports Triple Monitor
– Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz
– Supports Auto Lip Sync, xvYCC, and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI 2.0 monitor is required)
– Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9
– Supports HDCP with DVI-D and HDMI 2.0 Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 2.0 Ports


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.


LAN
– PCIe x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111GR
– Supports Wake-On-WAN
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE


Slots
– 1 x PCI Express 2.0 x1 Slot
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module


Storage
– 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI, and Hot Plug
– 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI, and Hot Plug


Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (3-pin)
– 1 x Chassis Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))*

*USB3_0_1 is shared with USB_0_1.

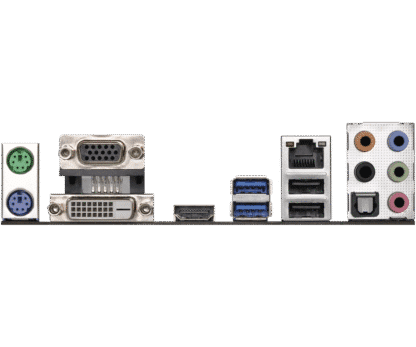

Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


Software and UEFI
Software
– ASRock Power Gear
– ASRock XFast LAN*
UEFI
– ASRock Power Gear
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
– I/O Shield


Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore


Form Factor
– Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– Solid Capacitor design


OS
– Microsoft® Windows® 10 64-bit*
– Linux: Ubuntu 16.10 / Fedora 25**

*For the updated Windows® 10 driver, please visit ASRock’s website for details.

**Linux O/S basic function support only, due to the compatibility of the Linux system itself, there is no guarantee that all functions are supported.


Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specificaties

Gewicht 1 kg
Intel

Onboard CPU

Merk

Asrock

Formaat

Mini-ITX, Thin Mini-ITX

Geheugentype

DDR3 – SO-Dimm

Aantal geheugenslots

2

Maximale geheugengrootte

16 GB

Aansluitingen

D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.2 (Gen1, 5Gb/s)

Opslag interfaces

Serial ATA-600

Interfaces

M.2

Socket

ASRock J4205-ITX onboard CPU moederbord

Snelle levering

  • ASRock Super Legering
  • Intel® Quad-Core Pentium® Processor J4205 (tot 2,6 GHz)
  • Ondersteunt DDR3/DDR3L 1866 SO-DIMM
  • 1 PCIe 2.0 x1, 1 M.2 (sleutel E)
  • Grafische uitvoeropties: D-Sub, HDMI, DVI-D
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 4 SATA3
  • 4 USB 3.1 Gen1 (2 voor, 2 achter)
  • Ondersteunt volledige bescherming tegen spikes, ASRock Live Update & APP-winkel
