Product informatie

ASRock X299E-ITX/AC: Moederbord | ATX | Socket 2066| 4x DDR4 SODimm | PCI-e 3.0 x16 | Ultra M.2 | SATA3 6.0 |  USB 2.0 | USB 3.1 Gen2 Type-A | USB 3.1 Gen2 Type-C | USB 3.1 Gen1 Ports | Wlan | Bluetooth | 2x GB Lan

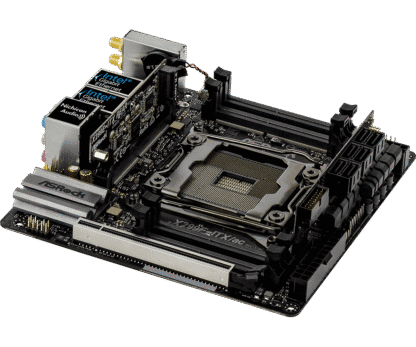

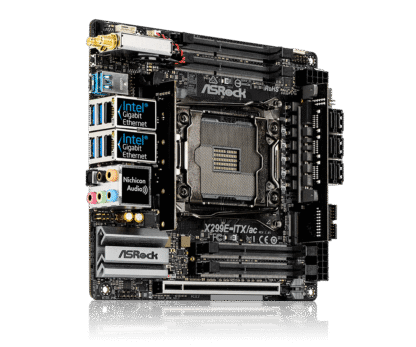

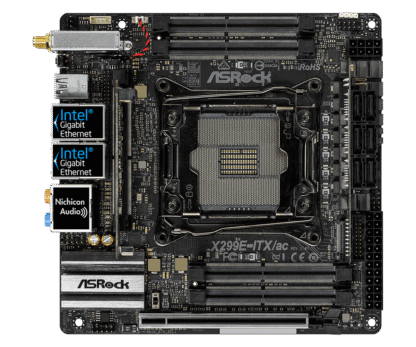

Product: ASRock X299E-ITX/AC
Aansluiting: Socket 2066
Categorie: moederborden
Merk: ASRock
Staat: Refurbished
EAN: 4717677334203
SKU:
90-MXB5W0-A0UAYZ, X299E-ITX/ac
Garantie:
6 maanden

pakketinhoud:
– Moederbord (ASRock X299E-ITX/AC)
– IO-Shield (Blikken achterplaatje)
Geen antennes
Geen handleiding
Geen cd met stuurprogramma’s
Geen kabels


Unique Feature
ASRock USB 3.1 Gen2
– ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
– Premium 60A Power Choke
– Dr. MOS
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
– Matte Black PCB
– High Density Glass Fabric PCB
Intel® Dual Band Wireless-AC 8265 (AC Wave 2 + BLE BT4.2)
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop


CPU
– Supports Intel® Core™ X-Series Processor (79xx, 78xx Series) for the LGA 2066 Socket*
– Digi Power design
– 7 Power Phase design
– Supports Intel® Turbo Boost Max Technology 3.0
– Supports ASRock Hyper BCLK Engine III

*Supports 28 and 44 PCIe lane processors (6-core and above) only. 16 PCIe lane processors (4-core) are not supported.


Chipset
– Intel® X299


Memory
– Quad Channel DDR4 Memory Technology
– 4 x DDR4 SO-DIMM Slots
– Supports DDR4 4000+(OC)* / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
– Max. capacity of system memory: 128GB**
– Supports Intel® Extreme Memory Profile (XMP) 2.0

*Intel® X299 does not support 1Rx16 memory modules.
The maximum memory frequency supported may vary by processor type.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.1 Compliant wake up events
– SMBIOS 3.0 Support
– CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, Voltage Multi-adjustment


Graphics
– n/a


Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection
– Supports Purity Sound™ 4
– Nichicon Fine Gold Series Audio Caps
– 120dB SNR DAC with Differential Amplifier
– NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
– Pure Power-In
– Direct Drive Technology
– Impedance Sensing on Rear Out port
– Gold Audio Jacks
– 15μ Gold Audio Connector
– Supports DTS Connect


LAN
– Gigabit LAN 10/100/1000 Mb/s
– 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Dual LAN with Teaming*
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

*Teaming is supported on Windows® 10 RS2, RS3 and RS4.


Wireless LAN
– Intel® Dual Band Wireless-AC 8265
– Supports IEEE 802.11a/b/g/n/ac
– Supports Dual-Band (2.4/5 GHz with 80Mhz bandwidth and MU-MIMO)
– Supports high speed wireless connections up to 867Mbps
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 4.2 / 3.0 + High speed class II


Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
– 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)

*Supports PCIe riser cards to extend one x16 slot to two x8 slots


Storage
– 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
– 2 x Ultra M.2 Sockets (M2_2 and M2_3), support M Key type 2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

*Supports Intel® Optane™ Technology M10 Series (M2_1)
Supports NVMe SSD as boot disks
Supports Virtual RAID On CPU (M2_2 and M2_3)


Connector
– 1 x Virtual RAID On CPU Header
– 1 x TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 1 x CPU Fan Connector (4-pin)**
– 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
– 1 x Rear Button Switch (A: Clear CMOS Button; B: Power Button)

*Supports in total up to 12V/3A, 36W LED Strip

**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.

****CPU_OPT/W_PUMP and CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.

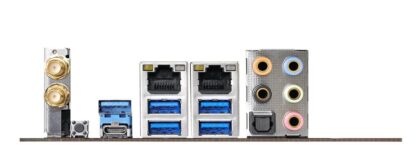

Rear Panel I/O
– 2 x Antenna Ports
– 1 x Optical SPDIF Out Port
– 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)
– 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)
– 4 x USB 3.1 Gen1 Ports (ASMedia ASM1074 Hub) (Supports ESD Protection)*
– 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– 1 x Clear CMOS Button / Power Button
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

*If you remove X299E-ITX REAR card, USB 3.1 Gen1 ports and RJ-45 LAN Ports will not work.


Software and UEFI
Software
– ASRock A-Tuning
– ASRock RGB LED
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories
–  I/O Shield


Hardware Monitor
– Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis Fans
– Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis Fans
– Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis Fans
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA

Form Factor
– Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– 10 Layer PCB


OS
– Microsoft® Windows® 10 64-bit


Certifications
– FCC, CE, WHQL
– ErP/EuP ready (ErP/EuP ready power supply is required)

Specificaties

Gewicht 1 kg
Intel

Socket 2066

Merk

Asrock

Formaat

Mini-ITX

Chipset

Intel X299

Geheugentype

DDR4-SO-Dimm

Aantal geheugenslots

4

Maximale geheugengrootte

128 GB

Aansluitingen

2x RJ-45 LAN, USB 2.0, USB 3.1 Gen1, USB 3.1 Gen2 Type-A, USB 3.1 Gen2 Type-C, Wireless LAN

Opslag interfaces

Serial ATA-600, Ultra M.2 Socket

Interfaces

PCI-e 3.0 x16

Socket

Model

X299E-ITX/AC

Geschikt voor

Gaming

Bijzonderheden

Wifi

Pakketinhoud

Moederbord en I/O-Shield

Lengte

17 cm

Breedte

17 cm

ASRock X299E-ITX/AC

Gratis verzending

  • Ondersteunt Intel® Core ™ X-serie processor
  • Digitale PWM, Dr. MOS
  • Ondersteunt 4 SO-DIMM’s Quad Channel, DDR4 4000+(OC)
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
    Ondersteunt Purity Sound™ 4 & DTS Connect
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 2 Ultra M.2 (PCIe Gen3 x4)
  • 2 USB 3.1 Gen2 10Gb/s (1 Type-A + 1 Type-C), 6 USB 3.1 Gen1 (2 voor, 4 achter)
  • Dubbele Intel® Gigabit LAN
  • Intel® 2T2R dual-band 802.11ac wifi + BT v4.2-module, 1 ASRock wifi 2,4/5 GHz-antenne
  • ASRock RGB LED-header
