Product informatie

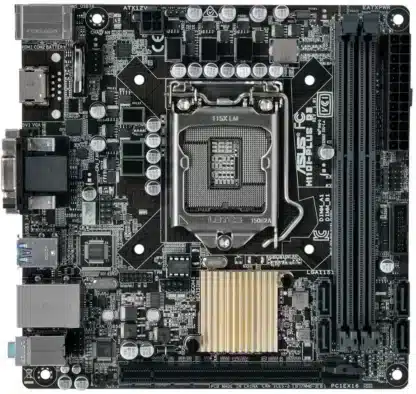

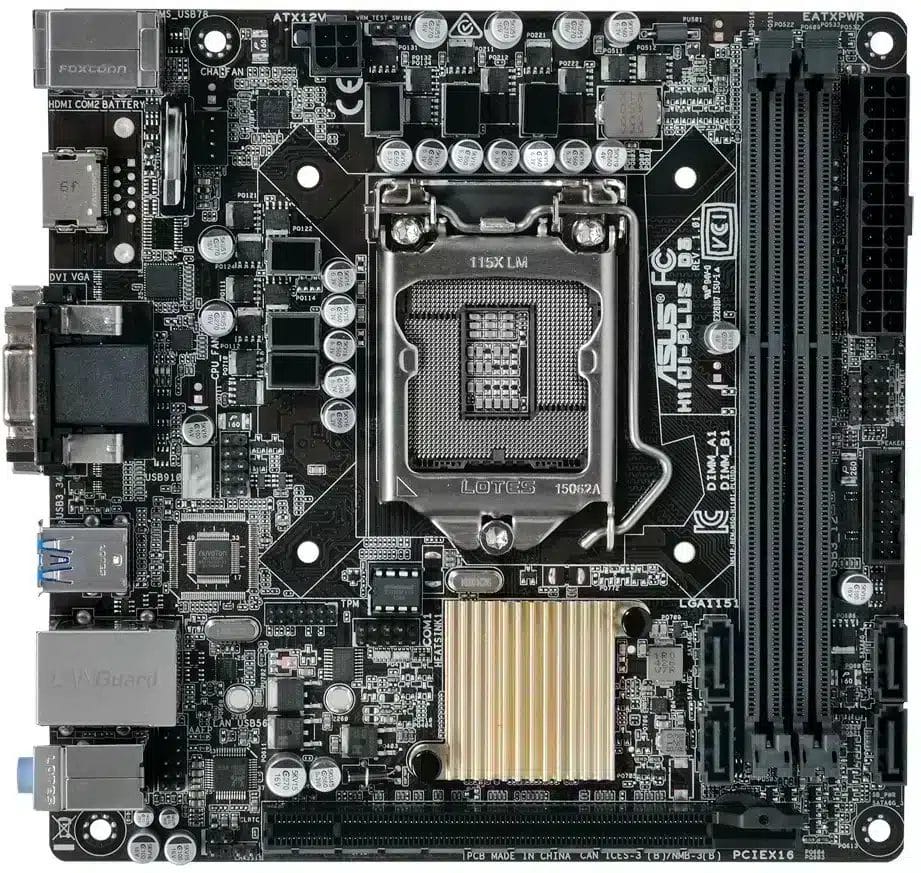

De Asus H110I-PLUS D3 is een Mini-ATX Socket 1151 moederbord gebaseerd op de Intel H110 chipset. Het bord dient gecombineerd te worden met DDR3 geheugen, waarvoor 2 sloten beschikbaar zijn met een maximale capaciteit van 32GB. In totaal heeft de Asus H110I-PLUS D3 4 Serial ATA aansluitingen voor harddisks en SSD’s. De onboard geluidskaart biedt 7.1 kanaals geluid en is gebaseerd op een Realtek ALC887 chip.

Eigenschappen: Moederbord – Asus H110I-PLUS D3 – Socket 1151 – Mini-ATX, Intel H110 Express – 2x DDR3 DIMM, Realtek ALC887 – VGA – DVI – HDMI – LAN, PCI Express x16 – PCI-e x16, SATA-600 – USB 2.0/3.1

Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers

pakketinhoud:
– Moederbord (Asus H110I-PLUS D3)
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels

CPU
Intel® for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset
Intel® H110

Memory
2 x DIMM, Max. 32GB, DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory
Dual-channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)

Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
– Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 2 displays simultaneously

Expansion Slots
1 x PCIe 3.0/2.0 x16

Storage
Intel® H110 chipset :
4 x SATA 6Gb/s port(s)

LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Audio
Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *1
– Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback

USB Ports
Intel® H110 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® H110 chipset :
6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board)

Special Features
ASUS 5X Protection II :
– ASUS LANGuard – 2.5X higher surge tolerance
– ASUS Overvoltage Protection – World-class circuit-protecting power design
– ASUS DIGI+ VRM – 6 Phase digital power design
– ASUS DRAM Overcurrent Protection – Prevents damage from short circuits
– ASUS Stainless-Steel Back I/O – 3X corrosion-resistance for greater durability

ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
– Anti-Surge
– USB 3.0 Boost
– Mobo Connect
– PC Cleaner
ASUS Quiet Thermal Solution :
– ASUS Fan Xpert
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– Push Notice
ASUS Q-Design :
– ASUS Q-DIMM
100% All High-quality Conductive Polymer Capacitors
Media Streamer

Operating System Support
Windows® 10
Windows® 8.1
Windows® 7 *2

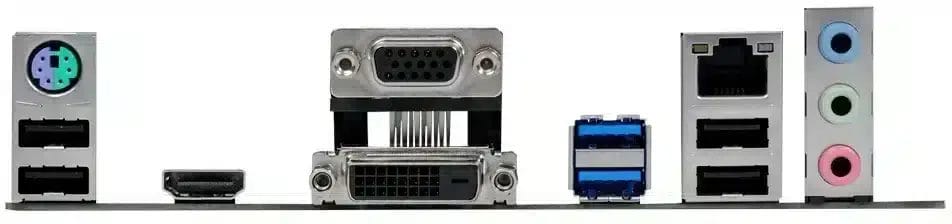

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 (blue)
4 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector

Accessories
I/O Shield

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc

Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
