Product informatie

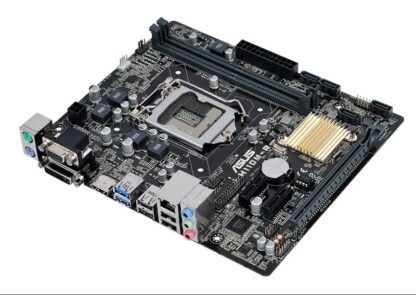

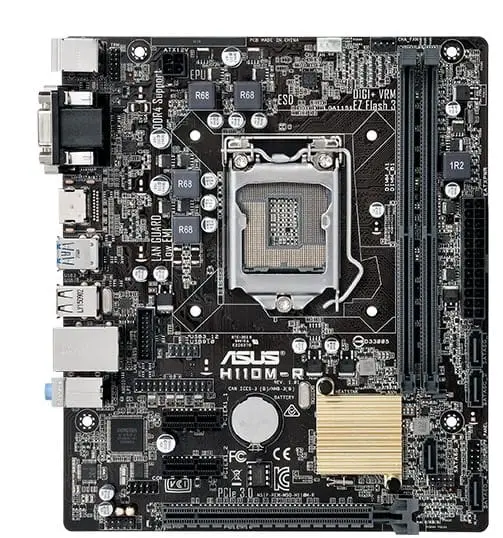

De Asus H110M-R is een Micro ATX Socket 1151 moederbord gebaseerd op de Intel H110 chipset. Het bord dient gecombineerd te worden met DDR4 geheugen, waarvoor 2 sloten beschikbaar zijn. De onboard geluidskaart biedt 7.1 kanaals geluid en is gebaseerd op een Realtek ALC887 chip.

Eigenschappen: Moederbord – M-ATX | Socket 1151 6th, 7th Gen | DDR4 | Intel® H110 Chipset | DVI-D | VGA (D-Sub)| HDMI | USB 3.0 | USB2.0 | PCI-e 3.0 x1 | PCI-e 3.0 x16 | Sata-600

Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers

Product: Asus H110M-R
Socket: Socket 1151
Geschikt voor: 6e en 7e generatie processoren
Categorie: Moederborden
Merk: ASRock
EAN: 0889349345207, 4712900345209
Staat: Used
SKU: 90MB0QN0-M0ECY0, H110M-R
Garantie: 6 Maanden

pakketinhoud:
– Moederbord (Asus H110M-R)
– IO-Shield (blikken achterplaatje)
– geen handleiding
– geen driver-cd
– geen kabels

CPU
LGA1151 socket for 6th Generation Intel® Core™ i7 / i5 / i3, Pentium®, and Celeron® processors*
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0**
* Refer to www.asus.com for Intel® CPU support list
** The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset
Intel® H110 Chipset

Memory
2x DIMM, max 32 GB, DDR4 2133 MHz, non-ECC, un-buffered memory*
Dual-channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
** Due to Intel® chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz.
*** The supported maximum memory frequency varies with the processor.

Expansion slots
1 x PCI Express 3.0/2.0 x16 slot (@ x16 mode)
2 x PCI Express 2.0 x1 slots

Graphics
Integrated graphics processor
– Intel® HD Graphics support Multi-VGA output support: HDMI, DVI-D, D-Sub ports
– Supports HDMI with maximum resolution 4096 x 2160 @24Hz / 2560 x 1600 @60Hz
– Supports DVI-D with a maximum resolution of 1920 x 1200 @ 60Hz
– Supports D-Sub with maximum resolution 1920 x 1200 @60Hz
Supports up to 2 displays simultaneously Maximum shared memory of 1024 MB

Storage
Intel® H110 Chipset and Intel® Rapid Storage Technology 14 support*
– 4 x SATA 6.0 Gb/s ports (gray)
* This function works depending on the CPU installed.

USB
Intel® H110 Chipset – supports ASUS USB 3.0 Boost
– 4 x USB 3.0 / 2.0 ports (2 ports at mid-board; 2 ports at the rear panel)
– 6 x USB 2.0 / 1.1 ports (2 ports at mid-board; 4 ports at the rear panel)

Audio
Realtek® ALC887 8-channel*High Definition Audio CODEC
– Supports jack-detection, and front panel jack-retasking
* Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

LAN
Realtek® 8111H Gigabit controller

ASUS unique features
ASUS 5X PROTECTION II
– ASUS LANGuard – Surge-protected networking
– ASUS Overvoltage Protection – World-class circuit-protecting power design
– ASUS DIGI+ VRM – 3+1 Phase digital power design
– ASUS DRAM Overcurrent Protection – Enhanced DRAM Overcurrent Protection
– ASUS Stainless Steel Back I/O – 3X more durable corrosion-resistant coating
Superb Performance
UEFI BIOS
– Most advanced options with fast response time
– ASUS EPU
Easy PC DIY
Safe motherboard mounting
– Component-free areas to minimize damage risk
Q-Design
– ASUS Q-DIMM
– ASUS Q-Slot
UEFI BIOS EZ Mode
– Featuring friendly graphics user interface
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
Optimized Cooling
– ASUS Fan Xpert
One Stop Control
AI Suite 3
Push Notice
– Monitor your PC status with smart devices in real time
PC Cleaner
– Fast and easy way to get rid of unnecessary junk files
Mobo Connect
– All-in-one control between your PC and smart device
Media Streamer
– Pipe music or movies from your PC to a smart TV
– Media Streamer app for portable smartphone/tablet, supporting iOS7 and Android 4.0 system
AI Charger

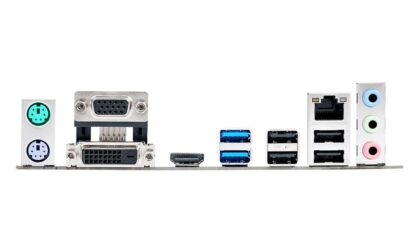

Rear panel I/O ports
1 x PS/2 keyboard port (purple) 1 x PS/2 mouse port (green)
2 x USB 3.0/2.0 ports 4 x USB 2.0/1.1 ports 1 x HDMI port
1 x DVI-D port 1 x D-Sub port
1 x LAN (RJ-45) port
3 x Audio jacks support 8-channel audio output
* Use a chassis with HD audio module in the front panel to support a 8-channel audio output.

Internal connectors
1 x USB 3.0 / 2.0 connector supports additional 2 USB 3.0/ 2.0 ports
1 x USB 2.0 / 1.1 connector supports additional 2 USB 2.0/ 1.1 ports
4 x SATA 6.0 Gb/s connectors
1 x 4-pin CPU fan connector for 4-pin PWM mode 1 x 4-pin Chassis Fan connector for 4-pin PWM
1 x Front panel audio connector (AAFP) 1 x COM header
1 x LPT header
1 x 24-pin EATX power connector 1 x 4-pin ATX 12V power connector 1 x 14-1 pin TPM header
1 x Speaker connector
1 x Chassis Intrusion header 1 x System panel connector

BIOS features
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 3.0,
ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, DMI 2.0, WOL by PME, PXE

OS support
Windows® 10 (64-bit),
Windows® 8.1 (64-bit), Windows® 7 (32-bit / 64-bit) *
* Please refer to ASUS official website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.

Form factor
uATX form factor: 8.3 in. x 7.1 in. (21.08 cm x 18.03 cm)
